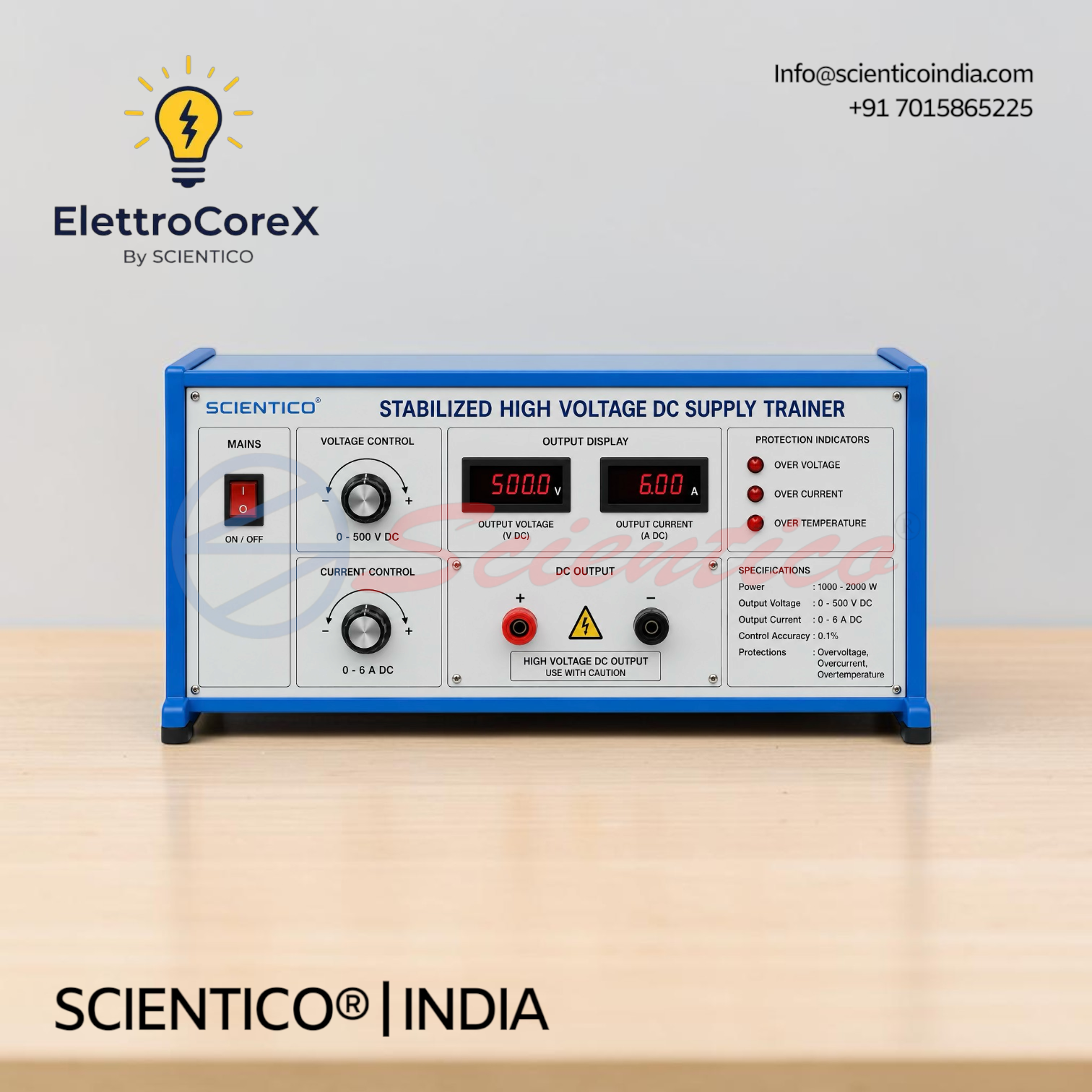

Stabilized High Voltage DC Supply Trainer | EL 2025
The Stabilized High Voltage DC Supply Trainer EL 2025 provides 0 to 500 V DC at 0 to 6 A DC with 0.1% control accuracy. It offers 1000 to 2000 W power and overvoltage, overcurrent, and overtemperature protection for laboratory use.
The Stabilized High Voltage DC Supply Trainer EL 2025 is a laboratory power supply with 0 to 500 V DC output. It delivers up to 6 A DC with 0.1% control accuracy and overvoltage, overcurrent, and overtemperature protection.
Product Overview
The EL 2025 stabilized high voltage DC supply trainer provides 0 to 500 V DC output at 0 to 6 A DC. Power rating is 1000 to 2000 W. Control accuracy is 0.1%. Overvoltage, overcurrent, and overtemperature protection safeguard the unit and connected circuits.
Stabilized High Voltage DC Supply Trainer EL 2025 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | EL 2025 |
| Power | 1000 to 2000 W |
| Output Voltage | 0 to 500 V DC |
| Output Current | 0 to 6 A DC |
| Control Accuracy | 0.1% |
| Protection | Overvoltage, overcurrent, overtemperature |
Technical Data
Output:
- Voltage: 0 to 500 V DC
- Current: 0 to 6 A DC
- Power: 1000 to 2000 W
Control:
- Control accuracy: 0.1%
Protection:
- Overvoltage protection
- Overcurrent protection
- Overtemperature protection
Key Features
- High Voltage Output: 0 to 500 V DC for high-voltage experiments
- Stabilized Supply: 0.1% control accuracy
- Current Capacity: 0 to 6 A DC output
- Multi-Level Protection: Overvoltage, overcurrent, and overtemperature safeguards
- Power Range: 1000 to 2000 W
Experiments
- High voltage DC supply characterization
- Output regulation and accuracy study
- Protection function testing
Construction and Design
The EL 2025 trainer provides a stabilized DC output of 0 to 500 V and 0 to 6 A. Overvoltage, overcurrent, and overtemperature protection circuits are built in.
Scope of Delivery
- 1 Stabilized high voltage DC supply trainer EL 2025
Q: What output voltage does the Stabilized High Voltage DC Supply Trainer EL 2025 provide?
A: It provides 0 to 500 V DC.
Q: What current can the Stabilized High Voltage DC Supply Trainer EL 2025 deliver?
A: It delivers 0 to 6 A DC.
Q: What control accuracy does the Stabilized High Voltage DC Supply Trainer EL 2025 offer?
A: Control accuracy is 0.1%.
Q: What protection does the Stabilized High Voltage DC Supply Trainer EL 2025 include?
A: Overvoltage, overcurrent, and overtemperature protection are included.
