Batch Cooling Crystallization Apparatus | OperatiX – 02
The Batch Cooling Crystallization Apparatus OperatiX – 02 carries out batch crystallization using a jacketed glass crystallizer with a 1 liter capacity. This Batch Cooling Crystallization Apparatus features a variable speed stirrer, temperature and conductivity sensors, and a sieve set for crystal size analysis. It supports both batch and continuous operation modes. Optional DAQ software enables measurement and calculation of results.
The Batch Cooling Crystallization Apparatus OperatiX – 02 carries out batch crystallization by filling the crystallizer once with solute and solvent to obtain a supersaturated solution and crystals. This Batch Cooling Crystallization Apparatus studies the cooling crystallization process of substances whose solubility varies with temperature. It includes a jacketed glass crystallizer, stirrer, and temperature and conductivity sensors.
Product Overview
The process of crystallization is typically used to clean up substances so that the components of a solution may be separated. To crystallize a solute, a solution must achieve a supersaturated state. A substance, referred to as a solute, must be dissolved in a solution to the point where the solution is unable to dissolve any more solute.
To create a supersaturated solution, one of several techniques can be employed: by evaporation, by cooling, or by adding aggregates. It is a cooling crystallization unit, the Crystallization Unit. As a result, experiments on crystallization can be carried out using constituents whose solubility varies with temperature. The cooling method’s reduced energy costs are one of its key benefits.
A reactor used for crystallization is known as a crystallizer. A crystallizer can be run continuously or in batches. The study of the cooling crystallization process of substances whose solubility varies with temperature is the focus of this section. This Batch Cooling Crystallization Apparatus is designed to carry out batch crystallization, which entails filling the crystallizer once with the solute and solvent before obtaining a supersaturated solution and crystals from it.
A crystallizer, which is essentially a jacketed chemical reactor, is part of this apparatus. The reaction temperature is managed by a bath located outside the crystallizer. A stirrer that is situated on the upper side of the crystallizer stirs the fluid. The temperature of the solution inside the crystallizer can always be determined thanks to a temperature sensor on the upper side of the device. The device also has a conductivity sensor, which can be used to determine the solution’s conductivity as necessary.
Heating is needed to dissolve a higher concentration of solute at high temperatures in order to create the supersaturated solution. Water for the crystallizer’s jacket is supplied by a thermostatic bath. Its control may be carried out using software (optional) or a PID. The crystallization stage begins when a supersaturated solution at a high temperature is attained. Cold or room temperature water is introduced for that function. A pressure regulating valve that maintains the minimum pressure is part of the device. With the filter set included with the machine, a sample of the collected product is examined, which can be used to determine the size of created crystals. Additionally, the device can function as a continuous feeding unit and operate as a continuous crystallization unit.
Batch Cooling Crystallization Apparatus OperatiX – 02, Technical Specifications
| Specification | Detail |
|---|---|
| Unit Type | Floor standing unit with castors |
| Frame | Anodized aluminum frame and panels made of painted steel |
| Metallic Elements | Main metallic elements made of steel |
| Crystallizer | Jacketed reactor made in glass (1 liter capacity), includes temperature sensors and stirrer, batch operation |
| Stirrer | Double blade variable speed stirrer |
| Water Flow | Water flow meter included |
| Valves | Allow water circulation according to process (heating and cooling) |
| Thermocouples | K type, located at key points of the system |
| Conductivity Measurement | Conductivity cell to measure the solution conductivity |
| Sieve Set | Three sieves of different light size |
| Crystal Collection | Vessel to collect the crystals |
| Electrical Protection | Protection devices for the electric circuits |
Technical Data
Feed Tank
| Parameter | Value |
|---|---|
| Type | Double jacketed |
| Material | Glass |
| Capacity | 5L |
Crystallization Tank
| Parameter | Value |
|---|---|
| Type | Double jacketed |
| Material | Glass |
| Capacity | 1L |
Feed Pump
| Parameter | Value |
|---|---|
| Type | Peristaltic |
| Flow | 0~500ml/min |
| Speed | Variable |
Stirrer
| Parameter | Value |
|---|---|
| Speed | 0~300rpm |
| Blade | 2 |
| Quantity | 2 |
Flowmeter
| Parameter | Value |
|---|---|
| Range | 1~7lpm |
Sieve Set
| Parameter | Value |
|---|---|
| Size | 0.5mm, 1mm, 2mm |
Beaker
| Parameter | Value |
|---|---|
| Capacity | 2L |
Conductivity Sensor
| Parameter | Value |
|---|---|
| Range | 0~2000μS/cm |
Measuring Ranges
| Parameter | Value |
|---|---|
| Thermocouple | 4x -100°C~400°C |
| Conductivity | 0~200mS/cm |
| Flowmeter | 1~7lpm |
Key Features
- Crystallizer: jacketed glass reactor, 1 liter capacity, batch operation
- Feed Tank: double jacketed, glass, 5L capacity
- Stirrer: double blade, variable speed, 0~300rpm, 2 stirrers
- Feed Pump: peristaltic, 0~500ml/min variable speed
- Temperature Monitoring: K type thermocouples at key system points
- Conductivity Monitoring: conductivity cell, range 0~2000μS/cm
- Crystal Sizing: sieve set with 0.5mm, 1mm, and 2mm sizes
- Unit Design: floor standing with castors, anodized aluminum frame, painted steel panels
- Operation Modes: batch and continuous crystallization, demonstrated on this Batch Cooling Crystallization Apparatus
- Software: optional DAQ software for measurement and calculation
Experiments
- Understanding the principles of solution cooling crystallization
- Study of crystal size distribution
- Batch and continuous operation
- Obtaining crystals by the cooling method
- Demonstration of the effects of varying the following parameters on the crystallization process: concentration of solute, stirring level, cooling temperature
- Solute supply manually (batch mode)
Construction and Design

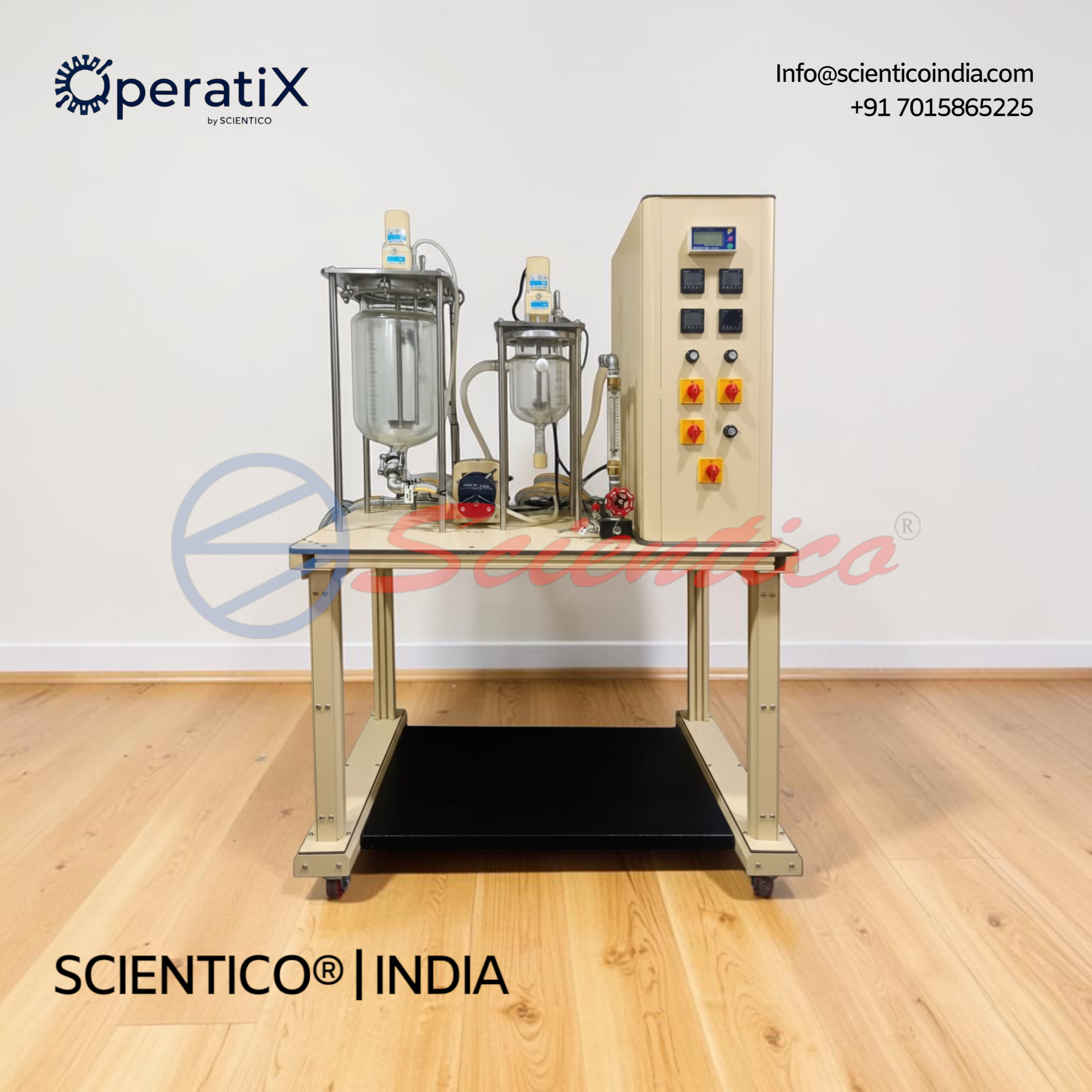

The Batch Cooling Crystallization Apparatus OperatiX – 02 is a floor standing unit with castors, built with an anodized aluminum frame and panels made of painted steel. Main metallic elements are made of steel. The crystallizer is a jacketed glass reactor with 1 liter capacity, fitted with temperature sensors and a stirrer for batch operation. A double blade variable speed stirrer, with 2 stirrers rated 0 to 300rpm, agitates the fluid. A feed tank, double jacketed and made of glass, holds 5L. A peristaltic feed pump delivers flow at 0 to 500ml/min with variable speed. K type thermocouples are located at key points of the system. A conductivity cell measures solution conductivity, ranged 0 to 2000μS/cm. Valves allow water circulation according to the process, whether heating or cooling. A set of three sieves, sized 0.5mm, 1mm, and 2mm, supports crystal size analysis. A vessel collects the crystals, and protection devices safeguard the electric circuits.
Software

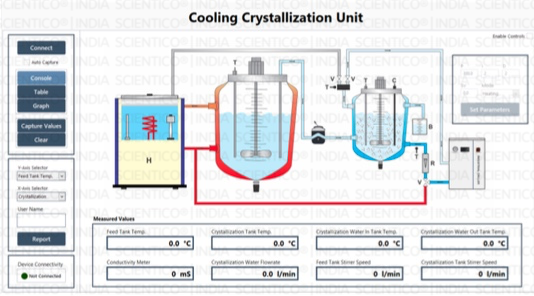

Software OperatiX – 02 (optional). DAQ software specially designed in National Instrument™, LABVIEW™ environment to measure and calculate the results of the apparatus. The software is optional; a set of electronic sensors is included when the software is used. The software can be run in any Windows™ environment.
Scope of Delivery
- 1 Experimental unit
- 1 Instruction manual
Q: What is the Batch Cooling Crystallization Apparatus OperatiX – 02 used for?
A: It is used to carry out batch crystallization, studying the cooling crystallization process of substances whose solubility varies with temperature.
Q: What is the crystallizer’s capacity?
A: The crystallizer is a jacketed glass reactor with a capacity of 1 liter.
Q: Can the device operate in continuous mode as well as batch mode?
A: Yes, in addition to batch operation, the device can function as a continuous feeding unit and operate as a continuous crystallization unit.
Q: What sieve sizes are included for crystal size analysis?
A: The sieve set includes three sieves sized 0.5mm, 1mm, and 2mm.
Q: Is data acquisition software available with this system?
A: Yes, Software OperatiX – 02 is available as an optional add-on, designed in National Instrument™ LABVIEW™ environment, and can run in any Windows™ environment.
