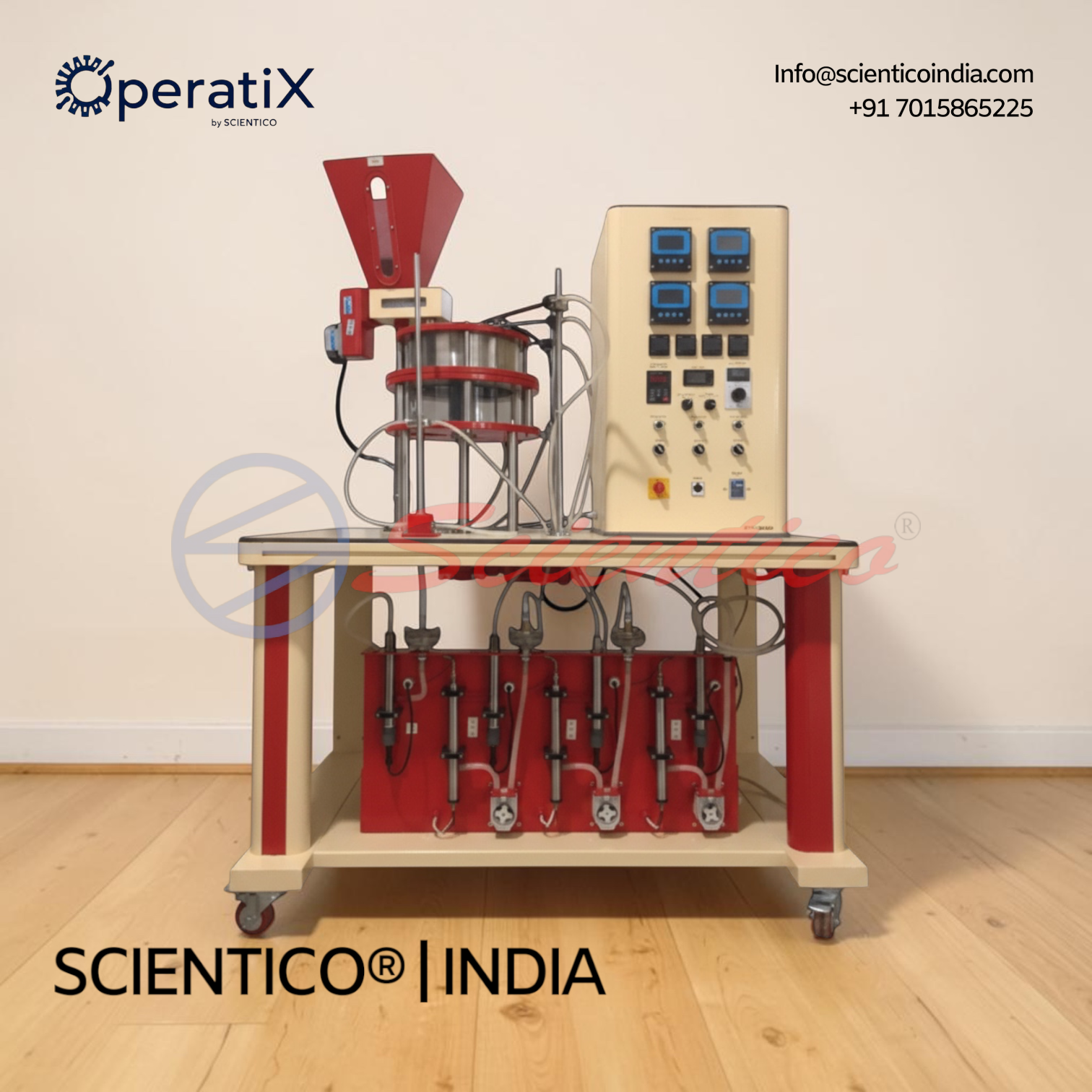

The Solid-Liquid Extraction OperatiX – 10 uses a revolving extractor with 9 cells to extract soluble components from a solid mixture. This Solid-Liquid Extraction system supports continuous and discontinuous processes across one, two, or three stages. It features PID-controlled solvent temperature, conductivity monitoring, and variable-speed pumps and conveyor. Optional DAQ software enables measurement and calculation of results.
The Solid-Liquid Extraction OperatiX – 10 enables the use of a rotating extractor to extract a soluble component from a solid mixture. This Solid-Liquid Extraction unit operates in continuous three-stage mode, using distilled water as the solvent applied to the extraction material. It supports both continuous and discontinuous extraction processes.
Product Overview
The Solid-Liquid Extraction OperatiX – 10 enables the use of a rotating extractor to extract a soluble component from a solid mixture. In the continuous three-stage mode, distilled water serving as the only solvent is provided from a tank to the first extraction stage’s sprayer, where it is applied to the solid combination (extraction material).
Potassium hydrogen carbonate, one of the substance’s soluble components, is absorbed by the solvent as it permeates the extraction material and enters the collecting segments. The following stage’s sprinkler receives the enhanced solvent from there. The extract, the solvent charged with the extracted component, is gathered in the extract tank after completing the final step. A spiral conveyor feeds the extraction material constantly into the revolving extractor’s cells.
The solvent and the extraction substance flow in opposite directions. After one rotation of the extractor, the extraction residue falls into a tank. To move between a 1- or 2-stage continuous mode, valves are used. When the extractor is halted, discontinuous mode is possible.
It is possible to supply the solvent using three pumps. For each stage, their speed can be changed individually. With PID controls, the temperature of the solvent can also be changed for each stage. Conductivity sensors are included in each stage to track the separation procedure. Software allows for viewing of all measured values (optional). This Solid-Liquid Extraction setup requires the solid combination to be prepared before the experiment: a salt solution is supplied to the carrier material, granular aluminum oxide, using potassium hydrogen carbonate dissolved in water. The carrier material is then dried after being soaked in the salt solution.
Solid-Liquid Extraction OperatiX – 10, Technical Specifications
| Specification | Detail |
|---|---|
| Process Modes | Continuous and discontinuous solid-liquid extraction using a revolving extractor |
| Stage Switching | Valve switching to one, two, or three stages |
| Extractor Speed Control | Potentiometer-controlled extractor revolving speed |
| Feed Rate Control | Variable-speed spiral conveyor for adjusting extraction material feed rate |
| Solvent Flow Control | Flow rate of solvent adjusted for each stage via pump speed |
| Temperature Control | PID controller adjusts solvent temperature at each stage |
| Tanks | Separate tanks for extraction residue, solvent, and extract |
| Data Capture | Under Windows through USB/LAN (optional) |
Technical Data
Extractor
| Parameter | Value |
|---|---|
| Cells | 9 |
| Rotor diameter | approx. 200mm |
| Speed | approx. 12h⁻¹ |
| Motor power consumption | approx. 100 W |
Spiral Conveyor
| Parameter | Value |
|---|---|
| Max. feed rate | approx. 20L/h |
| Motor power consumption | approx. 50W |
3 Peristaltic Pumps
| Parameter | Value |
|---|---|
| Max. flow rate | approx. 25L/h |
| Variable speed | 0~300min⁻¹ |
Heaters
| Parameter | Value |
|---|---|
| Quantity | 3 |
| Power consumption | 300W each |
Tanks
| Parameter | Value |
|---|---|
| Extraction material | approx. more than 5L |
| Extraction residue | approx. 5L |
| Solvent | approx. 20L |
| Extract | approx. 20L |
Measuring Ranges
| Parameter | Value |
|---|---|
| Flow rate | 0.025~0.5L/min |
| Conductivity | 0~200mS/cm |
| Temperature | -100°C ~400°C |
Key Features
- Extractor Cells: 9
- Rotor Diameter: approx. 200mm
- Process Modes: continuous and discontinuous solid-liquid extraction
- Stage Configuration: switchable between one, two, or three stages via valves
- Extractor Speed Control: potentiometer-controlled
- Feed Rate Control: variable-speed spiral conveyor
- Solvent Delivery: 3 peristaltic pumps, individually adjustable per stage
- Temperature Control: PID controller per stage, 3 heaters at 300W each
- Separation Monitoring: conductivity sensors at each stage
- Tank System: separate tanks for extraction material, residue, solvent, and extract
- Software: optional DAQ software for measurement and calculation on this Solid-Liquid Extraction unit
- Data Capture: optional USB/LAN capture under Windows
Experiments
- Basics of solid-liquid extraction
- Presentation of solid-liquid extraction as a continuous and discontinuous process
- Investigation of 1-, 2- and 3-stage processes
- The effect of solvent flow rate and temperature on extraction
- The effect of extractor rotation speed and extraction material feed rate on the extraction process
Construction and Design
The Solid-Liquid Extraction OperatiX – 10 (IUO-3707) is built around a revolving extractor with 9 cells, a rotor diameter of approximately 200mm, and a speed of approximately 12h⁻¹. A spiral conveyor with a maximum feed rate of approximately 20L/h feeds the extraction material into the extractor cells. Three peristaltic pumps, each with a maximum flow rate of approximately 25L/h and variable speed of 0 to 300min⁻¹, supply solvent to each stage. Three heaters, each consuming 300W, provide PID-controlled temperature regulation per stage. Conductivity sensors are fitted at each stage to monitor the separation procedure. Separate tanks hold the extraction material (more than 5L), extraction residue (approx. 5L), solvent (approx. 20L), and extract (approx. 20L). Valves allow switching between one, two, or three-stage continuous modes.
Software

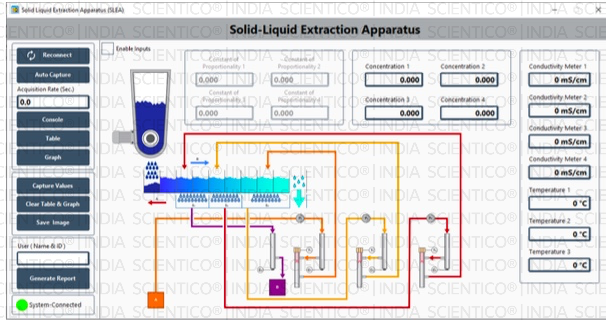

Software OperatiX – 10 (optional). DAQ software specially designed in National Instrument™, LABVIEW™ environment to measure and calculate the results of the apparatus. The software is optional; a set of electronic sensors is included when the software is used.
Scope of Delivery
- 1 Experimental unit
- 1 Set hose
- 1 Instructional manual
Q: What is the Solid-Liquid Extraction OperatiX – 10 used for?
A: It is used to extract a soluble component from a solid mixture using a rotating extractor, in continuous or discontinuous modes.
Q: How many extraction stages does the system support?
A: The system supports one, two, or three-stage continuous modes, switchable using valves.
Q: How is the temperature of the solvent controlled?
A: A PID controller adjusts the solvent temperature individually at each stage using one of the 3 heaters, each rated at 300W.
Q: Is data acquisition software available with this system?
A: Yes, Software OperatiX – 10 is available as an optional add-on, designed in National Instrument™ LABVIEW™ environment, and can run in any Windows™ environment.
Q: What is the measuring range for conductivity and temperature?
A: Conductivity is measured from 0 to 200mS/cm, and temperature from -100°C to 400°C.
