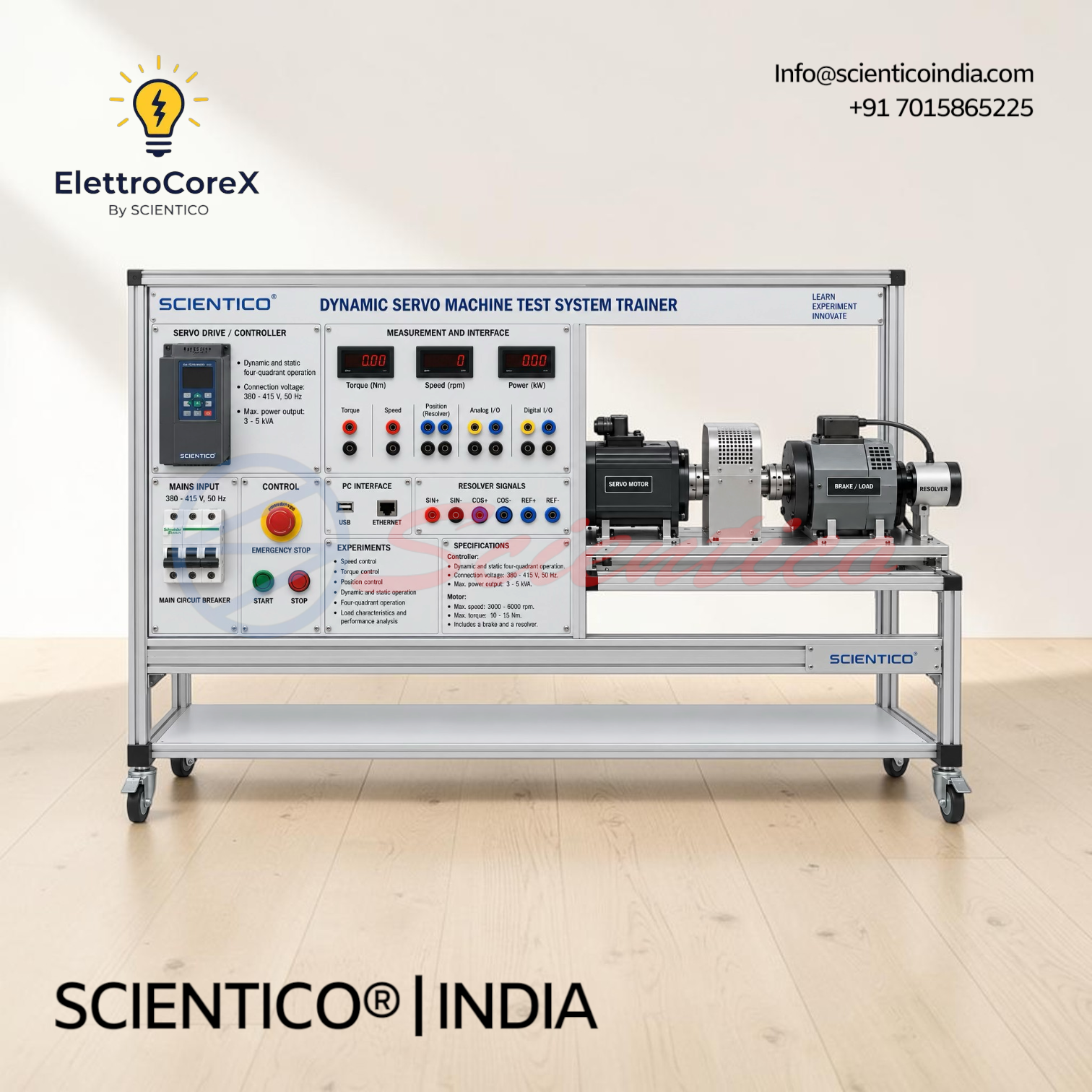

The Dynamic Servo Machine Test System Trainer EL 2041 tests servo machines in dynamic and static four-quadrant operation. It pairs a 3 to 5 kVA controller on a 380 to 415 V, 50 Hz supply with a servo motor rated 3000 to 6000 rpm and 10 to 15 Nm, including brake and resolver.
The Dynamic Servo Machine Test System Trainer EL 2041 is a laboratory system for testing servo machines under dynamic and static four-quadrant operation. It pairs a controller rated 3 to 5 kVA with a servo motor that includes a brake and resolver.
Product Overview
The EL 2041 dynamic servo machine test system trainer uses a controller that supports dynamic and static four-quadrant operation. The controller runs from a 380 to 415 V, 50 Hz supply and delivers 3 to 5 kVA maximum power output. The servo motor reaches 3000 to 6000 rpm with 10 to 15 Nm maximum torque. A brake and a resolver are included with the motor.
Dynamic Servo Machine Test System Trainer EL 2041 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | EL 2041 |
| Operation Mode | Dynamic and static four-quadrant |
| Controller Supply Voltage | 380 to 415 V, 50 Hz |
| Controller Maximum Power Output | 3 to 5 kVA |
| Motor Maximum Speed | 3000 to 6000 rpm |
| Motor Maximum Torque | 10 to 15 Nm |
| Motor Brake | Included |
| Motor Feedback | Resolver |
Technical Data
Controller:
- Operation: dynamic and static four-quadrant
- Supply: 380 to 415 V, 50 Hz
- Maximum power output: 3 to 5 kVA
Motor:
- Maximum speed: 3000 to 6000 rpm
- Maximum torque: 10 to 15 Nm
- Integrated brake
- Resolver feedback
Key Features
- Four-Quadrant Operation: Dynamic and static testing across all four quadrants
- Servo Performance Range: 3000 to 6000 rpm and 10 to 15 Nm maximum torque
- Integrated Braking: Motor includes a brake for controlled stopping and loading
- Position Feedback: Resolver provides motor position and speed feedback
- Power Output: 3 to 5 kVA controller capacity
Experiments
- Dynamic four-quadrant operation of servo machines
- Static four-quadrant operation of servo machines
- Speed and torque characteristics testing
- Servo motor feedback and braking studies
Construction and Design
The EL 2041 system pairs a four-quadrant controller with a servo motor. The controller connects to a 380 to 415 V, 50 Hz supply and delivers up to 5 kVA. The motor provides up to 10 to 15 Nm at 3000 to 6000 rpm and includes a brake and a resolver.
Scope of Delivery
- 1 Dynamic servo machine test system controller
- 1 Servo motor with brake and resolver
Q: What operating modes does the Dynamic Servo Machine Test System Trainer EL 2041 support?
A: The controller supports dynamic and static four-quadrant operation.
Q: What supply voltage does the Dynamic Servo Machine Test System Trainer EL 2041 require?
A: The controller connects to 380 to 415 V, 50 Hz.
Q: What feedback device does the motor use?
A: The motor includes a resolver.
Q: Does the motor include a brake?
A: Yes. A brake is included with the motor.
