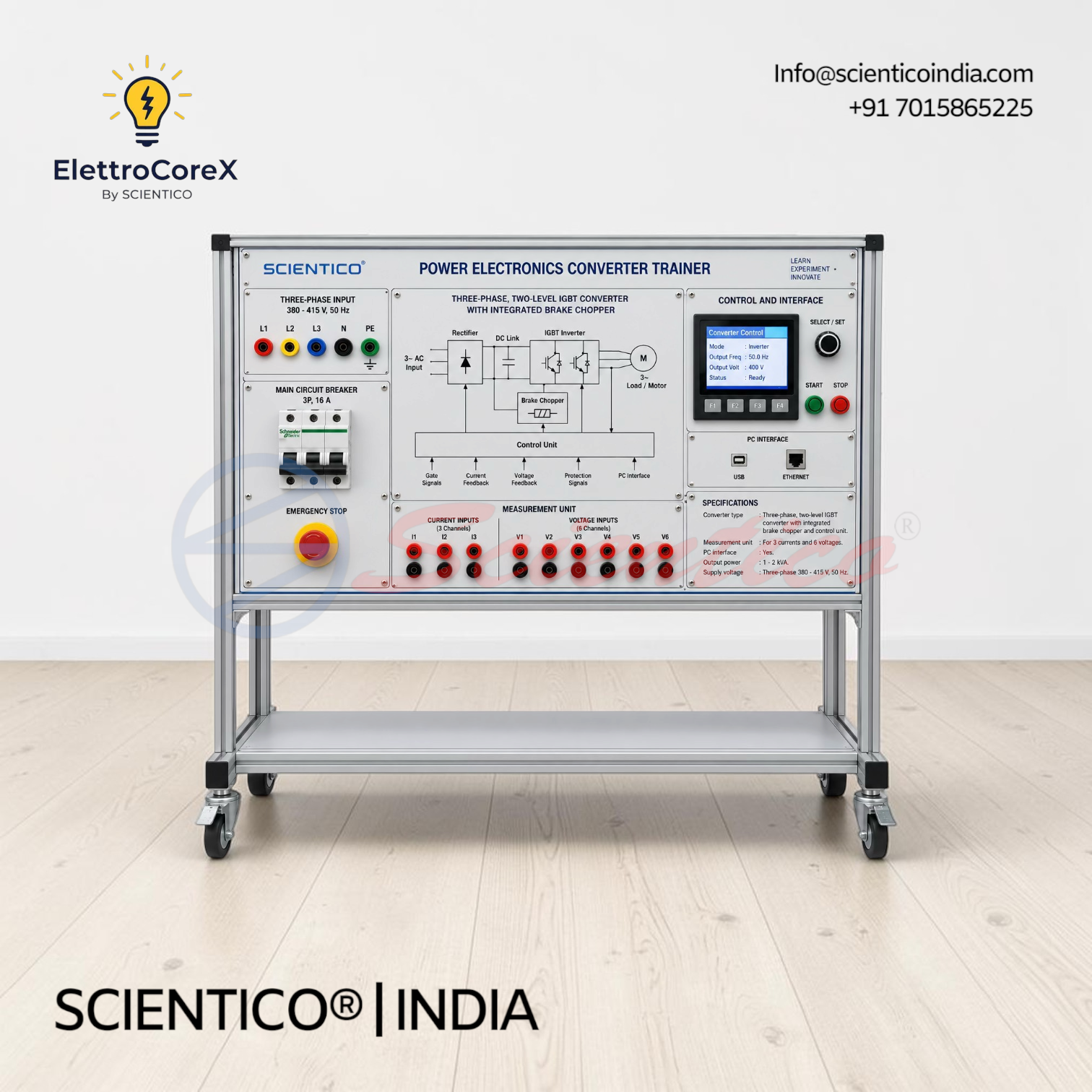

Power Electronics Converter Trainer | EL 2036
The Power Electronics Converter Trainer EL 2036 is a three-phase, two-level IGBT converter trainer with integrated brake chopper and control unit. It features 3-current and 6-voltage measurement, a PC interface, and 1 to 2 kVA output power from a 380 to 415 V, 50 Hz supply.
The Power Electronics Converter Trainer EL 2036 is a laboratory unit with a three-phase, two-level IGBT converter for power electronics experiments. It provides 1 to 2 kVA output power from a 380 to 415 V, 50 Hz three-phase supply.
Product Overview
The EL 2036 power electronics converter trainer uses a three-phase, two-level IGBT converter with integrated brake chopper and control unit. A measurement unit records 3 currents and 6 voltages. A PC interface supports data handling. Output power ranges from 1 to 2 kVA. The unit operates from a 380 to 415 V, 50 Hz three-phase supply.
Power Electronics Converter Trainer EL 2036 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | EL 2036 |
| Converter Type | Three-phase, two-level IGBT |
| Brake Chopper | Integrated |
| Control Unit | Integrated |
| Current Measurement | 3 channels |
| Voltage Measurement | 6 channels |
| PC Interface | Included |
| Output Power | 1 to 2 kVA |
| Supply Voltage | 380 to 415 V, three-phase |
| Supply Frequency | 50 Hz |
Technical Data
Converter:
- Topology: three-phase, two-level
- Switching devices: IGBT
- Integrated brake chopper
- Integrated control unit
Measurement:
- 3 current measurements
- 6 voltage measurements
Power:
- Output power: 1 to 2 kVA
- Supply: 380 to 415 V, 50 Hz, three-phase
Interface:
- Connection to personal computer
Key Features
- Two-Level IGBT Converter: Three-phase converter for power electronics studies
- Integrated Brake Chopper: Built-in brake chopper for regenerative energy handling
- Integrated Control Unit: Converter control within the unit
- Multi-Channel Measurement: 3 currents and 6 voltages measured
- PC Connectivity: Interface for computer-based control and data handling
- Output Power: 1 to 2 kVA
Experiments
- Three-phase two-level converter operation
- Brake chopper operation and function
- Current and voltage measurement and analysis
- Converter control via PC interface
Construction and Design
The EL 2036 trainer integrates a three-phase, two-level IGBT converter, brake chopper, and control unit in one assembly. A measurement unit captures 3 currents and 6 voltages. A PC interface connects the unit to a computer.
Scope of Delivery
- 1 Power electronics converter trainer EL 2036
Q: What type of converter does the Power Electronics Converter Trainer EL 2036 use?
A: It uses a three-phase, two-level IGBT converter with integrated brake chopper and control unit.
Q: What measurements does the Power Electronics Converter Trainer EL 2036 provide?
A: The measurement unit records 3 currents and 6 voltages.
Q: What output power does the Power Electronics Converter Trainer EL 2036 deliver?
A: Output power ranges from 1 to 2 kVA.
Q: What supply does the Power Electronics Converter Trainer EL 2036 require?
A: It requires a three-phase 380 to 415 V, 50 Hz supply.
