Pulleys Blocks (Fundamental of Statics) | ProDynami – 1326
The Pulleys Blocks (Fundamental of Statics) ProDynami – 1326 extends the Fundamental of Statics apparatus with 4-pulley, 6-pulley, and differential pulley block configurations. This Pulleys Blocks (Fundamental of Statics) unit demonstrates simple machine principles including force transmission, lifting work, and potential energy. It features anodized aluminum, ball bearing-mounted cable pulleys with clearly visible layout and cable routing. Experiment elements are tray-mounted for secure, stackable storage.
The Pulleys Blocks (Fundamental of Statics) ProDynami – 1326 is a supplementary set that extends the scope of experiments performed with the Fundamental of Statics apparatus. This Pulleys Blocks (Fundamental of Statics) unit compares different pulley blocks and their action as “simple machines.” It sets up on the panel of the base unit, with a line grid helping to readily determine force and distance.
Product Overview
Pulleys Block Supplementary set extends the scope of experiments which can be performed with Fundamental of Statics apparatus.
Comparison of different pulley blocks and their action as “simple machines.” The pulley blocks are set up on the panel of unit base unit of Fundamental of Statics. The line grid on the panel helps to readily determine the force and distance.

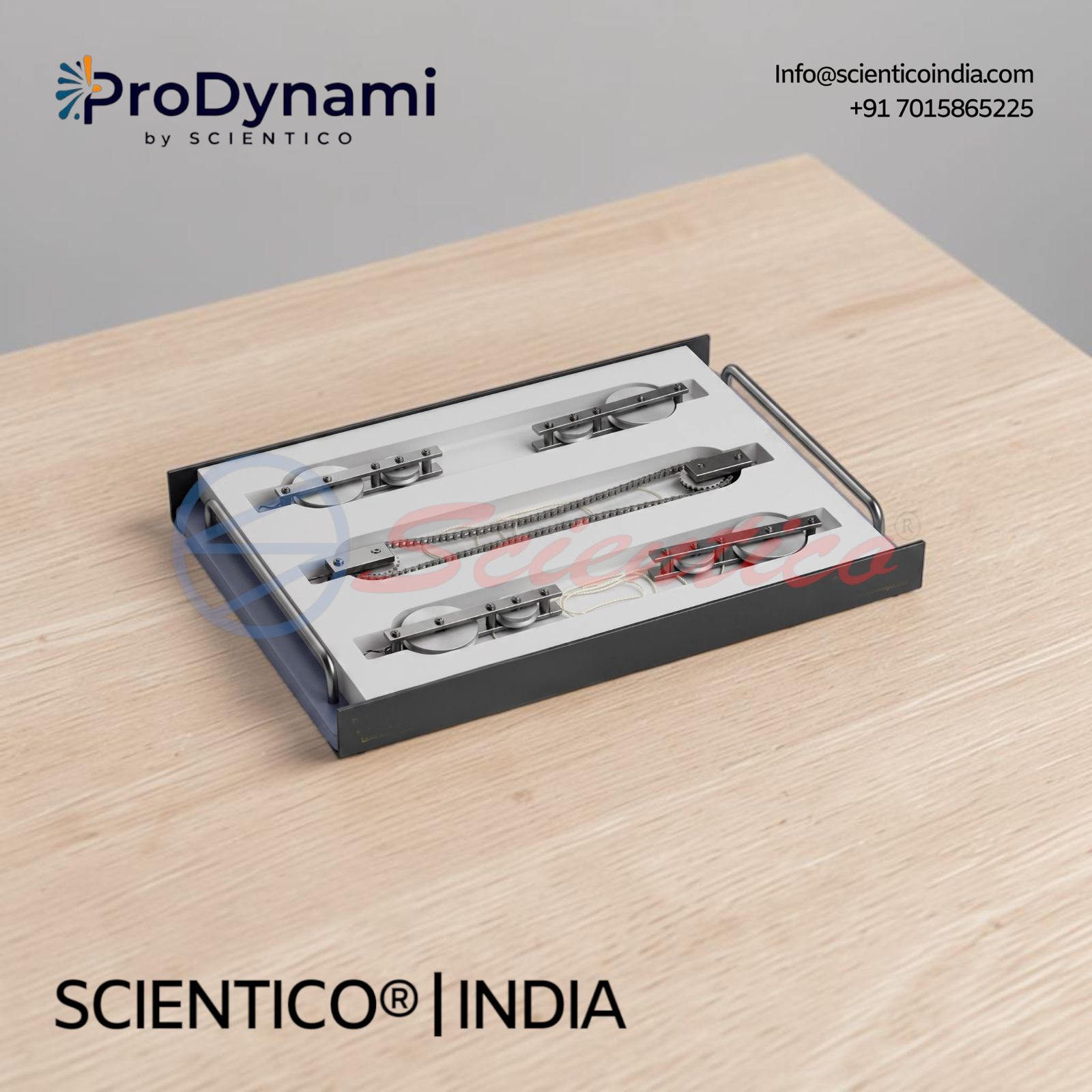

The pulley blocks are of a robust metal design. Built-in ball and sliding bearings ensure low-friction rotation. The details of the pulley layout and the cable routing are clearly visible on this Pulleys Blocks (Fundamental of Statics) unit. The various elements of the experiment are clearly laid-out and held securely on a tray. Multiple trays can be stacked as a space-saving storage option.
Pulleys Blocks (Fundamental of Statics) ProDynami – 1326, Technical Specifications
| Specification | Detail |
|---|---|
| Unit Type | Supplementary set for experimental unit Fundamental of Statics |
| Visibility | Pulley layout and cable routing clearly visible |
| Pulley Block Configurations | With 4 or 6 pulleys; differential block with roller chain |
| Cable Pulleys | Made of anodized aluminum, ball bearing-mounted |
Technical Data
| Parameter | Value |
|---|---|
| Pulleys, Nylon cord diameter | d=2mm |
| Roller chain | 6.0×2.8mm approximately |
| Chain wheels | Included |
| Pullers | Nylon cord, roller chain |
| Materials | Stainless steel or steel, galvanized |
| Cable pulleys | Made of anodized aluminum, ball bearing-mounted |
| Chain wheels, number of teeth | 18, 28, 38 |
Key Features
- Pulley Block Configurations: 4 pulleys, 6 pulleys, and differential block with roller chain
- Cable Pulleys: anodized aluminum, ball bearing-mounted for low-friction rotation
- Bearings: built-in ball and sliding bearings
- Nylon Cord: d=2mm diameter
- Roller Chain: approximately 6.0×2.8mm
- Chain Wheels: available with 18, 28, or 38 teeth
- Materials: stainless steel or galvanized steel for pullers
- Layout Visibility: pulley layout and cable routing clearly visible on this Pulleys Blocks (Fundamental of Statics) unit
- Storage: experiment elements held securely on a tray, stackable for space-saving storage
Experiments
- Set-up and principle of pulley blocks with 4 pulleys and with 6 pulleys; differential pulley block
- Principle of “simple machines”: force transmission, lifting work, and potential energy
Construction and Design
The Pulleys Blocks (Fundamental of Statics) ProDynami – 1326 is a supplementary set that sets up on the panel of the Fundamental of Statics base unit. Pulley blocks are of a robust metal design, with built-in ball and sliding bearings ensuring low-friction rotation. Cable pulleys are made of anodized aluminum and ball bearing-mounted. Nylon cord, with a diameter of d=2mm, and a roller chain, approximately 6.0×2.8mm, are used as pullers, made of stainless steel or galvanized steel. Chain wheels are available with 18, 28, or 38 teeth. The line grid on the panel helps to readily determine force and distance, with pulley layout and cable routing clearly visible. Experiment elements are held securely on a tray, with multiple trays stackable for space-saving storage.
Scope of Delivery
- 1 Experimental unit
Q: What is the Pulleys Blocks (Fundamental of Statics) ProDynami – 1326 used for?
A: It is a supplementary set used to extend the scope of experiments performed with the Fundamental of Statics apparatus, comparing different pulley blocks and their action as simple machines.
Q: What pulley block configurations are available?
A: Pulley blocks are available with 4 pulleys, 6 pulleys, and as a differential block with roller chain.
Q: What materials are the cable pulleys made of?
A: Cable pulleys are made of anodized aluminum and are ball bearing-mounted.
Q: What chain wheel sizes are available?
A: Chain wheels are available with 18, 28, or 38 teeth.
Q: How is the experiment set stored?
A: The various elements of the experiment are held securely on a tray, and multiple trays can be stacked for space-saving storage.
