Ratchet Mechanism | ProDynami 1374

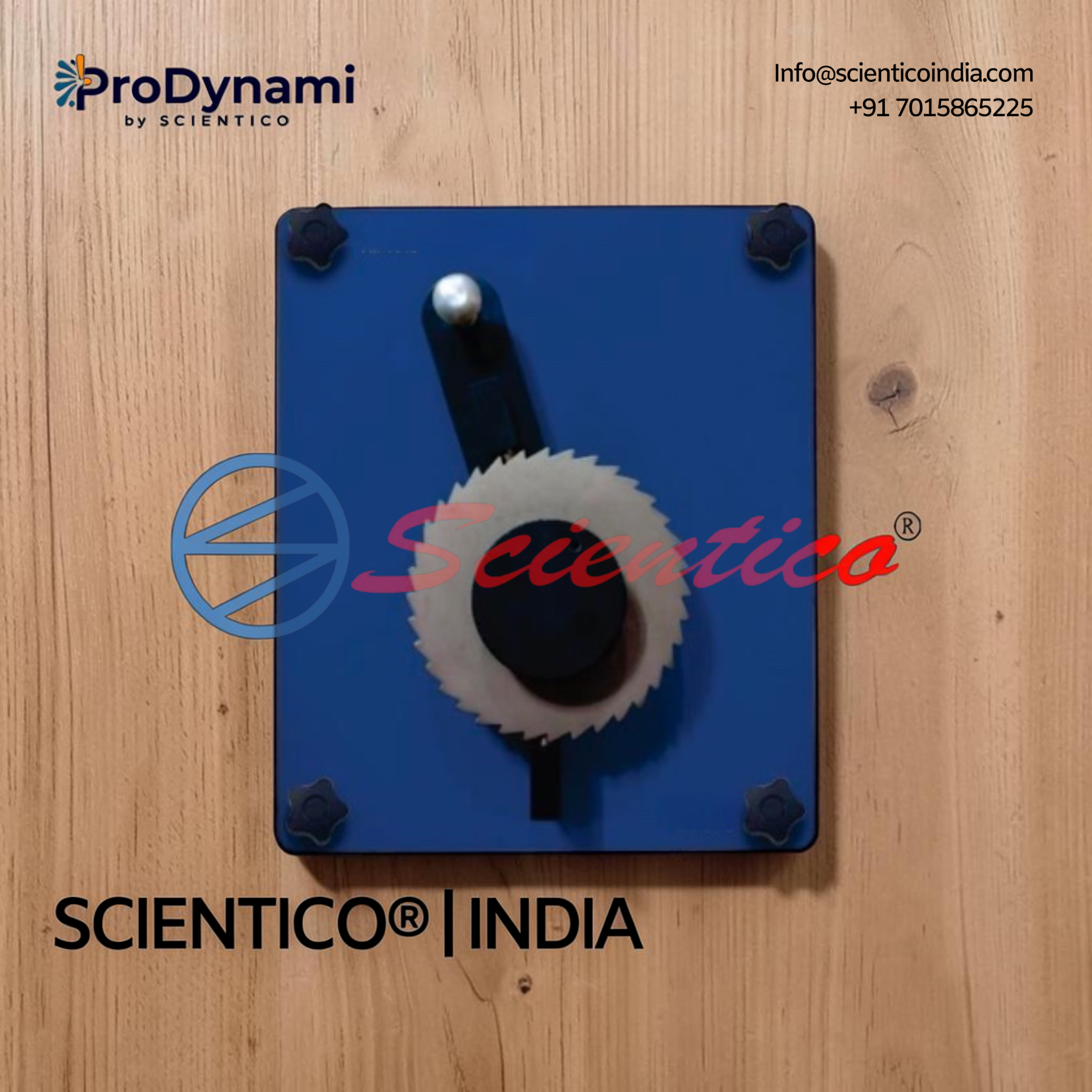

Ratchet Mechanism ProDynami 1374 demonstrates how ratchets limit rotary or linear motion to only one direction. This Ratchet Mechanism is composed of a round gear (or linear rack), a pawl, and a base, with tooth geometry featuring a ramp and sharp drop off to restrict reverse motion. The compact design needs only a small vertical wall to block movement in one direction. It is fitted on a Bakelite base board with rubber feet and is movable and easy to use.
The Ratchet Mechanism ProDynami 1374 demonstrates how ratchets limit rotary or linear motion to only one direction. This Ratchet Mechanism transmits intermittent rotary motion or permits a shaft to rotate in one direction but not in the opposite one.
Product Overview
The Ratchet Mechanism ProDynami 1374 is composed of three main parts: a round gear (or a linear rack), a pawl (also called a “click”), and a base (or mount). The geometry of the gear or rack is usually designed with a ramp feature on one side of the tooth leading to a sharp drop off, which restricts motion of the pawl when the linear or rotational direction is reversed. Most ratchet mechanisms are not very large, as only a small vertical wall is needed to prevent motion in one direction. The apparatus gives detailed information including the working of the ratchet mechanism. The apparatus is movable and very easy to use. This Ratchet Mechanism is fitted on a Bakelite base board with rubber feet.
Ratchet Mechanism ProDynami 1374 — Technical Specifications
| Parameter | Value |
|---|---|
| Main Components | Round gear (or linear rack), pawl (“click”), base (or mount) |
| Gear/Rack Geometry | Ramp feature on one side of tooth, leading to sharp drop off |
| Function of Geometry | Restricts pawl motion when linear or rotational direction is reversed |
| Mechanism Size | Compact, only a small vertical wall needed to prevent motion in one direction |
| Base Board Material | Bakelite |
| Base Feet | Rubber foots |
| Portability | Movable, easy to use |
Key Features
- Mechanism Type: Ratchet Mechanism limiting rotary or linear motion to one direction
- Core Components: Round gear (or linear rack), pawl (“click”), and base (or mount)
- Tooth Geometry: Ramp feature on one side leading to sharp drop off
- Motion Restriction: Prevents motion when direction is reversed
- Compact Design: Small vertical wall sufficient to block reverse motion
- Base Board: Bakelite material
- Base Support: Rubber foots
- Portability: Movable and easy to use
Construction and Design
The Ratchet Mechanism ProDynami 1374 is composed of three main parts: a round gear (or a linear rack), a pawl (also called a “click”), and a base (or mount). The geometry of the gear or rack is designed with a ramp feature on one side of the tooth leading to a sharp drop off. This geometry restricts motion of the pawl when the linear or rotational direction is reversed. Most ratchet mechanisms are not very large, as only a small vertical wall is needed to prevent motion in one direction. The mechanism is fitted on a Bakelite base board with rubber feet. The apparatus is movable and very easy to use. This Ratchet Mechanism gives detailed information on the working of ratchet-based motion control.
Scope of Delivery
- 1 Experimental Unit
- 1 Instruction manual
Q: What is the Ratchet Mechanism ProDynami 1374 used for?
A: It demonstrates how a ratchet mechanism transmits intermittent rotary motion or permits a shaft to rotate in one direction but not the opposite, and explains the working of ratchet-based motion limiting.
Q: What are the main components of the ratchet mechanism?
A: A round gear (or a linear rack), a pawl (also called a “click”), and a base (or mount).
Q: How does the ratchet restrict reverse motion?
A: The gear or rack geometry has a ramp feature on one side of the tooth leading to a sharp drop off, which restricts pawl motion when the direction is reversed.
Q: What is the base of the apparatus made of?
A: The mechanism is fitted on a Bakelite base board with rubber feet.
Q: What does the scope of delivery include?
A: 1 experimental unit and 1 instruction manual.
