Series and Parallel Pump Apparatus | FluidoSurge-X 192
A CE-certified hydraulic test bench for studying series and parallel pump configurations, combined H-Q characteristics, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.

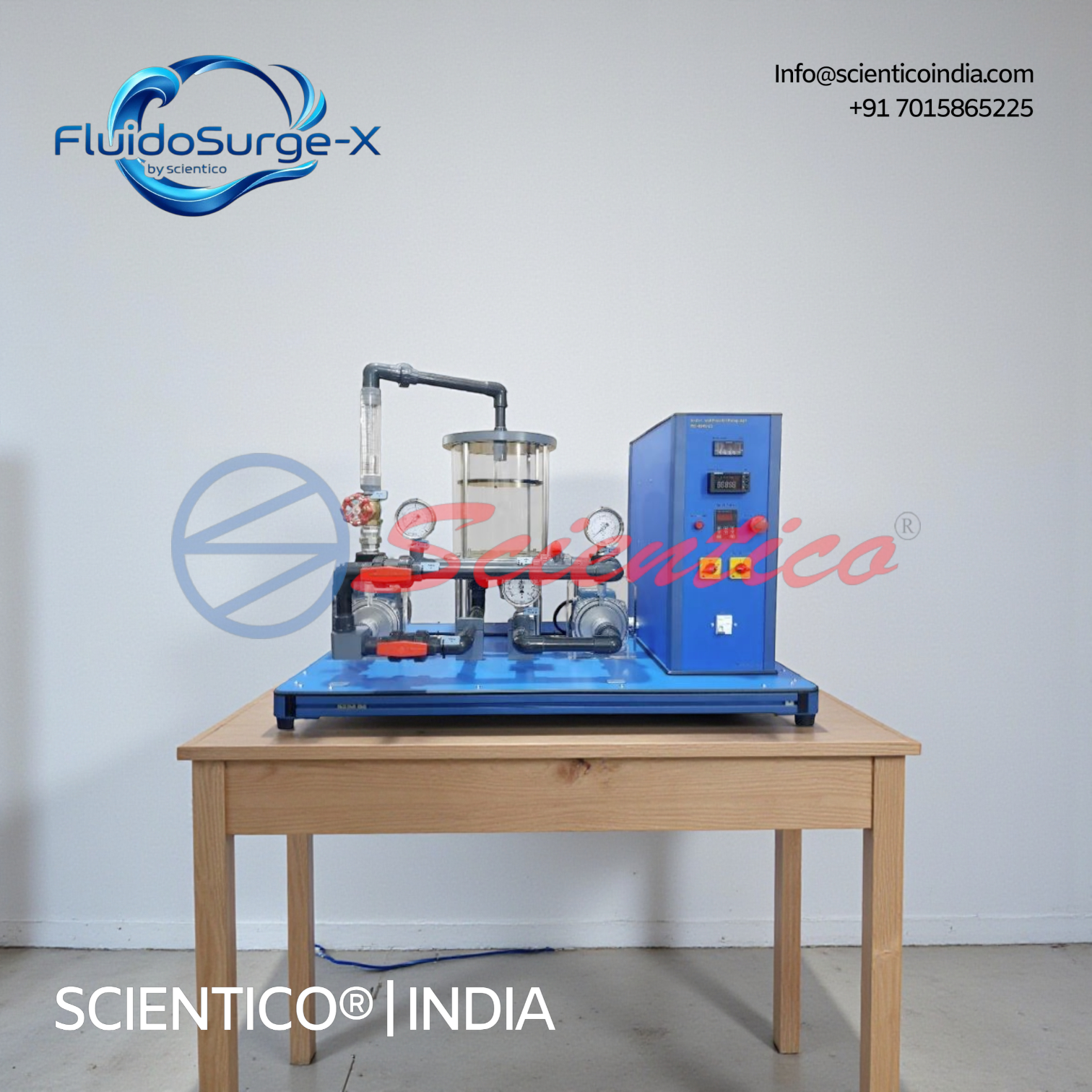

The Series and Parallel Pump Apparatus FluidoSurge-X 192 is designed for experimental study of centrifugal pump operation in single, series, and parallel configurations. It enables detailed analysis of head, discharge, and efficiency characteristics under controlled conditions. The system operates in a closed loop and supports variable speed operation. It is suitable for fluid mechanics and hydraulic machinery laboratories.
Product Overview
The SCIENTICO Series and Parallel Pump Apparatus FluidoSurge-X 192 is a comprehensive training unit for understanding centrifugal pump performance. The apparatus allows operation with one pump or two identical pumps arranged in series or in parallel using a selector switch. In series operation, the combined head increases while the discharge remains approximately constant. In parallel operation, the discharge increases while the head remains comparable to single pump operation. The unit supports evaluation of pump efficiency by relating electrical input, mechanical shaft power, and hydraulic output.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Model | FluidoSurge-X 192 |
| Type | Series and Parallel Pump Apparatus |
| Pump Type | Horizontal single stage centrifugal |
| Number of Pumps | 2 units (P1 and P2) |
| Maximum Flow Rate | Up to 100 L/min |
| Pump Speed Range | 0 to 3000 rpm for each pump |
| Maximum Head per Pump | 10 to 12 m |
| Operation Modes | Single pump, series, parallel |
| Selector Switch | Selection of single or dual pump operation |
| Circulation Tank | Transparent Plexiglass |
| Process Piping | Industrial PVC |
| Valves | Non ferrous |
| Base Structure | Stainless steel |
| Pressure Gauge Ranges | 0 to 2.5 bar (2 Nos), -1 to 1 bar (1 No) |
| Power Supply | 220 or 380 VAC, 3 phase, 50 or 60 Hz |
| Water Requirement | Laboratory main supply |
Key Features-
-
Study of centrifugal pump operation in single, series, and parallel modes
-
Variable speed control for both pumps
-
Closed loop circulation system for repeatable experiments
-
Transparent tank for visual monitoring of water level
-
Integrated indicators for flow rate, head, speed, and power
-
Industrial grade PVC piping with corrosion resistant valves
Applications-
-
Comparison of pump characteristic curves for single, series, and parallel operation
-
Determination of pump capacity and total head
-
Evaluation of pump efficiency and overall system efficiency
-
Study of energy conversion from electrical to hydraulic energy
-
Fluid mechanics and hydraulic machinery laboratory experiments
Construction & Design Details-
The apparatus is mounted on a stainless steel base with all components clearly arranged for instructional use. Two identical centrifugal pumps are connected through industrial PVC piping with non ferrous valves to allow flexible configuration. A selector switch enables quick change between operating modes. Pressure gauges and indicators are provided to measure suction pressure, delivery pressure, flow rate, speed, and power without external conversion.
Export & Supply Capability-
SCIENTICO manufactures the Series and Parallel Pump Apparatus FluidoSurge-X 192 for domestic and international supply. The unit is suitable for export to engineering colleges, universities, and technical training institutes. Standard packing and documentation are provided with each unit.
Q1. What pump configurations can be tested using this apparatus?
Single pump operation, two pumps in series, and two pumps in parallel can be tested.
Q2. What is the effect of series operation on pump performance?
In series operation, the pressure head increases while the discharge remains approximately constant.
Q3. What is the effect of parallel operation on pump performance?
In parallel operation, the discharge increases while the pressure head remains similar to single pump operation.
Q4. Can pump efficiency be determined using this apparatus?
Yes, pump efficiency and overall efficiency can be evaluated from measured head, discharge, speed, and power.
Q5. Is data acquisition software available with this system?

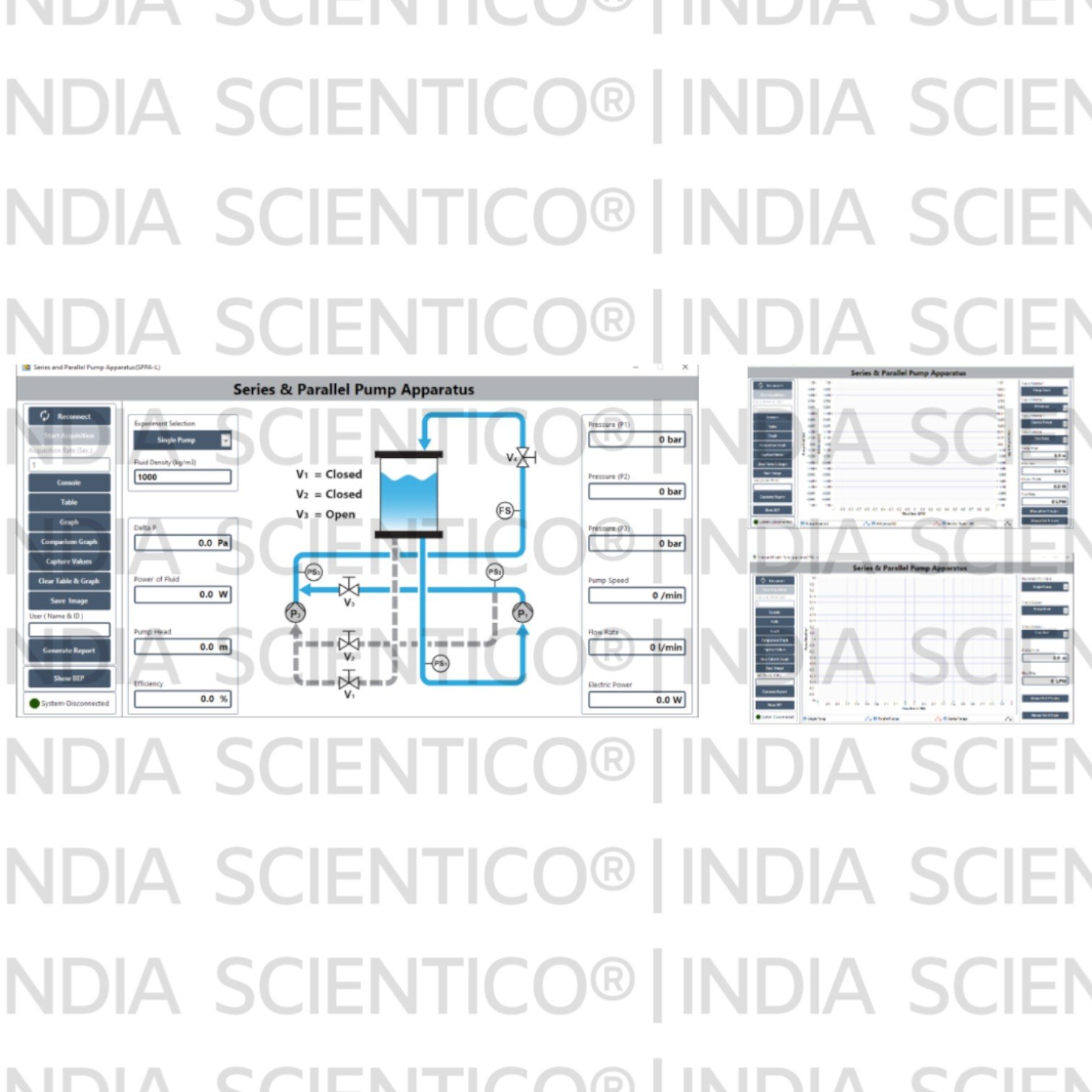

Optional DAQ software is available for data acquisition, processing, and report generation.
