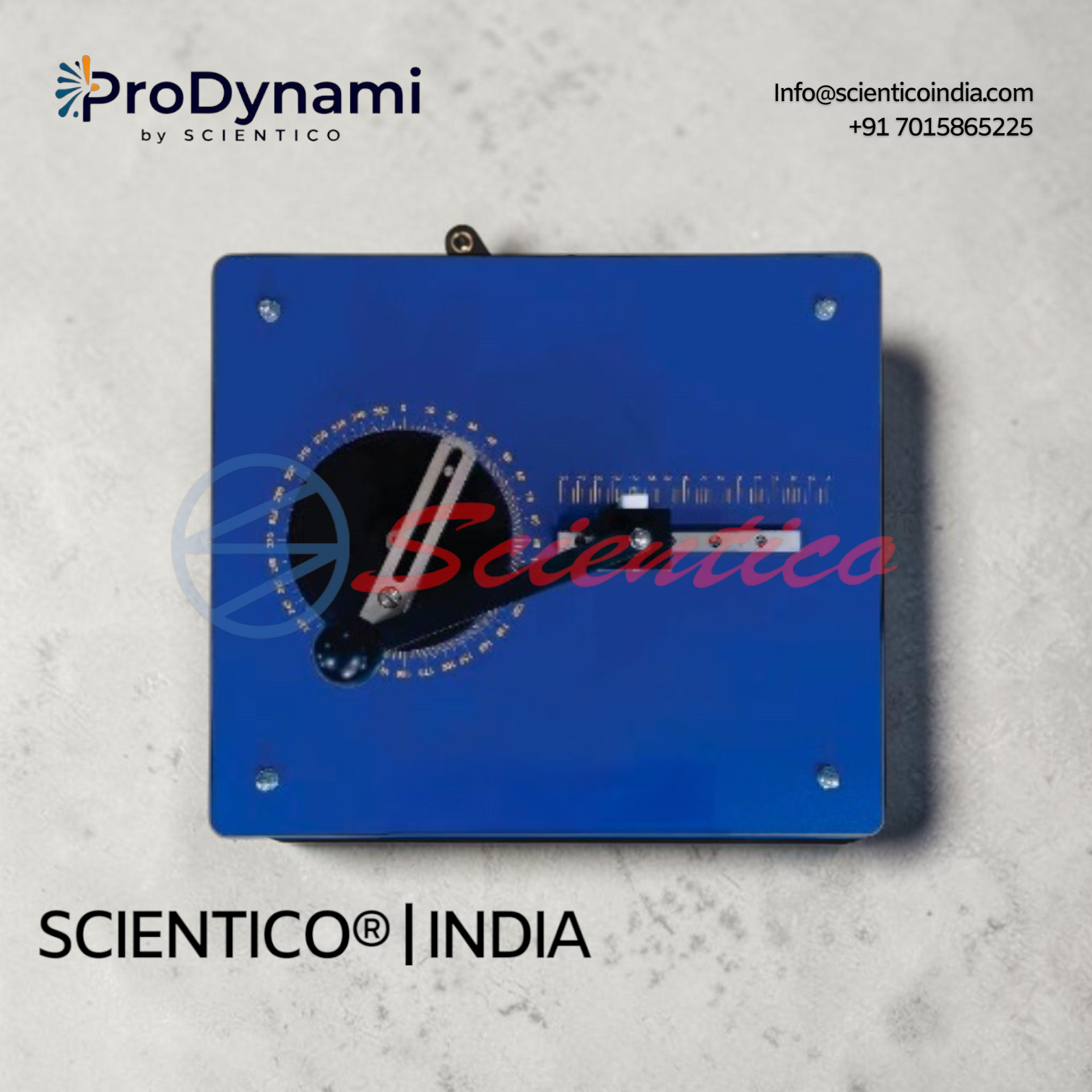

Whitworth Quick Return Apparatus ProDynami 1244 produces and analyzes irregular reciprocating motion with slow feed and quick return. This Whitworth Quick Return Apparatus features a driving crank and driven slider crank, with a crank radius of 46mm, slider radius of 55mm, and connecting rod length of 145mm. The input angle is set by turning the crank, and the output stroke is read on a ruler on the slider. Transmission components are made of aluminium, mounted on ball bearings, and the unit is easy to carry using two handles.
The Whitworth Quick Return Apparatus ProDynami 1244 is a benchtop model used to produce and analyze irregular reciprocating motion with slow feed and quick return. This Whitworth Quick Return Apparatus clearly demonstrates the transmission pattern of such an assembly, with the input angle set by turning the crank and the output stroke read on a ruler on the slider.
Product Overview
The Whitworth Quick Return Apparatus ProDynami 1244 consists of two cranks: a driving crank and a driven slider crank, a ruler, and a rotating disc on which the driven crank is attached. It is used to generate uneven reciprocating motion with slow feed and quick return. The input angle is set by turning the crank. The output stroke is read on a ruler on the slider. The transmission components are manufactured in aluminium. All axles are equipped with ball bearings. Due to its low weight, this Whitworth Quick Return Apparatus is easy to carry using the two handles.
Whitworth Quick Return Apparatus ProDynami 1244 — Technical Specifications
| Parameter | Value |
|---|---|
| Experiment Type | Benchtop experiment on uneven reciprocating motion of Whitworth’s quick return |
| Crank Radius | 46mm |
| Slider Radius | 55mm |
| Connecting Rod Length | 145mm |
| Mounting | Slider crank and connecting rod mounted on ball bearings |
| Drive Crank Radius | 46mm |
| Connecting Rod Length | 145mm |
| Slider Radius | 55mm |
| Axle Offset Drive Slider | 30mm |
Technical Data
Drive Crank
| Parameter | Value |
|---|---|
| Radius | 46mm |
Connecting Rod
| Parameter | Value |
|---|---|
| Length | 145mm |
Slider
| Parameter | Value |
|---|---|
| Radius | 55mm |
Axle Offset
| Parameter | Value |
|---|---|
| Drive Slider | 30mm |
Key Features
- Mechanism Type: Whitworth Quick Return Apparatus producing irregular reciprocating motion with slow feed and quick return
- Crank Configuration: Driving crank and driven slider crank
- Components: Ruler and rotating disc on which driven crank is attached
- Input Angle Setting: Set by turning the crank
- Output Stroke Reading: Read on ruler fitted on the slider
- Material: Transmission components manufactured in aluminium
- Bearings: All axles equipped with ball bearings
- Portability: Low weight, easy to carry using two handles
- Crank Radius: 46mm
- Slider Radius: 55mm
- Connecting Rod Length: 145mm
- Axle Offset Drive Slider: 30mm
Experiments
- Output stroke of Whitworth’s quick return as a function of the input angle of the drive crank
Construction and Design
The Whitworth Quick Return Apparatus ProDynami 1244 consists of two cranks: a driving crank and a driven slider crank. It includes a ruler and a rotating disc on which the driven crank is attached. The input angle is set by turning the crank. The output stroke is read on a ruler fitted on the slider. Transmission components are manufactured in aluminium. All axles are equipped with ball bearings. The slider crank and connecting rod are mounted on ball bearings. The unit has a low weight and is easy to carry using two handles. The crank radius is 46mm. The slider radius is 55mm. The connecting rod length is 145mm. The axle offset drive slider is 30mm. This construction allows the Whitworth Quick Return Apparatus to clearly demonstrate the transmission behaviour of uneven reciprocating motion.
Scope of Delivery
- 1 experimental unit
- 1 instruction manual
Q: What is the Whitworth Quick Return Apparatus ProDynami 1244 used for?
A: It is used to produce and analyze irregular reciprocating motion with slow feed and quick return, and to study output stroke as a function of the input angle of the drive crank.
Q: What are the crank and slider dimensions?
A: Crank radius is 46mm, slider radius is 55mm, and connecting rod length is 145mm.
Q: What material are the transmission components made of?
A: The transmission components are manufactured in aluminium.
Q: What is the axle offset for the drive slider?
A: 30mm.
Q: What does the scope of delivery include?
A: 1 experimental unit and 1 instruction manual.
