Static vs dynamic balancing differ in the conditions they satisfy: a rotor is in static balance when the resultant of all centrifugal forces is zero (Σmr = 0), which removes the net shaking force and lets the rotor rest in any angular position. It is in dynamic balance only when that force condition and the resultant couple are both zero (Σmr = 0 and Σmrl = 0). Dynamic balance therefore guarantees static balance, but static balance does not guarantee dynamic balance.
What is static balancing?
Static (or single-plane) balancing deals with rotating masses that lie in, or can be treated as lying in, one transverse plane. Each mass m at radius r produces a centrifugal force mω²r when the shaft spins at angular velocity ω. Since ω² is common to every term, balance depends only on the vector sum of the mr products:
- Condition: Σ(m·r) = 0 (vector sum of all mr terms).
- Physical effect: no net shaking force on the bearings; the shaft has no preferred resting angle under gravity.
- Units: m in kg, r in m, so mr is expressed in kg·m.
A statically balanced shaft can still vibrate, because individual forces separated along the shaft axis may form an unbalanced couple even when their vector sum is zero.
What is dynamic balancing?
Dynamic (or two-plane) balancing applies when masses are distributed in different planes along the shaft. Here you must control both the resultant force and the resultant couple it creates about a chosen reference plane. Taking distances l of each mass plane from the reference plane:
- Force condition: Σ(m·r) = 0 (kg·m).
- Couple condition: Σ(m·r·l) = 0 (kg·m²), taken about the reference plane.
- Physical effect: no shaking force and no rocking couple, so the bearings carry no dynamic reaction at running speed.
Because the couple condition is independent of the force condition, a rotor can satisfy Σmr = 0 yet still have Σmrl ≠ 0. That is why every dynamically balanced rotor is automatically statically balanced, but the reverse is not true.
What is the difference between static and dynamic balancing?
| Aspect | Static balancing | Dynamic balancing |
|---|---|---|
| Mass arrangement | All masses in one plane (or treated as one plane) | Masses in two or more different planes |
| Condition(s) to satisfy | Σmr = 0 (force only) | Σmr = 0 and Σmrl = 0 (force and couple) |
| Eliminates | Resultant centrifugal force | Resultant force and resultant couple |
| Units involved | mr in kg·m | mr in kg·m; mrl in kg·m² |
| Test condition | Can be checked at rest (gravity) | Must be checked while rotating |
| Implication | Does not ensure dynamic balance | Always ensures static balance |
Why does static balance not guarantee dynamic balance?
Consider two equal masses on opposite sides of a shaft but separated along its length. Their centrifugal forces are equal and opposite, so Σmr = 0 and the shaft is statically balanced — it rests in any position. Yet because the two forces act in different planes, they form a couple. When the shaft rotates, this couple rotates with it and applies an alternating reaction at the bearings. Only when Σmrl = 0 about the reference plane does that couple vanish, giving true dynamic balance.
How is balancing shown and measured in a teaching lab?

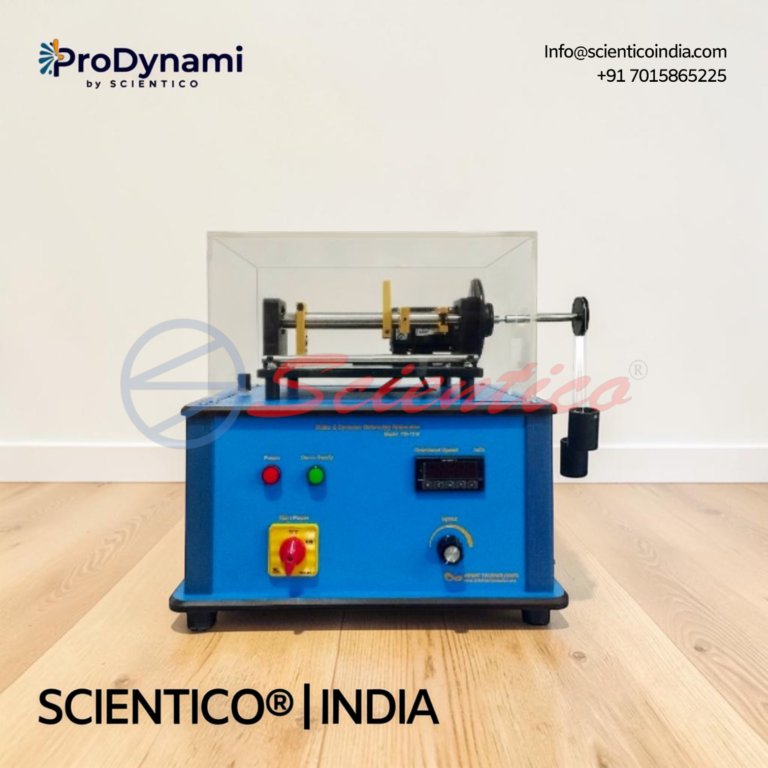

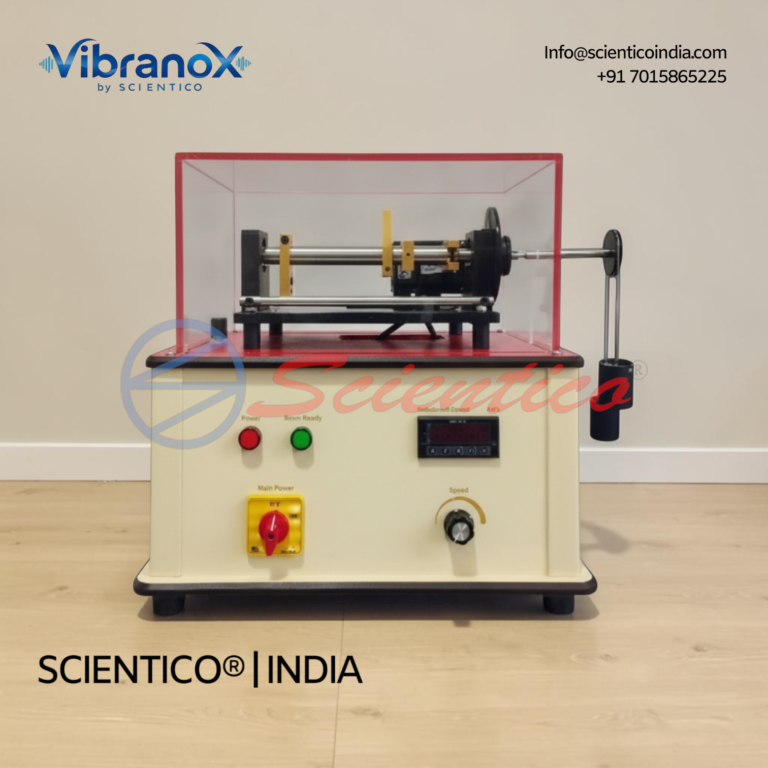

In a Theory of Machines laboratory, balancing is demonstrated on a balancing-of-rotating-masses apparatus: a shaft mounted in bearings carries several adjustable block masses whose magnitude, angular position, and axial location can be set.
- Determine mr for each block by suspending it and measuring the moment, or from supplied calibration data, so each mass is expressed as an mr value (kg·m).
- Static check: with the drive disengaged, free the shaft and observe whether it comes to rest at a preferred angle. A balanced shaft (Σmr = 0) stays where it is left.
- Couple analysis: tabulate mr and mrl for each plane about a reference plane and resolve them as vectors, or construct the force and couple polygons, to find the magnitude and angular position needed for the balancing masses.
- Dynamic check: run the shaft by motor. Residual unbalance shows up as vibration of the bearing frame; adjusting the blocks until Σmr = 0 and Σmrl = 0 reduces the vibration to a minimum, confirming dynamic balance.
This lets students see directly that a shaft passing the static test can still vibrate when rotated — the visual proof that the couple condition matters.
Key formulas at a glance
- Centrifugal force of a mass: F = mω²r
- Static balance: Σ(m·r) = 0 (kg·m)
- Dynamic balance: Σ(m·r) = 0 and Σ(m·r·l) = 0 (kg·m and kg·m²)
Scientico India is an ISO 9001:2015 and CE certified manufacturer and exporter of engineering and science laboratory equipment, supplying balancing apparatus and other instruments to engineering colleges and universities. Explore our full Theory of Machines Lab Equipment range.
Frequently Asked Questions
What is the main difference between static and dynamic balancing?
Static balancing only requires the resultant centrifugal force to be zero (Σmr = 0), suitable for masses in one plane. Dynamic balancing requires both the resultant force and the resultant couple to be zero (Σmr = 0 and Σmrl = 0), needed for masses in different planes.
Does dynamic balance imply static balance?
Yes. A dynamically balanced rotor satisfies Σmr = 0, which is exactly the static balance condition, so dynamic balance always implies static balance. The reverse is not true: a statically balanced rotor may still have an unbalanced couple (Σmrl ≠ 0).
What are the conditions for static and dynamic balancing?
Static balance needs Σ(m·r) = 0 (in kg·m). Dynamic balance needs both Σ(m·r) = 0 and Σ(m·r·l) = 0 (in kg·m and kg·m² respectively, taken about a reference plane).
How is dynamic balancing tested in a lab?
The shaft is rotated by a motor on a balancing apparatus. Residual unbalance produces vibration of the bearing frame; the adjustable masses are repositioned until Σmr = 0 and Σmrl = 0, at which point the vibration falls to a minimum, confirming dynamic balance.
Why can a statically balanced shaft still vibrate?
If equal, opposite masses lie in different planes along the shaft, their forces cancel (Σmr = 0) but form a couple. When rotated, this couple applies an alternating bearing reaction, causing vibration until the couple condition Σmrl = 0 is also satisfied.
