Elastic deformation is temporary and fully recoverable: when the load is removed, the material returns to its original shape. Plastic deformation is permanent: the material keeps a residual change in shape even after the load is removed. The dividing line between the two is the yield point — below it deformation is elastic, above it deformation becomes plastic.
What is elastic deformation?
Elastic deformation occurs when an applied stress stretches the atomic bonds of a material without breaking or rearranging them. Once the load is released, the bonds spring back and the material recovers its original dimensions completely. There is no permanent change and, ideally, no energy lost as heat.
Hooke’s Law and the elastic region
In the elastic region most engineering metals obey Hooke’s Law, where stress is directly proportional to strain:
σ = E × ε
- σ = stress (Pa or N/m², commonly MPa)
- ε = strain (dimensionless, mm/mm)
- E = Young’s Modulus of elasticity (GPa) — the slope of the linear region
The strain energy stored elastically per unit volume up to the proportional limit is the modulus of resilience, equal to the area under the linear portion of the stress-strain curve.
What is plastic deformation?
Plastic deformation begins once stress exceeds the yield strength. In crystalline metals it is caused by the movement of dislocations, which lets planes of atoms slip permanently over one another. The material no longer returns to its original shape; on unloading, the stress-strain path follows a line parallel to the elastic slope, leaving a permanent (residual) strain.
Yielding, strain hardening and necking
- Yield point: stress at which plastic deformation starts. For materials with no sharp yield point, the 0.2% offset yield strength is used.
- Strain hardening: beyond yield, the metal grows stronger as dislocations multiply and tangle, raising the stress needed to deform it further.
- Ultimate Tensile Strength (UTS): the peak stress on the curve.
- Necking and fracture: deformation localises, the cross-section narrows, and the specimen finally breaks.
What is the difference between elastic and plastic deformation?
The table below compares the two behaviours across the attributes that matter most in design and materials testing.
| Attribute | Elastic Deformation | Plastic Deformation |
|---|---|---|
| Reversibility | Fully recoverable — shape returns on unloading | Permanent — residual strain remains |
| Stress range | Below yield point | Above yield point |
| Stress-strain relation | Linear (obeys Hooke’s Law, σ = Eε) | Non-linear (strain hardening curve) |
| Atomic mechanism | Stretching of atomic bonds | Dislocation motion / permanent slip |
| Energy | Stored and released (resilience) | Dissipated as heat and bond rearrangement |
| Strain magnitude | Small (often < 0.2% for metals) | Can be large (several % to tens of %) |
| Effect on properties | No change after unloading | Strain hardening, changed dimensions |
| Design relevance | Normal service condition — components stay elastic | Forming processes; failure if unintended |
| Examples | Loaded spring, beam under working load | Bent paperclip, rolled/forged metal, dent |
Why does the difference matter in engineering?
The elastic-plastic distinction underpins almost every load-bearing design decision.
Structural design
Machine parts, shafts, beams and fasteners are normally designed to stay within the elastic region during service. A factor of safety is applied to the yield strength so that working stress remains comfortably below yield, guaranteeing the part recovers its shape and dimensions stay stable.
Manufacturing and forming
Processes such as rolling, forging, deep drawing, extrusion and bending rely deliberately on plastic deformation to give metal a permanent new shape. Here, exceeding the yield point is the goal, not a failure.
Failure prevention
Unintended plastic deformation signals overload. Permanent set, distortion or sagging means the yield strength was exceeded, and the component can no longer be trusted to perform as designed.
How is it demonstrated and measured in a teaching lab?
The standard teaching experiment is the uniaxial tensile test on a Universal Testing Machine (UTM). A standard specimen is gripped and pulled at a controlled rate while load and elongation are recorded, producing the engineering stress-strain curve.
Step-by-step
- Measure the original gauge length and diameter of the specimen.
- Mount it in the UTM grips and apply a steadily increasing tensile load.
- Record load versus extension (using an extensometer for accurate strain in the elastic region).
- Convert to stress and strain, then plot the curve.
What students read off the curve
- Elastic region: the initial straight line; its slope gives Young’s Modulus, E.
- Proportional limit and yield point: where the line stops being straight; the 0.2% offset method locates yield strength for ductile metals.
- Plastic region: the curved portion through UTS to fracture.
- Permanent set: by loading past yield then unloading, students see the residual strain that proves deformation was plastic.

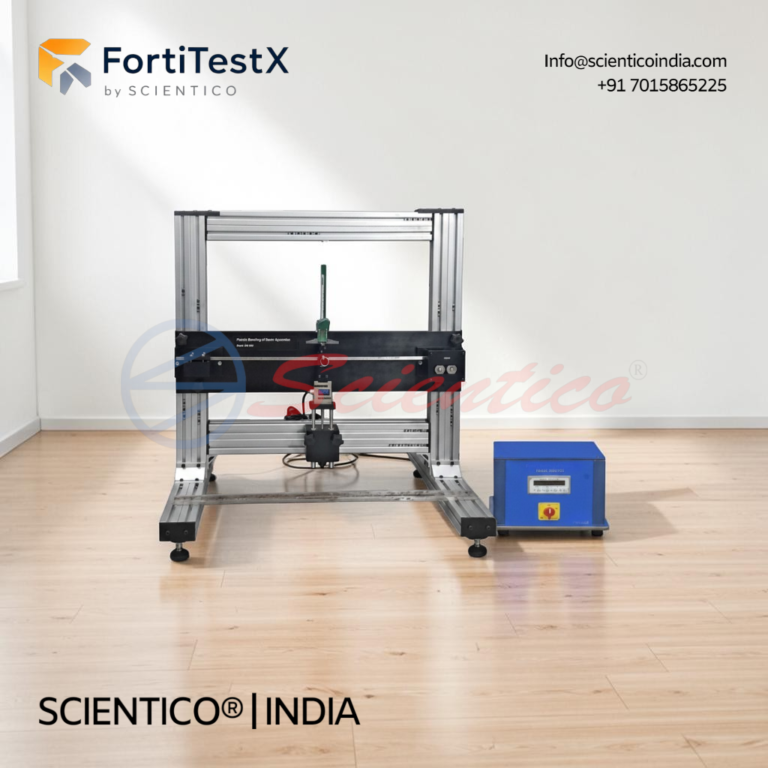

Complementary equipment such as spring testers, deflection-of-beam apparatus and torsion testing machines lets students isolate purely elastic behaviour (recoverable deflection) and contrast it with permanent set under overload.
Scientico India is an ISO 9001:2015 and CE certified manufacturer and exporter of Universal Testing Machines and allied apparatus for engineering and science teaching labs. Explore our full Strength of Materials Lab Equipment range for hands-on demonstration of elastic and plastic deformation.
Frequently Asked Questions
What is the main difference between elastic and plastic deformation?
Elastic deformation is temporary and fully recovered once the load is removed, while plastic deformation is permanent and leaves a residual change in shape. The yield point marks the boundary: below it deformation is elastic, above it deformation becomes plastic.
What is the yield point?
The yield point is the stress at which a material stops behaving elastically and begins to deform plastically. For materials without a sharp yield point, engineers use the 0.2% offset yield strength, found by drawing a line parallel to the elastic slope offset by 0.2% strain.
Does elastic deformation obey Hooke’s Law?
Yes. In the elastic region most engineering metals follow Hooke’s Law, where stress is proportional to strain (sigma = E x epsilon). The constant E is Young’s Modulus, equal to the slope of the linear part of the stress-strain curve.
How is elastic versus plastic deformation measured in a lab?
The standard method is a uniaxial tensile test on a Universal Testing Machine. The recorded stress-strain curve shows the linear elastic region (giving Young’s Modulus), the yield point, and the curved plastic region. Loading past yield and unloading reveals the permanent set that confirms plastic deformation.
Why does the elastic-plastic distinction matter in engineering design?
Load-bearing components are normally designed to stay in the elastic region with a factor of safety below yield, so they keep their shape in service. Plastic deformation is exploited deliberately in forming processes like rolling and forging, but unintended plastic deformation indicates overload and possible failure.
