Advance Fluid Friction Apparatus | FluidoSurge-X 205
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.

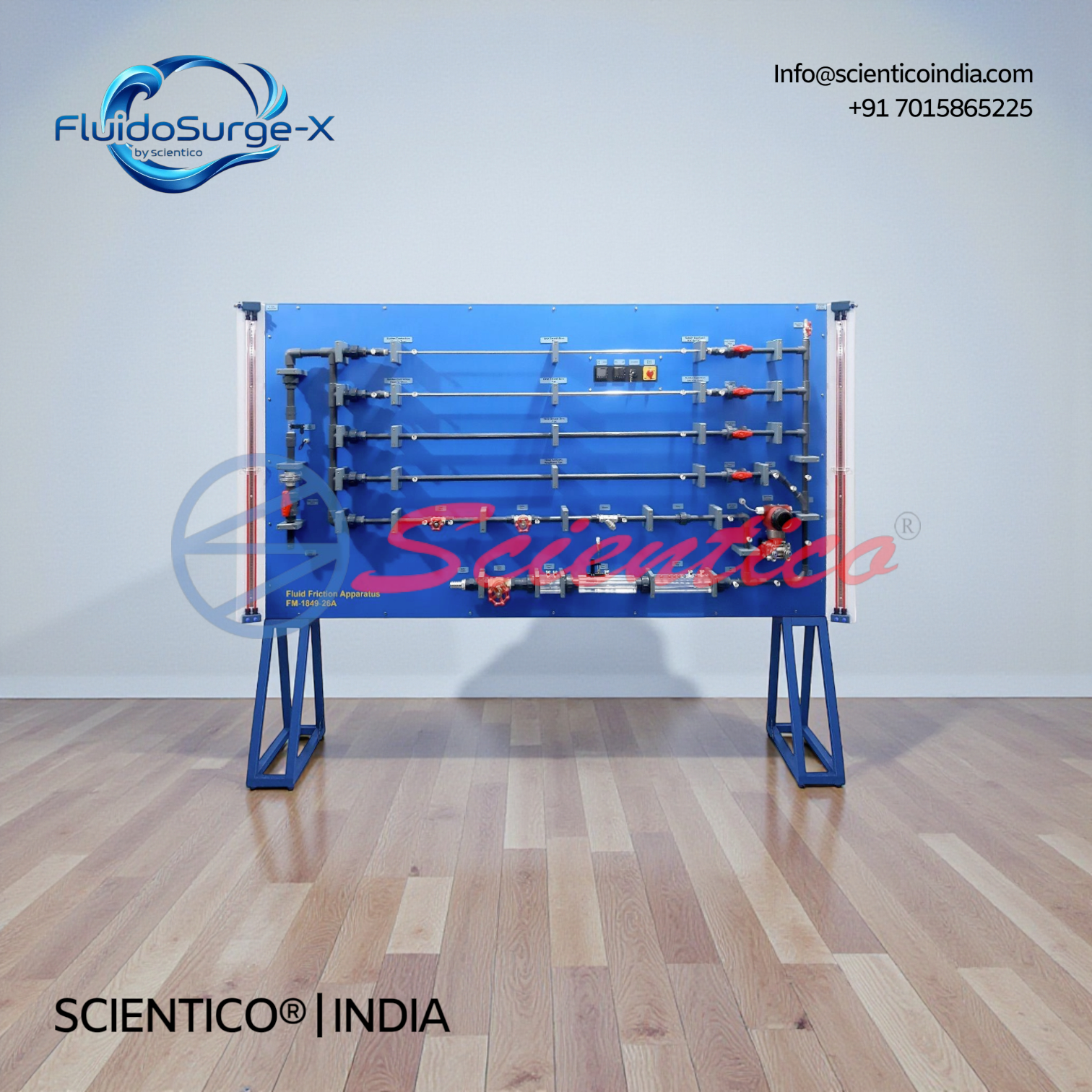

The Advance Fluid Friction Apparatus FluidoSurge-X 205 is designed for in depth experimental study of frictional head losses in incompressible fluid flow. It supports investigation of laminar, transitional, and turbulent flow regimes across smooth and rough pipes. The apparatus enables detailed analysis of losses in pipes, bends, valves, and flow metering devices. It is intended for advanced fluid mechanics laboratory instruction and research level experiments.
Product Overview
The SCIENTICO Advance Fluid Friction Apparatus FluidoSurge-X 205 provides a comprehensive platform to study pipe friction phenomena and associated energy losses. Experiments can be conducted over a Reynolds number range from approximately 10³ to nearly 5000, covering all major flow regimes in smooth pipes. An artificially roughened pipe is included to demonstrate deviation from smooth pipe behavior at higher Reynolds numbers. The apparatus integrates a wide range of fittings and measuring devices, allowing realistic simulation of industrial piping systems and comparative analysis
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ, Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Model | FluidoSurge-X 205 |
| Type | Advance Fluid Friction Apparatus |
| Flow Regimes | Laminar, transitional, turbulent |
| Reynolds Number Range | Approx. 10³ to 5000 |
| Smooth Bore Pipes | 6 to 7 mm, 10 to 12 mm, 17 mm |
| Rough Pipe | Artificially roughened, 17 mm |
| Pipe Fittings | Bends, elbows, valves, strainer, T and Y fittings |
| Flow Measurement Devices | Venturi meter, orifice meter |
| Velocity Measurement | Pitot static tube |
| Manometers | Pressurized water manometer and mercury manometer |
| Digital Measurement Ranges | Flow rate 150 to 1800 L per hour |
| Differential Pressure Range | -25 kPa to 25 kPa |
| Mounting | Laminated backboard with tubular stand |
| Operation Requirement | Hydraulic bench or laboratory water supply |
Key Features-
-
Detailed study of friction losses in straight pipes of varying diameters
-
Comparative analysis of smooth and rough pipe characteristics
-
Measurement of losses across bends, elbows, valves, and fittings
-
Flow measurement using Venturi meter and orifice plate
-
Velocity measurement using Pitot static tube
-
Digital measurement of flow rate and differential pressure
-
Quick coupling pressure tappings with automatic shut off plugs
Applications-
-
Investigation of laminar to turbulent flow transition
-
Determination of friction factor and rugosity effects
-
Measurement of energy losses in pipes, bends, and control valves
-
Comparative study of different flow measurement techniques
-
Advanced fluid mechanics laboratory experiments for engineering education
Construction & Design Details-
The test circuits are mounted on a rigid laminated backboard reinforced with a deep frame and supported by tubular stands. Isolating valves allow selection of individual test sections without draining the system, including parallel pipe configurations. Ported manometer connecting valves ensure rapid bleeding of interconnecting pipe work. Quick coupling sockets with translucent tubing allow rapid connection of any pressure tapping pair to the manometers.
Optional Software-
Optional data acquisition software FluidoSurge-X 205 is available. The software is developed in a LabVIEW™ environment and enables digital acquisition of flow rate and differential pressure data, graphical visualization, automated calculations, and CSV report generation on Windows based systems. Electronic sensors are supplied when the software option is selected.
Export & Supply Capability-
SCIENTICO manufactures the Advance Fluid Friction Apparatus FluidoSurge-X 205 for domestic and international supply. The apparatus is suitable for export to engineering colleges, universities, and research laboratories. Standard packing, hoses, and technical documentation are provided with each unit.
Q1. What flow regimes can be investigated using this apparatus?
Laminar, transitional, and turbulent flow regimes can be studied.
Q2. Does the apparatus include both smooth and rough pipes?
Yes, smooth bore pipes of different diameters and one artificially roughened pipe are included.
Q3. Can losses in pipe fittings and valves be measured?
Yes, losses across bends, elbows, valves, and fittings are part of the experimental scope.
Q4. How are pressure losses measured?
Pressure losses are measured using pressurized water and mercury manometers, along with digital sensors.
Q5. Is the optional software included in the standard supply?
No, the FluidoSurge-X 205 software is optional and supplied only when specified.
