Boundary Layers Module

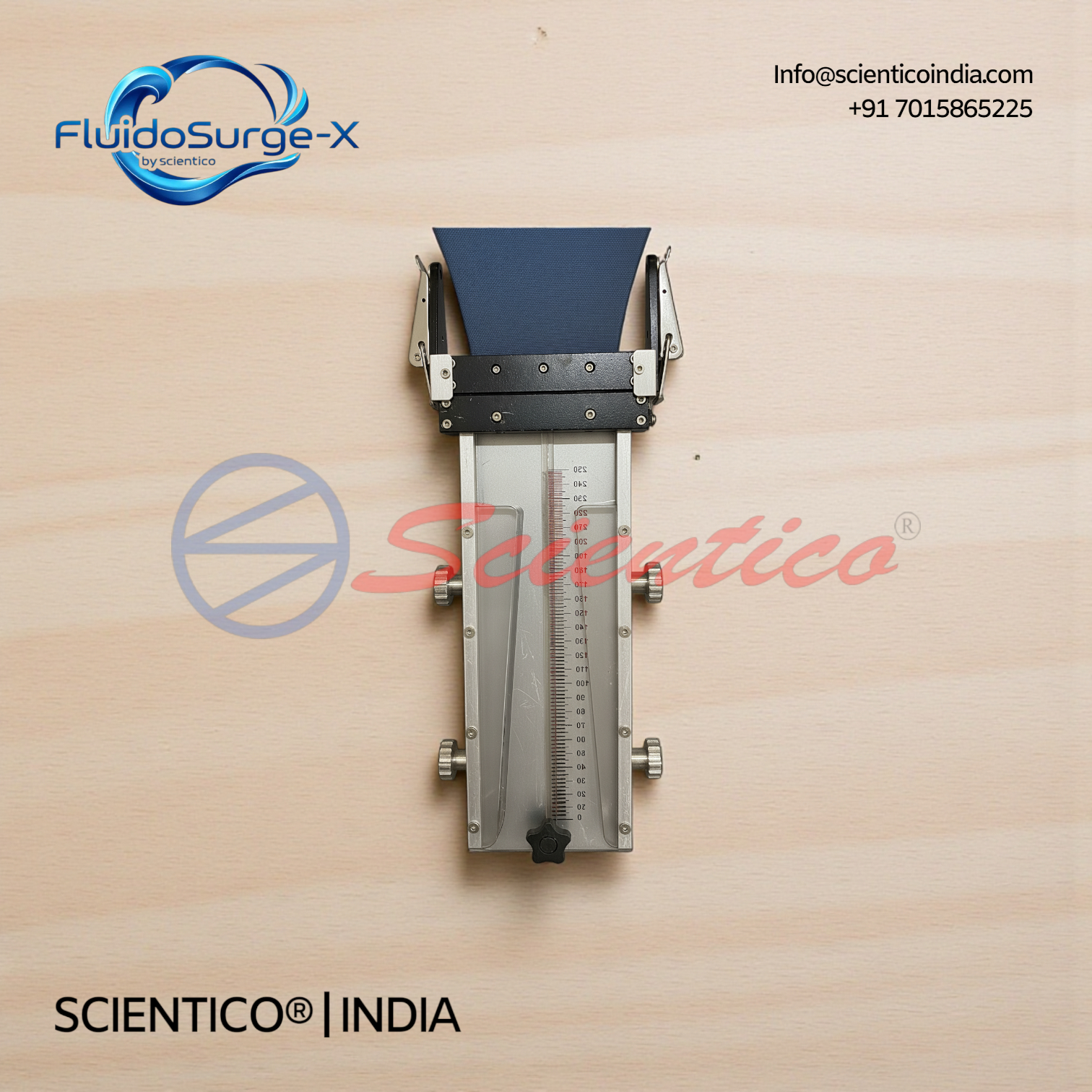

Model FluidoSurge-X 356

The Boundary Layers Module is a laboratory accessory designed for experimental investigation of boundary layer development over a flat plate. Made by Scientico India, ISO 9001:2015 certified, and supplied with a calibration certificate and operation manual.

The Boundary Layers Module FluidoSurge-X 356 is a laboratory accessory designed for experimental investigation of boundary layer development over a flat plate. Manufactured by SCIENTICO, the unit enables detailed study of laminar and turbulent boundary layers and the influence of surface roughness. It is intended for use with the compatible aerodynamics trainer in fluid mechanics laboratories.

Product Overview

FluidoSurge-X 356 allows air to flow parallel to a flat plate to analyze boundary layer formation. The plate is provided with two different surface finishes to compare the effect of smooth and rough conditions on boundary layer behavior. A horizontally movable Pitot tube, adjusted using a micrometer screw, measures total pressure at various distances from the plate surface. The plate itself can be moved along the flow direction to enable pressure measurement at different streamwise positions.

Removable side bodies can be installed to introduce degressive or progressive pressure gradients, allowing investigation of boundary layer interference effects and internal friction behavior.

Request Specifications & Pricing

model-specific, ISO 9001:2015 compliant. Supplied to universities and institutions in 30+ countries.

WhatsApp: +91 701-586-5225  |  Email: [email protected]

View Quality Certifications  |  FAQ, Shipping, Warranty, Lead Time

Plate

Parameter Specification
Dimensions (L x W) 260 x 55 mm
Thickness 5 mm
Chamfer 33°
Movement Range (Streamwise) 0 to 250 mm
Surface Types 1 Smooth Surface, 1 Rough Surface

Pitot Tube

Parameter Specification
Diameter 0.7 mm
Vertical Adjustment Range 0.35 to 50 mm
Adjustment Method Micrometer screw

Side Bodies

Parameter Specification
Quantity 2
Inclination 1:12.5
Function Boundary layer interference studies

Manometer System

  • 16 tube manometers for displaying dynamic pressures

Key Features

  • Experimental study of boundary layer development on flat plate

  • Comparison of smooth and rough surface effects

  • Horizontally movable Pitot tube with micrometer adjustment

  • Streamwise movable plate for pressure distribution study

  • Removable side bodies for pressure gradient interference

  • Quick release attachment to compatible aerodynamics trainer

  • Visualization of internal friction and boundary layer behavior

Applications

  • Fluid mechanics and aerodynamics laboratories

  • Study of laminar and turbulent boundary layers

  • Investigation of surface roughness effects

  • Analysis of pressure gradients and flow interference

  • Educational demonstration of internal friction in gases

Construction & Design Details

The module includes a flat plate assembly mounted in the measuring section of the compatible aerodynamics trainer. The Pitot tube is mounted on a precision adjustment mechanism allowing fine positioning relative to the plate surface. The interchangeable smooth and rough plates enable comparative studies. Removable side bodies introduce controlled pressure gradients, enabling extended analysis of boundary layer separation and interference.

Experiments

  • Investigation of boundary layer formation on a flat plate

  • Influence of surface roughness on boundary layer characteristics

  • Measurement of velocity distribution within the boundary layer

  • Boundary layer interference under degressive pressure gradient

  • Boundary layer interference under progressive pressure gradient

  • Study of internal friction effects in airflow

Required for Operation

  • Aerodynamics Trainer FluidoSurge-X 356 (compatible unit required)

Standard Scope of Delivery

  • 1 Experimental Unit

  • 1 Smooth Surface Plate

  • 1 Rough Surface Plate

  • 2 Removable Side Bodies

  • 1 Instruction Manual

Export & Supply Capability

SCIENTICO manufactures the Boundary Layers Module FluidoSurge-X 356 for engineering colleges and research laboratories. The unit is suitable for domestic and international supply with appropriate export packing and documentation.

Q1. What is the purpose of this module?
It is used to study boundary layer formation and behavior on a flat plate.

Q2. How is velocity within the boundary layer measured?
A Pitot tube measures total pressure at different distances from the plate surface, from which velocity is determined.

Q3. Can surface roughness effects be analyzed?
Yes. The module includes both smooth and rough plates for comparative analysis.

Q4. What is the function of the side bodies?
They create degressive or progressive pressure gradients to study boundary layer interference.

Q5. Is the module standalone?
No. It requires a compatible aerodynamics trainer for operation.

Need Assistance? We're Here to Help!

Connect with our team for product specifications, pricing, and customized solutions for your institution or project.

Trade enquiries

Distributors, dealers, resellers and bulk buyers

We manufacture Boundary Layers Module | FluidoSurge-X 356 at our own works in Ambala, India. Manufacturer-direct, three ways to work with us.

01

Become a distributor, dealer or agent in your territory

Already selling to colleges or hospitals in your market? Add a manufacturer-direct line. Terms reviewed on application.

or message on WhatsApp
02

Wholesale and bulk quotation

Holding a live enquiry? Send the model, quantity, destination and required Incoterm. We will confirm the supplied scope and available export documents.

or message on WhatsApp
03

OEM authorisation letter for a tender

Bidding a tender that requests a manufacturer authorisation form (MAF)? Send the tender reference, deadline and listed equipment so we can confirm what can be issued.

or message on WhatsApp

Full distributor guide OEM and export enquiries

Fluid MechanicsModel FluidoSurge-X 356
🏭
Manufacturer DirectProduct-specific enquiry, not a generic catalogue
🌍
Destination MatchedConfiguration and delivery scope reviewed together
📄
Decision-Ready ReplyApplicable documentation confirmed before ordering
Product-specific enquiry

Get a quotation your team can evaluate

A bare price can hide configuration, accessories, voltage, documentation and delivery assumptions. Send the product and destination now so the quoted scope can be reviewed before a purchase decision.

Avoid the mismatchDo not approve a generic price that leaves supplied scope unclear.
Your product is attachedNo need to retype the model or copy the page URL.
Move toward an approvable quoteAdd the destination; quantity and tender details can follow.

No account is required. Organisation, quantity and tender details are optional. Include the country code so the team can reach you internationally.

1993
Manufacturing Since
Direct
Manufacturer Supply
Quote-based
International Orders
Model
FluidoSurge-X 356

Overview

The Boundary Layers Module FluidoSurge-X 356 is a laboratory accessory designed for experimental investigation of boundary layer development over a flat plate. Manufactured by SCIENTICO, the unit enables detailed study of laminar and turbulent boundary layers and the influence of surface roughness. It is intended for use with the compatible aerodynamics trainer in fluid mechanics laboratories.

Product Overview

FluidoSurge-X 356 allows air to flow parallel to a flat plate to analyze boundary layer formation. The plate is provided with two different surface finishes to compare the effect of smooth and rough conditions on boundary layer behavior. A horizontally movable Pitot tube, adjusted using a micrometer screw, measures total pressure at various distances from the plate surface. The plate itself can be moved along the flow direction to enable pressure measurement at different streamwise positions.

Removable side bodies can be installed to introduce degressive or progressive pressure gradients, allowing investigation of boundary layer interference effects and internal friction behavior.

Key Features

Key Features

  • Experimental study of boundary layer development on flat plate

  • Comparison of smooth and rough surface effects

  • Horizontally movable Pitot tube with micrometer adjustment

  • Streamwise movable plate for pressure distribution study

  • Removable side bodies for pressure gradient interference

  • Quick release attachment to compatible aerodynamics trainer

  • Visualization of internal friction and boundary layer behavior

Applications

  • Fluid mechanics and aerodynamics laboratories

  • Study of laminar and turbulent boundary layers

  • Investigation of surface roughness effects

  • Analysis of pressure gradients and flow interference

  • Educational demonstration of internal friction in gases

Construction & Design Details

The module includes a flat plate assembly mounted in the measuring section of the compatible aerodynamics trainer. The Pitot tube is mounted on a precision adjustment mechanism allowing fine positioning relative to the plate surface. The interchangeable smooth and rough plates enable comparative studies. Removable side bodies introduce controlled pressure gradients, enabling extended analysis of boundary layer separation and interference.

Experiments

  • Investigation of boundary layer formation on a flat plate

  • Influence of surface roughness on boundary layer characteristics

  • Measurement of velocity distribution within the boundary layer

  • Boundary layer interference under degressive pressure gradient

  • Boundary layer interference under progressive pressure gradient

  • Study of internal friction effects in airflow

Required for Operation

  • Aerodynamics Trainer FluidoSurge-X 356 (compatible unit required)

Standard Scope of Delivery

  • 1 Experimental Unit

  • 1 Smooth Surface Plate

  • 1 Rough Surface Plate

  • 2 Removable Side Bodies

  • 1 Instruction Manual

Export & Supply Capability

SCIENTICO manufactures the Boundary Layers Module FluidoSurge-X 356 for engineering colleges and research laboratories. The unit is suitable for domestic and international supply with appropriate export packing and documentation.

Specifications

Plate

Parameter Specification
Dimensions (L x W) 260 x 55 mm
Thickness 5 mm
Chamfer 33°
Movement Range (Streamwise) 0 to 250 mm
Surface Types 1 Smooth Surface, 1 Rough Surface

Pitot Tube

Parameter Specification
Diameter 0.7 mm
Vertical Adjustment Range 0.35 to 50 mm
Adjustment Method Micrometer screw

Side Bodies

Parameter Specification
Quantity 2
Inclination 1:12.5
Function Boundary layer interference studies

Manometer System

  • 16 tube manometers for displaying dynamic pressures

Buying Boundary Layers Module: Distributor & Tender Guidance

Boundary Layers Module is the product name procurement teams should use when searching, preparing a BOQ or comparing suppliers. A model reference identifies the proposed configuration; it should not replace the product name or the buyer’s required experiment. This equipment is considered for hydraulics and fluid-mechanics teaching where students observe flow behaviour, pressure, discharge, losses or machine performance.

What to include in the RFQ

State the product name, quantity, destination, curriculum or tender reference, and working-fluid circuit, measurement range, instrumentation, test section, collection or recirculation arrangement, utilities and experiments required. This lets the technical team respond against the intended use rather than guess from a model code.

How distributors should quote it

Keep Boundary Layers Module as the BOQ line item. Add the proposed model, included accessories, documentation, packing and delivery basis as separate fields so the end buyer can verify the offer.

How to compare suppliers

Compare the measurable variables, experiment coverage and included hydraulic accessories rather than comparing only the apparatus name. Record exclusions and alternatives in writing before commercial comparison.

Why Buy From Scientico

🏭

In-House Manufacturer

Designed & built in our Ambala facility since 1993 — not a reseller. Full control over quality & customisation.

✅

Configuration Review

Specifications, documentation and options are confirmed against the selected model.

🌏

International Enquiries

Share your destination and procurement requirements for an export quotation.

📦

Quote-Based Supply

Send the model, quantity and delivery location for a tailored proposal.

🛠

Support Scope

Support and warranty terms are documented in the applicable quotation.

🎓

Built for Teaching

Designed around curriculum experiments with clear, repeatable, hands-on results.
