Centrifugal Pump | FluidoSurge-X 188
A CE-certified pump test unit for investigating flow-head characteristics, efficiency at various speeds, and pump performance curves, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.
The Centrifugal Pump FluidoSurge-X 188 is designed for instructional demonstration and experimental study of centrifugal pump performance. It enables controlled investigation of pump characteristics under variable speed and head conditions. The apparatus integrates measurement of flow rate, pressure, and rotational speed. It is suitable for fluid mechanics and hydraulic machinery laboratories.
Product Overview

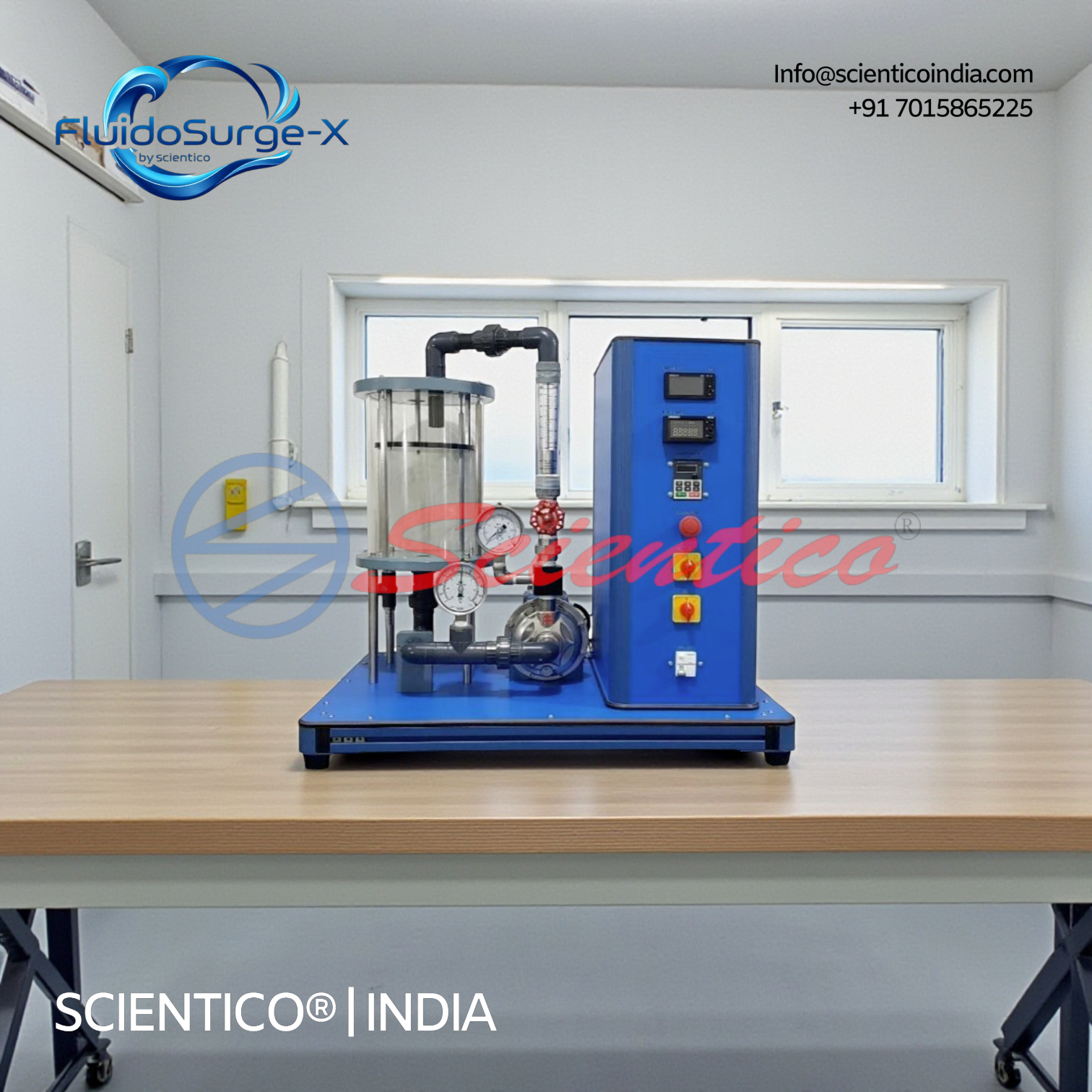

The SCIENTICO Centrifugal Pump FluidoSurge-X 188 is a laboratory scale demonstration unit mounted on a stable base plate. The system includes a centrifugal pump, transparent tank, and necessary fittings to measure intake pressure, delivery pressure, flow rate, and pump speed. By varying pump speed and operating head, students can record characteristic curves and evaluate pump performance. The apparatus supports both manual measurement and optional data acquisition for structured experimentation.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Model | FluidoSurge-X 188 |
| Type | Centrifugal Pump Demonstration Unit |
| Application | Pump Performance Studies |
| Base Plate | Steel or HDF |
| Tank | Transparent, 15 L |
| Pump Speed Range | 0 to 2900 RPM |
| Maximum Flow Rate | Up to 100 L/min |
| Maximum Head | 30 m |
| Electric Power | 500 to 746 W |
| Intake Pressure Range | -1 to 1 bar |
| Delivery Pressure Range | 0 to 2.5 bar |
| Speed Measurement | 0 to 9999 RPM |
| Flow Measurement | Variable area flow meter |
Key Features-
-
Demonstration model of a centrifugal pump for laboratory use
-
Variable speed operation to study effect on discharge and head
-
Transparent tank for visual observation of water level
-
Measurement of pressure, flow rate, and rotational speed
-
Suitable for recording pump characteristic curves
-
Optional data acquisition software for automated analysis
Applications-
-
Recording characteristic curves of centrifugal pumps
-
Determination of pump efficiency
-
Study of effect of speed on discharge quantity and head
-
Demonstration of centrifugal pump operating principles
-
Fluid mechanics and hydraulic machinery laboratory experiments
Construction & Design Details-
The apparatus is mounted on a rigid Steel or HDF base plate to ensure stability during operation. A transparent tank allows visual monitoring of the working fluid. Pressure gauges or sensors are provided at the pump intake and delivery sides for accurate pressure measurement. The variable speed drive enables smooth control of pump operating conditions for repeatable experiments.
Export & Supply Capability-
SCIENTICO manufactures the Centrifugal Pump FluidoSurge-X 188 for domestic and international supply. The unit is suitable for export to engineering colleges, universities, and technical training laboratories. Standard packing and documentation are provided with each unit.
Q1. What experiments can be performed using this apparatus?
It supports pump characteristic curve plotting, efficiency determination, and speed effect studies.
Q2. How is flow rate measured in the system?
Flow rate is measured using a variable area flow meter.
Q3. Can pump speed be varied during operation?
Yes, the pump is variable speed controlled up to 2900 RPM.
Q4. Is data acquisition software included as standard?
Data acquisition software is available as an optional accessory.
Q5. What power supply is required for operation?
The apparatus operates using electric power in the range of 500 to 746 W.
