Car Steering Trainer | Torquemaster-31

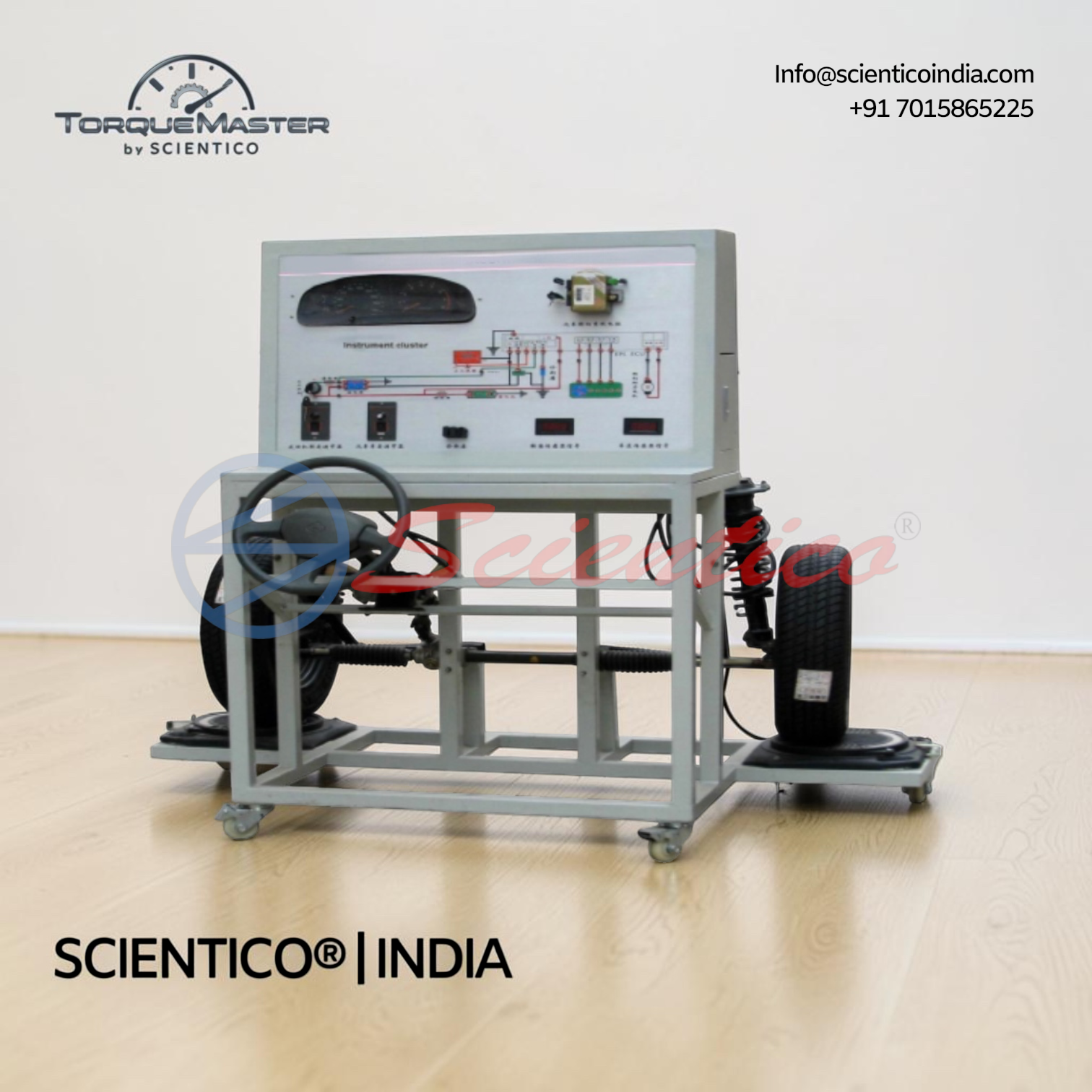

Car Steering Trainer Torquemaster-31 is a real component trainer providing a working light vehicle steering and suspension system for classroom demonstration. Built by a specialist Car Steering Trainer manufacturer, it comprises front wheel assemblies, MacPherson strut and coil spring assemblies, road wheels, and power steering rack, mounted on a moveable steel frame. Students can practice rack and pinion steering gear service, fluid diagnostics, pump servicing, and wishbone, hub carrier, and damper work. The unit runs on a 1.5kW motor with AC220V/50Hz power supply and weighs approximately 130kg.
The Car Steering Trainer Torquemaster-31 is a real component trainer that provides instructors with a working light vehicle steering and suspension system for group or whole-class demonstration. As an experienced Car Steering Trainer manufacturer, SCIENTICO India presents all individual components on a moveable steel frame for clear identification.
Product Overview
The Car Steering Trainer Torquemaster-31 comprises front wheel assemblies, MacPherson strut and coil spring assemblies, road wheels and power steering rack. It allows instructors to introduce the steering and suspension system trainer, disassemble, inspect, and reassemble rack and pinion steering gear, and inspect and replace manual or power rack and pinion steering gear inner track rod ends and gaiters. Students can inspect power steering fluid levels and condition, and diagnose power steering fluid leakage. The trainer also supports removing, inspecting, and replacing the power steering pump, mounts, seals, pump belt, and pump pulley. It allows inspecting, replacing, and adjusting track rod ends, track rod sleeves, and clamps, and removing, inspecting, and installing upper and lower wishbones, bushes, shafts, and rebound bumpers. Hub carrier assemblies can be removed, inspected, and installed, and dampers can be inspected, removed, and replaced. As a dedicated Car Steering Trainer manufacturer, SCIENTICO India equips this unit for comprehensive hands-on steering and suspension training.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Car Steering Trainer Torquemaster-31 — Technical Specifications
| Parameter | Value |
|---|---|
| Front Suspension | Included |
| Wheel | Included |
| Steering Motor | Included |
| Pressure Gauge | Included |
| Steering Wheel | Included |
| Power Steering Pump | Included |
| Mobile Stand | Included |
| Motor Power | 1.5kW |
| Power Supply | AC220V/50Hz |
| Length | 2000 mm (approx.) |
| Width | 1100 mm (approx.) |
| Height | 1300 mm (approx.) |
| Weight | 130kg (approx.) |
Technical Data
Steering and Suspension System
| Parameter | Value |
|---|---|
| Front Suspension | Included |
| Wheel | Included |
| Power Steering Pump | Included |
Controls and Measurement
| Parameter | Value |
|---|---|
| Steering Motor | Included |
| Pressure Gauge | Included |
| Steering Wheel | Included |
Power Supply
| Parameter | Value |
|---|---|
| Motor Power | 1.5kW |
| Power Supply | AC220V/50Hz |
Frame
| Parameter | Value |
|---|---|
| Type | Mobile stand |
Dimensions and Weight
| Parameter | Value |
|---|---|
| Length | 2000 mm (approx.) |
| Width | 1100 mm (approx.) |
| Height | 1300 mm (approx.) |
| Weight | 130kg (approx.) |
Key Features
- Frame: Moveable steel frame for clear component identification
- Components Included: Front wheel assemblies, MacPherson strut and coil spring assemblies, road wheels, power steering rack
- Training Scope: Disassemble, inspect, and reassemble rack and pinion steering gear
- Inspection Tasks: Inspect and replace manual or power rack and pinion steering gear inner track rod ends and gaiters
- Fluid Diagnostics: Inspect power steering fluid levels and condition, diagnose leakage
- Pump Service: Remove, inspect, and replace power steering pump, mounts, seals, pump belt, and pump pulley
- Track Rod Service: Inspect, replace, and adjust track rod ends, track rod sleeves, and clamps
- Wishbone Service: Remove, inspect, and install upper and lower wishbones, bushes, shafts, and rebound bumpers
- Hub Carrier Service: Remove, inspect, and install hub carrier assemblies
- Damper Service: Inspect, remove, and replace dampers
- Motor Power: 1.5kW
- Power Supply: AC220V/50Hz
- Mobility: Mounted on mobile stand
- Manufacturing Standard: Designed by a trusted Car Steering Trainer manufacturer for practical automotive education
Construction and Design
The Car Steering Trainer Torquemaster-31 includes all individual components of the steering and suspension system presented on a moveable steel frame so each component can be clearly identified. The system comprises front wheel assemblies, MacPherson strut and coil spring assemblies, road wheels, and a power steering rack. It also includes front suspension, a wheel, a steering motor, a pressure gauge, a steering wheel, and a power steering pump. The motor power is 1.5kW, and the power supply is AC220V/50Hz. The unit is mounted on a mobile stand. This construction allows the Car Steering Trainer to support disassembly, inspection, and reassembly of rack and pinion steering gear, inspection and replacement of track rod ends and gaiters, fluid leakage diagnosis, and pump, wishbone, hub carrier, and damper servicing.
Q: What is the Car Steering Trainer Torquemaster-31 used for?
A: It provides a working light vehicle steering and suspension system for group or whole-class demonstration, covering steering gear disassembly, fluid diagnostics, and component servicing.
Q: What components are included in the system?
A: Front wheel assemblies, MacPherson strut and coil spring assemblies, road wheels, and power steering rack.
Q: What service and inspection tasks can be practiced on this trainer?
A: Rack and pinion steering gear disassembly and reassembly, track rod end and gaiter inspection/replacement, power steering pump servicing, wishbone and hub carrier removal/installation, and damper inspection/replacement.
Q: What are the motor power and power supply specifications?
A: Motor power is 1.5kW, with a power supply of AC220V/50Hz.
Q: What are the dimensions and weight of the trainer?
A: L x W x H (approx.): 2000 x 1100 x 1300 mm, weight (approx.): 130kg.
