Cut Model of Planetary Gear System | Torquemaster-03

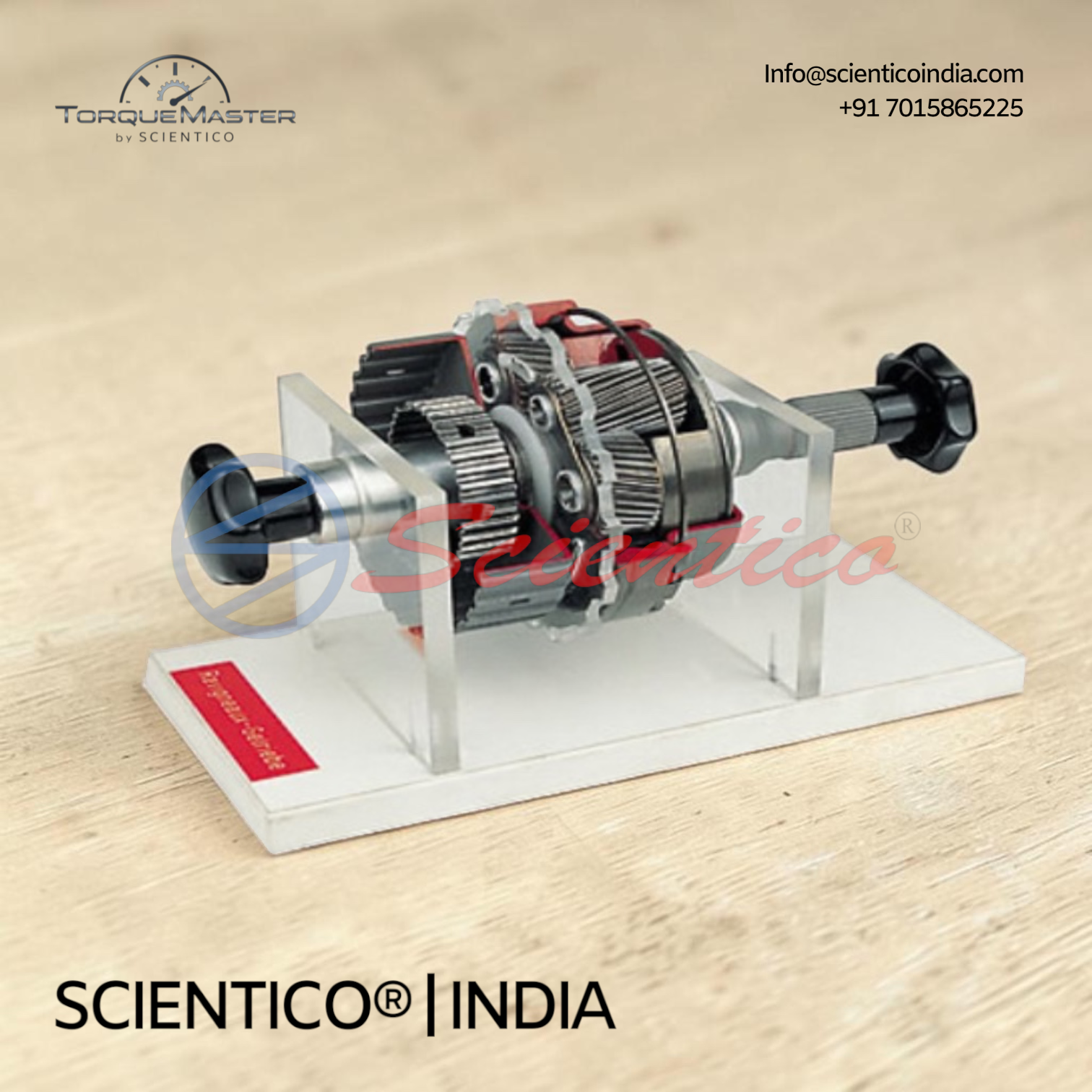

Cut Model of Planetary Gear System Torquemaster-03 clearly demonstrates the operating system of a planetary gear and its gearshift possibilities. Built by a specialist Cut Model of Planetary Gear System manufacturer, this hand-powered cutaway model is made from an industrial original component with fully functional mechanical parts. It is securely mounted on a base plate with carrying handles and includes standards-compliant drawings and a technical description. The compact unit measures 450 x 400 x 300 mm (approx.) and weighs approximately 10kg.
The Cut Model of Planetary Gear System Torquemaster-03 shows very clearly and instructively the operating system of a planetary gear and the available gearshift possibilities. As an experienced Cut Model of Planetary Gear System manufacturer, SCIENTICO provides this cutaway model with standards-compliant and practical drawings and a technical description for engineering teaching.
Product Overview
The Cut Model of Planetary Gear System Torquemaster-03 allows problems of engineering drawing, fasteners and machine parts, or production and testing technology to be studied in a clear and practical manner. A planetary gear is a special type of gear drive in which multiple planet gears revolve around a centrally arranged sun gear. The planet gears are mounted on a planet carrier and engage positively in an internally toothed ring gear. Torque and power are distributed among several planet gears. Sun gear, planet carrier and ring gear may either be driving, driven or fixed. Planetary gears are used in automotive construction and shipbuilding, as well as for stationary use in turbines and general mechanical engineering. As a specialist Cut Model of Planetary Gear System manufacturer, SCIENTICO builds this model as an industrial original component, fully functional and hand-powered, to demonstrate the principle of operation and design of a planetary gear.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Cut Model of Planetary Gear System Torquemaster-03 — Technical Specifications
| Parameter | Value |
|---|---|
| Component Type | Original components with active parts clearly visible |
| Mechanical Functionality | Fully maintained |
| Mounting | Securely mounted on a base plate |
| Carrying Handles | Provided on base plate |
| Power Source | Powered by hand |
| Documentation | Standards-compliant and practical drawings with technical description |
| Length | 450 mm (approx.) |
| Width | 400 mm (approx.) |
| Height | 300 mm (approx.) |
| Weight | 10kg (approx.) |
Technical Data
Model Construction
| Parameter | Value |
|---|---|
| Type | Original component, cutaway |
| Mechanical Functionality | Fully maintained |
| Mounting | Base plate with carrying handles |
| Power | Hand-powered |
Dimensions and Weight
| Parameter | Value |
|---|---|
| Length | 450 mm (approx.) |
| Width | 400 mm (approx.) |
| Height | 300 mm (approx.) |
| Weight | 10kg (approx.) |
Key Features
- Application: Demonstrates the planetary gear found in automatic motorcar transmissions
- Demonstration Scope: Principle of operation and design of a planetary gear
- Component Visibility: Complex machine elements shown clearly for demonstration
- Operation: Hand-powered cutaway model
- Component Origin: Industrial original component, fully functional cutaway model
- Mounting: Securely mounted on a base plate
- Portability: Base plate fitted with carrying handles
- Documentation: Standards-compliant and practical drawings with technical description included
- Manufacturing Standard: Built by a trusted Cut Model of Planetary Gear System manufacturer for engineering teaching
Construction and Design
The Cut Model of Planetary Gear System Torquemaster-03 represents an original component in which the active parts are clearly visible to the user while fully maintaining mechanical functionality. The model is securely mounted on a base plate. The base plate also has handles to allow it to be carried. The model is powered by hand. The planetary gear itself is a special type of gear drive in which multiple planet gears revolve around a centrally arranged sun gear. The planet gears are mounted on a planet carrier and engage positively in an internally toothed ring gear. Torque and power are distributed among several planet gears. Sun gear, planet carrier and ring gear may either be driving, driven or fixed. Each model comes with standards-compliant and practical drawings and a technical description. As a leading Cut Model of Planetary Gear System manufacturer, SCIENTICO ensures this construction demonstrates complex machine elements and their principle of operation clearly and practically.
Q: What is the Cut Model of Planetary Gear System Torquemaster-03 used for?
A: It demonstrates the principle of operation and design of a planetary gear, the same type used in automatic motorcar transmissions, for engineering teaching purposes.
Q: What documentation comes with the model?
A: Each model comes with standards-compliant and practical drawings and a technical description.
Q: How is the model operated?
A: It is a hand-powered cutaway model, fully functional and made from an industrial original component.
Q: How is the model mounted and carried?
A: The model is securely mounted on a base plate, which also has handles to allow it to be carried.
Q: What are the dimensions and weight of the model?
A: L x W x H (approx.): 450 x 400 x 300 mm, weight (approx.): 10kg.
Need Assistance? We're Here to Help!
Connect with our team for product specifications, pricing, and customized solutions for your institution or project.
