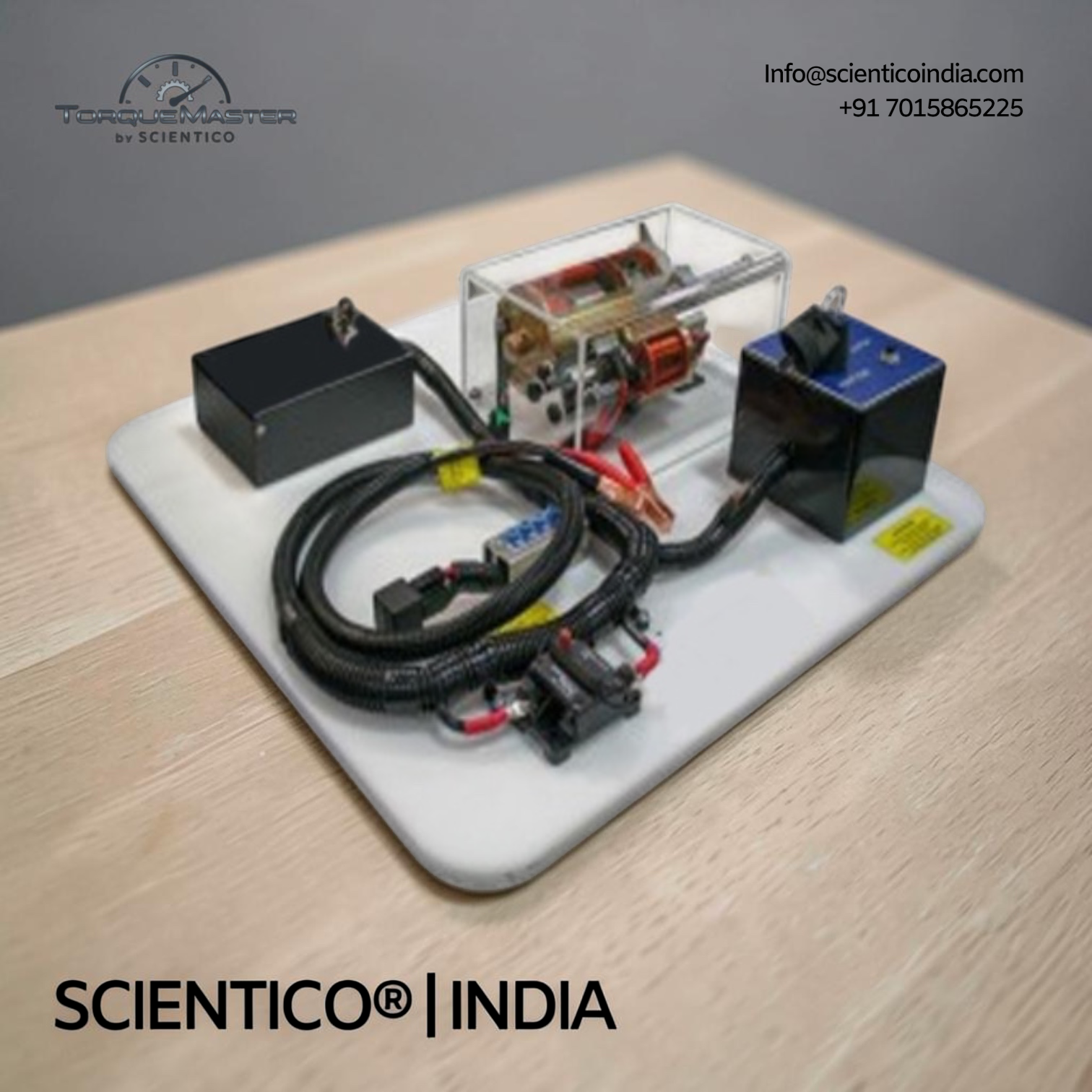

Cut Model of Self Starting System | Torquemaster-33
Cut Model of Self Starting System Torquemaster-33 demonstrates a complete starting system using real-world, cutaway components. Built by a specialist Cut Model of Self Starting System manufacturer, this fully functional trainer lets students view internal starter components live, enclosed safely in Plexiglas, while demonstrating starter planetary gear reduction. A fault box with 4 faults supports diagnostic troubleshooting, and a circuit breaker with reset protects the circuit. It requires a 12V battery or jump box and weighs approximately 20kg.
The Cut Model of Self Starting System Torquemaster-33 allows for the demonstration of a complete starting system using real-world components. As an experienced Cut Model of Self Starting System manufacturer, SCIENTICO India cuts away key areas of the starter to allow visual observation of major components while it remains fully functional.
Product Overview
The Cut Model of Self Starting System Torquemaster-33 requires a 12V battery or jump box to operate. A starter is a device used to rotate (crank) an internal-combustion engine so as to initiate the engine’s operation under its own power. This is a fully functional cutaway starter that allows students to view all internal starter components during live starter operation. The starter is enclosed in Plexiglas to ensure student safety. It demonstrates starter planetary gear reduction and allows students to test and verify a basic starting circuit. Four operational faults can be inserted to promote student diagnostic troubleshooting competencies. The starter solenoid can also be bridged with a remote starter switch (not included) using the solenoid primary terminals. As a specialist Cut Model of Self Starting System manufacturer, SCIENTICO India designs this trainer to combine safety, functionality and diagnostic learning in one unit.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Cut Model of Self Starting System Torquemaster-33 — Technical Specifications
| Parameter | Value |
|---|---|
| Starter | Included |
| Ignition Switch | Included |
| Clutch Switch | Included |
| Relay | Included |
| Fault Box | 4 faults |
| Circuit Breaker | With reset |
| Power Requirement | 12V battery or jump box |
| Length | 550 mm (approx.) |
| Width | 400 mm (approx.) |
| Height | 300 mm (approx.) |
| Weight | 20kg (approx.) |
Technical Data
Starting System Components
| Parameter | Value |
|---|---|
| Starter | Fully functional, cutaway |
| Ignition Switch | Included |
| Clutch Switch | Included |
| Relay | Included |
Fault Diagnostics
| Parameter | Value |
|---|---|
| Fault Box | 4 faults |
| Circuit Breaker | With reset |
Power Requirement
| Parameter | Value |
|---|---|
| Requirement | 12V battery or jump box |
Dimensions and Weight
| Parameter | Value |
|---|---|
| Length | 550 mm (approx.) |
| Width | 400 mm (approx.) |
| Height | 300 mm (approx.) |
| Weight | 20kg (approx.) |
Key Features
- Functionality: Fully functional cutaway starter
- Visibility: Allows students to view all internal starter components during live starter operation
- Safety: Starter enclosed in Plexiglas to ensure student safety
- Mechanism Demonstrated: Starter planetary gear reduction
- Circuit Testing: Ability to test and verify a basic starting circuit
- Fault Diagnostics: Four operational faults can be inserted to promote student diagnostic troubleshooting competencies
- Remote Switch Compatibility: Starter solenoid can be bridged with a remote starter switch (not included) using solenoid primary terminals
- Power Requirement: Requires a 12V battery or jump box to operate
- Manufacturing Standard: Built by a trusted Cut Model of Self Starting System manufacturer for hands-on automotive training
Construction and Design
The Cut Model of Self Starting System Torquemaster-33 has key areas of the starter cutaway to allow visual observation of major components while the unit remains fully functional. The starter is enclosed in Plexiglas to ensure student safety. It demonstrates starter planetary gear reduction. The system includes a starter, ignition switch, clutch switch, relay, fault box with 4 faults, and a circuit breaker with reset. Four operational faults can be inserted to promote student diagnostic troubleshooting competencies. The starter solenoid can also be bridged with a remote starter switch, which is not included, using the solenoid primary terminals. The unit requires a 12V battery or jump box to operate. As a leading Cut Model of Self Starting System manufacturer, SCIENTICO India designs this construction to allow safe, live observation of starter operation alongside real-world circuit diagnostics.
Required for Operation
- 12V battery or jump box
Optional Accessories
- Remote starter switch (not included, can be used to bridge the starter solenoid using solenoid primary terminals)
Q: What is the Cut Model of Self Starting System Torquemaster-33 used for?
A: It demonstrates a complete starting system using real-world components, allowing students to view internal starter components during live operation and to test and verify a basic starting circuit.
Q: What safety features does the trainer include?
A: The starter is enclosed in Plexiglas to ensure student safety while all internal components remain fully functional.
Q: How does the trainer support diagnostic troubleshooting?
A: Four operational faults can be inserted into the fault box to promote student diagnostic troubleshooting competencies.
Q: What is required to operate the trainer?
A: A 12V battery or jump box is required to operate the unit.
Q: What are the dimensions and weight of the trainer?
A: L x W x H (approx.): 550 x 400 x 300 mm, weight (approx.): 20kg.
