Flow Measurement Trainer | Prozessi PX 19
The Flow Measurement Trainer Prozessi PX 19 teaches five flow measurement methods through hands-on experiments. This Flow Measurement Trainer integrates an acrylic venturi meter, orifice meter, pitot tube, rotameter and water meter in a closed loop water circulation system. Five structured experiments measure coefficients of discharge and device accuracy. The system includes an SS304 supply tank, 3 liter measuring tank, graduated scale pressure tube, submersible pump and CPVC piping. MS Excel calculation templates and detailed operational instructions are included.
The Flow Measurement Trainer Prozessi PX 19 is designed to study five different types of units used for flow measurement in fluid mechanics. This Flow Measurement Trainer includes a venturi meter, orifice meter, pitot tube, rotameter and water meter mounted on a standalone structure with closed loop water circulation.
Product Overview

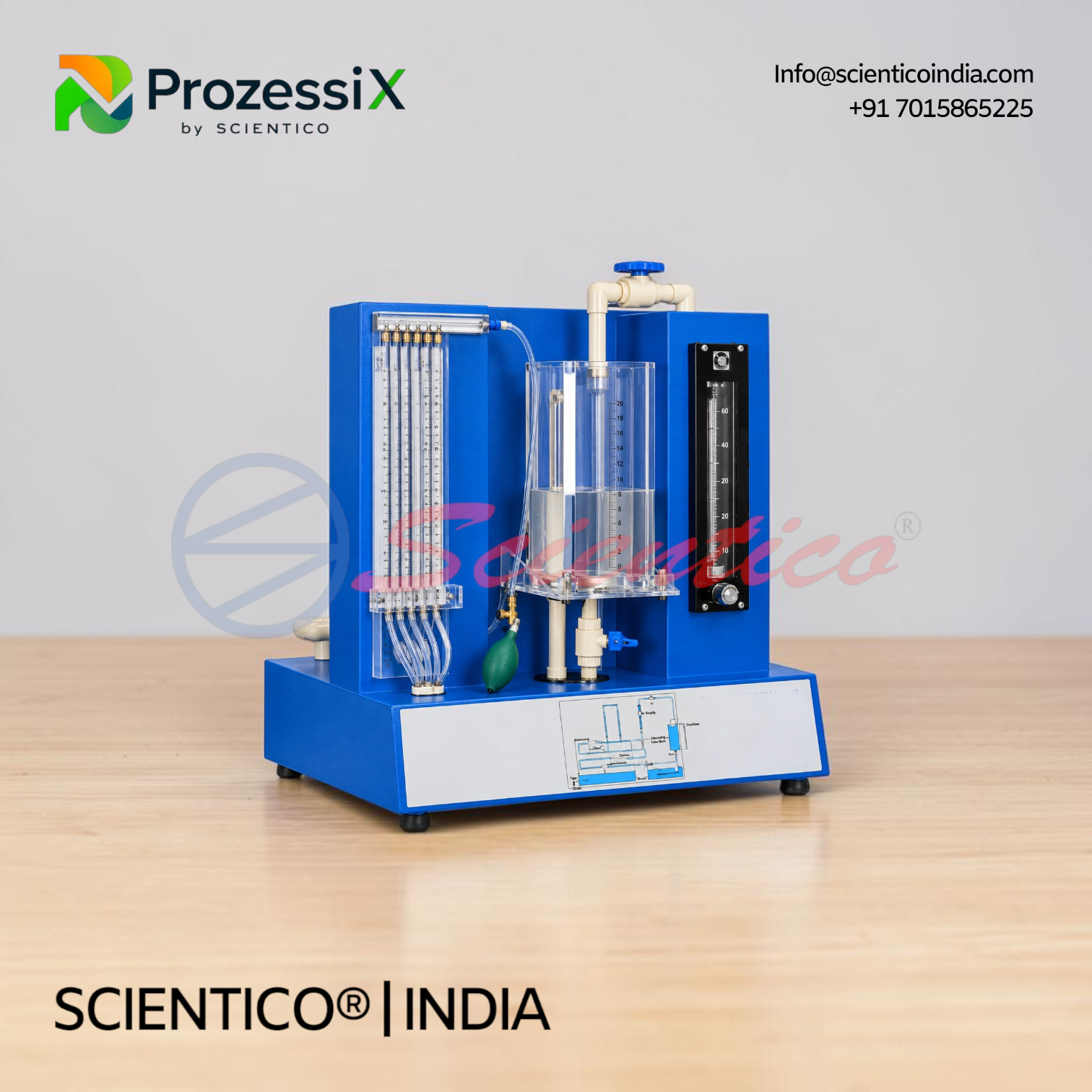

The Flow Measurement Trainer Prozessi PX 19 consists of five flow measurement devices mounted on a standalone structure: an acrylic venturi meter (size 18.5 mm, bore 10 mm), an acrylic orifice meter (size 18.5 mm, bore 12 mm), an acrylic pitot tube (size 18.5 mm), a rotameter (60-600 LPH range), and a brass water meter (1/2″ BSP, least count 1 liter). A stainless steel SS304 supply tank and a 3 liter acrylic measuring tank with graduated scale are integrated into the system. A fractional horse power submersible pump provides closed loop water circulation through 3/4″ BSP CPVC piping. A graduated scale pressure difference tube allows observation of differential pressures across the flow measurement devices. The Flow Measurement Trainer is compact, simple to operate and includes MS Excel sample calculations for coefficient of discharge and accuracy analysis. Overall dimensions are 550W x 475D x 750H mm.
Flow Measurement Trainer Prozessi PX 19 — Technical Specifications
| Specification | Value |
|---|---|
| Product Code | 316 |
| Venturimeter Size | 18.5 mm |
| Venturimeter Bore | 10 mm, Acrylic |
| Orifice Meter Size | 18.5 mm |
| Orifice Meter Bore | 12 mm, Acrylic |
| Pitot Tube Size | 18.5 mm, Acrylic |
| Rotameter Range | 60-600 LPH |
| Water Meter | Size 1/2″ BSP, Brass, Least count 1 lit |
| Supply Tank | SS304 stainless steel |
| Measuring Tank Capacity | 3 liter, Acrylic |
| Pump | Fractional horse power, Submersible type |
| Piping | 3/4″ BSP, CPVC |
| Pressure Difference Tube | Graduated scale |
| Overall Dimensions | 550W x 475D x 750H mm |
Technical Data
Flow Measurement Devices
| Device | Material | Size | Bore/Range |
|---|---|---|---|
| Venturi Meter | Acrylic | 18.5 mm | Bore 10 mm |
| Orifice Meter | Acrylic | 18.5 mm | Bore 12 mm |
| Pitot Tube | Acrylic | 18.5 mm | Direct reading |
| Rotameter | Glass and Float | N/A | 60-600 LPH |
| Water Meter | Brass | 1/2″ BSP | Least count 1 liter |
System Components
| Component | Specification |
|---|---|
| Supply Tank | SS304 stainless steel |
| Measuring Tank | 3 liter capacity, Acrylic, Graduated scale |
| Pump | Fractional horse power, Submersible |
| Piping | 3/4″ BSP, CPVC |
| Pressure Difference Measurement | Graduated scale tube |
Utilities and Operating Requirements
| Utility | Specification |
|---|---|
| Electric Supply | 230 +/- 10 VAC, 50 Hz, 1 phase |
| Water Supply | Distilled water, 10 liters per experiment cycle |
Key Features
- Flow Measurement Trainer: studies five different flow measurement methods
- Closed loop water circulation system
- Compact and simple to operate
- Acrylic venturi meter, orifice meter and pitot tube for visual transparency
- Rotameter 60-600 LPH for variable flow measurement
- Water meter with 1 liter least count
- MS Excel sample calculations provided for coefficient of discharge analysis
- Graduated scale pressure difference tube for direct observation
Experiments
- To calculate coefficient of discharge of venturi meter
- To calculate coefficient of discharge of orifice meter
- To calculate coefficient of discharge of pitot tube
- To calibrate and find accuracy of rotameter
- To find accuracy of water meter
Construction and Design
The Flow Measurement Trainer Prozessi PX 19 is mounted on a standalone structure measuring 550W x 475D x 750H mm. Five acrylic flow measurement devices are mounted horizontally in the flow path: a venturi meter (18.5 mm size, 10 mm bore), an orifice meter (18.5 mm size, 12 mm bore) and a pitot tube (18.5 mm size). A rotameter rated 60-600 LPH and a brass water meter (1/2″ BSP, least count 1 liter) are also integrated into the flow path. Water is stored in an SS304 stainless steel supply tank and circulated through 3/4″ BSP CPVC piping by a fractional horse power submersible pump. A 3 liter acrylic measuring tank with graduated scale collects water after passing through the flow measurement devices. A graduated scale pressure difference tube allows students to observe differential pressures across each device. The Flow Measurement Trainer is designed for simple operation and minimal maintenance with non-corrosive materials throughout the wetted path.
Software and Calculation Aids
MS Excel sample calculations are provided with the Flow Measurement Trainer for computing coefficient of discharge and accuracy analysis across all five flow measurement methods.
Scope of Delivery
- Flow Measurement Trainer Prozessi PX 19 assembly with standalone structure
- Acrylic venturi meter, orifice meter and pitot tube
- Rotameter 60-600 LPH range
- Brass water meter 1/2″ BSP
- SS304 supply tank
- Acrylic measuring tank with graduated scale
- Submersible pump with 3/4″ BSP CPVC piping
- Graduated scale pressure difference tube
- MS Excel calculation templates
- User documentation and experimental manual
- Power cord
Q1: What five flow measurement devices are included in the Flow Measurement Trainer Prozessi PX 19?
A: The Flow Measurement Trainer includes a venturi meter, orifice meter, pitot tube, rotameter and water meter, all mounted for direct comparison and study.
Q2: What is the rotameter range on the Flow Measurement Trainer?
A: The rotameter has a range of 60-600 LPH for measuring variable flow rates across multiple scales.
Q3: How is water circulated in the Flow Measurement Trainer?
A: A fractional horse power submersible pump provides closed loop circulation from the SS304 supply tank through the flow measurement devices and into the 3 liter acrylic measuring tank via CPVC piping.
Q4: What material are the venturi meter, orifice meter and pitot tube made from?
A: All three devices are made from acrylic for transparency and ease of observation during experiments.
Q5: What calculation tools are provided with the Flow Measurement Trainer?
A: MS Excel sample calculation templates are provided to compute coefficient of discharge and accuracy for all five flow measurement methods.
