Multi-Purpose Teaching Flume (Length 2.5 m) | FluidoSurge-X 236
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.

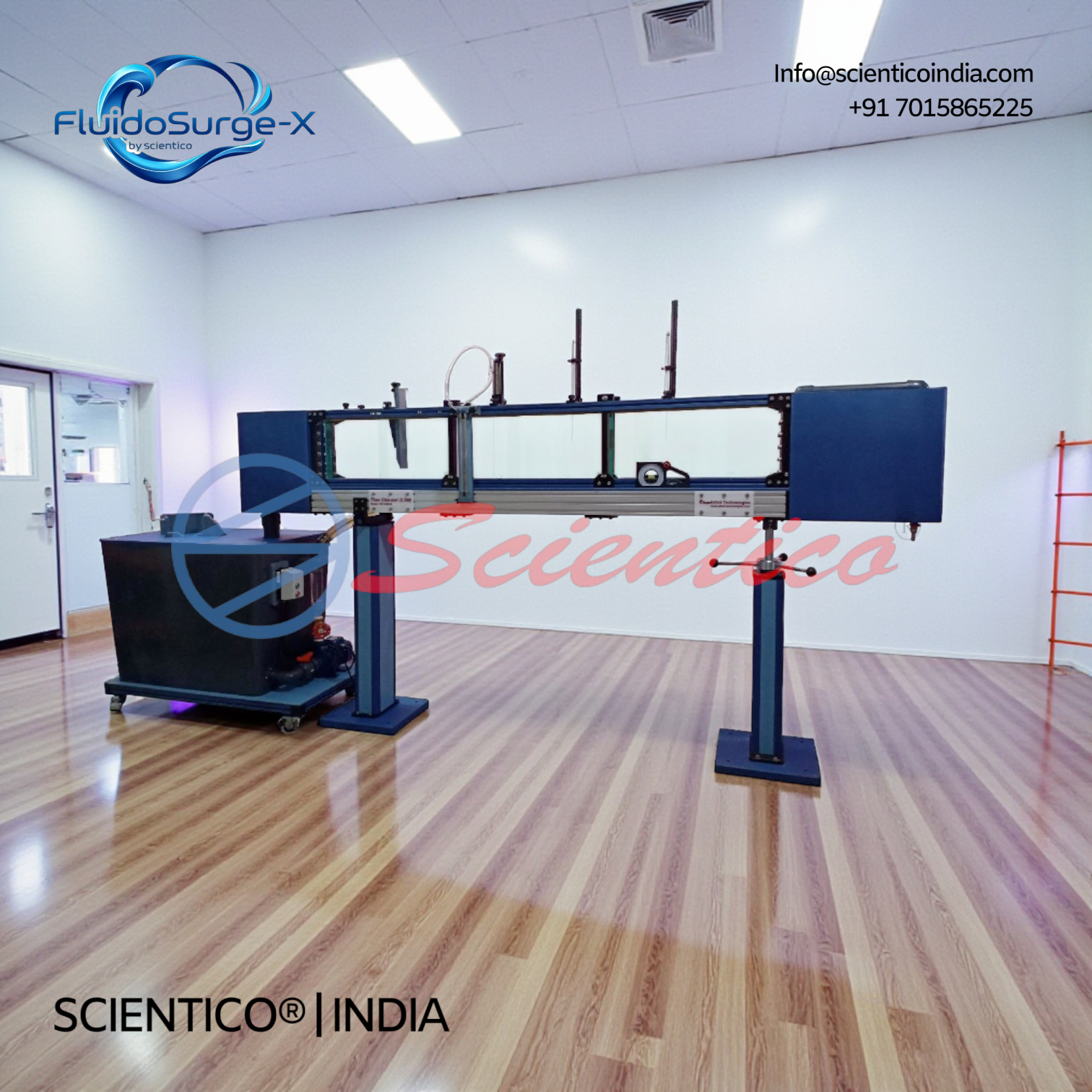

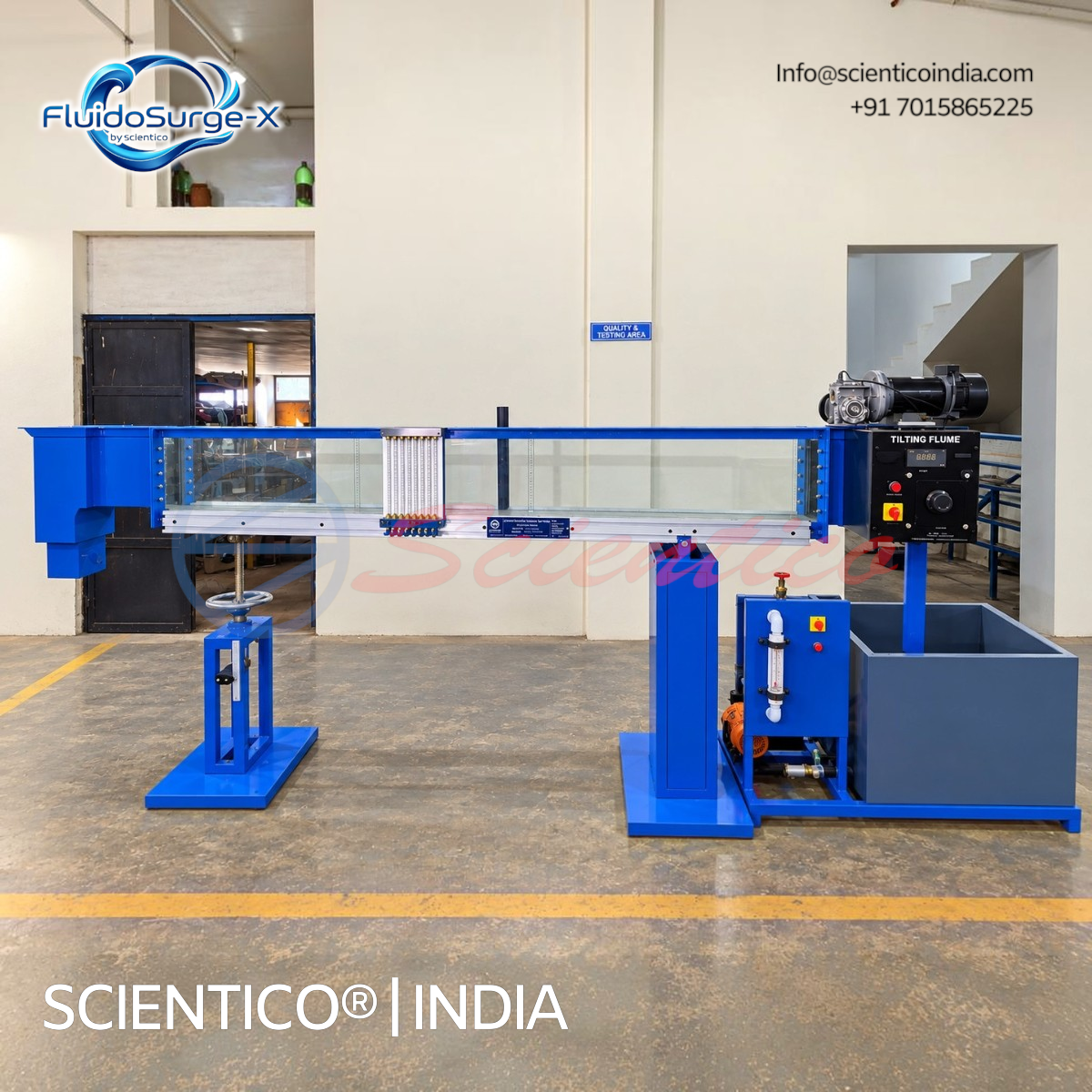

The Multi-Purpose Teaching Flume FluidoSurge-X 236 is a laboratory-scale open channel flume designed for teaching and experimental studies in hydraulic engineering. Manufactured by SCIENTICO, the system enables demonstration of fundamental and advanced open-channel flow phenomena. The flume supports a wide range of experiments using interchangeable hydraulic models. It operates on a closed water circuit for controlled and repeatable testing.
Product Overview
FluidoSurge-X 236 features a 2.5 m long experimental section with a rectangular cross section and tempered glass side walls for clear observation. The flow enters through a flow-optimized inlet element to minimize turbulence. The flume inclination can be finely adjusted to simulate slopes and achieve uniform flow conditions. A closed water circuit with tank, pump, and manual flow control supports stable operation across varied experimental setups.
Standard Accessories
Control Structures
-
Sluice gate
-
Broad-crested weir
-
Sharp-crested overshot weir with aeration
-
Ogee-crested weir with chute and ski jump
Measuring Instruments
-
Vernier level gauge
-
Pitot tube with twin tube manometer
Available Accessories (Optional)
-
Radial gate, Crump weir, Cipoletti weir, Thomson weir, Rehbock weir
-
Rectangular weir, siphon weir, siphon spillway
-
Venturi flume, Parshall flume, trapezoidal flume
-
Set of plate weirs and flow-measuring flumes
-
Energy dissipation elements and roughened bed
-
Set of piers with seven profiles
-
Wave generator, vibrating piles, beaches
-
Sediment feeder and closed sediment circuit with trap
-
Digital level gauge and instrument carrier
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Apparatus Type | Open channel teaching flume |
| Experimental Section Length | 2.5 m |
| Flow Cross Section (W x H) | 85 x 300 mm ± 1 mm |
| Side Wall Material | Tempered glass |
| Wetted Materials | Stainless steel, glass reinforced plastic |
| Inclination Adjustment Range | -0.5% to +3% |
| Inlet Condition | Flow-optimized, low-turbulence |
| Model Mounting | 4 evenly spaced threaded holes |
| Water Circuit | Closed |
| Tank Capacity | 150 L |
| Inclinometer | Magnetic |
| Inclinometer Range | -90° to 0° to +90° |
| Pump Power Consumption | 1.02 kW |
| Maximum Flow Rate | 22.5 m³/h |
| Maximum Head | 13 m |
Key Features
-
2.5 m long experimental section for comprehensive open-channel studies
-
Tempered glass side walls for excellent visibility
-
Smoothly adjustable flume inclination for slope simulation
-
Closed water circuit with tank, pump, rotameter, and manual flow adjustment
-
Low-turbulence inlet for uniform flow conditions
-
Corrosion-resistant construction for long-term laboratory use
-
Quick and secure mounting of hydraulic models
Applications
-
Hydraulic engineering teaching laboratories
-
Study of uniform and non-uniform open-channel flow
-
Investigation of hydraulic jumps and energy dissipation
-
Flow over weirs, gates, and control structures
-
Velocity profile measurement and momentum studies
-
Sediment transport and wave studies using optional accessories
Construction & Design Details
The experimental section is constructed with corrosion-resistant materials, with tempered glass side walls enabling detailed observation of flow behavior. The inlet element conditions the flow to reduce turbulence. The flume angle is smoothly adjustable to simulate varying bed slopes. Models are mounted using threaded points along the flume bed, allowing safe and rapid configuration changes.
Experiments
-
Uniform and non-uniform discharge
-
Hydraulic jump and energy dissipation
-
Flow over sharp-crested, broad-crested, and ogee-crested weirs
-
Discharge under gates and flow-measuring flumes
-
Local losses due to obstacles and piers
-
Transient flow including waves and vibrations
-
Sediment transport and force-momentum studies
Data Acquisition Software (Optional)
Optional DAQ software developed in the NITM LabVIEW™ environment supports data acquisition, processing, and reporting on Windows systems. The software enables measurement and calculation of experimental parameters, visualization through tables and graphs, and generation of comprehensive CSV reports containing measured and calculated data with plots.
Standard Scope of Delivery
-
1 experimental flume
-
1 set of standard accessories
-
1 instruction manual
Export & Supply Capability
SCIENTICO manufactures the Multi-Purpose Teaching Flume FluidoSurge-X 236 for engineering institutes, technical universities, and research laboratories. The system is suitable for domestic and international supply. Export packing, documentation, and accessory configuration are provided as per destination requirements.
Q1. What is the length of the experimental section?
The experimental section is 2.5 m long.
Q2. Can the flume slope be adjusted?
Yes. The inclination can be adjusted from -0.5% to +3%.
Q3. What materials are in contact with water?
All wetted components are made of corrosion-resistant materials such as stainless steel and glass reinforced plastic.
Q4. Are hydraulic models included as standard?
Yes. A set of standard control structures and measuring instruments is supplied.
Q5. Is digital data acquisition available?
Yes. An optional DAQ system and software are available for data logging and analysis
