Multi-Purpose Teaching Flume (Length 1m) | FluidoSurge-X 392
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.
The FluidoSurge-X 392 is a 1 m experimental flume with a closed water circuit, designed for teaching the fundamental principles of open-channel flow and hydraulic engineering. The tempered glass side walls provide clear observation of flow behaviour, and the smoothly adjustable inclination allows simulation of slope conditions. A wide range of standard and optional accessories supports a comprehensive experimental programme.
Product Overview
The FluidoSurge-X 392 features a 1 m experimental section with a 50 x 200 mm (W x H) flow cross section and tempered glass side walls. Three evenly spaced threaded holes on the channel bottom allow quick and secure model installation. The flow-optimised inlet element ensures low-turbulence entry into the experimental section. Inclination is adjustable from -0.5% to +3% using a magnetic inclinometer (range -90° to 0° to 90°). The closed water circuit comprises a 100 L sump tank, a pump (0.37 kW, 80 LPM max., 15 m head, 2850 rpm), and a rotameter (0.8 to 70 LPM) with manual flow adjustment. All water-contact surfaces are corrosion-resistant (stainless steel and glass reinforced plastic). Standard accessories include sluice gate, broad-crested weir, sharp-crested overshot weir with aeration, ogee-crested weir with chute and ski jump, vernier level gauge, and Pitot tube with twin tube manometer. Extensive optional accessories cover control structures, flow-measuring flumes, sediment transport, wave generation, and instrumentation. Optional DAQ software FX 392 provides LabVIEW-based data acquisition, graphing, and CSV reporting on Windows.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ, Shipping, Warranty, Lead Time
Technical Specifications
| Parameter | Specification |
|---|---|
| Experimental Section Length | 1 m |
| Flow Cross Section (W x H) | 50 x 200 mm (+1 mm) |
| Side Wall Material | Tempered glass |
| Water-Contact Materials | Stainless steel, glass reinforced plastic |
| Model Mounting | 3 evenly spaced threaded holes on channel bottom |
| Inclination Adjustment Range | -0.5% to +3% |
| Inclinometer Type | Magnetic |
| Inclinometer Range | -90° to 0° to 90° |
| Sump Tank Total Volume | 100 L |
| Pump Power Consumption | 0.37 kW |
| Pump Max. Flow Rate | 80 LPM |
| Pump Max. Head | 15 m |
| Pump Speed | 2850 rpm |
| Rotameter Range | 0.8 to 70 LPM |
| Water Circuit | Closed, with manual flow adjustment |
Technical Data
Experimental Section
| Parameter | Value |
|---|---|
| Length | 1 m |
| Flow Cross Section (W x H) | 50 x 200 mm (+1 mm) |
| Inclination Adjustment | -0.5% to +3% |
| Side Walls | Tempered glass |
| Model Mounting Points | 3 evenly spaced threaded holes on bottom |
Inclinometer
| Parameter | Value |
|---|---|
| Type | Magnetic |
| Range | -90° to 0° to 90° |
Sump Tank
| Parameter | Value |
|---|---|
| Total Volume | 100 L |
| Compatibility | Suitable for flume |
Pump
| Parameter | Value |
|---|---|
| Power Consumption | 0.37 kW |
| Max. Flow Rate | 80 LPM |
| Max. Head | 15 m |
| Speed | 2850 rpm |
Rotameter
| Parameter | Value |
|---|---|
| Range | 0.8 to 70 LPM |
Key Features
- Experimental section: 1 m length, 50 x 200 mm cross section, tempered glass side walls
- Inclination: adjustable -0.5% to +3%, magnetic inclinometer (-90° to +90°)
- Model mounting: 3 evenly spaced threaded holes on channel bottom
- Inlet element: flow-optimised for low-turbulence entry
- Closed water circuit: 100 L sump tank, rotameter 0.8 to 70 LPM, manual flow adjustment
- Pump: 0.37 kW, 80 LPM max., 15 m head, 2850 rpm
- Water-contact materials: stainless steel and glass reinforced plastic
- Standard accessories: sluice gate, three weir types, vernier level gauge, Pitot tube with twin tube manometer
- Extensive optional accessories: control structures, flow-measuring flumes, sediment circuit, wave generator, digital instrumentation
- Optional software FX 392: LabVIEW-based, Windows, CSV report output
Experiments
- Uniform and non-uniform discharge
- Flow formula
- Flow transition (hydraulic jump)
- Energy dissipation (hydraulic jump, stilling basin)
- Flow over control structures: weirs (sharp-crested, broad-crested, ogee-crested) and discharge under gates
- Flow-measuring flumes
- Local losses due to obstacles
- Transient flow: waves
- Vibrating piles
- Sediment transport
- Force momentum and steady flow energy equation
- Relation between water level above the crest of a weir and flow rate over the weir
- Flow and level control using hydraulic structure
- Measurement of velocity profile
Construction and Design

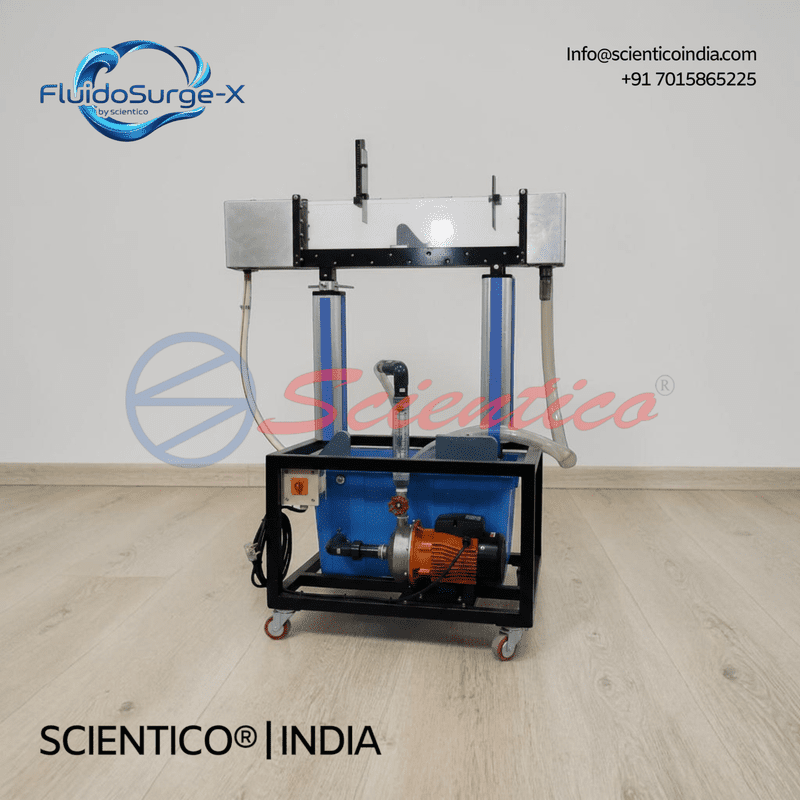

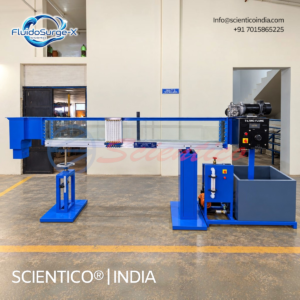

The FluidoSurge-X 392 is a floor-standing experimental flume with a 1 m experimental section of 50 x 200 mm (W x H) cross section. Side walls are tempered glass for unobstructed observation. Three evenly spaced threaded holes on the channel bottom provide secure model mounting. All water-contact components are fabricated from corrosion-resistant materials, stainless steel and glass reinforced plastic. The flow-optimised inlet element minimises turbulence at the entry to the experimental section. Inclination is smoothly adjustable from -0.5% to +3% and is read via a magnetic inclinometer with a -90° to +90° range. The closed water circuit includes a 100 L sump tank, a pump rated at 0.37 kW with 80 LPM max. flow rate and 15 m head at 2850 rpm, and a rotameter covering 0.8 to 70 LPM with manual flow adjustment.

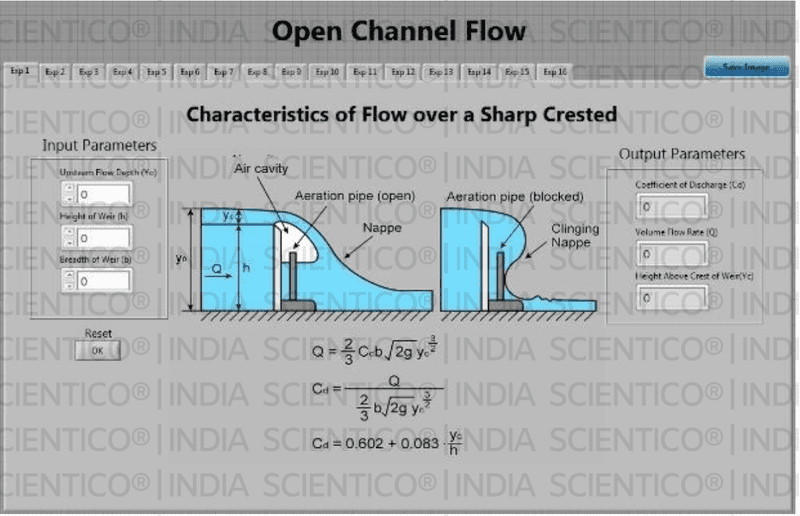

Software
FX 392, Optional
Developed in the LabVIEW environment, operates on Windows. Provides data acquisition, processing, and reporting. Capabilities: precise measurement and calculation, data tabulation and graphing, image capture, and CSV report generation containing all measured and calculated data including graphs.
Scope of Delivery
- 1 experimental flume
- 1 set of standard accessories
- 1 instruction manual
Standard Accessories
Control Structures
- Sluice Gate
- Broad-Crested Weir
- Sharp-Crested Overshot Weir with Aeration
- Ogee-Crested Weir with Chute and Chute with Ski Jump
Measuring Instruments
- Vernier Level Gauge
- Pitot Tube with Twin Tube Manometer
Optional Accessories
Control Structures
- Radial Gate
- Set of Plate Weirs, Four Types (Rectangular Weir, Thomson Weir, Cipoletti Weir)
- Crump Weir
- Air Regulated Siphon Weir
- Siphon Spillway
- Rake
- Ogee-Crested Weir with Pressure Measurement
- Rehbock Weir
Elements for Energy Dissipation
- Change in Cross-Section Sill
- Culvert
Piers
- Set of Piers, Seven Profiles: Rectangular, Circular, Square, Rounded on One End, Rounded on Both Ends, Tapering Profile on One End, Tapering Profile on Both Ends
Bed and Sediment
- Artificially Roughened Bed
- Closed Sediment Circuit with Sediment Trap (Screen)
- Sediment Feeder
Flow-Measuring Flumes
- Venturi Flume
- Parshall Flume
- Trapezoidal Flume
Wave and Coastal
- Vibrating Piles
- Wave Generator
- Set of Beaches
Measuring Instruments
- Instrument Carrier
- Digital Level Gauge
- Velocity Meter
- Electronic Pressure Measurement
- Ten Tube Manometers
Q1. What are the dimensions of the experimental section?
1 m length, 50 x 200 mm (W x H) flow cross section with +1 mm tolerance. Side walls are tempered glass.
Q2. What is the inclination adjustment range and how is it measured?
-0.5% to +3%, adjusted smoothly. A magnetic inclinometer with a -90° to 0° to +90° range is used for reading.
Q3. What are the pump and rotameter specifications?
Pump: 0.37 kW, 80 LPM max. flow rate, 15 m max. head, 2850 rpm. Rotameter range: 0.8 to 70 LPM with manual flow adjustment.
Q4. How are models mounted in the experimental section?
Three evenly spaced threaded holes on the channel bottom allow most models to be quickly and securely bolted in place.
Q5. What does the optional FX 392 software provide?
LabVIEW-based DAQ software for Windows. Performs data acquisition, processing, tabulation, graphing, and generates a CSV report with all measured and calculated data.
