Multi Turbine Test Rig | FluidoSurge-X 314
A CE-certified turbine test rig for performance characteristic studies, efficiency curves, and energy conversion analysis, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.

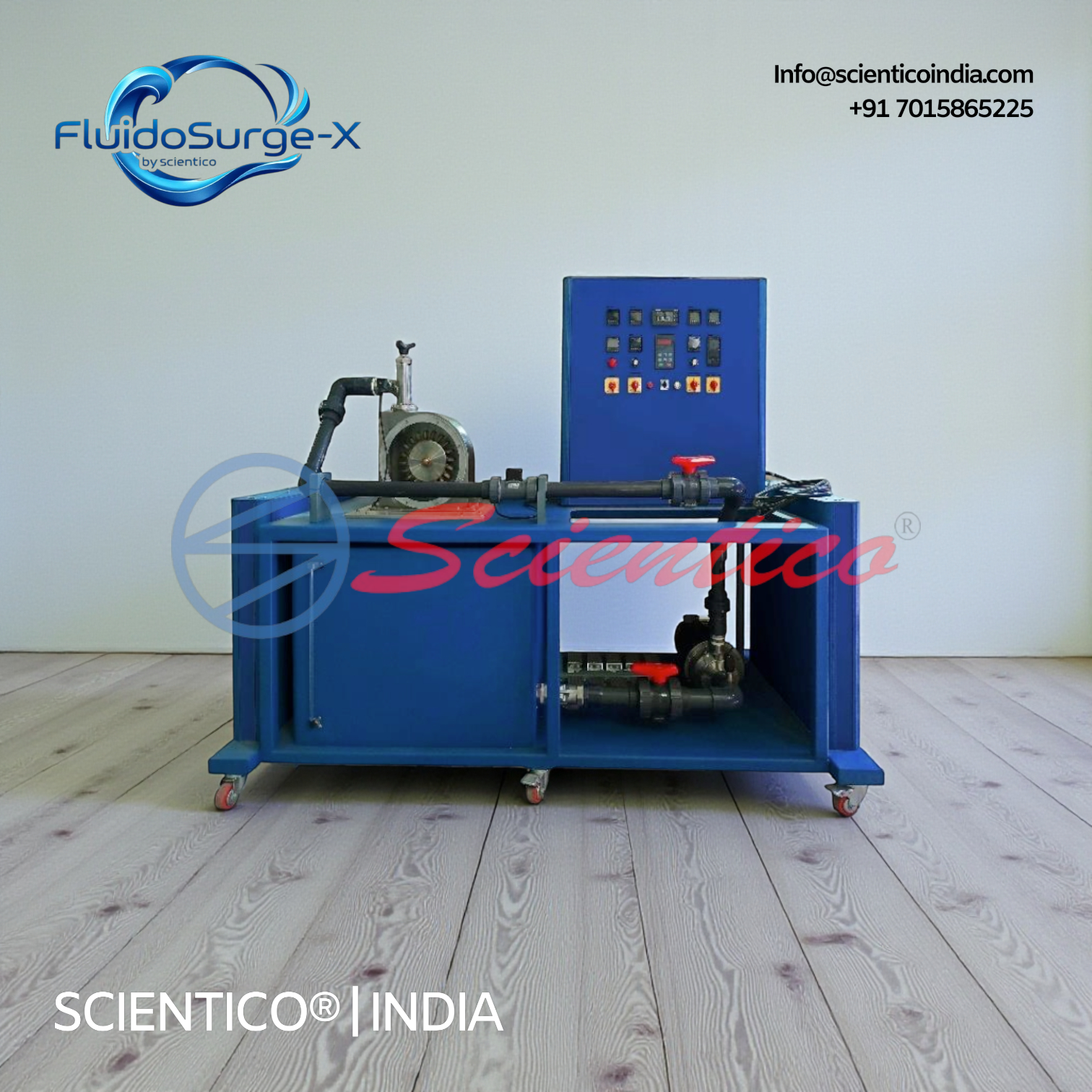

The Multi Turbine Test Rig FluidoSurge-X 314 is a self-contained laboratory system designed to demonstrate and evaluate the performance of different hydraulic turbines. Manufactured by SCIENTICO, the rig enables comparative study of Pelton, Francis, and Kaplan turbines under controlled operating conditions. It is intended for instructional and experimental use in fluid mechanics and hydraulic machinery laboratories.
Product Overview
FluidoSurge-X 314 integrates a centrifugal pump, interchangeable turbine modules, dynamometer, and instrumentation into a single test platform. The system allows investigation of mechanical power output, hydraulic power input, turbine efficiency, and specific speed. A variable-speed pump supplies water to the turbine casing, and generated mechanical power is converted to electrical output using a DC generator coupled to the turbine shaft. All measurements are displayed on an integrated control and instrumentation console.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Apparatus Type | Multi turbine performance test rig |
| Turbine Types | Pelton, Francis, Kaplan |
| Pump Power | 2.2 kW |
| Pump Speed Control | Inverter controlled, 0 to ~3000 rpm |
| Water Circuit | Closed, recirculating |
| Frame | Welded steel base frame |
| Instrumentation | Control and measurement console |
| Power Measurement | Power transducer on pump motor |
| Speed Measurement | Speed sensor on DC generator shaft |
| Torque Measurement | Load cell with torque arm |
| Electrical Load | Resistive lamps |
| Pressure Measurement | Analogue manometers at turbine inlet and outlet |
Pelton Turbine
| Parameter | Specification |
|---|---|
| Number of Buckets | 16 to 18 |
| Nozzle Area | Variable, up to 162 mm² |
| Runner Radius to Jet Impact | 70 to 80 mm |
| Maximum Speed | ~1800 rpm |
| Speed at Maximum Efficiency | ~1200 rpm |
Francis Turbine
| Parameter | Specification |
|---|---|
| Impeller Blades | 10 |
| Impeller Diameter | 50 mm |
| Impeller Inlet Height | 14.5 mm |
| Impeller Outlet Diameter | 50 mm |
| Guide Vanes | 6 adjustable |
Kaplan Turbine
| Parameter | Specification |
|---|---|
| Inlet Height | 14.5 mm |
| Outlet Diameter | 88 mm |
| Interchangeable Rotors | 3 units |
| Rotor Blade Angles | 10°, 20°, 30° |
| Rotor Diameter | 87 mm |
| Guide Vanes | 6 equi-spaced |
| Guide Vane Diameter | 153.4 mm |
Key Features
-
Single test rig for Pelton, Francis, and Kaplan turbines
-
Self-contained, closed water circuit with recirculation
-
Variable-speed pump for head and flow variation
-
Dynamometer-based torque and speed measurement
-
Electrical power generation and load control using DC generator
-
Transparent turbine sections for visual observation
-
Suitable for comparative turbine performance studies
Applications
-
Fluid mechanics and hydraulic machinery laboratories
-
Study of impulse and reaction turbines
-
Determination of turbine efficiency and specific speed
-
Comparative analysis of turbine characteristics
-
Teaching and training in renewable and hydraulic energy systems
Construction & Design Details
The test rig is built on a rigid welded steel base frame supporting the pump, turbine assemblies, and water reservoir. Turbines are mounted individually with dedicated casings, some of which are transparent for flow observation. The control console houses electrical meters, power transducer, inverter speed control, and instrumentation. A DC generator directly coupled to the turbine shaft enables torque and speed measurement through a load cell and resistive electrical loads.
Experiments
-
Measurement of mechanical power output and hydraulic power input
-
Determination of turbine efficiency
-
Study of specific speed of Pelton, Francis, and Kaplan turbines
-
Effect of head and flow variation on turbine performance
-
Comparative performance analysis of different turbine types
Data Acquisition Software (Optional)

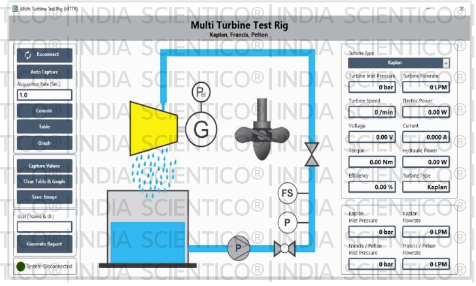

Optional DAQ software developed in the NITM LabVIEW™ environment supports data acquisition, processing, and reporting on Windows systems. The software enables graphical visualization of turbine characteristics, calculation of efficiencies, and generation of comprehensive CSV reports containing measured and calculated data.
Requirements
-
Electrical supply: 415 VAC, 50 Hz, three-phase
-
Laboratory tap water connection for top-up
-
Drainage point
Standard Scope of Delivery
-
1 experimental module
-
1 Pelton turbine
-
1 Francis turbine
-
1 Kaplan turbine with three interchangeable rotors
-
6 resistive load lamps
-
1 spring balance, 10 kg capacity, least count 50 g
-
1 instruction manual
Export & Supply Capability
SCIENTICO manufactures the Multi Turbine Test Rig FluidoSurge-X 314 for engineering colleges, technical universities, and training laboratories. The system is suitable for domestic and international supply. Export packing, documentation, and electrical configuration are provided as per destination requirements.
Q1. Which turbine types are included in FluidoSurge-X 314?
Pelton, Francis, and Kaplan turbines are included as interchangeable modules.
Q2. How is turbine power measured?
Power is determined using torque measurement via a load cell and rotational speed sensing on the DC generator shaft.
Q3. Can pump speed be varied during experiments?
Yes. Pump speed is controlled using an inverter with a speed dial.
Q4. Is the water circuit open or closed?
The system operates on a closed, recirculating water circuit.
Q5. Is digital data acquisition available?
Yes. Optional DAQ hardware and software are available for advanced data logging and analysis.
