Programmable Logic Control Trainer (Fatek Based) | NexuMation-49
The Programmable Logic Control Trainer (Fatek Based) NexuMation-49 is a complete PLC training platform for engineering laboratories, built around the Fatek CPU FBs24MAT with 14 digital inputs, 10 digital outputs, 2 analog inputs, 1 analog output, and 20K words of program memory. This programmable logic control trainer supports Ladder programming, with built-in digital input simulators (8 toggle, 8 momentary), an analog input simulator, USB to DIN PC interface, and fixed DC power supplies at 24 V, +12 V, -12 V, and 5 V. All accessories are included for immediate use, and 13 optional control modules extend the platform to industrial automation applications including conveyor, elevator, robot, and HMI control.
The Programmable Logic Control Trainer (Fatek Based) NexuMation-49 is a dedicated PLC training unit built around the Fatek CPU FBs24MAT for hands-on automation education in engineering laboratories. This programmable logic control trainer covers digital and analog I/O, ladder logic programming, and core automation experiments through built-in digital input simulators, analog voltage sources, and USB PC interface. It supports a wide range of optional control modules extending the platform to traffic light, conveyor, elevator, motor, and robot control applications.
Product Overview
The Programmable Logic Control Trainer (Fatek Based) NexuMation-49 provides a complete, ready-to-use PLC training platform addressing the growing demand for industrial automation training in engineering institutions. The core of the unit is the Fatek CPU FBs24MAT, configured with 14 digital inputs at 24 V DC (source/sink), 10 digital outputs at 24 V DC (source/sink), 2 analog voltage/current inputs, 1 analog voltage/current output, and 20K words of program memory. Ladder programming language is supported. Built-in digital input simulators provide 8 toggle inputs and 8 momentary inputs for experiment operation without external signal sources. An analog input simulator is also installed. Two analog voltage sources at +10 V each are included. Fixed DC power supplies provide 24 V, +12 V, -12 V, and 5 V rails. PC connectivity is provided via a USB to DIN connector cable. A 40-pin IDC optional module interface header is installed for expansion. This programmable logic control trainer ships with all accessories required for immediate operation, including 2 mm patch cords, a power cord, IDC cable, PLC programming cable, software CD, and experiment manual. Thirteen optional control modules extend the platform to real-world automation scenarios including traffic light control, water level control, temperature control, conveyor control, elevator control, motor control, robot control, weight control, HMI integration, and prismatic piece storage and sorting control.
Technical Specifications
| Parameter | Detail |
|---|---|
| Model Reference | NexuMation-49 |
| PLC Model | Fatek CPU FBs24MAT |
| Digital Inputs | 14 x 24 V DC (Source/Sink) |
| Digital Outputs | 10 x 24 V DC (Source/Sink) |
| Analog Inputs | 2 x Voltage/Current Type |
| Analog Outputs | 1 x Voltage/Current Type |
| Program Memory | 20K Words |
| Programming Language | Ladder |
| Digital Input Simulator | 8 x Toggle Inputs, 8 x Momentary Inputs |
| Analog Input Simulator | Installed |
| Analog Voltage Source | 2 x +10 V |
| Fixed DC Supply | 24 V, +12 V, -12 V, 5 V |
| PC Interface | USB to DIN Connector Cable |
| Optional Module Interface | 40-pin IDC Connector |
Technical Data
PLC Core
| Parameter | Value |
|---|---|
| PLC Model | Fatek CPU FBs24MAT |
| Digital Inputs | 14 x 24 V DC (Source/Sink) |
| Digital Outputs | 10 x 24 V DC (Source/Sink) |
| Analog Inputs | 2 x Voltage/Current Type |
| Analog Outputs | 1 x Voltage/Current Type |
| Program Memory | 20K Words |
| Programming Language | Ladder |
Input Simulators
| Parameter | Value |
|---|---|
| Toggle Inputs | 8 |
| Momentary Inputs | 8 |
| Analog Input Simulator | Installed |
Power Supplies
| Rail | Value |
|---|---|
| Fixed DC Supply 1 | 24 V |
| Fixed DC Supply 2 | +12 V |
| Fixed DC Supply 3 | -12 V |
| Fixed DC Supply 4 | 5 V |
| Analog Voltage Source | 2 x +10 V |
Interfaces
| Parameter | Value |
|---|---|
| PC Interface | USB to DIN Connector Cable |
| Optional Module Interface | 40-pin IDC Connector |
Key Features
- PLC Core: Fatek CPU FBs24MAT with 20K words program memory
- Digital I/O: 14 x 24 V DC digital inputs (source/sink), 10 x 24 V DC digital outputs (source/sink)
- Analog I/O: 2 x voltage/current analog inputs, 1 x voltage/current analog output on this programmable logic control trainer
- Programming Language: Ladder logic supported
- Digital Input Simulators: 8 toggle inputs and 8 momentary inputs installed
- Analog Input Simulator: installed for signal simulation without external sources
- Analog Voltage Source: 2 x +10 V
- Fixed Power Supplies: 24 V, +12 V, -12 V, and 5 V DC rails installed
- PC Interface: USB to DIN connector cable for programming and monitoring
- Optional Module Interface: 40-pin IDC header for expansion module connection
- Optional Modules: 13 control modules available including traffic light, conveyor, elevator, motor, robot, HMI, and weight control
Experiments
- Implementation of Logic Gates
- Implementation of Timers
- Implementation of 4-bit Digital to Analog Converter
- Implementation of UP/DOWN Counter
- Implementation of 4-bit Analog to Digital Converter
Construction and Design

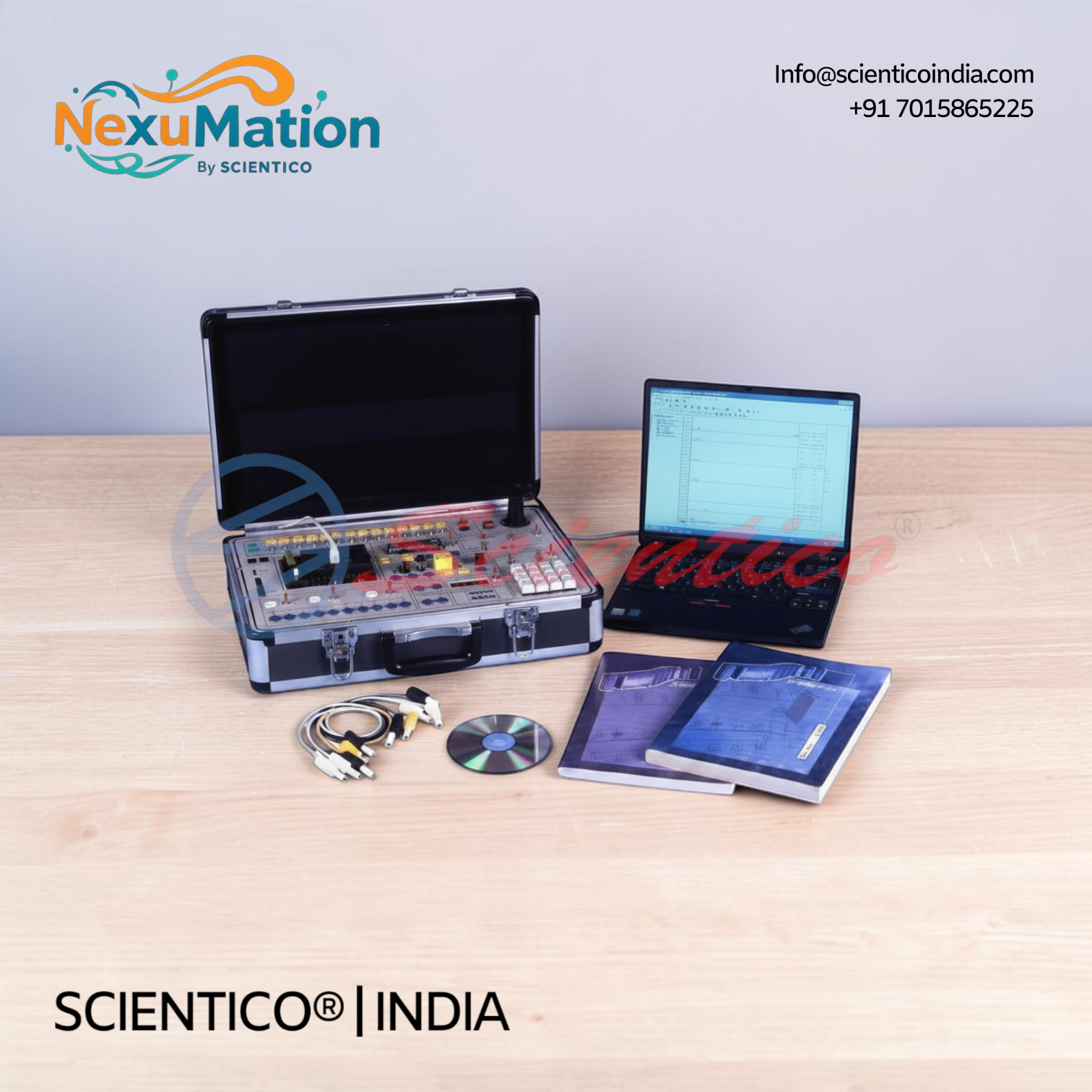

The Programmable Logic Control Trainer (Fatek Based) NexuMation-49 is built around the Fatek CPU FBs24MAT PLC module integrated within a self-contained training panel. All power supplies are installed internally, providing 24 V, +12 V, -12 V, and 5 V DC fixed rails alongside two analog voltage sources at +10 V each. Digital input simulation is handled by 8 toggle switches and 8 momentary pushbuttons installed on the panel, with an analog input simulator for voltage and current signal generation. A USB to DIN connector cable provides PC connectivity for programming and monitoring. A 40-pin IDC header is mounted on the panel for direct connection to optional expansion modules. This programmable logic control trainer supports Ladder programming language for the Fatek FBs series platform. The unit ships ready for use with all accessories and experiment manual included. Thirteen optional control modules extend the platform to cover a comprehensive range of industrial automation scenarios.
Optional Modules
- Traffic Light Control by PLC
- Water Level Control by PLC
- Temperature Control by PLC
- Conveyor Control by PLC
- Elevator Control by PLC
- Motor Control by PLC
- Robot Control Module by PLC
- Module for Testing Selecting Pieces Control by PLC
- Weight Control Module by PLC
- Storage Control Module for Prismatic Pieces by PLC
- Conveyor Belt Control Module by PLC
- HMI Module
- Pushbutton Panel
Scope of Delivery
- 1 experimental unit
- 2 mm patch cords
- Power cord
- Experiment manual
- IDC cable
- PLC programming cable
- Software CD
Q1: Which PLC model is used in the Programmable Logic Control Trainer (Fatek Based) NexuMation-49?
The unit is built around the Fatek CPU FBs24MAT, configured with 14 digital inputs, 10 digital outputs, 2 analog inputs, 1 analog output, and 20K words of program memory.
Q2: What programming language does this programmable logic control trainer support?
The NexuMation-49 supports Ladder programming language, standard for Fatek FBs series PLC platforms.
Q3: Are input simulators included, or must external signal sources be connected?
Both digital and analog input simulators are installed on the panel. Digital simulation uses 8 toggle inputs and 8 momentary inputs. An analog input simulator is also built in, enabling all experiments without external signal sources.
Q4: How is the NexuMation-49 connected to a PC for programming?
PC connectivity is provided via a USB to DIN connector cable, included in the scope of delivery.
Q5: What optional modules are available for the NexuMation-49?
Thirteen optional modules are available, including traffic light control, water level control, temperature control, conveyor control, elevator control, motor control, robot control, weight control, HMI, pushbutton panel, piece selection testing, conveyor belt control, and prismatic piece storage control.
