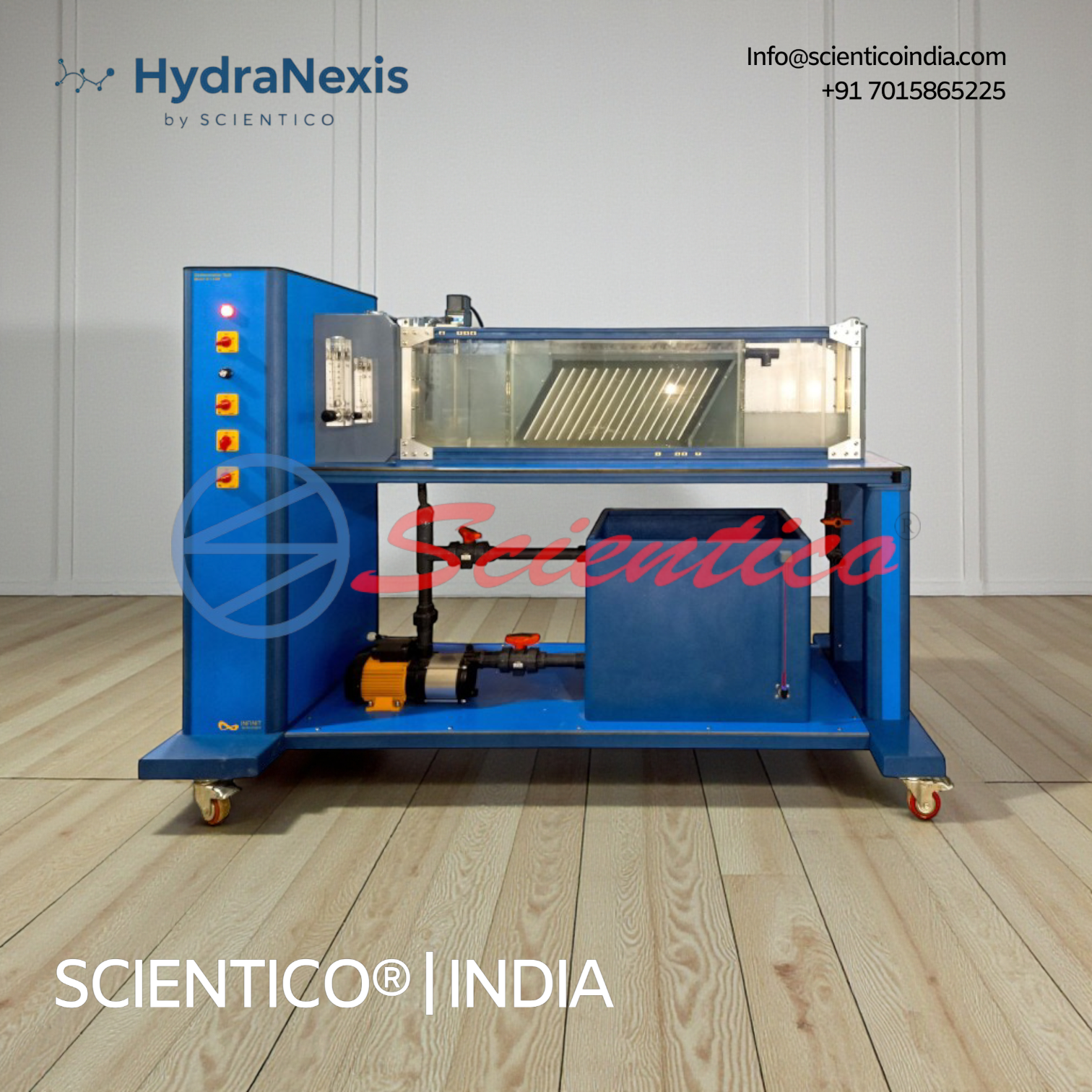

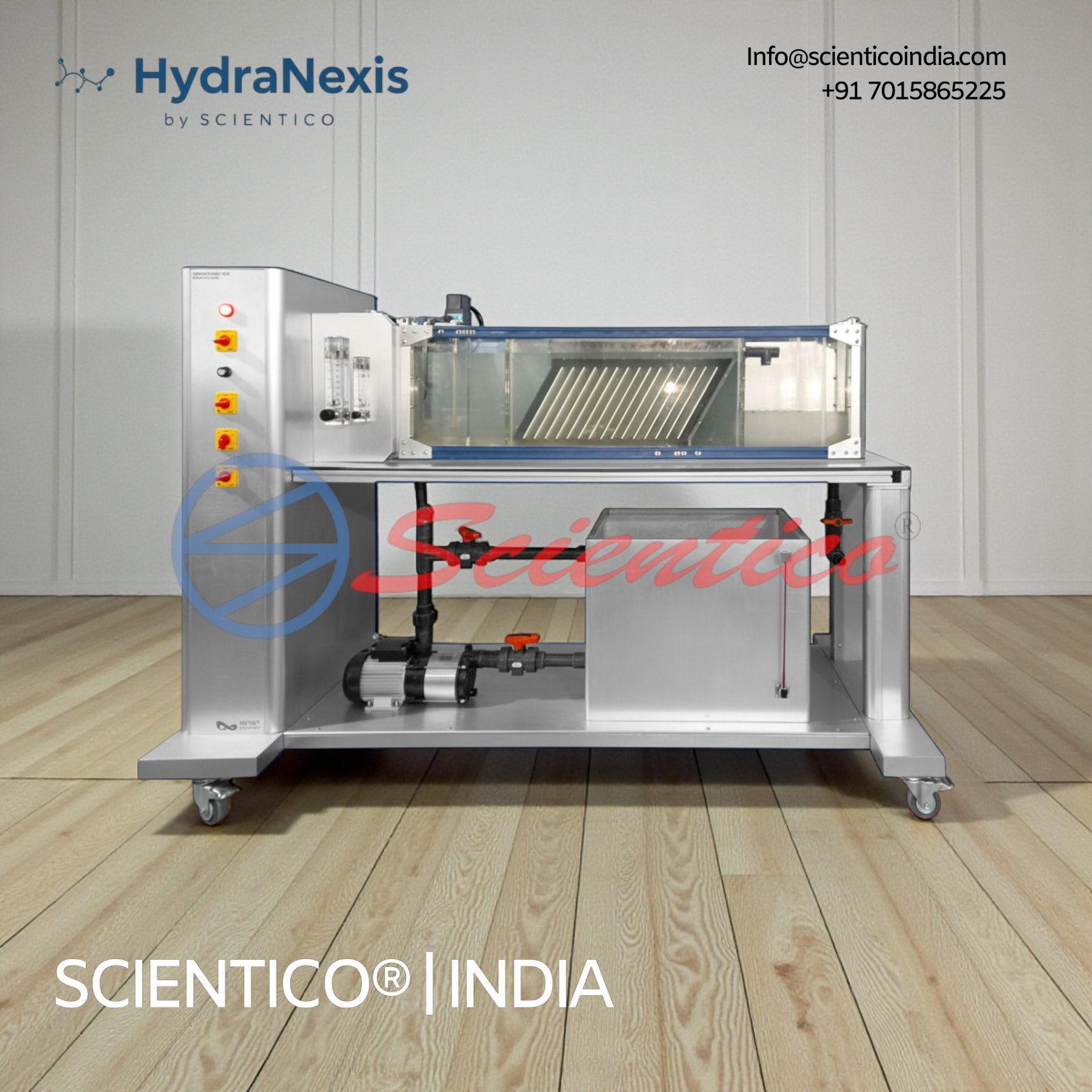

Sedimentation Tank – HydraNexis HNX 11
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Water Treatment Technology laboratories in engineering colleges and technical institutions.
Product Overview
Sedimentation is a fundamental unit operation in water and wastewater treatment for removing suspended solids. The HydraNexis HNX 11 provides a controlled environment to study settling tank hydraulics, sediment removal, flow regimes, and dispersion effects. Feed water is supplied from the laboratory mains and measured using a flow meter. A slurry with known concentration is prepared in a sump tank and injected into the fresh water stream before entering the settling tank. Continuous stirring in the sump tank prevents solids from settling before entering the sedimentation tank. A dye injection system enables hydraulic tracer studies, allowing visualization of flow patterns, short-circuiting, and dead zones. The system supports comparative analysis using Imhoff cones or sedimentation research devices.Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
Mechanical & Operational Data
| Parameter | Specification |
|---|---|
| Feed Tank Capacity | 120 L |
| Settling Tank Material | Acrylic |
| Settling Tank Dimensions | 1.05 m × 0.35 m × 0.2 m |
| Fresh Water Flowmeter | 1–36 LPM |
| Slurry Flowmeter | 1–100 LPH |
| Pump Flow Rate | 60 L/min @ 15 m head |
| Stirrer Speed | 0–300 RPM |
| Mains Water Flow Range | 0.5–5.0 L/min |
| Slurry Flow Range | 0–2 L/min |
Key Features
- Transparent acrylic sedimentation tank for full visual observation
- Separate sump tank for slurry preparation
- Centrifugal pump for controlled slurry feeding
- Bypass discharge line to keep slurry in continuous suspension
- Dual flowmeter system (fresh water + slurry)
- Integrated stirrer in sedimentation tank
- Precision dye injection system for tracer studies
- Stable hydraulic inlet conditions via inlet weir design
- Designed for laboratory and teaching use
Experiments & Learning Outcomes
- Measurement of flow short-circuiting and dead space using tracers
- Comparison of real flow regimes with idealized flow models
- Effect of flow rate and baffle position on dispersion
- Measurement of sediment removal efficiency
- Correlation of hydraulic characteristics with separation efficiency
- Effect of solid concentration on sedimentation performance
- Use of Imhoff cones for sedimentation analysis
Process Capabilities
- Continuous sedimentation testing
- Solid–liquid separation analysis
- Hydraulic flow characterization
- Tracer studies and visualization
- Dispersion and baffle influence studies
Construction & System Design
The HydraNexis HNX 11 is engineered for hydraulic accuracy, repeatability, and visual learning. The transparent tank design allows real-time observation of settling zones, sludge formation, and flow patterns. The modular slurry system ensures stable feed concentration, while independent flow control enables precise experimental conditions.
Scope of Delivery
- 1 × Sedimentation Tank Experimental Unit
- 1 × Instruction Manual
Applications
- Water treatment and wastewater treatment education
- Environmental engineering laboratories
- Research on sedimentation dynamics
- Clarifier and settling tank design studies
- Operator training and process optimization
- Hydraulic modeling and tracer experiments
