Statics Work Panel | FortiTestX – 53
Statics Work Panel – FortiTestX – 53 is the central mounting platform for TecQuipment’s Statics Fundamentals range of experiment kits. This large, robust steel panel features a metric grid for precise positioning and magnetic compatibility with all statics apparatus, enabling rapid setup and reconfiguration of experiments. Designed for classroom demonstrations and student group work, the statics work panel accommodates Equilibrium of a Rigid Body, Equilibrium of a Beam, Equilibrium of Forces, and Suspension Cable Demonstration kits. Includes five-year warranty.
Statics Work Panel – FortiTestX – 53 is a robust steel panel system designed to support complete Statics Fundamentals range of experiment kits. This large-format work panel features a metric grid for precise positioning and magnetic compatibility, enabling educators to conduct comprehensive demonstrations of static forces and equilibrium principles in classroom environments.
Product Overview
The Statics Work Panel – FortiTestX – 53 provides a stable mounting surface for all Statics Fundamentals kits, including Equilibrium of a Rigid Body (FortiTestX – 51), Equilibrium of a Beam (FortiTestX – 52), Equilibrium of Forces (FortiTestX – 50), and Suspension Cable Demonstration apparatus. The large size makes it ideal for classroom demonstrations visible to multiple students simultaneously. A clear metric grid enables repeatable, accurate positioning of experiment components and facilitates precise measurement recording. The robust steel construction and magnetic surface allow students to rapidly assemble, reconfigure, or remove experiments without tools, reducing setup time and enabling efficient lesson flow.
Statics Work Panel – FortiTestX – 53 — Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Statics Work Panel – FortiTestX – 53 |
| Panel Type | Magnetic steel work panel for statics experiments |
| Compatible Kits | Equilibrium of a Rigid Body, Equilibrium of a Beam, Equilibrium of Forces, Suspension Cable Demonstration |
| Surface Feature | Metric grid for repeatable positioning |
| Width | 1000 mm |
| Depth | 540 mm |
| Height | 840 mm |
| Assembled Weight | 25 kg |
| Packed Volume | Approximately 0.3 m3 |
| Packed Weight | Approximately 30 kg |
| Warranty | Five years |
| Certification | ISO 9001, EU directives compliant |
Technical Data
Operating Conditions
| Parameter | Value |
|---|---|
| Operating Environment | Well lit classroom or laboratory |
| Storage Temperature Range | –25°C to +55°C (when packed for transport) |
| Operating Temperature Range | +5°C to +40°C |
| Operating Relative Humidity | 80% at temperatures < 31°C, decreasing linearly to 50% at 40°C |
Essential Services
| Requirement | Specification |
|---|---|
| Bench/Desktop Dimensions | Minimum 1100 mm wide x 540 mm front to back |
Key Features
- Panel Material: Robust steel construction with magnetic surface for secure component attachment
- Surface Grid: Clear metric grid enabling repeatable positioning and accurate measurement recording
- Compatibility: Accepts all Statics Fundamentals range experiment kits for comprehensive statics work panel demonstrations
- Setup Speed: Magnetic attachment allows tool-free assembly and reconfiguration of experiments
- Visibility: Large panel size ideal for classroom demonstrations viewable by multiple students
- Stability: Heavy-duty construction ensures stable operation during force measurement and demonstration
- Durability: Easy-to-assemble design with robust steel construction for long-term educational use
- Warranty: Five-year manufacturer warranty included
Compatible Experiment Kits
- Equilibrium of a Rigid Body (FortiTestX – 51)
- Equilibrium of a Beam (FortiTestX – 52)
- Equilibrium of Forces (FortiTestX – 50)
- Suspension Cable Demonstration
Construction and Design

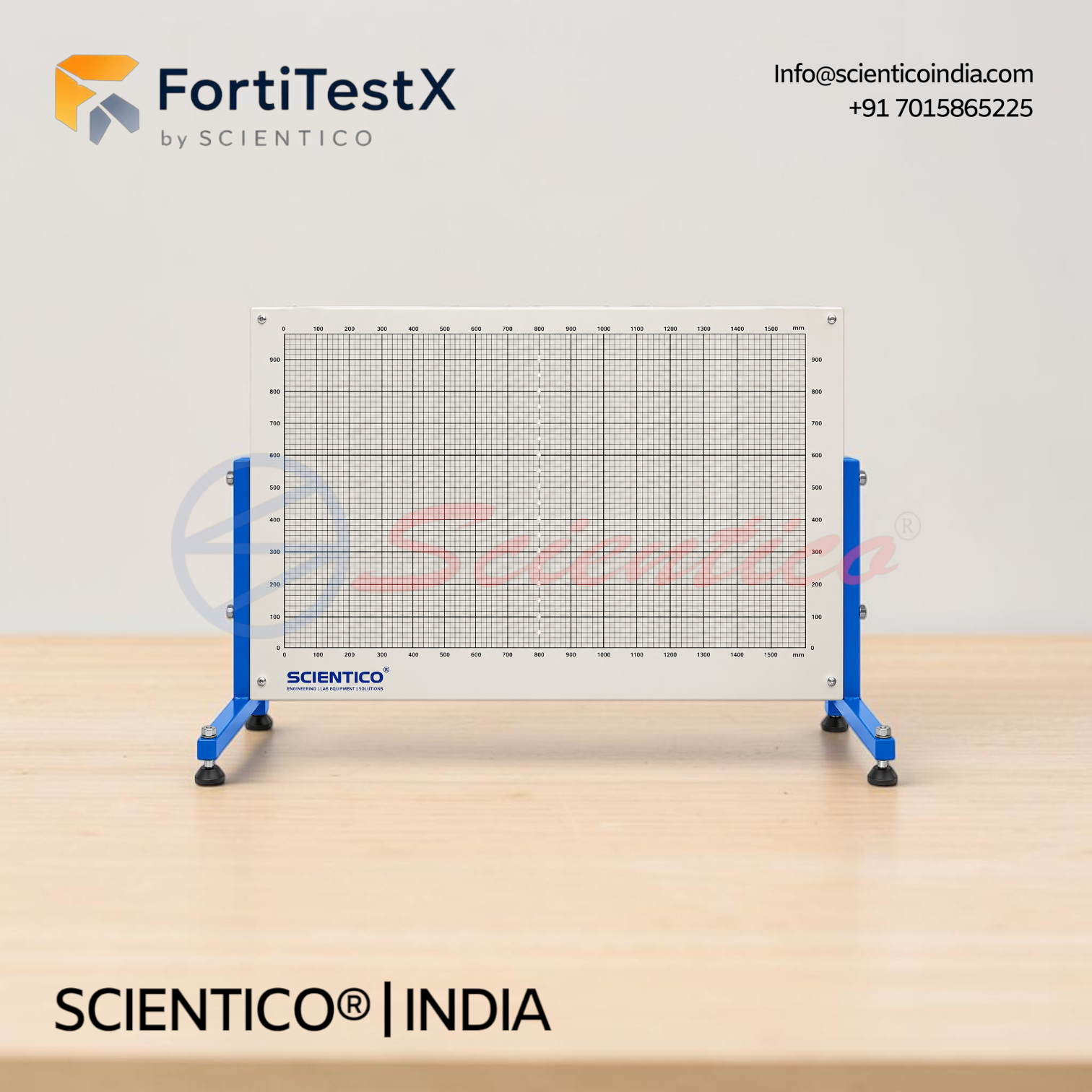

Statics Work Panel – FortiTestX – 53 features robust steel plate construction with integrated metric grid printed on the magnetic surface. The panel accommodates magnetic attachment points and hook connections required by all Statics Fundamentals experiment kits. The large format panel, measuring 1000 mm wide by 540 mm front-to-back by 840 mm high, provides ample space for classroom-scale demonstrations while the metric grid facilitates accurate component positioning. The assembled weight of 25 kg ensures stability during student experiments and teacher demonstrations without requiring permanent mounting.
Scope of Delivery
- Statics Work Panel – FortiTestX – 53 (assembled)
- Metric grid reference guide
Required for Operation
- Well lit classroom or laboratory environment
- Level bench or desktop minimum 1100 mm wide x 540 mm front to back
- One or more compatible Statics Fundamentals experiment kits
Q: What is the Statics Work Panel – FortiTestX – 53 used for?
A: This work panel serves as the primary mounting surface for all Statics Fundamentals experiment kits, enabling demonstrations and hands-on studies of static forces, equilibrium, and structural mechanics.
Q: How many experiment kits can be used simultaneously?
A: The large panel surface accommodates one primary experiment setup at a time, though components can be rapidly reconfigured between different kits using the magnetic attachment system.
Q: What does the metric grid do?
A: The metric grid enables repeatable positioning of experiment components and helps students take accurate measurements and record results consistently across multiple trials.
Q: Which experiment kits are compatible?
A: The Statics Work Panel – FortiTestX – 53 is compatible with Equilibrium of a Rigid Body (51), Equilibrium of a Beam (52), Equilibrium of Forces (50), and Suspension Cable Demonstration kits.
Q: What warranty is included?
A: The panel includes a five-year warranty and is manufactured in accordance with latest EU directives with ISO 9001 certification.
