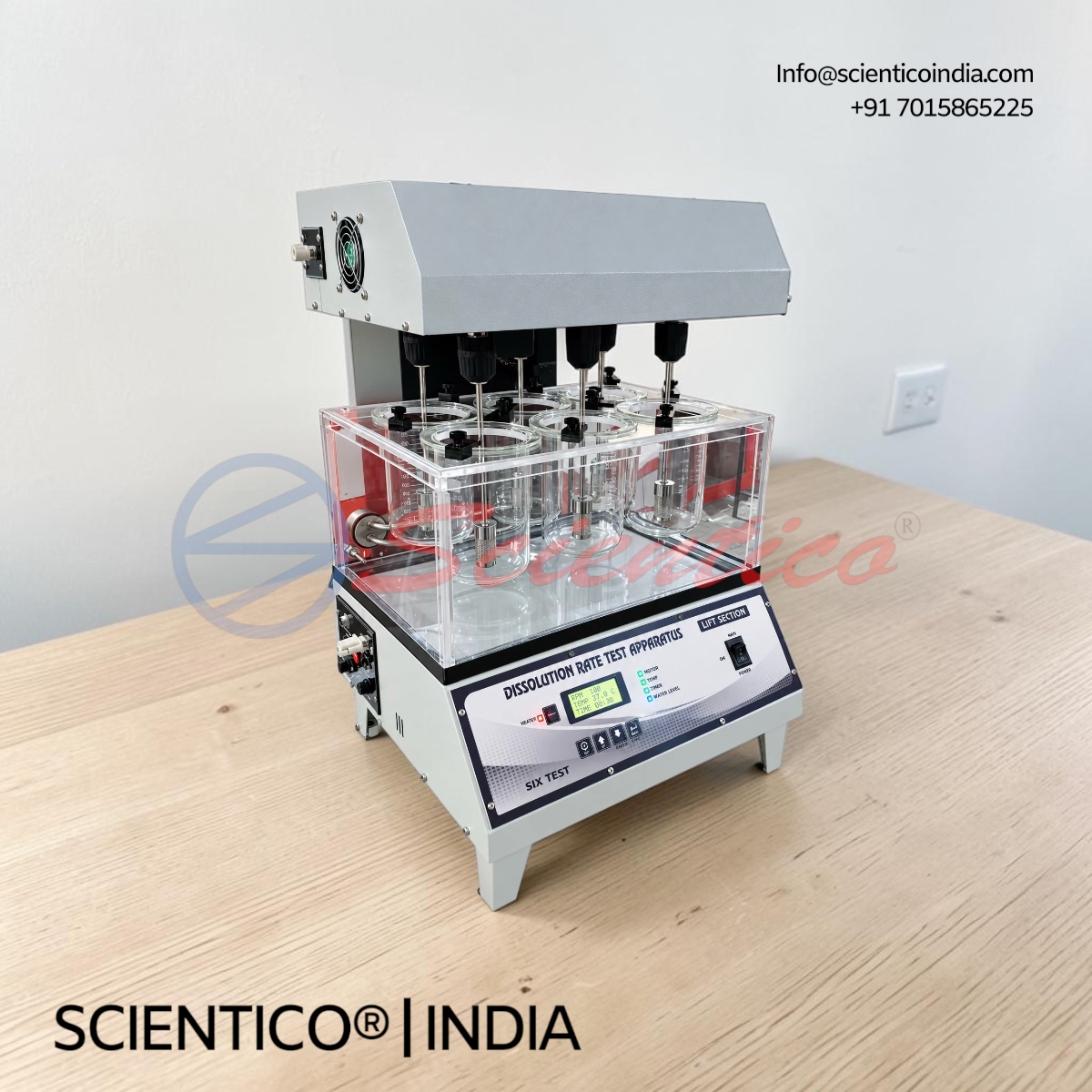

Tablet Dissolution Test Apparatus 6 Station USP | PMSC 06
The Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 is a six-station dissolution tester for USP testing. It features 25 to 160 rpm digital speed control, PT-100 temperature sensing at ±0.5°C, a 300 x 200 x 200 mm clear acrylic bath with 350 W heater, and a microprocessor timer with alarm.
The Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 is a six-station dissolution tester for USP testing. It features digital speed control from 25 to 160 rpm, PT-100 temperature sensing, and a microprocessor-based timer with alarm.
Product Overview
The PMSC 06 tablet dissolution test apparatus has six stations for USP testing. Speed control ranges from 25 to 160 rpm with ±1 rpm accuracy. The PT-100 sensor maintains temperature from 5°C above ambient to 45°C with ±0.5°C accuracy. A 350 W SS heater powers the clear acrylic bath measuring 300 x 200 x 200 mm. The microprocessor timer presets from 00:01 to 99:59 h with alarm. A 12 mm red LED display shows temperature, speed, and time. SS 316 baskets and paddles complete the assembly.
Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 — Technical Specifications
| Parameter | Value |
|---|---|
| Number of Stations | 6 |
| Standard | USP |
| Speed Range | 25 to 160 rpm |
| Speed Accuracy | ±1 rpm |
| Temperature Range | 5°C above ambient to 45°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Sensor | PT-100 |
| Timer | Microprocessor preset, 00:01 to 99:59 h, with alarm |
| Display | 12 mm red LED for temperature, speed, and time |
| Bath Material | Clear acrylic |
| Bath Dimensions | 300 x 200 x 200 mm |
| Heater | 350 W, SS |
| Baskets and Paddles | SS 316 |
| Overall Dimensions | 300 x 220 x 780 mm |
| Weight | Approximately 10 kg |
Technical Data
Speed System:
- Range: 25 to 160 rpm
- Accuracy: ±1 rpm
- Digitally controlled
Temperature System:
- Sensor: PT-100
- Range: 5°C above ambient to 45°C
- Accuracy: ±0.5°C
- Heater: 350 W, SS
Bath:
- Material: clear acrylic
- Dimensions: 300 x 200 x 200 mm
Timer:
- Type: microprocessor preset
- Range: 00:01 to 99:59 h
- Alarm: included
Display:
- 12 mm red LED
- Shows temperature, speed, and time
Baskets and Paddles:
- Material: SS 316
Physical:
- Overall dimensions: 300 x 220 x 780 mm
- Weight: approximately 10 kg
Key Features
- Six-Station Design: Six test stations for USP dissolution testing
- Digital Speed Control: 25 to 160 rpm with ±1 rpm accuracy
- Precise Temperature Sensing: PT-100 sensor with ±0.5°C accuracy
- Microprocessor Timer: Preset from 00:01 to 99:59 h with alarm
- Clear LED Display: 12 mm red LED for temperature, speed, and time
- Clear Acrylic Bath: Transparent bath for visual monitoring
- SS 316 Components: Baskets and paddles in stainless steel 316
Experiments
- Tablet dissolution testing as per USP
- Parallel dissolution testing across six stations
- Dissolution rate determination from 25 to 160 rpm
- Temperature-controlled dissolution testing
Construction and Design
The Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 houses six test stations in a clear acrylic bath measuring 300 x 200 x 200 mm. A 350 W SS heater maintains bath temperature, sensed by a PT-100 sensor. SS 316 baskets and paddles hold and agitate the samples. The microprocessor timer and 12 mm red LED display show operating parameters. Overall dimensions are 300 x 220 x 780 mm, with an approximate weight of 10 kg.
Scope of Delivery
- 1 Six-station tablet dissolution test apparatus
- 1 Clear acrylic dissolution bath
- 1 350 W SS heater
- 6 SS 316 baskets and paddles
- 1 PT-100 temperature sensor
- 1 Microprocessor-based timer with alarm
- 1 Digital display system
Q: How many stations does the Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 have?
A: It has six stations for dissolution testing as per USP requirements.
Q: What speed range does the Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 cover?
A: Digital speed control ranges from 25 to 160 rpm with ±1 rpm accuracy.
Q: How is temperature measured on the Tablet Dissolution Test Apparatus 6 Station USP PMSC 06?
A: A PT-100 sensor measures temperature with ±0.5°C accuracy across 5°C above ambient to 45°C.
Q: What timer range does the Tablet Dissolution Test Apparatus 6 Station USP PMSC 06 offer?
A: The microprocessor timer presets from 00:01 to 99:59 h and includes an alarm.
