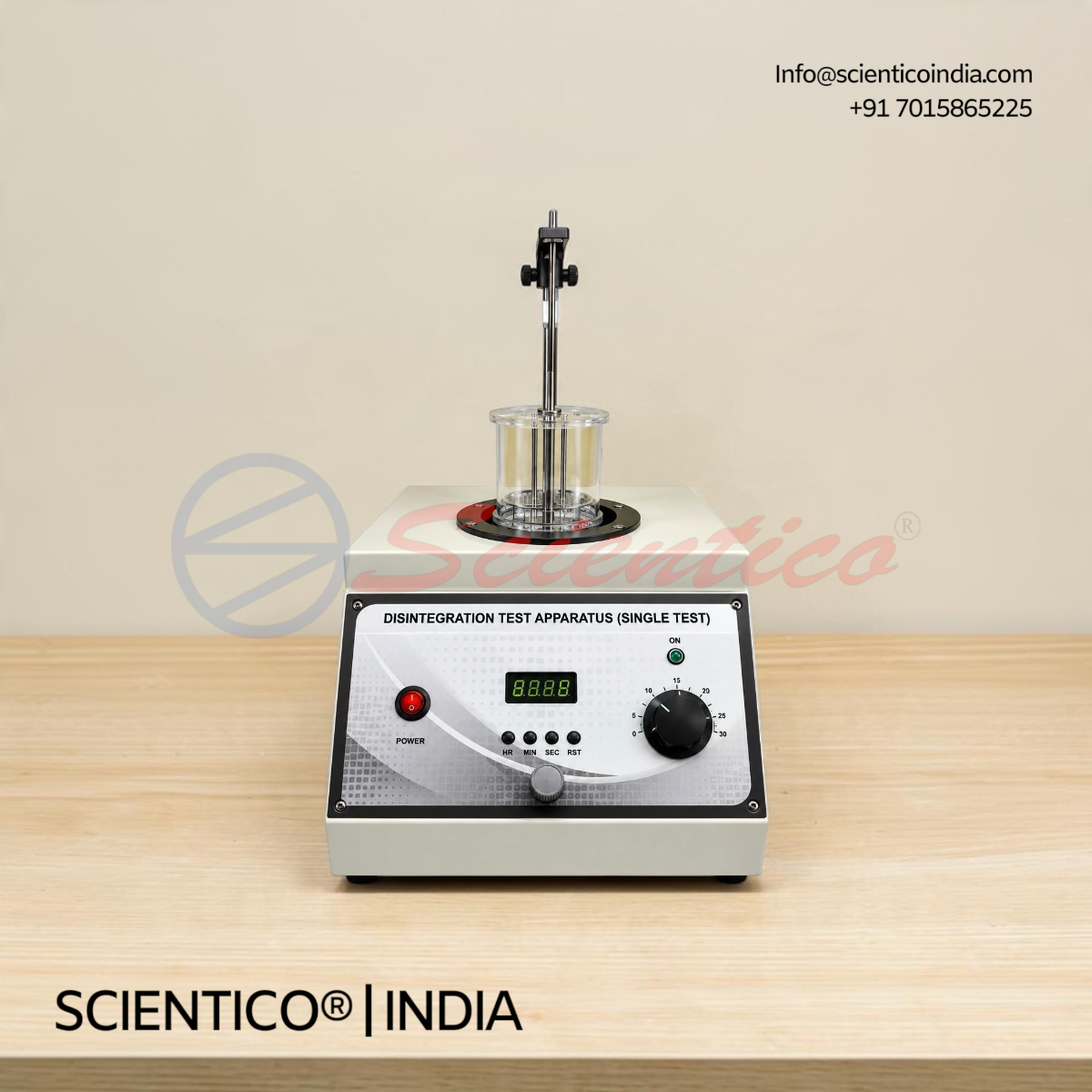

Tablet Disintegration Test Apparatus IP Digital | PMSC 05
The Tablet Disintegration Test Apparatus IP Digital PMSC 05 is a digital disintegration tester for IP, USP, and BP testing. It features two baskets with glass tubes and SS wire gauze, a geared motor drive with 7.6 cm stroke at 30 strokes per minute, and two independent thermostatic hot plates holding 37 ±1°C.
disintegration testing as per IP, USP, and BP requirements. It features two basket assemblies, two independent thermostatic hot plates, and digital timer and temperature display.
Product Overview
The PMSC 05 tablet disintegration test apparatus tests tablets as per IP, USP, and BP requirements. The steel cabinet measures 14 x 12 x 8 inches and houses a geared motor drive. The stroke length is 7.6 cm at 30 strokes per minute. Two baskets with glass tubes and SS wire gauze run simultaneously. Two independently thermostatic hot plates rated 65 W each maintain 37 ±1°C. Digital timer and temperature display support test control. The unit includes two 1000 ml beakers.
Tablet Disintegration Test Apparatus IP Digital PMSC 05: Technical Specifications
| Parameter | Value |
|---|---|
| Standards | IP, USP, BP |
| Cabinet | Steel, 14 x 12 x 8 inches |
| Drive | Geared motor |
| Stroke Length | 7.6 cm |
| Stroke Rate | 30 strokes per minute |
| Baskets | 2, glass tubes with SS wire gauze |
| Hot Plates | 2, independently thermostatic |
| Hot Plate Rating | 65 W each |
| Beakers | 2 x 1000 ml |
| Temperature | 37 ±1°C |
| Display | Digital timer and temperature |
Technical Data
Cabinet and Drive:
- Material: steel
- Dimensions: 14 x 12 x 8 inches
- Drive: geared motor
Motion:
- Stroke length: 7.6 cm
- Stroke rate: 30 strokes per minute
Baskets:
- Quantity: 2
- Construction: glass tubes with SS wire gauze
Heating:
- Hot plates: 2, independently thermostatic
- Rating: 65 W each
- Temperature: 37 ±1°C
Vessels:
- Beakers: 1000 ml
Display:
- Digital timer
- Digital temperature display
Key Features
- Multi-Standard Testing: Disintegration testing as per IP, USP, and BP requirements
- Dual Basket Operation: Two glass tube and SS wire gauze baskets test samples simultaneously
- Independent Heating: Two thermostatic hot plates control temperature separately at 37 ±1°C
- Geared Motor Drive: Steel cabinet houses geared motor for consistent stroke motion
- Digital Monitoring: Digital timer and temperature display
- Controlled Stroke: 7.6 cm stroke length at 30 strokes per minute
Experiments
- Tablet disintegration time determination
- Disintegration testing as per IP, USP, and BP
- Parallel disintegration testing with two baskets
- Disintegration testing at 37 ±1°C
Construction and Design
The Tablet Disintegration Test Apparatus IP Digital PMSC 05 uses a steel cabinet with a geared motor drive. Two basket assemblies with glass tubes and SS wire gauze move through a 7.6 cm stroke at 30 strokes per minute. Two independently thermostatic hot plates rated 65 W each hold the test media at 37 ±1°C. Digital displays show the timer and temperature. Two 1000 ml beakers hold the test media.
Scope of Delivery
- 1 Digital tablet disintegration test apparatus
- 2 Basket assemblies with glass tubes and SS wire gauze
- 2 Thermostatic hot plates (65 W each)
- 2 1000 ml beakers
Q: Which standards does the Tablet Disintegration Test Apparatus IP Digital PMSC 05 follow?
A: It is designed for disintegration testing as per IP, USP, and BP requirements.
Q: How many baskets does the Tablet Disintegration Test Apparatus IP Digital PMSC 05 have?
A: It has two basket assemblies with glass tubes and SS wire gauze.
Q: How is temperature controlled on the Tablet Disintegration Test Apparatus IP Digital PMSC 05?
A: Two independently thermostatic hot plates rated 65 W each maintain 37 ±1°C.
Q: What display does the Tablet Disintegration Test Apparatus IP Digital PMSC 05 provide?
A: A digital timer and digital temperature display are provided.
