Rotary Tablet Punching Machine (Hand Operated) | SCI 741
The Rotary Tablet Punching Machine (Hand Operated) SCI 741 is a heavy single-punch tablet press for tablets up to 1000 mg. It features automatic compression, ejection, feed, and removal per wheel revolution, an eccentric pressure system, and 6, 9, and 12 mm chromium steel punches with stainless steel hopper.
The Rotary Tablet Punching Machine (Hand Operated) SCI 741 is a heavy single-punch tablet press for making tablets up to 1000 mg. It features automatic compression, ejection, feed, and removal with each wheel revolution.
Product Overview

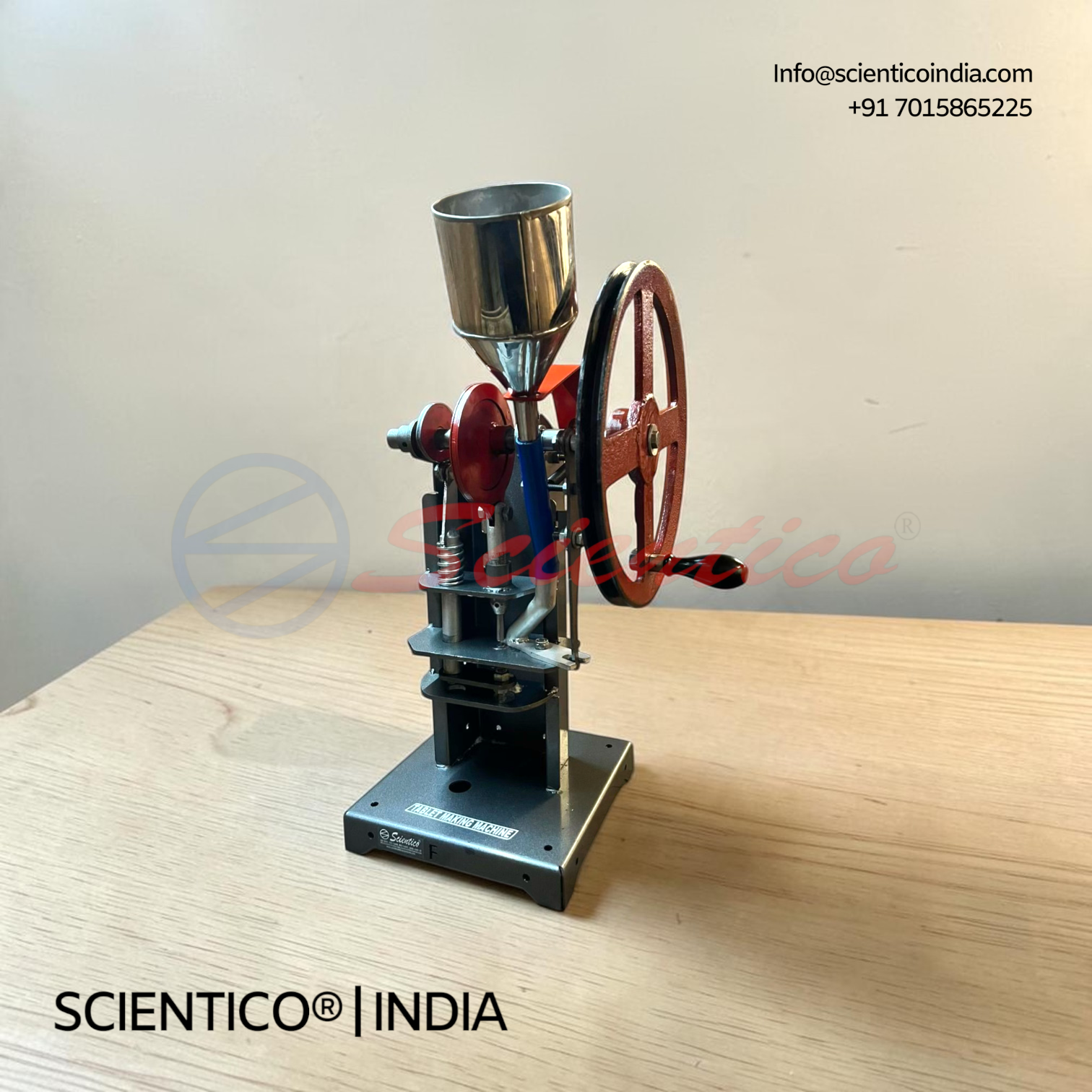

The SCI 741 rotary tablet punching machine is a hand-operated single punch press. It produces tablets up to 1000 mg. Punch sizes of 6 mm, 9 mm, and 12 mm are available, selected according to tablet diameter. Each revolution of the wheel drives automatic compression and ejection, with automatic feed and removal of tablets. The unit has a heavy cast body with an eccentric pressure system. A stainless steel hopper connects through a rubber tube. Tablet thickness and hardness are set using nuts, locknuts, and the included set of two spanners. Dies and punches are chromium steel, mounted on a stand. This is the heavy model.
Rotary Tablet Punching Machine (Hand Operated) SCI 741 — Technical Specifications
| Parameter | Value |
|---|---|
| Machine Type | Hand operated, single punch |
| Maximum Tablet Weight | Up to 1000 mg |
| Punch Diameters | 6 mm, 9 mm, 12 mm |
| Compression | Automatic with each wheel revolution |
| Ejection | Automatic with each wheel revolution |
| Feed and Removal | Automatic |
| Body | Heavy cast, eccentric pressure system |
| Hopper | Stainless steel, rubber tube connection |
| Thickness and Hardness Setting | Nuts and locknuts |
| Die and Punch Material | Chromium steel |
| Model | Heavy |
Technical Data
Tablet Output:
- Maximum tablet weight: 1000 mg
- Punch diameters: 6 mm, 9 mm, 12 mm
Compression System:
- Eccentric pressure system
- Automatic compression and ejection per wheel revolution
Feed System:
- Stainless steel hopper
- Rubber tube connection
- Automatic feed and removal
Adjustment:
- Thickness setting via nuts and locknuts
- Hardness setting via nuts and locknuts
- Set of two spanners included
Tooling:
- Die and punch set in chromium steel
- Fitted on stand
Key Features
- Heavy Cast Body: Eccentric pressure system built on robust cast construction
- Automatic Cycle: Compression, ejection, feed, and removal occur with each wheel revolution
- Tablet Weight Capacity: Produces tablets up to 1000 mg
- Interchangeable Punch Sizes: 6 mm, 9 mm, and 12 mm punch diameters
- Easy Adjustment: Thickness and hardness set with nuts, locknuts, and two spanners
- Stainless Steel Hopper: Connected by rubber tube for tablet material feed
- Chromium Steel Tooling: Die and punch set mounted on stand
Experiments
- Tablet compression at varied punch diameters
- Tablet thickness adjustment
- Tablet hardness adjustment
- Tablet production from granulated material up to 1000 mg
Construction and Design
The SCI 741 rotary tablet punching machine uses a heavy cast body with an eccentric pressure system. Each wheel revolution drives compression and ejection automatically. A stainless steel hopper feeds material through a rubber tube. Nuts and locknuts set tablet thickness and hardness. Chromium steel die and punch set is fitted on the stand.
Scope of Delivery
- 1 Rotary tablet punching machine (hand operated, heavy model)
- 1 Stainless steel hopper with rubber tube
- 1 Set of punches and dies (6 mm, 9 mm, 12 mm)
- 2 Spanners
Q: What is the maximum tablet weight the Rotary Tablet Punching Machine SCI 741 can produce?
A: It produces tablets up to 1000 mg.
Q: What punch sizes does the Rotary Tablet Punching Machine SCI 741 use?
A: Punch diameters of 6 mm, 9 mm, and 12 mm are available, selected according to tablet diameter.
Q: How are tablet thickness and hardness adjusted on the Rotary Tablet Punching Machine SCI 741?
A: Thickness and hardness are set using nuts and locknuts, with a set of two spanners included.
Q: What material are the dies and punches made from?
A: Dies and punches are made of chromium steel and fitted on the stand.
