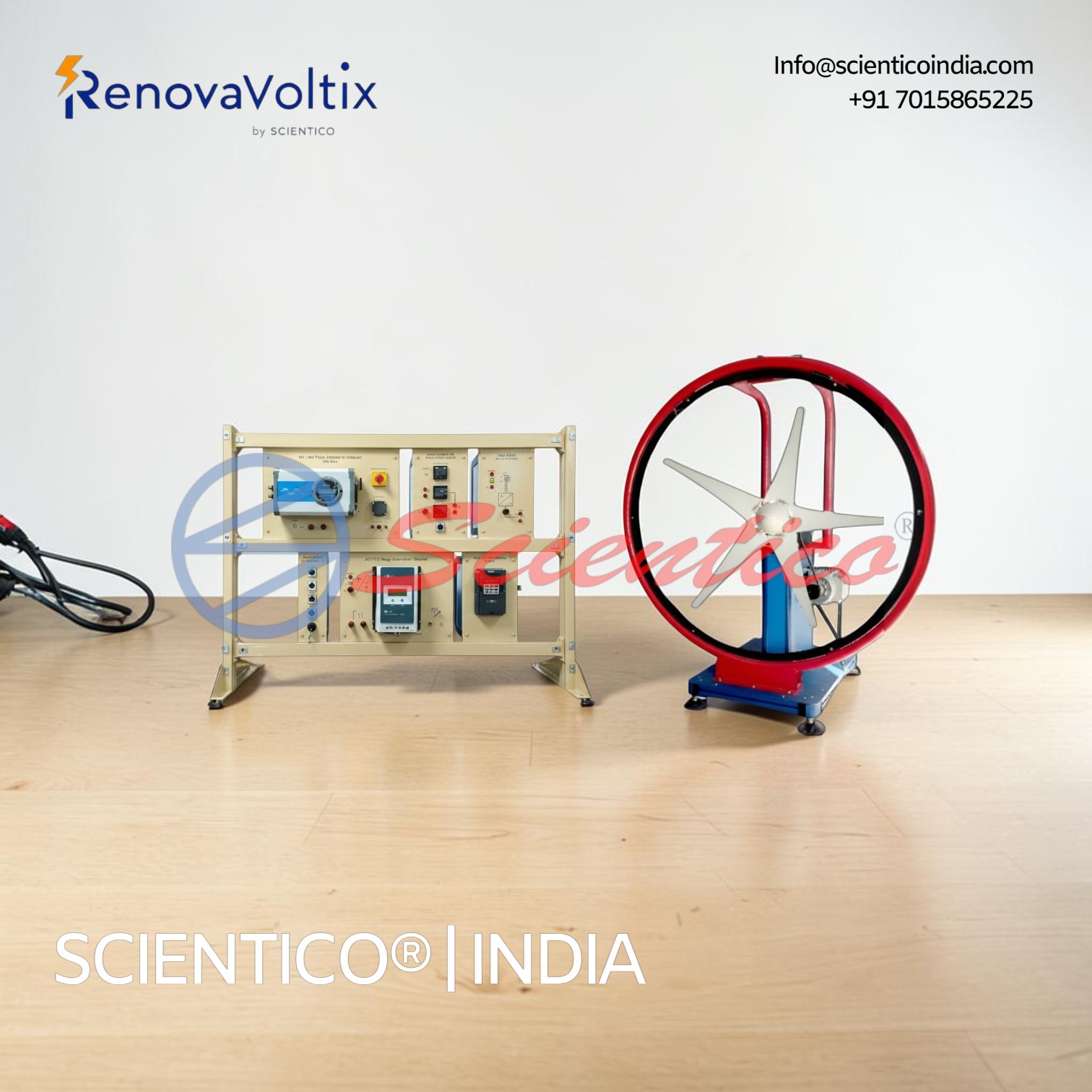

Wind Energy Training System | RVX-007
The Wind Energy Training System RVX-007 is a modular wind power training platform demonstrating kinetic-to-mechanical and mechanical-to-electrical energy conversion using a live wind turbine setup. It supports three experiments covering no-load voltage measurement, velocity and output relationships, and independent AC output system operation. The system includes a Wind Turbine Module, AC three-phase motor, AC Motor Driver, AC to DC Converter, MPPT Charge Controller, Off-Grid Inverter, and a Measuring Module with RPM for voltage, current, and speed measurement. DAQ software designed in National Instruments LabVIEW is included and runs on any Windows system.
Wind Energy Training System RVX-007 — Technical Specifications
Sr. No.Module / ComponentQty1Wind Turbine Module12Charge Controller Module13Wind Turbine Driver14Inverter Module (Off Grid)15Measuring Module with RPM16Battery* (12V; 24V on demand) — Not included due to export policy; must be arranged by end user17Set of Cables18Frame1
Key Features
Wind Power Training Platform: live demonstration of wind turbine concepts and energy conversion
Wind Turbine Module: dedicated Wind Turbine Module included
AC Three-Phase Motor: AC 3-phase motor installed for wind turbine simulation
AC Motor Driver: AC Motor Driver installed for turbine drive control
AC to DC Converter: installed for rectification of wind turbine AC output
MPPT Charge Controller: installed for optimised battery charging from wind turbine output
Inverter: off-grid inverter installed for AC output
Voltmeter: installed for voltage measurement
Ammeter: installed for current measurement
RPM Meter: installed for turbine rotational speed measurement
No-Load Voltage Measurement: wind turbine no-load voltage measurable
Velocity and Output Relationship: wind turbine velocity vs. output relationship investigable
Independent AC Output: independent wind energy AC output system supported
Battery Compatibility: 12V standard (24V on demand); not included, must be arranged by end user
DAQ Software: National Instruments LabVIEW based, Windows compatible, electronic sensors included
Experiments
No load voltage of wind turbine
Wind turbine velocity and output relation
Independent wind energy AC output system
Construction and Design
The Wind Energy Training System RVX-007 is built on a modular frame accommodating eight discrete modules. The wind power training platform features a Wind Turbine Module driven by an AC three-phase motor with an AC Motor Driver, replicating wind turbine drive conditions. An AC to DC Converter rectifies the turbine output for battery charging via the MPPT Charge Controller. An Off-Grid Inverter Module provides AC output from stored energy. A Measuring Module with RPM provides voltage, current, and rotational speed measurement on a single module. The battery (12V standard, 24V on demand) is not included and must be sourced by the end user. All modules connect via the included set of cables.
Software
DAQ software specially designed in the National Instruments LabVIEW environment to measure and calculate experimental results. A set of electronic sensors is included for use with the software. Compatible with any Windows operating system.
Scope of Delivery
Wind Turbine Module (x1)
Charge Controller Module (x1)
Wind Turbine Driver (x1)
Inverter Module, Off Grid (x1)
Measuring Module with RPM (x1)
Set of Cables (x1)
Frame (x1)
DAQ Software (LabVIEW-based) with electronic sensors
Required for Operation
Battery: 12V (24V on demand) — Not included; must be arranged by end user
Q1. What energy conversion principles does the Wind Energy Training System RVX-007 demonstrate?
The system demonstrates conversion of kinetic wind energy into mechanical energy via the wind turbine, and mechanical energy into electrical energy via the generator, covering both conceptual and applied aspects.
Q2. Is the battery included with the RVX-007?
No. The battery (12V standard, 24V on demand) is not included due to export policy and must be arranged by the end user.
Q3. How is wind turbine operation simulated on the RVX-007?
An AC three-phase motor with an AC Motor Driver replicates wind turbine drive conditions, enabling controlled indoor training without dependence on actual wind conditions.
Q4. What measurements can be taken on the RVX-007?
The wind power training platform supports measurement of no-load voltage, output voltage and current via installed voltmeter and ammeter, and turbine rotational speed via the installed RPM meter.
Q5. What experiments are supported by the RVX-007?
The system supports three experiments: no-load voltage of the wind turbine, wind turbine velocity and output relation, and independent wind energy AC output system operation.
