A hydraulic bench should be selected by the experiments and measurements it must support, not by the words “hydraulic bench” alone. Some benches provide a stable recirculating water supply, while other configurations add direct flow indication, gravimetric measurement, digital measurement or pump investigations. The right RFQ states the teaching outcome and measurement method before asking for price.
Equipment mentioned in this guide
Review the product information, specifications and model before requesting a quotation.
Hydraulic Bench Apparatus | FluidoSurgeX 101
The SCIENTICO FluidoSurgeX 101 Hydraulic Bench Apparatus is a basic supply and measurement unit used in fluid mechanics laboratories. It enables the circulation, measurement, and collection of water for a wide range of experimental modules.The system operates on a closed-loop water circuit consisting of a storage tank, centrifugal pump, and an elevated measuring tank. Volumetric flow rates are determined using stepped measuring tanks and a calibrated measuring beaker, supported by manual stopwatch timing.An integrated work surface with a built-in flume allows experiments involving weirs while ensuring safe placement of accessories and controlled collection of return water.
View product details
Digital Hydraulic Bench Apparatus | FluidoSurgeX 102
The SCIENTICO FluidoSurgeX 102 Digital Hydraulic Bench is designed to supply water, measure volumetric flow rates, and support a wide range of fluid mechanics experiments.The apparatus operates on a closed-loop water circuit consisting of a storage tank, centrifugal pump, and an elevated stepped measuring tank.Volumetric flow rates can be determined using a measuring tank and stopwatch, supported by a digital flowmeter for direct flow indication.The integrated work surface includes a flume for weir experiments and provides safe placement and drainage for experimental units.
View product details

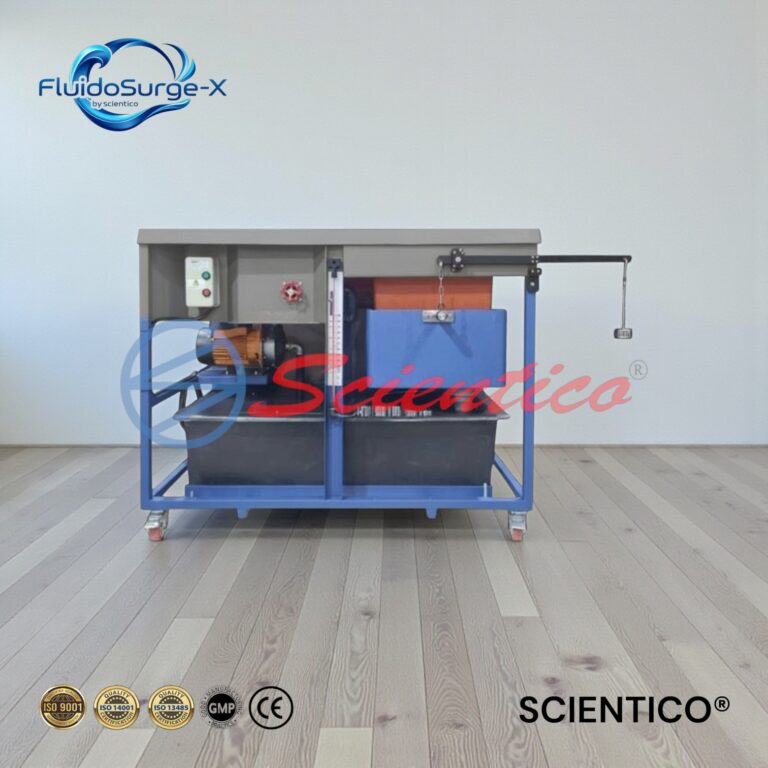

Gravimetric Hydraulic Bench | FluidoSurgeX 103
The SCIENTICO FluidoSurgeX 103 Gravimetric Hydraulic Bench is a base module used for flow related experiments where accurate gravimetric measurement is required.The bench features a collecting tank and measuring tank arrangement, allowing flow rate determination based on weight measurement.Flow measurement is achieved using a lever based load mechanism with calibrated weights or optionally through digital load cell fittings with direct display at the switch box.The work space includes an integrated flow channel for weir experiments and a stepped edge for secure mounting of experimental accessories.
View product details
Hydraulic Bench with Series and Parallel Pumps | FluidoSurgeX 104
The Hydraulic Bench with Series and Parallel Pumps FluidoSurgeX 104 by SCIENTICO is designed for detailed study of centrifugal pump performance in fluid mechanics laboratories.The system enables operation of two centrifugal pumps in single, series, or parallel configurations within a closed water circuit.It supports volumetric flow measurement, pressure monitoring, and weir experiments on an integrated work surface.The apparatus is intended for structured academic instruction and practical laboratory experimentation.
View product details
Hydraulic Bench Apparatus with Flowmeter | FluidoSurgeX 105
The Hydraulic Bench Apparatus with Flowmeter FluidoSurgeX 105 by SCIENTICO is designed for fundamental fluid mechanics laboratory experiments.It provides a closed water circuit for supplying experimental units and measuring volumetric flow rates.The system combines stepped volumetric measurement with direct flow indication using flowmeters.It is suitable for structured teaching and routine laboratory experimentation.
View product detailsCompare Scientico hydraulic bench configurations
| Product | Selection question | What to confirm in the quotation |
|---|---|---|
| Hydraulic Bench Apparatus | Is a general recirculating water-services bench required for compatible fluid-mechanics apparatus? | Reservoir, pump, work surface, flow-measurement arrangement, connections and included accessories. |
| Digital Hydraulic Bench Apparatus | Does the laboratory require a digital rather than manual flow-reading workflow? | Display, sensing method, measurement range, units, accuracy statement and power requirement. |
| Gravimetric Hydraulic Bench | Must students determine flow using collected mass and time? | Weighing arrangement, capacity, resolution, timing method, drainage and supplied weights or accessories. |
| Hydraulic Bench with Series and Parallel Pumps | Are individual, series and parallel pump-characteristic exercises part of the syllabus? | Pump configuration, valves, pressure and flow measurement, speed control, electrical supply and experiment coverage. |
| Hydraulic Bench Apparatus with Flowmeter | Is an integrated flowmeter required as the primary flow indication? | Flowmeter type, range, scale or output, calibration statement, connections and compatible apparatus. |
Evidence rule: the comparison above is a selection framework. The model-specific page, datasheet and written quotation must confirm the actual measuring range, construction, dimensions, utilities and supplied components.
What a hydraulic bench does in a fluid-mechanics laboratory
A hydraulic bench normally provides a controlled water source and return path for bench-mounted experiments. Its usefulness depends on how water is stored, circulated, regulated, measured and connected to the selected apparatus. A bench that fits one experiment mechanically may still be unsuitable if its flow range, head, measurement method or drainage arrangement does not support the intended exercise.
Faculty should map the bench to the experiment list. Typical decisions include whether the bench must serve flow-measurement apparatus, losses in pipes and fittings, jet-impact equipment, Bernoulli demonstrations, turbines or pump investigations. Compatibility should be confirmed product by product rather than assumed from a shared hose size or catalogue family.
Five questions that prevent a mismatched bench
- Which experiments must run? List every compatible apparatus and the required flow or head conditions.
- How will flow be measured? Identify volumetric, gravimetric, integrated flowmeter or digital measurement requirements.
- What will students calculate? State the readings, units, resolution and repeatability needed for the laboratory worksheet.
- What are the site constraints? Record electrical supply, water filling, drainage, floor loading, access and available bench space.
- What is included? Separate the base bench, hoses, connectors, weights, sensors, software, manuals and optional apparatus.
RFQ fields for distributors and tender bidders
Keep “hydraulic bench apparatus” as the BOQ product name, then state the proposed model separately. Ask each bidder to complete the same rows: experiment coverage, flow-measurement method and range, reservoir and pump arrangement, work-surface details, connections, utility requirements, included accessories, compatible apparatus, documentation, packing, delivery, installation, training, warranty and deviations.
Use the tender compliance matrix when more than one supplier is responding. It is safer than comparing brochures side by side because a brochure may describe options that are not included in the quoted scope.
Related fluid-mechanics resources
- Fluid mechanics laboratory experiments and apparatus list
- Fluid mechanics laboratory setup guide
- Hydraulic machinery: turbine and pump test-rig guide
- Osborne Reynolds apparatus comparison
- Browse fluid mechanics equipment
Frequently asked questions
Is a digital hydraulic bench automatically more accurate?
No. “Digital” describes the reading workflow, not a universal accuracy level. Ask for the sensing method, range, resolution and applicable calibration or verification information for the offered model.
Can one hydraulic bench operate every fluid-mechanics apparatus?
Compatibility depends on flow, head, connections, physical mounting and the experiment. Request a product-by-product compatibility list in the quotation.
When is a gravimetric bench useful?
It is relevant when the teaching method requires collected mass over a measured time. The weighing and drainage arrangements must be confirmed for the offered configuration.
What should an overseas buyer send with the enquiry?
Send the experiment list, bench quantity, destination, electrical supply, available water and drainage, preferred measurement method, required documents and delivery deadline.
Request the matching hydraulic bench
Send the experiment list and request a hydraulic bench quotation. The model, compatible apparatus and supplied scope can then be identified in writing.
