Hydraulic Bench with Series and Parallel Pumps | FluidoSurgeX 104
A CE-certified hydraulic test bench for studying series and parallel pump configurations, combined H-Q characteristics, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.

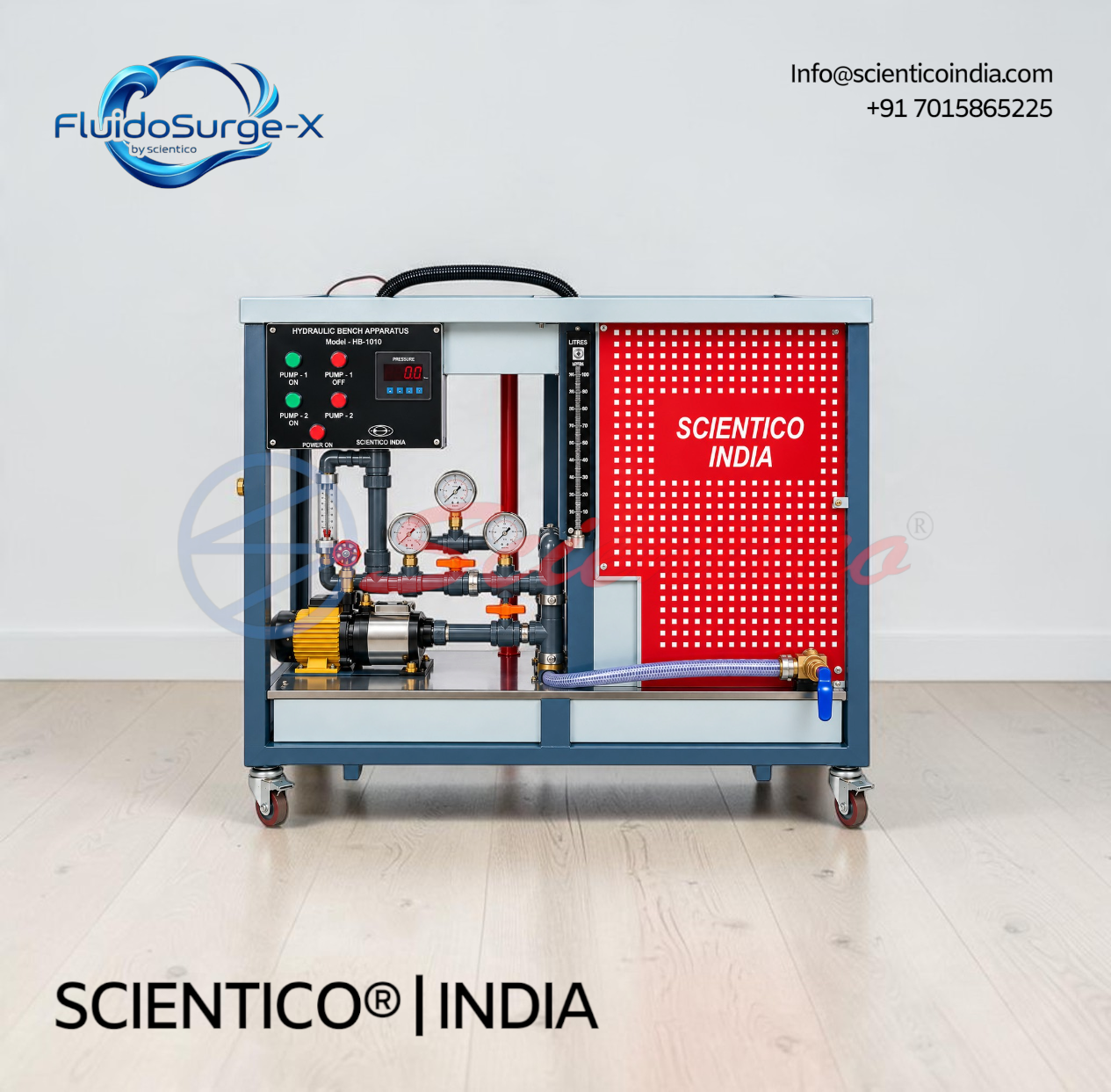

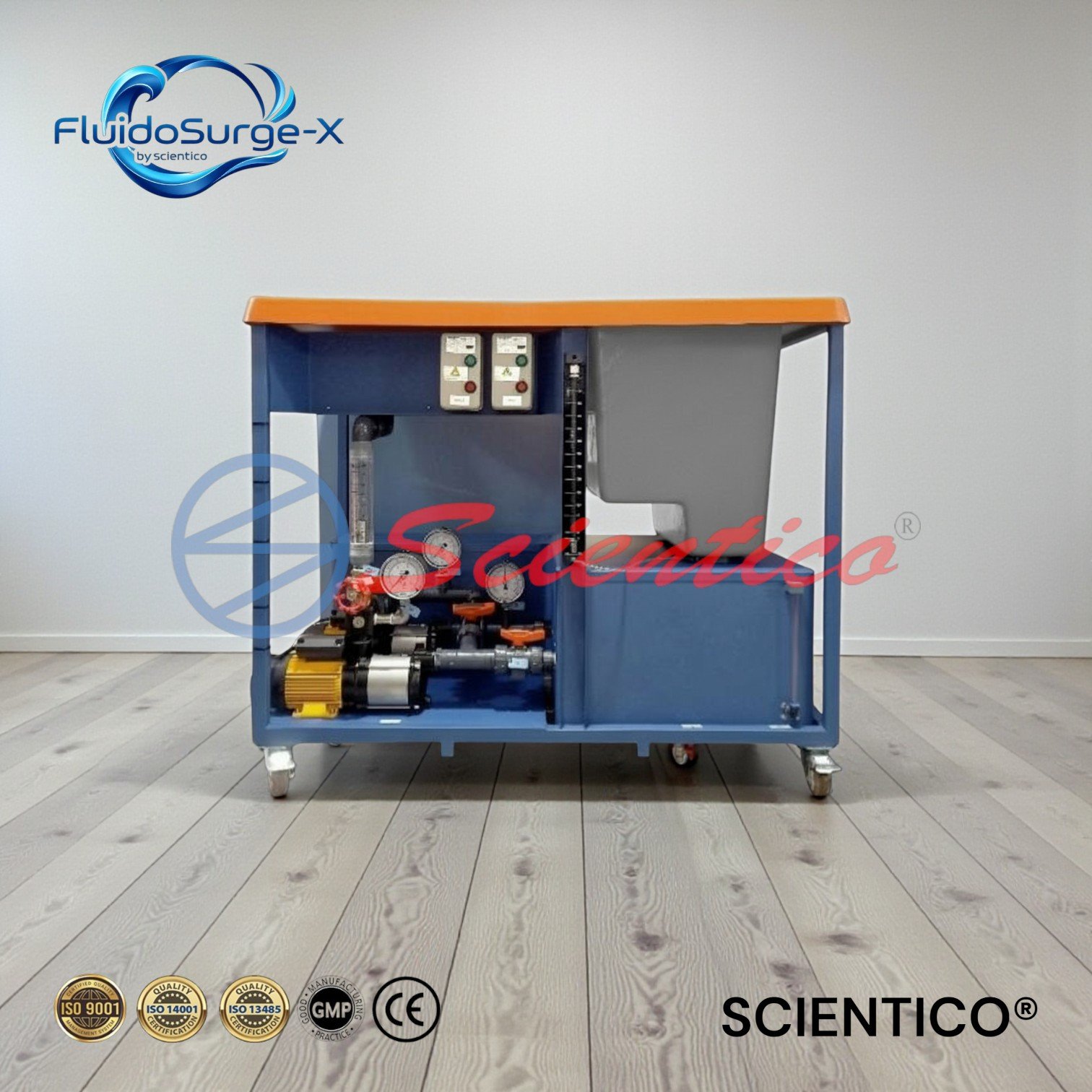

The Hydraulic Bench with Series and Parallel Pumps FluidoSurgeX 104 by SCIENTICO is designed for detailed study of centrifugal pump performance in fluid mechanics laboratories.
The system enables operation of two centrifugal pumps in single, series, or parallel configurations within a closed water circuit.
It supports volumetric flow measurement, pressure monitoring, and weir experiments on an integrated work surface.
The apparatus is intended for structured academic instruction and practical laboratory experimentation.
Product Overview
The SCIENTICO FluidoSurgeX 104 Hydraulic Bench provides a comprehensive experimental platform for analyzing centrifugal pump characteristics.
The bench incorporates two centrifugal pumps that can be selected individually or configured in series or parallel using integrated piping and valves.
A stepped measuring tank enables accurate volumetric flow measurements over a wide operating range, while very small flow rates are measured using a graduated measuring cylinder and stopwatch.
The top work surface includes a flow flume for weir experiments and a safety edge for secure placement of auxiliary experimental modules.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Model | FluidoSurgeX 104 |
| Type | Hydraulic Bench with Series and Parallel Pumps |
| Application | Fluid Mechanics and Pump Performance Experiments |
| Water Circuit | Closed-loop system |
| Pump Type | Centrifugal |
| Number of Pumps | 2 |
| Motor Rating | 0.37 kW |
| Pump Speed | Up to 2900 rpm |
| Maximum Head | 9 to 21 m |
| Flow Rate Range | More than 10 to 100 LPM |
| Storage Tank Material | GRP/SS |
| Measuring Tank Capacity (Large Flow) | 40 L |
| Measuring Tank Capacity (Small Flow) | 7 L |
| Rotameter Range | 18 to 118 LPM |
| Pressure Gauges | −1 to 1 bar, 0 to 4 bar, 0 to 6 bar |
| Flow Measurement Method | Volumetric using stopwatch |
| Measuring Cylinder Capacity | 5 L |
| Flume Size (L x W x H) | 510 x 165 x 170 mm |
| Piping Material | Industrial PVC |
| Valves | Nonferrous |
| Structure | Rust resistant painted steel frame |
Key Features –
- Two centrifugal pumps configurable in single, series, or parallel operation
- Closed water circulation system for continuous laboratory use
- Stepped measuring tank for small and large volumetric flow measurements
- Rotameter for discharge flow indication before the test section
- Multiple pressure gauges for suction and discharge monitoring
- Integrated flume for weir and open channel flow experiments
- GRP tanks and work surface for corrosion resistance and durability
Applications –
- Study of centrifugal pump characteristics
- Series and parallel pump performance comparison
- Determination of head, discharge, and pump efficiency
- Plotting characteristic curves such as head versus discharge
- Fluid mechanics and hydraulic machinery laboratory experiments
Construction & Design Details –
The FluidoSurgeX 104 is built on a rigid painted steel structure that supports pumps, valves, and interconnecting pipework. The storage tank, measuring tank, and work surface are manufactured from GRP to ensure resistance to water exposure. Industrial grade PVC piping and nonferrous valves are used to minimize corrosion. The integrated flow channel on the work surface allows direct execution of weir experiments without additional fixtures.
Export & Supply Capability –
SCIENTICO manufactures the FluidoSurgeX 104 Hydraulic Bench for supply to engineering colleges, universities, and technical training laboratories. The apparatus is suitable for domestic supply and international export. Standard packing, instruction manuals, and basic accessories are provided with each unit.
Q1. What pump configurations are possible on this hydraulic bench?
The pumps can be operated individually, in series, or in parallel using the integrated selection system.
Q2. How is flow rate measured during experiments?
Flow rate is measured volumetrically using the stepped measuring tank and stopwatch, with additional indication from a rotameter.
Q3. What pressure measurements are available?
Pressure gauges are provided to measure suction and discharge pressures across the pumps.
Q4. Can this bench be used for weir experiments?
Yes, the work surface includes an integrated flume specifically for weir flow experiments.
Q5. Is data acquisition software included with the system?
Data acquisition software based on LABVIEW environment is available as an optional accessory and requires electronic sensors.
