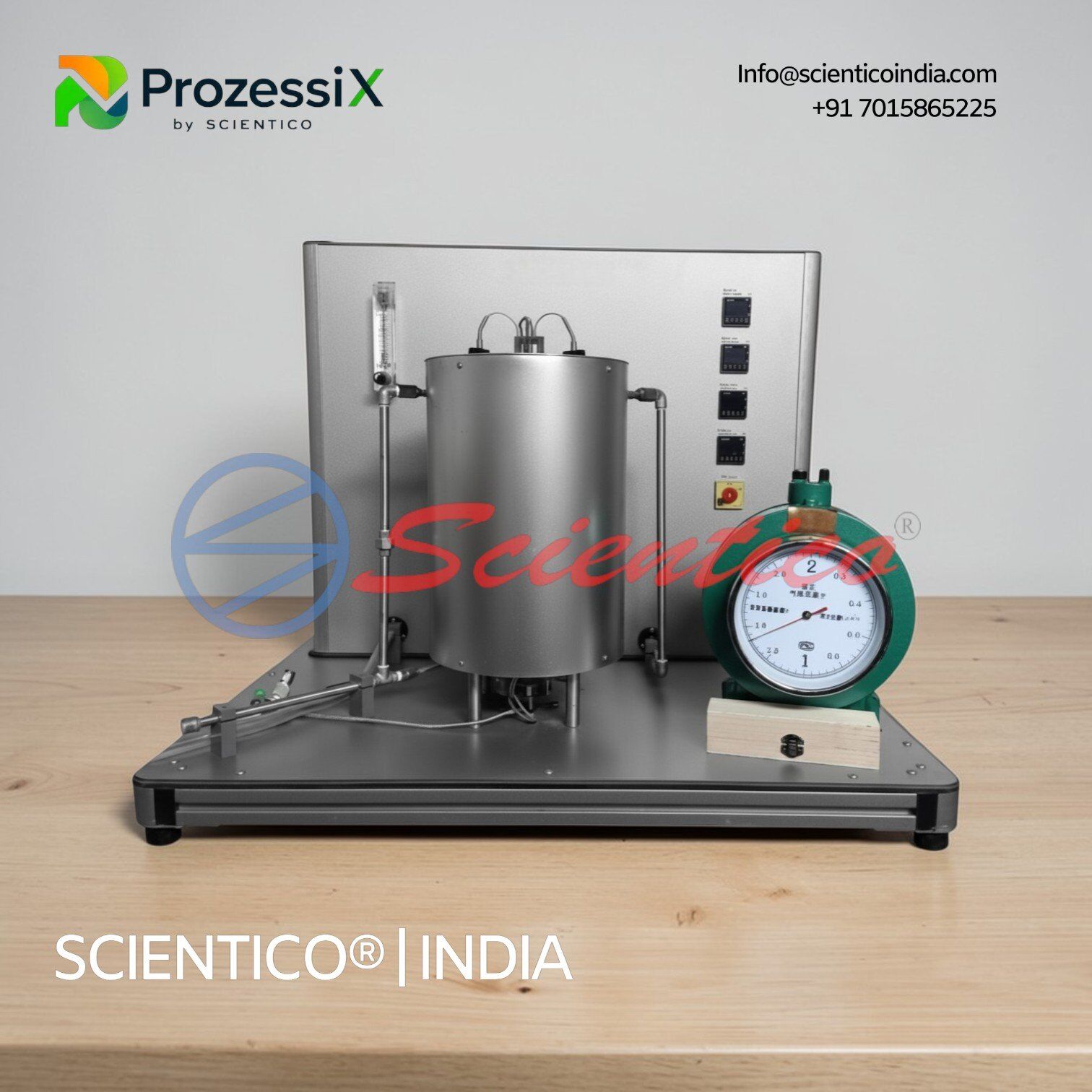

Boys Gas Calorimeter – ProzessiX PX-05
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Process Engineering Technology laboratories in engineering colleges and technical institutions.
The Boys Gas Calorimeter – ProzessiX PX-05 is a laboratory apparatus designed for determining the calorific value of gaseous fuels through controlled combustion and heat transfer measurement. Manufactured by SCIENTICO, this system forms part of the ProzessiX series developed for process engineering and energy analysis laboratories.
The apparatus enables accurate determination of the energy content of gaseous fuels by measuring the heat released during combustion and the resulting temperature rise in a circulating water system. It is commonly used in chemical engineering laboratories, fuel testing facilities, and academic institutions studying combustion and thermal energy systems.
The system provides a practical platform for understanding the thermodynamic properties of gaseous fuels and the principles of calorific value determination. shopie rain
Product Overview
The ProzessiX PX-05 Boys Gas Calorimeter is designed to measure the calorific value of gaseous fuels using the classical Boys calorimetric method. The apparatus consists of two primary components: a Hyde type wet gas meter and a Boys non-recording gas calorimeter equipped with burners.
The Hyde type gas meter incorporates a specially constructed measuring drum enclosed within a gas-tight housing and sealed with water. As fuel gas passes through the meter, the drum rotates, allowing precise measurement of the gas volume supplied to the calorimeter.
The fuel gas is burned in a controlled burner located at the base of the calorimeter. Heat generated during combustion passes through a tube heat exchanger surrounded by flowing water. The rise in water temperature between inlet and outlet points is measured to determine the calorific value of the gas.
The apparatus includes thermometers, measuring cylinders, burners, and collection vessels required to conduct standard calorimetric experiments. It allows evaluation of parameters such as calorific value in BTU and MJ per cubic meter, gas volume factors, and temperature differences within the system.
The equipment supports the study of various gaseous fuels including natural gas, methane, propane, butane, acetylene, ethylene, propylene, town gas, and coke oven gas.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Model | ProzessiX PX-05 |
| System Type | Boys Non-Recording Gas Calorimeter |
| Manufacturer | SCIENTICO |
| Gas Meter Type | Hyde Type Wet Gas Meter |
| Flow per Drum Revolution | 0.002 m³ |
| Rated Flow | 0.2 m³/h |
| Maximum Flow Record | 100 m³ |
| Excess Flow | 0.3 m³/h |
| Normal Pressure Value | 1000 Pa |
| Operating Temperature | 15°C – 25°C |
| Rotameter Range | 1 – 7 LPM (Water) |
| Temperature Measurement Range | −100°C to 400°C |
| Temperature Measurement Points | Water inlet, water outlet, effluent gas, ambient temperature |
| Graduated Measuring Cylinders | 2 L and 1 L |
| Data Acquisition Software | ProzessiX PX-05 Software (Optional) |
| Software Environment | National Instruments LABVIEW |
| Operating System Compatibility | Windows Environment |
Key Features
- Complete laboratory apparatus for calorific value determination of gaseous fuels
- Hyde type wet gas meter providing accurate measurement of gas consumption
- Boys non-recording calorimeter for combustion heat measurement
- Tube heat exchanger constructed from corrosion-resistant material
- Constant head overhead funnel with water connection tubes for controlled water supply
- Multiple thermometers for measurement of inlet, outlet, effluent, and ambient temperatures
- Chromium-plated reading lenses for improved thermometer visibility
- Graduated measuring cylinders and glass vessels for fluid measurement and condensate collection
- General-purpose burner suitable for various gaseous fuels
- Gas control valve for regulating gas flow during experiments
- Optional data acquisition software for digital data recording and analysis
Applications
The Boys Gas Calorimeter – ProzessiX PX-05 is widely used in laboratories and technical institutions for studying the thermal characteristics of gaseous fuels.
Typical applications include:
- Chemical engineering laboratory experiments
- Fuel and energy analysis studies
- Combustion engineering research
- Determination of calorific value of industrial and laboratory gases
- Thermal engineering education and demonstrations
- Evaluation of gaseous fuel performance in industrial heating systems
- Research on energy conversion and fuel efficiency
The apparatus is particularly suitable for engineering colleges, technical universities, energy research laboratories, and industrial training centers.
Construction & System Design
The ProzessiX PX-05 Boys Gas Calorimeter is designed to provide reliable laboratory operation and accurate experimental measurements. The apparatus integrates a precision Hyde type wet gas meter with a Boys non-recording calorimeter assembly to ensure precise measurement of gas flow and combustion heat.
The wet gas meter includes a specially designed measuring drum enclosed in a gas-tight casing and sealed with water, allowing accurate measurement of the gas volume supplied to the burner. The calorimeter includes a corrosion-resistant tube heat exchanger designed to withstand continuous exposure to combustion gases and circulating water.
Thermometers supplied with the apparatus are equipped with adjustable chromium-plated reading lenses to improve measurement accuracy. Measuring cylinders and glass vessels allow collection of condensed products and measurement of water outflow during experiments. The system layout provides clear visibility of measuring instruments and easy access to operational components, ensuring safe and efficient laboratory use.
Export & Supply Capability
SCIENTICO manufactures the ProzessiX PX-05 Boys Gas Calorimeter for supply to educational institutions, laboratories, and industrial training centers worldwide. The apparatus is suitable for international export and laboratory installation.
The equipment is supplied with operating documentation, experiment guidelines, and an instruction manual. Export packaging ensures safe transport of glassware, instruments, and precision components.
SCIENTICO also supports customization requirements, documentation support, and international supply for distributors, universities, and research laboratories.
Q1. What is a Boys Gas Calorimeter used for?
A Boys Gas Calorimeter is used to determine the calorific value of gaseous fuels by measuring the heat released during combustion and the temperature increase in a circulating water system.
Q2. Which fuels can be tested using the ProzessiX PX-05?
The apparatus can be used with gases such as methane, propane, butane, acetylene, ethylene, propylene, natural gas, town gas, and coke oven gas.
Q3. How does the wet gas meter measure gas volume?
The Hyde type wet gas meter contains a rotating measuring drum sealed with water. As gas passes through the meter, the drum rotates, enabling precise measurement of the volume of gas consumed.
Q4. What parameters are measured during the experiment?
The system measures water inlet temperature, water outlet temperature, effluent gas temperature, ambient temperature, and gas volume. These values are used to calculate calorific value and energy output.
Q5. Is data acquisition software available with the system?
Yes. Optional data acquisition software (IPE-3403SW) developed in the National Instruments LABVIEW environment can be used to measure, record, and calculate experimental results.
Q6. Is the apparatus suitable for engineering education?
Yes. The ProzessiX PX-05 is designed for chemical engineering, thermal engineering, and energy engineering laboratories to study combustion and fuel energy analysis.
