Cut Section Model of Automatic Transmission | Torquemaster-01

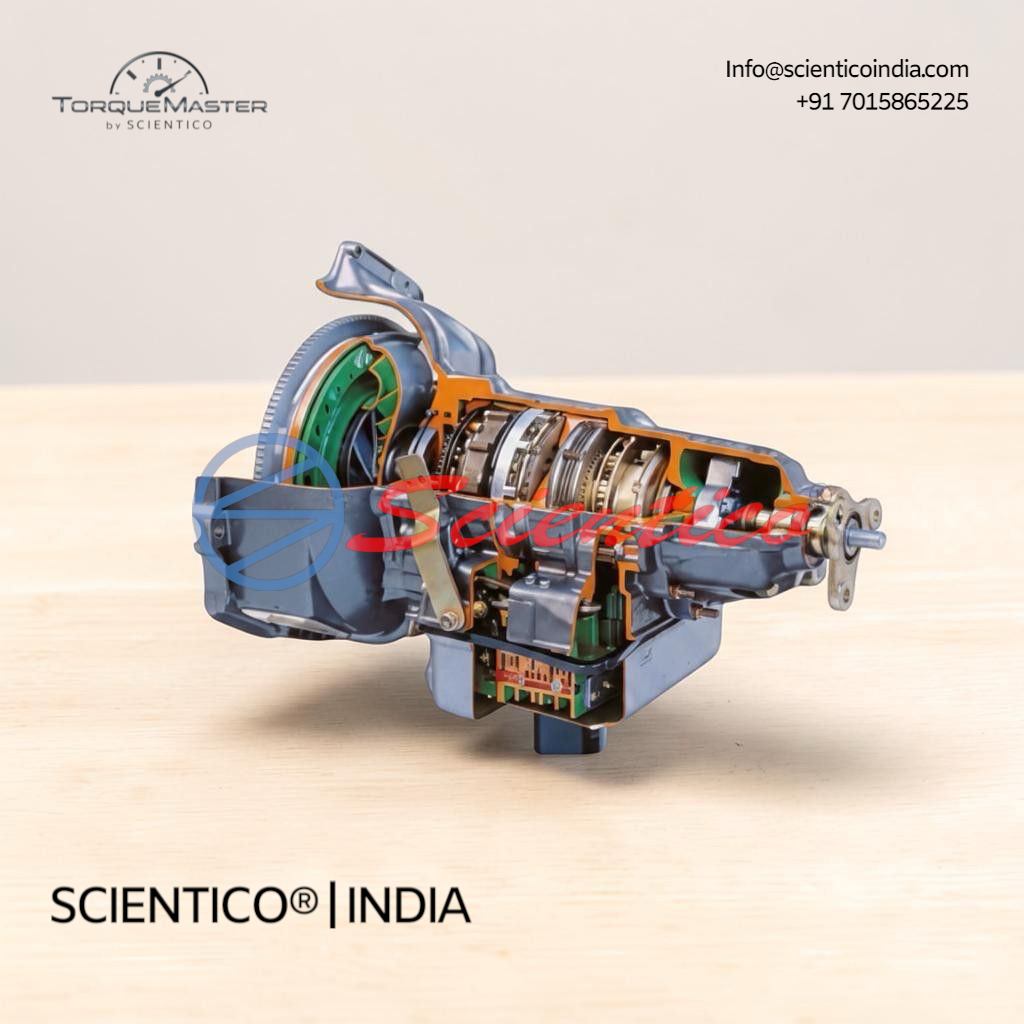

Cut Section Model of Automatic Transmission Torquemaster-01 is a carefully sectioned training model built from a full size original used automatic transmission of a car. As a specialist Cut Section Model of Automatic Transmission manufacturer, SCIENTICO India fits this unit with a hydraulic torque converter, epicycloid gear change with 5 forward speeds plus reverse, multiple-plate clutches, and control valves. It is operated manually via a hand crank on the torque converter and mounted on a tubular frame stand with wheels. Color coding identifies different systems, and chromium plated and electroplated parts ensure a long service life.
The Cut Section Model of Automatic Transmission Torquemaster-01 is a LabTek cut-away of a hydraulic automatic transmission, carefully sectioned for training purposes. As a leading Cut Section Model of Automatic Transmission manufacturer, SCIENTICO India builds this model from a full size original used automatic transmission of a car to clearly demonstrate internal gear mechanisms.
Product Overview
The Cut Section Model of Automatic Transmission Torquemaster-01 consists of the following parts: torque converter, planetary gear set, clutches and bands, and hydraulic and lubricating oil. Colors are used to differentiate between parts. Many parts have been chromium plated and galvanized for a longer life. The model is made out of a full size original used automatic transmission of a car. The transmission is suitably sectioned to show the internal details of the gear mechanism for forward and reverse speeds. The automatic shifting of the gears can be explained clearly using this model. The model is mounted onto a tubular frame. Suitable color imported painting is carried out along with Miracle coating for extra gloss and shine. Painting is done so that different colors are used for different components, such as identification of the sectioned area, according to the color code for easy identification of different systems and mechanisms. All hardware and gears are suitably electroplated. As an experienced Cut Section Model of Automatic Transmission manufacturer, SCIENTICO India ensures accurate sectioning and durable finishing on every unit.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Cut Section Model of Automatic Transmission Torquemaster-01 — Technical Specifications
| Parameter | Value |
|---|---|
| Torque Converter | Hydraulic torque converter |
| Gear Change | Epicycloid gear change with 5 forward speeds plus reverse |
| Clutches | Multiple-plate clutches |
| Valve System | Control valves |
| Operation | Operated manually by hand crank applied on the torque converter |
| Mounting | Mounted on stand with wheels |
| Frame | Mounted onto a tubular frame |
| Length | 750 mm (approx.) |
| Width | 550 mm (approx.) |
| Height | 700 mm (approx.) |
| Weight | 110kg (approx.) |
Technical Data
Transmission System
| Parameter | Value |
|---|---|
| Torque Converter | Hydraulic |
| Gear Change | Epicycloid, 5 forward speeds plus reverse |
| Clutches | Multiple-plate |
| Valves | Control valves |
Operation
| Parameter | Value |
|---|---|
| Method | Manual, hand crank applied on the torque converter |
| Mounting | Stand with wheels |
Dimensions and Weight
| Parameter | Value |
|---|---|
| Length | 750 mm (approx.) |
| Width | 550 mm (approx.) |
| Height | 700 mm (approx.) |
| Weight | 110kg (approx.) |
Key Features
- Mounting: Model mounted onto a tubular frame
- Base Material: Made from full size original used automatic transmission of a car
- Identification System: Colors code for easy identification of different systems and mechanisms
- Finish: Chromium plated and galvanized parts for longer life
- Coating: Miracle coating for extra gloss and shine
- Torque Converter: Hydraulic type
- Gear Change: Epicycloid with 5 forward speeds plus reverse
- Clutch Type: Multiple-plate clutches
- Control System: Control valves included
- Operation Method: Manual hand crank applied on the torque converter
- Portability: Mounted on stand with wheels
- Manufacturing Standard: Built by an experienced Cut Section Model of Automatic Transmission manufacturer for training accuracy
Construction and Design
The Cut Section Model of Automatic Transmission Torquemaster-01 is made out of a full size original used automatic transmission of a car. The transmission is suitably sectioned to show the internal details of the gear mechanism for forward and reverse speeds. The model consists of a torque converter, planetary gear set, clutches and bands, and hydraulic and lubricating oil. Colors are used to differentiate between parts. Many parts have been chromium plated and galvanized for a longer life. The model is mounted onto a tubular frame. Suitable color imported painting is carried out along with Miracle coating for extra gloss and shine. Painting is done so different colors identify different components, such as the sectioned area, according to the color code. All hardware and gears are suitably electroplated. The unit features a hydraulic torque converter, an epicycloid gear change with 5 forward speeds plus reverse, multiple-plate clutches, and control valves. It is operated manually by a hand crank applied on the torque converter and mounted on a stand with wheels. As a trusted Cut Section Model of Automatic Transmission manufacturer, SCIENTICO India ensures this construction clearly explains automatic gear shifting for training purposes.
Q: What is the Cut Section Model of Automatic Transmission Torquemaster-01 used for?
A: It is used for training purposes, to clearly explain the internal gear mechanism and automatic shifting of forward and reverse speeds in a hydraulic automatic transmission.
Q: What is the model made from?
A: The model is made out of a full size original used automatic transmission of a car, suitably sectioned to show internal details.
Q: How are different parts and systems identified on the model?
A: Different colors are used for different components, such as the sectioned area, according to a color code for easy identification of different systems and mechanisms.
Q: How is the model operated?
A: It is operated manually by a hand crank applied on the torque converter, and it is mounted on a stand with wheels.
Q: What are the dimensions and weight of the model?
A: L x W x H (approx.): 750 x 550 x 700 mm, weight (approx.): 110kg.
