Cut Model Turbo Charger | Torquemaster-04

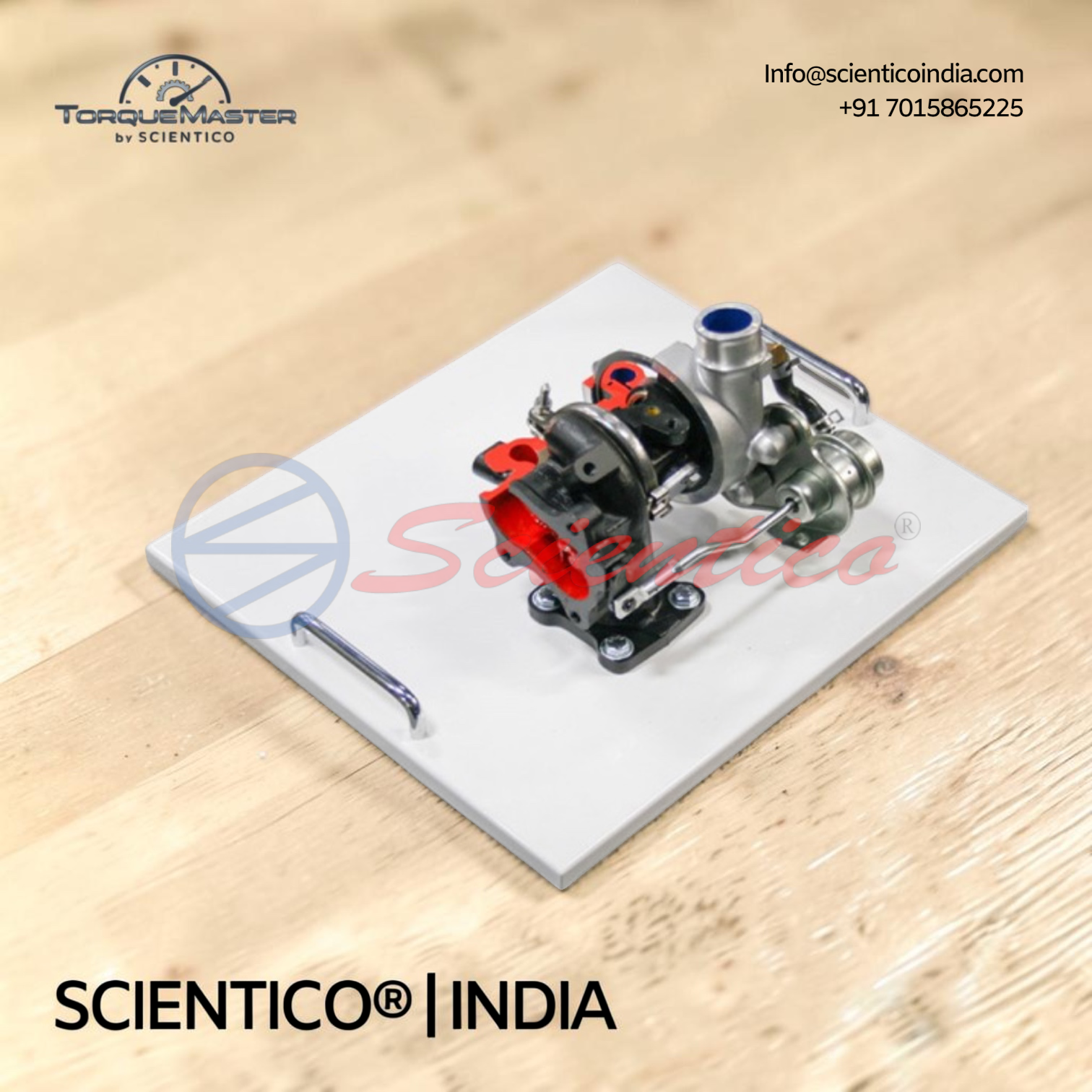

Cut Model Turbo Charger Torquemaster-04 enhances student learning by showing how air intake on naturally aspirated engines can be boosted to increase power output. Built by a specialist Cut Model Turbo Charger manufacturer, this sectioned unit reveals the air intake, compression impeller, air outlet, exhaust gas outlet, and water cooling channel. It is constructed from actual automotive components and finished with automotive paints on sectioned parts. The compact model measures 400 x 400 x 300 mm (approx.) and weighs approximately 14kg.
The Cut Model Turbo Charger Torquemaster-04 enhances the student’s learning experience by showing the means by which air intake on naturally aspirated engines can be boosted, thereby increasing power output. As an experienced Cut Model Turbo Charger manufacturer, SCIENTICO Inida carefully sections each unit to reveal all key components and stages.
Product Overview
The Cut Model Turbo Charger Torquemaster-04 has been carefully cut open to reveal the air intake, compression impeller, air outlet, exhaust gas outlet and water cooling channel. A turbocharger is a form of supercharger. It increases the amount of air entering the engine to create more power. A turbocharger has the compressor powered by a turbine, and the exhaust gas drives the turbine from the engine. Turbochargers were originally known as turbo superchargers when all forced induction devices were classified as superchargers. Today the term supercharger is typically applied only to mechanically driven forced induction devices. The key difference between a turbocharger and a conventional supercharger is that a supercharger is mechanically driven by the engine, often through a belt connected to the crankshaft, whereas a turbocharger is powered by a turbine driven by the engine’s exhaust gas. As a specialist Cut Model Turbo Charger manufacturer, SCIENTICO builds this system using actual automotive components, finished with automotive paints on the sectioned parts.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Cut Model Turbo Charger Torquemaster-04 — Technical Specifications
| Parameter | Value |
|---|---|
| Air Intake | Included |
| Compression Impeller | Included |
| Air Outlet | Included |
| Exhaust Gas Outlet | Included |
| Water Cooling Channels | Included |
| Length | 400 mm (approx.) |
| Width | 400 mm (approx.) |
| Height | 300 mm (approx.) |
| Weight | 14kg (approx.) |
Technical Data
Turbocharger Components
| Parameter | Value |
|---|---|
| Air Intake | Included |
| Compression Impeller | Included |
| Air Outlet | Included |
| Exhaust Gas Outlet | Included |
| Water Cooling Channels | Included |
Dimensions and Weight
| Parameter | Value |
|---|---|
| Length | 400 mm (approx.) |
| Width | 400 mm (approx.) |
| Height | 300 mm (approx.) |
| Weight | 14kg (approx.) |
Key Features
- Study Focus: Designed for studying the turbocharger used in automobiles
- Component Origin: Built using actual automotive components
- Finish: Automotive paints used for painting sectioned parts
- Visible Components: Air intake, compression impeller, air outlet, exhaust gas outlet, water cooling channel
- Working Principle Demonstrated: Compressor powered by a turbine driven by exhaust gas
- Educational Value: Shows how air intake on naturally aspirated engines can be boosted
- Manufacturing Standard: Produced by a reliable Cut Model Turbo Charger manufacturer for automotive training
Construction and Design
The Cut Model Turbo Charger Torquemaster-04 has been carefully cut open to reveal all key components and stages. These include the air intake, compression impeller, air outlet, exhaust gas outlet and water cooling channel. The turbocharger is a form of supercharger that increases the amount of air entering the engine to create more power. The compressor is powered by a turbine, which is driven by exhaust gas from the engine. The system is built using actual automotive components. Automotive paints are used for painting the sectioned parts. This construction allows the Cut Model Turbo Charger to clearly demonstrate the difference between a turbocharger, which is powered by exhaust gas, and a conventional supercharger, which is mechanically driven by the engine through a belt connected to the crankshaft.
Q: What is the Cut Model Turbo Charger Torquemaster-04 used for?
A: It is designed to study the turbocharger used in automobiles, showing how air intake on naturally aspirated engines can be boosted to increase power output.
Q: What components are visible on the cutaway model?
A: Air intake, compression impeller, air outlet, exhaust gas outlet, and water cooling channel.
Q: What is the difference between a turbocharger and a supercharger?
A: A supercharger is mechanically driven by the engine, often through a belt connected to the crankshaft, while a turbocharger is powered by a turbine driven by the engine’s exhaust gas.
Q: What materials and components are used to build the model?
A: The system is built using actual automotive components, with automotive paints used for painting sectioned parts.
Q: What are the dimensions and weight of the model?
A: L x W x H (approx.): 400 x 400 x 300 mm, weight (approx.): 14kg.
