Equilibrium of a Rigid Body | FortiTestX – 51
Equilibrium of a Rigid Body – FortiTestX – 51 is a magnetic attachment kit that demonstrates force distribution and equilibrium principles using an adjustable model ladder. Compatible with the Work Panel (FortiTestX 53), this apparatus allows students to measure horizontal and vertical reaction forces while exploring how equilibrium of a rigid body applies to structural mechanics. Ladder angles range from 15 to 45 degrees, with optional climbing masses for comprehensive force analysis. Supplied with comprehensive user guide and five-year warranty.
Equilibrium of a Rigid Body – FortiTestX – 51 is a demonstration kit designed for mechanics education using the Work Panel (FortiTestX 53). This hands-on apparatus allows students and teachers to explore equilibrium of a rigid body through experiments with an inclined ladder structure, measuring horizontal and vertical forces under various load conditions.
Product Overview

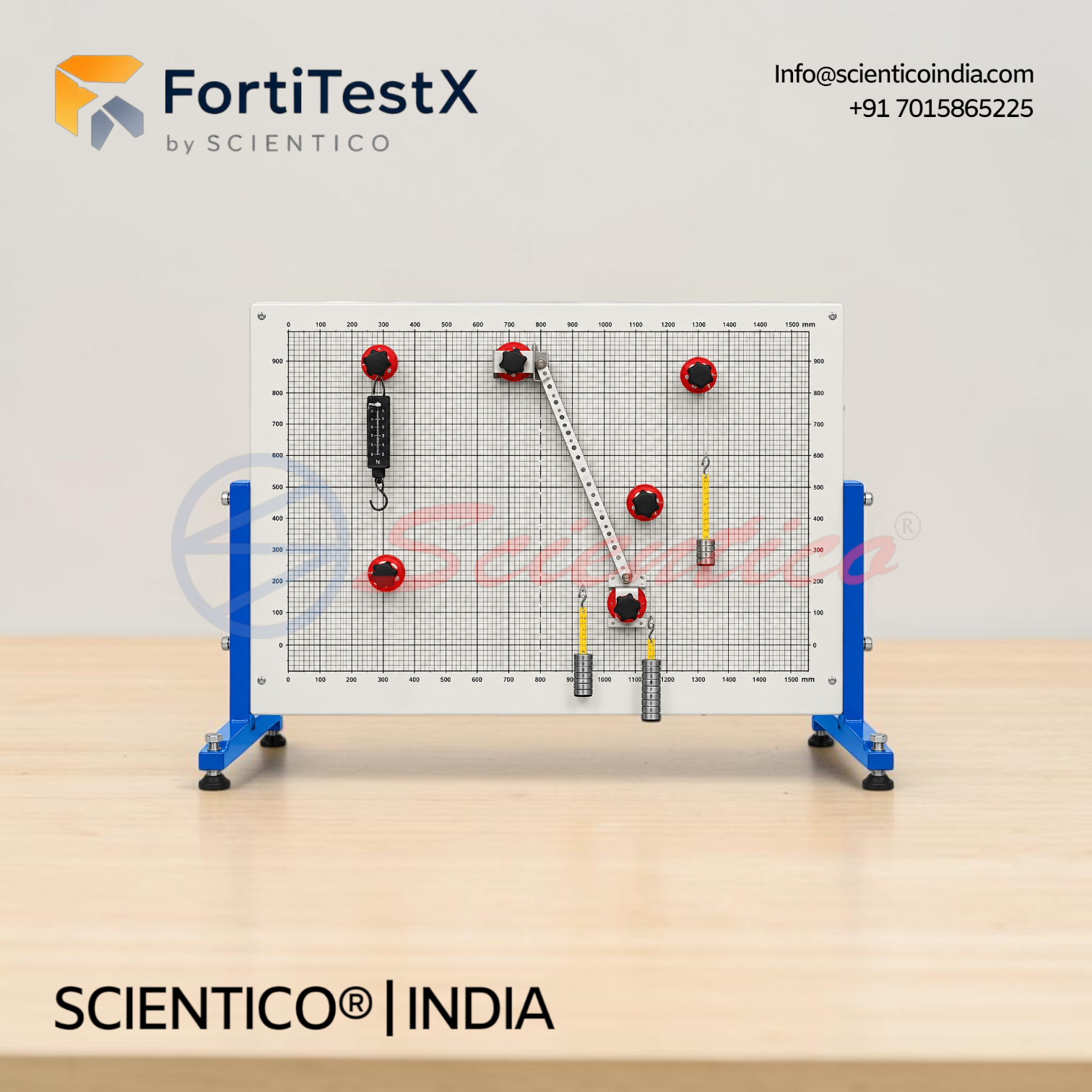

The kit consists of a model ladder that can be positioned at angles between 15 to 45 degrees, with or without a climbing mass at any position along its length. Magnetic components attach to the Work Panel (FortiTestX 53), enabling demonstrations of how equilibrium of a rigid body applies to real-world scenarios. The system includes spring balances to measure horizontal and vertical reaction forces, making it ideal for teaching structural safety and force distribution.
Equilibrium of a Rigid Body – FortiTestX – 51 — Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Equilibrium of a Rigid Body – FortiTestX – 51 |
| Ladder Angle Adjustment | 15 to 45 degrees |
| Force Measurement Type | Horizontal and vertical reaction forces |
| Measurement Device | Spring balances |
| Climbing Mass Position | Adjustable along entire ladder length |
| Base Unit Required | Work Panel (FortiTestX 53) |
| Attachment System | Magnetic components |
| Net Weight | 3.9 kg + 1 kg storage tray |
| Packed Volume | Approximately 0.015 m3 |
| Packed Weight | Approximately 6 kg |
| Warranty | Five years |
| Certification | ISO 9001, EU directives compliant |
Technical Data
Operating Conditions
| Parameter | Value |
|---|---|
| Operating Environment | Well lit classroom or laboratory |
| Storage Temperature Range | –25°C to +55°C (when packed for transport) |
| Operating Temperature Range | +5°C to +40°C |
| Operating Relative Humidity | 80% at temperatures < 31°C, decreasing linearly to 50% at 40°C |
Essential Services
| Requirement | Specification |
|---|---|
| Bench/Desktop Dimensions | Minimum 1100 mm wide x 540 mm front to back |
Key Features
- Model Type: Magnetic ladder attachment kit for statics work panel
- Ladder Angle Range: 15 to 45 degrees adjustable positioning
- Force Measurement: Horizontal and vertical reaction forces via spring balances
- Primary Application: Demonstrations of equilibrium of a rigid body mechanics
- Compatibility: Works with Work Panel (FortiTestX 53) magnetic panel system
- Climbing Mass: Adjustable to any position along ladder length
- Storage: Magnetic tray included for safe component storage
- Documentation: Fully illustrated user guide with theory and typical results
- Warranty: Five-year manufacturer warranty included
Experiments
- Horizontal and vertical reaction forces on a ladder
- Safe angles for a ladder under different load conditions
- Effect of climbing mass on a ladder at variable positions
- Ladder equilibrium at different angles between 15 to 45 degrees
Construction and Design
Equilibrium of a Rigid Body – FortiTestX – 51 comprises a magnetic model ladder with accompanying magnetic attachment components designed for compatibility with the Work Panel (FortiTestX 53). The apparatus demonstrates equilibrium of a rigid body through adjustable ladder positioning and interchangeable force measurement setup. Magnetic pulleys, spring balances, ladder hooks, and plate points enable multiple configurations for studying force distribution. The lightweight construction and magnetic fastening system allow rapid setup and reconfiguration for different experimental scenarios.
Scope of Delivery
- Model ladder
- Magnetic pulleys
- Spring balances
- Magnetic ladder hook and plate points
- Magnetic hook points
- Lightweight hooks
- Weight hangers and weights
- Comprehensive user guide with theory and experiments
- Storage tray
Required for Operation
- Work Panel (FortiTestX 53)
- Well lit classroom or laboratory environment
- Level bench or desktop minimum 1100 mm wide x 540 mm front to back
Q: What is equilibrium of a rigid body?
A: Equilibrium of a rigid body occurs when all forces and moments acting on it are balanced, resulting in no acceleration or rotation. This kit demonstrates these principles through ladder experiments.
Q: What is the ladder angle range?
A: The ladder can be adjusted between 15 to 45 degrees to simulate different structural scenarios and analyze how force distribution changes at different angles.
Q: Can the climbing mass be repositioned during experiments?
A: Yes, the climbing mass can be positioned at any point along the ladder length, allowing exploration of how reaction forces vary with load position.
Q: What forces does this apparatus measure?
A: The apparatus measures both horizontal and vertical reaction forces using spring balances, providing complete force analysis for understanding equilibrium of a rigid body.
Q: What warranty is included with this kit?
A: This apparatus is supplied with a five-year warranty and is manufactured in accordance with latest EU directives with ISO 9001 certification.
