Fan Heater Unit | RVX 129

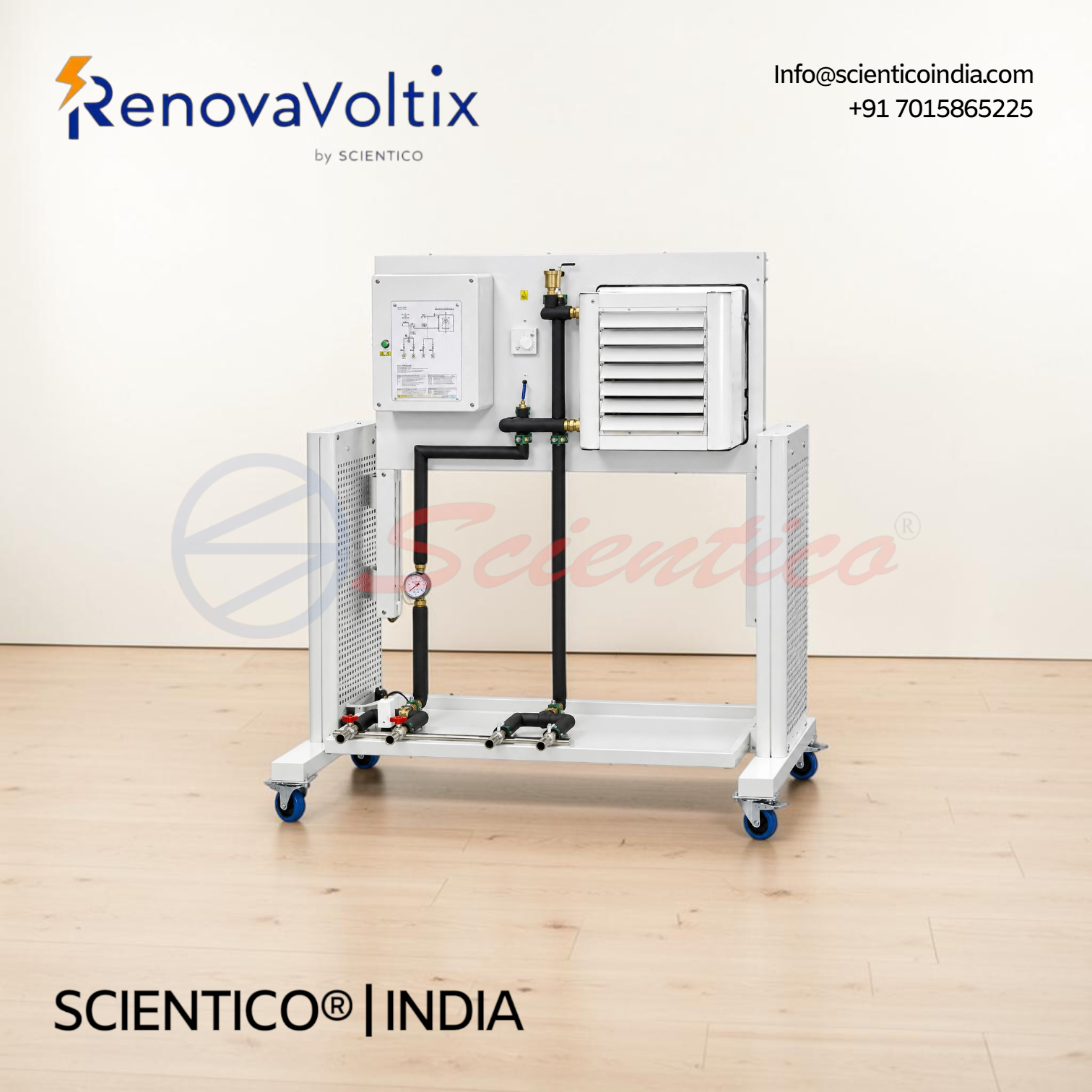

The Fan Heater Unit RVX 129 demonstrates fan convector heating and cooling in thermal systems. This fan heater unit features dual-speed axial fan (0 to 1400 rpm) with 1200 m³/hr flow capacity, 2kW heat exchanger, three temperature sensors (-100°C to 200°C), and quick-release couplings for modular integration. Flow measurement from 10 to 3000 L/h enables energy balance analysis in heat pump applications.
The Fan Heater Unit RVX 129 is an educational apparatus for studying fan convector heating and cooling applications in thermal systems. This fan heater unit functions as heat source for room heating or heat sink for heat pump systems with dual-speed axial fan and integrated temperature measurement.
Product Overview
The RVX 129 fan heater unit comprises fan convector, pipework, quick-release couplings with shut-off valves, and temperature sensors for dual-mode operation. Axial fan with two selectable speed settings from 0 to 1400 rpm delivers flow rates up to 1200 m³/hr. Heat exchanger provides 2kW cooling capacity at maximum 10 bar operating pressure. Dual temperature sensors on feed and return pipes measure thermal gradient. Three temperature sensors monitor system performance. Flow rate measurement ranges from 10 to 3000 L/h. Quick-release couplings enable rapid connection to modular heat pump and heating systems. The fan heater unit achieves efficient room heating at lower circuit temperatures compared to traditional radiators. As air heat exchanger in heat pump systems, it absorbs ambient air heat when groundwater or geothermal sources are unavailable. Optional LABVIEW DAQ software transmits temperature and flow data to external controllers for energy analysis.
Fan Heater Unit RVX 129 — Technical Specifications
| Parameter | Value |
|---|---|
| Fan Type | Axial with dual speed settings |
| Fan Speed Range | 0 to 1400 rpm |
| Fan Flow Rate | Up to 1200 m³/hr |
| Heat Exchanger Cooling Capacity | 2kW |
| Operating Pressure | Maximum 10 bar |
| Temperature Sensors | 3 units total |
| Temperature Measurement Range | -100°C to 200°C |
| Flow Rate Measurement Range | 10 to 3000 L/h |
| Quick-Release Couplings | With shut-off valves |
| Piping System | Modular connections |
| Operating Modes | Heat source or heat sink |
Technical Data
Fan System:
- Type: axial with two selectable speed settings
- Speed range: 0 to 1400 rpm
- Flow rate: up to 1200 m³/hr
Heat Exchanger:
- Cooling capacity: 2kW
- Operating pressure: maximum 10 bar
- Suitable for heating and cooling applications
Instrumentation:
- Temperature sensors: 3 units
- Temperature measurement range: -100°C to 200°C
- Flow rate measurement range: 10 to 3000 L/h
- Feed and return temperature sensors for gradient measurement
Piping and Connections:
- Quick-release couplings with shut-off valves
- Modular system integration capability
- Flexible pipework for various configurations
Key Features
- Dual-Speed Operation: Fan heater unit features two selectable speed settings for flow rate control and efficiency optimization
- Compact Heat Exchange: 2kW cooling capacity achieves efficient room heating at substantially lower circuit temperatures than traditional radiators
- Quick-Release Connection: Couplings with shut-off valves enable rapid modular system integration and disconnection
- Dual-Mode Functionality: Fan heater unit operates as heat source for room heating or heat sink for heat pump air exchange
- High Flow Capacity: Axial fan delivers up to 1200 m³/hr air flow across wide rpm range
- Comprehensive Temperature Monitoring: Three temperature sensors measure system performance across -100°C to 200°C range
- Flow Rate Measurement: Range from 10 to 3000 L/h enables energy balance calculation
- Air Heat Exchanger Capability: Absorbs ambient air heat when groundwater or geothermal sources unavailable
Experiments
- Fan convector use for room cooling and heating applications
- Comparison of air heat exchanger with other heat sources in heat pump systems
- Temperature difference effects between heating feed and return on system efficiency
- Operating conditions when used as air heat exchanger in heat pump systems
- Dual-speed fan setting effects on heat transfer and energy consumption
- Heat pump system performance with fan heater as heat source
- Heat pump system performance with fan heater as heat sink
- Economic analysis of fan heater versus traditional radiators
- Modular system integration capabilities
- Air flow rate effect on heating efficiency
Construction and Design
The Fan Heater Unit RVX 129 integrates an axial fan with dual selectable speed settings delivering up to 1200 m³/hr flow capacity. Heat exchanger provides 2kW cooling capacity rated for maximum 10 bar operating pressure. Three temperature sensors monitor feed, return, and ambient conditions across -100°C to 200°C range. Flow rate measurement system covers 10 to 3000 L/h operating range. Quick-release couplings with integrated shut-off valves facilitate modular connection and disconnection. Flexible pipework enables integration with heat pump trainers and thermal system modules. Fan speed control provides two selectable rpm settings from 0 to 1400 rpm for operational optimization. Compact design achieves efficient room heating at lower circuit temperatures and air heat exchange for heat pump applications.
Software
DAQ software in National Instruments LABVIEW environment (optional). Measures and calculates apparatus results. Runs on any Windows environment.
Scope of Delivery
- 1 Trainer
- 1 Instruction manual
Q: What are the dual-speed settings on the Fan Heater Unit RVX 129?
A: The axial fan provides two selectable speed settings ranging from 0 to 1400 rpm, enabling flow rate adjustment up to 1200 m³/hr for operational flexibility and energy optimization.
Q: How does the Fan Heater Unit RVX 129 function in heat pump systems?
A: The fan heater unit operates as air heat exchanger absorbing ambient air heat when groundwater or geothermal sources are unavailable. It supplies heat to heat pump systems or serves as heat sink for cooling applications.
Q: What heat capacity does the Fan Heater Unit RVX 129 provide?
A: The heat exchanger delivers 2kW cooling capacity at maximum 10 bar operating pressure, enabling efficient room heating at lower circuit temperatures compared to traditional radiators.
Q: How are connections made with the Fan Heater Unit RVX 129?
A: Quick-release couplings with integrated shut-off valves enable rapid connection and disconnection for modular system integration without fluid loss or system drainage.
Q: Can the Fan Heater Unit RVX 129 measure system efficiency?
A: Yes. Three temperature sensors measure feed, return, and ambient conditions across -100°C to 200°C range. Flow rate measurement from 10 to 3000 L/h enables complete energy balance and efficiency analysis.
