Indoor Solar Energy Training System | RVX 001
The Indoor Solar Energy Training System RVX-001 is a modular solar power experimental platform that demonstrates power transformation from solar PV modules to battery and from battery to loads. The system supports eleven structured experiments covering solar module behaviour under illuminance, temperature, and shading conditions; parameter testing; charge controller and inverter functions; inclination angle effects; and efficiency calculation. As a complete solar energy trainer, the RVX-001 integrates a moveable solar module frame, artificial light source with intensity control, temperature sensor, PWM charge controller, off-grid power inverter, and power meter — all on a single frame. DAQ software designed in National Instruments LabVIEW is included and runs on any Windows system.
The Indoor Solar Energy Training System RVX-001 is a comprehensive solar power experimental platform designed to demonstrate the full cycle of solar energy utilisation — from photovoltaic generation through battery storage to load delivery. As a purpose-built solar energy trainer, the RVX-001 enables hands-on investigation of how solar PV modules transform solar power into usable electrical energy across a range of real-world conditions.
Product Overview
The Indoor Solar Energy Training System RVX-001 demonstrates power transformation from solar PV modules to battery, and from battery to loads. The system covers the behaviour of solar modules under varying illuminance, temperature, and shading conditions; parameter testing including short circuit current, open circuit voltage, maximum output voltage, and maximum output current; charge controller function; the relationship between solar module inclination angle, light source, output voltage, and output current; solar module efficiency calculation; and the function of an inverter in a standalone solar system.

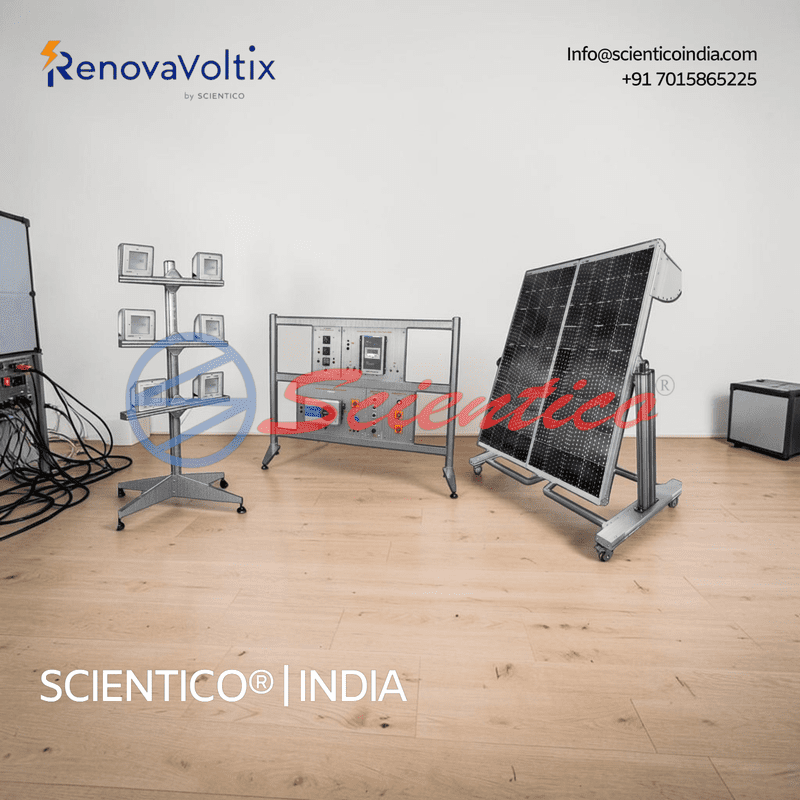

The trainer integrates a moveable solar module frame, installed light source with intensity control, temperature sensor, PWM solar charge controller, power inverter, and power meter into a single modular platform.
| Sr. No. | Module / Component | Qty |
|---|---|---|
| 1 | Dual Solar Panel Module | 1 |
| 2 | Artificial Light Source Module | 1 |
| 3 | Artificial Light Control Module | 1 |
| 4 | Charge Controller Module | 1 |
| 5 | Inverter Module (Off Grid) | 1 |
| 6 | Measuring Module | 1 |
| 7 | Battery* (12V; 24V on demand) | 1 |
| 8 | Frame | 1 |
| 9 | Set of Cables | 1 |
| 10 | Grid ON Inverter Module — Grid Tied (Optional; Electric Energy Meter Module required for operation) | 1 |
| 11 | Electric Energy Meter Module (Required if Grid ON Inverter is selected) (Optional) | 1 |
*Battery not included due to export policy — must be arranged by end user.
Key Features
- Solar power experimental platform: demonstrates complete power transformation — Solar PV modules → Battery → Loads
- Moveable solar module frame: adjustable inclination angle for angle-vs-output experiments
- Light source installed: artificial illumination for controlled indoor solar energy training
- Light intensity control installed: variable illuminance for systematic behavioural testing
- Temperature sensor installed: enables temperature-effect characterisation of solar modules
- PWM Solar Charge Controller: dedicated charge controller module
- Power inverter installed: off-grid inverter module for standalone system experiments
- Power meter installed: measuring module for accurate energy and efficiency calculations
- Dual Solar Panel Module
- Battery compatibility: 12V standard (24V on demand); not included — must be arranged by end user
- Optional grid-tied operation: Grid ON Inverter Module (requires Electric Energy Meter Module)
- DAQ software: designed in National Instruments LabVIEW; runs on any Windows environment; includes electronic sensors
Experiments
- Behaviour of Solar Module — Illuminance effects
- Behaviour of Solar Module — Temperature effects
- Behaviour of Solar Module — Shading effects
- Parameter Testing of Solar Module: Short Circuit Current
- Parameter Testing of Solar Module: Open Circuit Voltage
- Parameter Testing of Solar Module: Maximum Output Voltage
- Parameter Testing of Solar Module: Maximum Output Current
- Function of Charge Controller
- Relationship of inclination angle of Solar Module with light source, output voltage, and output current
- Calculating efficiency of Solar Module
- Function of inverter in standalone solar system
Construction and Design
The Indoor Solar Energy Training System RVX-001 is built around a modular architecture in which each functional block is housed as a discrete, interchangeable module mounted on a common frame. The solar power experimental platform features a moveable solar module frame accommodating the Dual Solar Panel Module, allowing inclination angle adjustment relative to the artificial light source. The Artificial Light Source Module and Artificial Light Control Module provide controllable illuminance for repeatable indoor testing. A temperature sensor is integrated for thermal characterization. The PWM Solar Charge Controller, Off-Grid Power Inverter, and Measuring Module complete the power chain. All modules are interconnected via the included cable set. The battery (12V standard, 24V on demand) is not included and must be sourced by the end user.
Software
DAQ software specially designed in the National Instruments LabVIEW environment to measure and calculate experimental results. A set of electronic sensors is included for use with the software. Compatible with any Windows operating system.
Scope of Delivery
- Dual Solar Panel Module (×1)
- Artificial Light Source Module (×1)
- Artificial Light Control Module (×1)
- Charge Controller Module (×1)
- Inverter Module (Off Grid) (×1)
- Measuring Module (×1)
- Frame (×1)
- Set of Cables (×1)
- DAQ Software (LabVIEW-based) with electronic sensors
Required for Operation
- Battery: 12V (24V on demand) — Not included; must be arranged by end user
- If Grid ON Inverter Module is selected: Electric Energy Meter Module is required
Optional Accessories
- Grid ON Inverter Module (Grid Tied)
- Electric Energy Meter Module
Q1. Is the battery included with the Indoor Solar Energy Training System RVX-001?
No. The battery (12V standard, 24V on demand) is not included due to export policy and must be arranged by the end user.
Q2. What software is provided, and what are the system requirements?
The system includes DAQ software designed in the National Instruments LabVIEW environment. It can be run on any Windows operating system and includes a set of electronic sensors.
Q3. Can the RVX-001 be used for grid-tied solar experiments?
Yes, with optional accessories. The Grid ON Inverter Module enables grid-tied operation; the Electric Energy Meter Module is required when this module is selected.
Q4. What parameters of the solar module can be tested with this trainer?
The solar power experimental platform supports testing of Short Circuit Current, Open Circuit Voltage, Maximum Output Voltage, and Maximum Output Current, as well as efficiency calculation and inclination-angle vs. output characterization.
Q5. What effects on solar module behaviour does the system demonstrate?
The Indoor Solar Energy Training System RVX-001 demonstrates solar module behaviour under three controlled conditions: varying illuminance, varying temperature (via integrated temperature sensor), and shading.
