Flow Control Training System | NexuMation 64
The Flow Control Training System NexuMation 64 is an experimental unit for learning control engineering fundamentals. This flow control training system has a 35L storage tank, a speed-controlled pump rated 17W, 5L/min and 5m max head, a rotameter of 0~7L/min, and a turbine wheel flow sensor rated 7.5L/min. A motorized valve of 3W acts as the actuator. LabVIEW software configures P, PI, PID and switching control via USB under Windows 10.
of control engineering. This flow control training system is mounted in a housing which accommodates all the electronics. A piping system with two flowmeters is supplied with flow by a speed-controlled pump.
Product Overview
The flow control training system has a piping system with two flowmeters. A speed-controlled pump supplies flow from the transparent storage tank. The rotameter allows the flow rate to be observed directly at any time. A turbine wheel flow sensor also measures the flow rate.
The sensor output signal is sent to the software controller. The output signal from the controller influences the setting of a motorized valve. To investigate the influence of disturbance variables, the pump speed can be altered by way of the software.
The software is designed in LabVIEW. It is an integral part of the training system and embodies the principle of hardware/software integration (HSI). It enables experiments to be conducted and evaluated in a user-friendly manner. The link between the experimental unit and the PC is made via a USB port.
Flow Control Training System NexuMation 64: Technical Specifications
| Parameter | Value |
|---|---|
| Unit Type | Experimental unit for control engineering experiments |
| Housing | Accommodates all electronics |
| Process | Flow control system with variable-area flowmeter |
| Actuator | Motorized valve |
| Flow Sensing | Turbine wheel flow sensor, rotameter |
| Disturbance Generation | Pump speed altered by software |
| Front Panel | Process schematic |
| Data Acquisition | DAQ with simulation software via USB under Windows 10 |
| Controller Configurations | P, PI, PID and switching controller |
Technical Data
| Parameter | Value |
|---|---|
| Storage tank capacity | approx. 35L |
| Pump power consumption | 17W |
| Pump max flow rate | 5L/min |
| Pump max head | 5m |
| Rotameter range | 0~7L/min |
| Motorized valve power | 3W |
| Flow sensor | 7.5L/min |
Key Features
- Application: flow control training system for control engineering fundamentals
- Housing: accommodates all electronics
- Storage Tank: transparent, approx. 35L
- Pump: speed-controlled, 17W, 5L/min max, 5m max head
- Flow Sensing: rotameter 0~7L/min and turbine wheel flow sensor 7.5L/min
- Actuator: motorized valve, 3W
- Controller: software configurable as P, PI, PID and switching
- Software: LabVIEW, hardware/software integration (HSI)
- Connection: USB, Windows 10
- Front Panel: process schematic
Experiments
- Fundamentals of control engineering based on the example of a rapid flow control system
- Open loop control response
- Recording of step responses (Reference variable / Disturbance variable)
Construction and Design

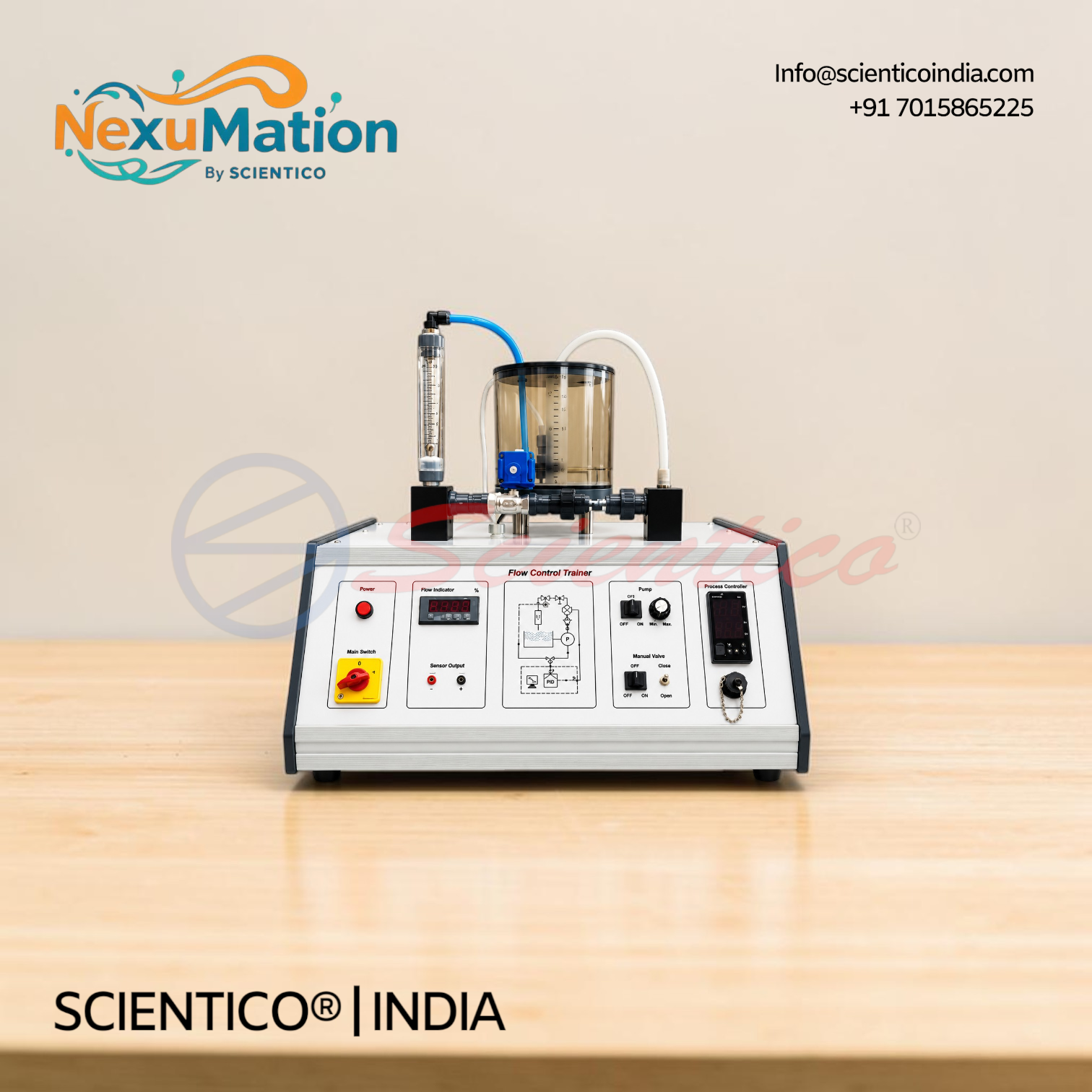

The Flow Control Training System NexuMation 64 is mounted in a housing that accommodates all the electronics. A piping system with two flowmeters is fitted. A speed-controlled pump supplies flow from a transparent storage tank.
The rotameter allows the flow rate to be observed directly. A turbine wheel flow sensor also measures flow rate. A motorized valve acts as the actuator, set by the controller output signal.
The flow control training system has a process schematic on the front panel. The experimental unit connects to the PC via a USB port.
Software
- Designed in LabVIEW
- Integral part of the training system, hardware/software integration (HSI)
- DAQ with simulation software via USB under Windows 10
- Configurable as P, PI, PID and switching controller
- Process schematic with controller type selection: manual, continuous controller, two or three-point controller, programmer
- Disturbance variable input
Q1. What does the flow control training system teach?
It teaches the basic fundamentals of control engineering. The example is a rapid flow control system.
Q2. How is the flow rate measured?
By a rotameter, which allows direct observation, and by a turbine wheel flow sensor.
Q3. How are disturbances introduced?
The pump speed is altered by way of the software.
Q4. Which controller types can be configured?
The software controller is configurable as P, PI, PID and switching controller. Manual, continuous, two or three-point controller, and programmer options are also selectable.
Q5. How does the trainer connect to the PC?
Through a USB port, under Windows 10.
