Level Control Training System | NexuMation 61
The Level Control Training System NexuMation 61 is an experimental unit for learning control engineering fundamentals. This level control training system has a transparent 1L level-controlled tank, a 38L storage tank, and a speed-controlled pump rated 6W, 25L/min and 2m max head. Level is measured by a pressure sensor. Disturbances are generated by an electromagnetic proportional valve. LabVIEW software connects via USB under Windows 10.
The Level Control Training System NexuMation 61 offers a way to learn the basic fundamentals of control engineering. This level control training system uses a transparent level-controlled tank fed by a speed-controlled pump. The liquid level is measured using a pressure sensor.
Product Overview
The level control training system feeds a transparent level-controlled tank from the storage tank. A speed-controlled pump does the feeding. The liquid level is measured using a pressure sensor.
The sensor output signal is sent to the software controller. The controller’s output signal influences the speed of the pump motor. This changes the delivery flow rate.
A solenoid valve in the tank outlet can be activated by the software. This allows the influence of disturbance variables to be investigated.
The software is designed in LabVIEW. It is an integral part of the training system and embodies the principle of hardware/software integration (HSI). It enables experiments to be conducted and evaluated in a user-friendly manner. The link between the experimental unit and the PC is made via a USB port. The well-structured instructional material sets out the fundamentals. It provides a step-by-step guide through the experiments.
Level Control Training System NexuMation 61: Technical Specifications
| Parameter | Value |
|---|---|
| Unit Type | Experimental unit for control engineering experiments |
| Process | Level control with transparent tank |
| Pump | Speed-controlled |
| Level Measurement | Pressure sensor |
| Disturbance Generation | Electromagnetic proportional valve in tank outlet |
| Tank | With overflow and graduated scale |
| Front Panel | Process schematic |
| Data Acquisition | DAQ with simulation software via USB under Windows 10 |
Technical Data
| Parameter | Value |
|---|---|
| Level-controlled tank capacity | 1L |
| Storage tank capacity | 38L |
| Pump power consumption | 6W |
| Pump max flow rate | 25L/min |
| Pump max head | 2m |
Key Features
- Application: level control training system for control engineering fundamentals
- Process Tank: transparent, 1L, with overflow and graduated scale
- Storage Tank: 38L
- Pump: speed-controlled, 6W, 25L/min max, 2m max head
- Level Sensing: pressure sensor
- Disturbance Variable: electromagnetic proportional valve in tank outlet
- Software: LabVIEW, hardware/software integration (HSI)
- Connection: USB, Windows 10
- Front Panel: process schematic
Experiments
- Fundamentals of control engineering based on the example of a level control system with integral control action
- Open loop control response
- Investigation of a controlled system without feedback
- Effects of different controller parameters and methods on the response of the closed loop system
- Recording of step responses (Reference variable / Disturbance variable)
Construction and Design
The Level Control Training System NexuMation 61 has a transparent level-controlled tank. The tank has an overflow and a graduated scale. It is fed from a storage tank.
A speed-controlled pump delivers the liquid. A pressure sensor measures the level. An electromagnetic proportional valve in the tank outlet generates disturbance variables.
The level control training system has a process schematic on the front panel. The experimental unit connects to the PC via a USB port.
Software
- Designed in LabVIEW
- Integral part of the training system, hardware/software integration (HSI)
- DAQ with simulation software via USB under Windows 10

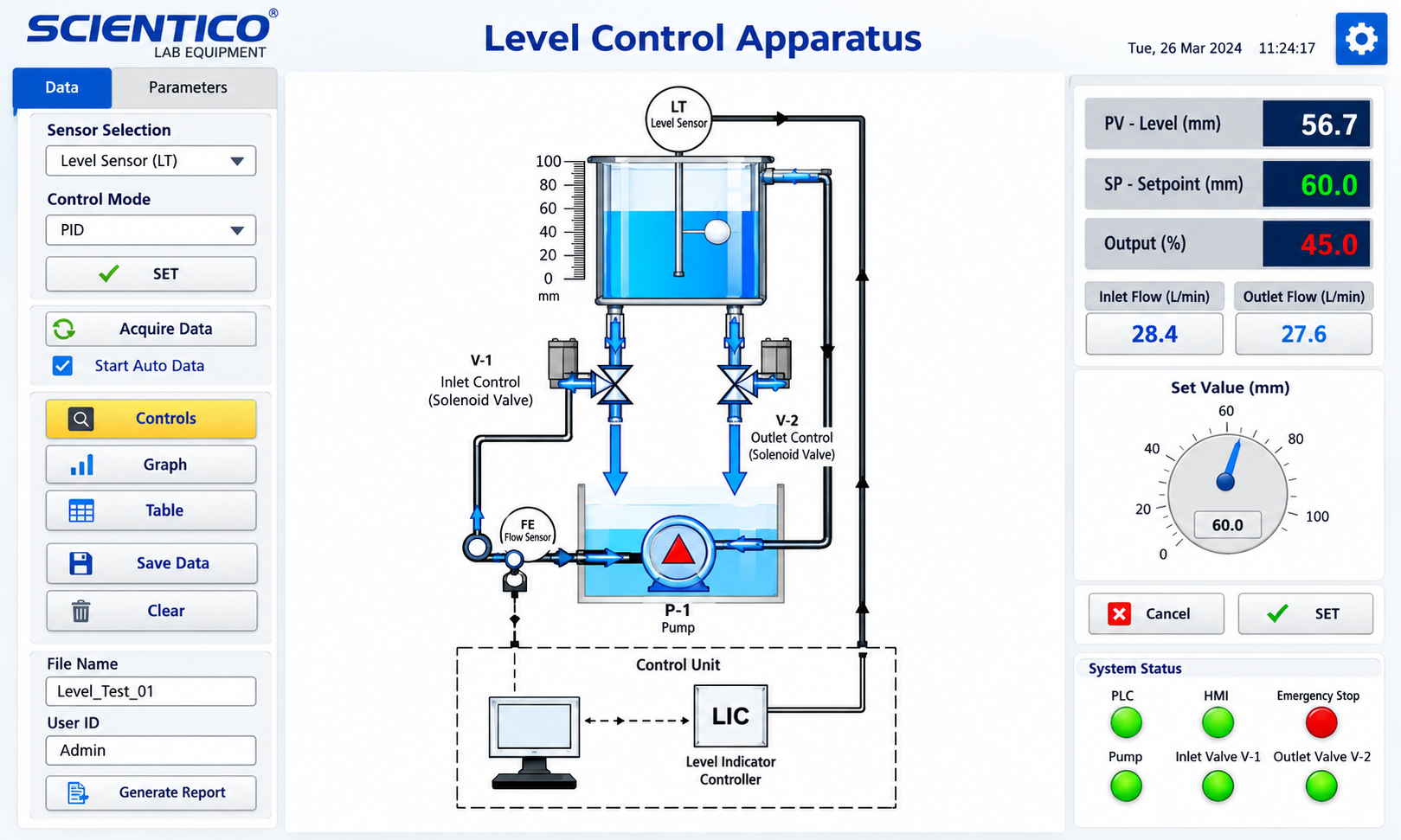

- Process schematic with controller type selection: manual, continuous controller, two or three-point controller, programmer
- Disturbance variable input
Q1. What does the level control training system teach?
It teaches the basic fundamentals of control engineering. The example is a level control system with integral control action.
Q2. How is the liquid level measured?
A pressure sensor measures the liquid level. Its signal goes to the software controller.
Q3. How are disturbances introduced?
A solenoid valve in the tank outlet is activated by the software. It is an electromagnetic proportional valve.
Q4. Which controller types can be selected in the software?
Manual, continuous controller, two or three-point controller, and programmer.
Q5. How does the trainer connect to the PC?
Through a USB port, under Windows 10.
