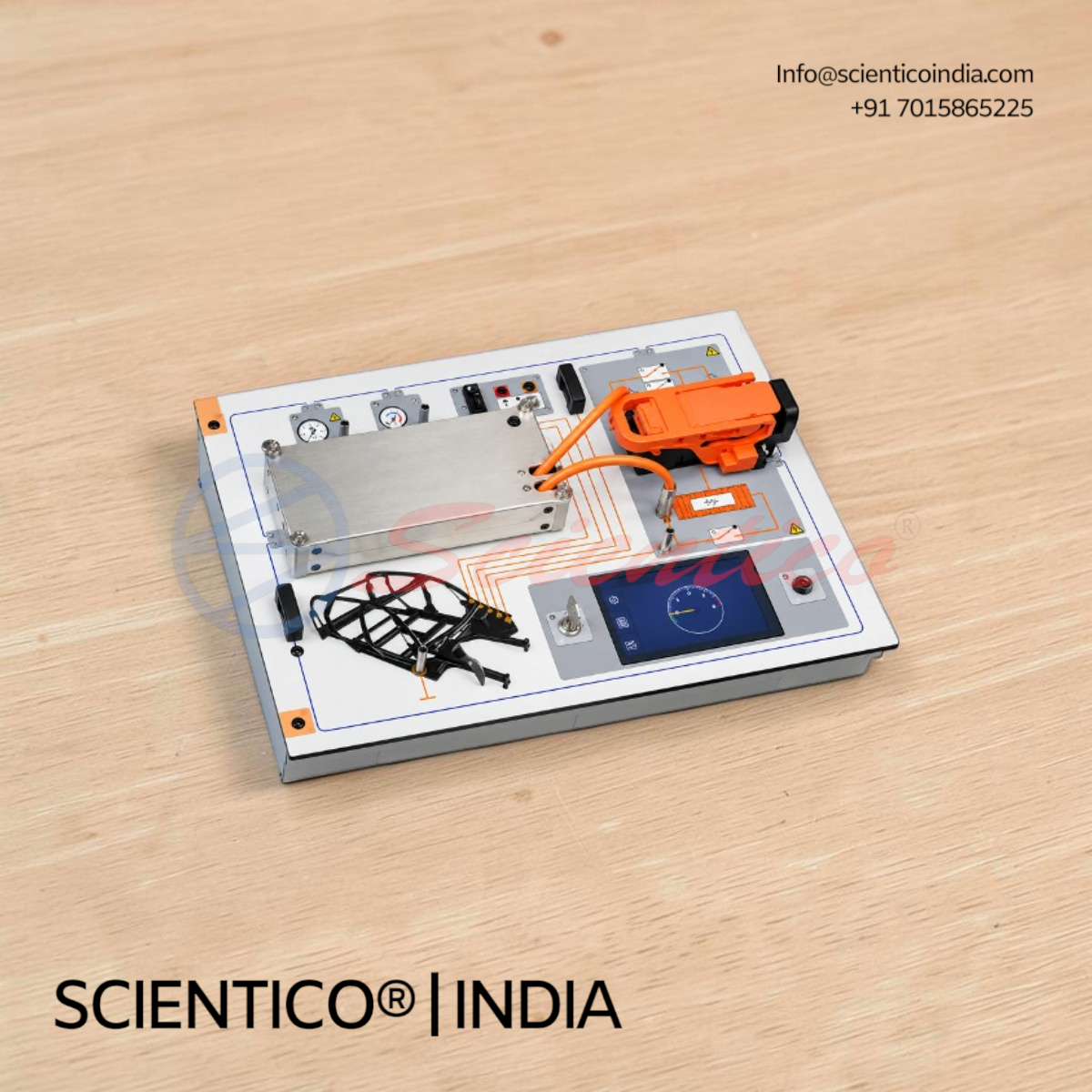

High-Voltage Electric Vehicle Safety Interactive Course | SC-HVS 2207
The High-Voltage Electric Vehicle Safety Interactive Course SC-HVS 2207 teaches safe handling of high-voltage EV and charging systems. It operates at 30 V DC and 12 V AC (SELV) and includes Class 0 gloves, an IEC 61111 insulating mat, and an experiment unit for safety principles.
The High-Voltage Electric Vehicle Safety Interactive Course SC-HVS 2207 is a PC-based course for safe handling of high-voltage electric vehicles and charging systems. It includes course software, animations, an HV safety experiment unit, Class 0 safety gloves, and a Class 0 insulating mat.
Product Overview
The SC-HVS 2207 high-voltage electric vehicle safety course covers HV safety fundamentals, repair-shop job orders, and diagnostic functions. Students carry out measurement-based investigation and practical switchable fault exercises. The trainer operates only at safe extra-low voltage, 30 V DC and 12 V AC (SELV), so no live high voltage is present. The experiment unit demonstrates human-body resistance and electrical safety principles, with an earth-potential reference and resistance-measurement sockets. Class 0 gloves rated to 1,000 V AC are supplied with leather over-gloves in sizes 9 and 10. The insulating mat is IEC 61111 Class 0, 1000 x 1000 x 3 mm.
High-Voltage Electric Vehicle Safety Interactive Course SC-HVS 2207 — Technical Specifications
| Parameter | Value |
|---|---|
| Tender Item ID | 11007 |
| Model No. | SC-HVS 2207 |
| Item Code / CIC | TTS / EEE |
| Brand / Origin | Scientico / India |
| Course Type | Interactive PC-based |
| Operating Voltage | 30 V DC and 12 V AC (SELV) |
| Safety Gloves | IEC 60903, Class 0 (1,000 V AC), with leather over-gloves |
| Glove Sizes | 9 and 10 |
| Insulating Mat | IEC 61111, Class 0, 1000 x 1000 x 3 mm |
| Compatible Interface | Item 11001 or functionally equivalent |
| Language | English |
Technical Data
Learning Content:
- HV safety fundamentals
- Repair-shop job orders
- Diagnostic functions
- Measurement-based investigation
- Practical switchable faults
Experiment Unit:
- Human-body resistance demonstration
- Electrical safety principles
- Earth-potential reference
- Resistance-measurement sockets
Safety Equipment:
- Gloves: IEC 60903, Class 0, 1,000 V AC, sizes 9 and 10, each pair marked with test date
- Leather over-gloves
- Insulating mat: IEC 61111, Class 0, 1000 x 1000 x 3 mm
Key Features
- SELV Operation: 30 V DC and 12 V AC, no live HV present
- HV Safety Training: Fundamentals and repair-shop job order procedures
- Measurement-Based Learning: Diagnostic functions and investigation exercises
- Class 0 Protection: Gloves with leather over-gloves and insulating mat
- Switchable Faults: Practical fault exercises for diagnosis
Experiments
- High-voltage safety fundamentals
- Human-body resistance and electrical safety principles
- Earth-potential reference measurement
- Resistance measurement at test sockets
- Repair-shop job order procedures
- Diagnostic function practice
- Switchable fault investigation
Construction and Design
The course combines course software with animations and an experiment unit for HV safety. The experiment unit provides resistance-measurement sockets and an earth-potential reference. Class 0 gloves, leather over-gloves, and an insulating mat complete the safety set.
Software
Course software with animations, English language. Runs on Item 11001 or any functionally equivalent system.
Scope of Delivery
- 1 Course software with animations
- 1 Experiment unit for HV safety
- Class 0 electrical safety gloves with leather over-gloves (sizes 9 and 10)
- 1 Class 0 insulating mat (1000 x 1000 x 3 mm)
- 1 Trainer manual
- 1 Student manual
Q: Does the SC-HVS 2207 use live high voltage?
A: No. The trainer works only at safe extra-low voltage, 30 V DC and 12 V AC (SELV), and the documentation states this.
Q: What safety equipment is included?
A: Class 0 gloves rated to 1,000 V AC with leather over-gloves in sizes 9 and 10, and a Class 0 insulating mat.
Q: What standards apply to the safety equipment?
A: The gloves meet IEC 60903 Class 0, and the insulating mat meets IEC 61111 Class 0.
Q: Which interface does the course use?
A: It runs on interactive training hardware Item 11001 or any functionally equivalent system.
