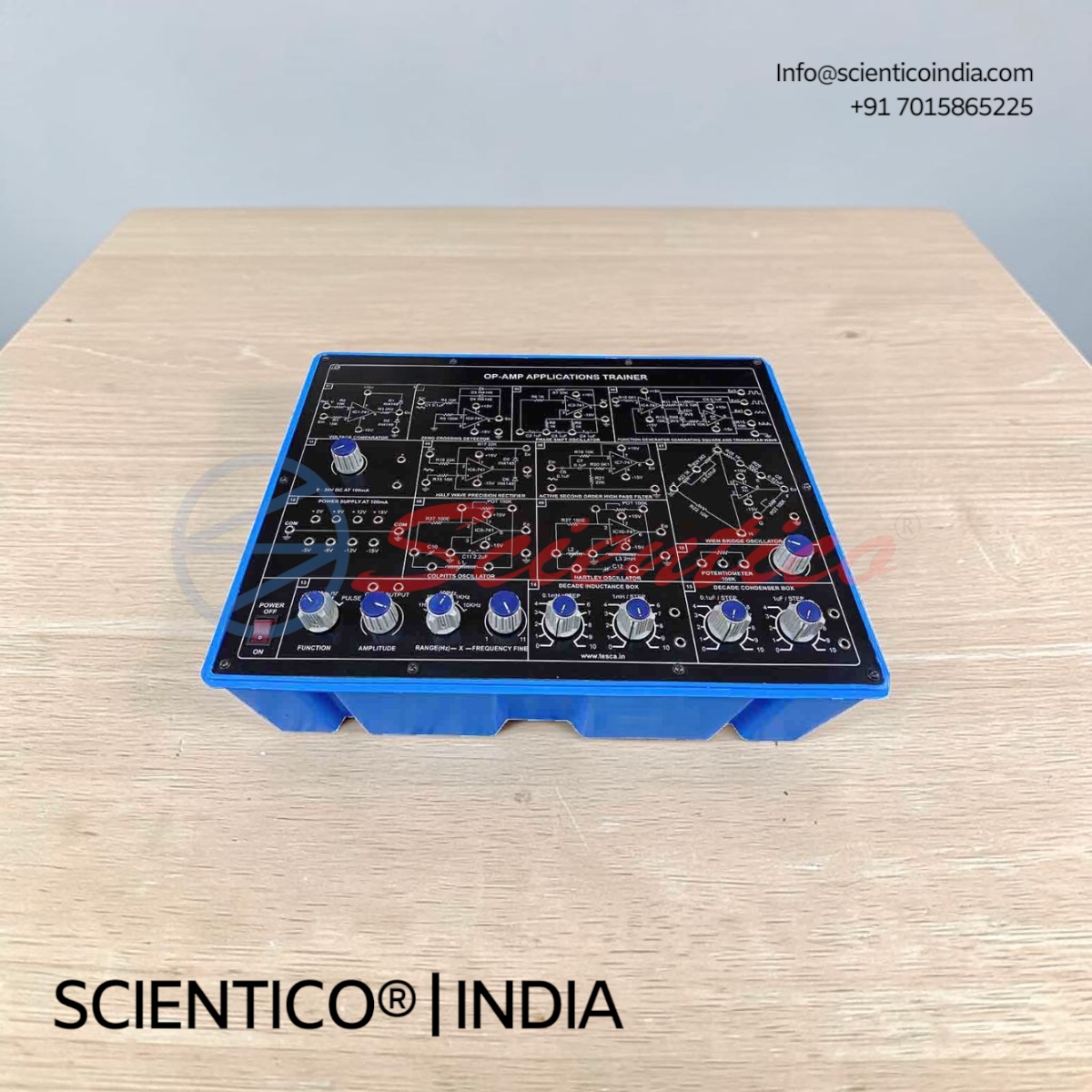

Operational Amplifier and Amplifier Training Kit | SC-OPA 1103
The Operational Amplifier and Amplifier Training Kit – SC-OPA 1103 is a circuit construction deck with 4 mm sockets for op-amp and power amplifier experiments. The kit includes ±15 V DC and 0–30 V variable power supplies, 60 resistors, potentiometers, capacitors, transistors, diodes, thyristors, and 4 x LM741 op-amps. All components are on 4 mm carriers and store in a compartmented case. Course software and a manual with graded exercises are included.
The Operational Amplifier and Amplifier Training Kit – SC-OPA 1103 is a circuit construction deck with 4 mm sockets for op-amp and power amplifier circuits. It includes a full component set on 4 mm male-ended carriers.
Product Overview
The Operational Amplifier and Amplifier Training Kit – SC-OPA 1103 features a gridded construction deck with 4 mm female sockets and a patch area for discrete parts, ICs, and power devices. Power supplies include ±15 V DC and 0–30 V variable, both short-circuit proof. The kit includes resistors, capacitors, potentiometers, coils, transistors, diodes, thyristors, triacs, and op-amp ICs. All components are mounted on 4 mm male-ended carriers and stored in a compartmented case with printed inventory and labelled carriers.
Operational Amplifier and Amplifier Training Kit – SC-OPA 1103: Technical Specifications
| Category | Specification |
|---|---|
| Construction Deck | Gridded board with 4 mm female sockets; patch area for discrete parts, ICs and power devices |
| Power Supply | ±15 V DC and 0–30 V variable; short-circuit proof; on 4 mm sockets |
| Resistors | 60 units, 22 ohm–1 Mohm (0.5 W, 1 W, 2 W) |
| Potentiometers | 2 each: 1 k, 10 k, 100 k, 470 k |
| Capacitors (100 V) | 0.1, 0.47, 1, 10, 22, 100, 470 µF |
| Coils | 10–100 mH; transformer coils N 300 / 900 |
| Diodes | 10 x 1N4007; 1 x AA118; 2 x Zener 4.7 V; 2 x Zener 10 V |
| Transistors (BJT) | 5 x BC547; 5 x BD237; 2 x TIP41; 2 x TIP42 |
| Transistors (FET) | 5 x 2N3819; 4 x BS170; 8 x IRF250; 2 x IRF510; 2 x IRF9540 |
| Thyristors and Triacs | 2 x Diacs; 2 x Thyristors; 2 x Triacs |
| Op-Amps | 4 x LM741 |
| Switches and Controls | 5 switches, 5 pushbuttons |
| Indicators | 5 lamps, 10 LEDs |
| Audio | 8 ohm loudspeaker |
| Storage | Compartmented case with printed inventory; labelled carriers |
Key Features
- 4 mm Sockets: gridded construction deck with 4 mm female sockets
- Dual Power Supply: ±15 V DC and 0–30 V variable
- Short-circuit Protected: power supply protection included
- Component Carriers: 4 mm male-ended carriers for all components
- Comprehensive Passives: 60 resistors, potentiometers, and 7 capacitor values
- Wide Transistor Range: BJT, FET, thyristors, and triacs
- Op-Amp ICs: 4 x LM741 for amplifier circuits
- Control Elements: switches, pushbuttons, lamps, and LEDs
- Organized Storage: compartmented case with printed inventory and labelled carriers
Experiments
- Basic op-amp configurations: inverting and non-inverting amplifiers
- Summing amplifier using LM741
- Integrator and differentiator circuits
- Comparator and Schmitt trigger circuits
- Transistor amplifier stages with BJTs and FETs
- Power amplifier design using TIP41/TIP42 complementary pair
- MOSFET switching circuits with IRF250 and IRF510
- Thyristor and triac control circuits
- Diode and rectifier circuits
- Audio amplifier design with loudspeaker load
Construction and Design
The Operational Amplifier and Amplifier Training Kit – SC-OPA 1103 uses a gridded construction deck with 4 mm female sockets. Components mount on 4 mm male-ended carriers. The deck includes a patch area for discrete parts and ICs. Power supplies are on 4 mm sockets. All components store in a compartmented case with labelled carriers and a printed inventory sheet.
Software
Course software media with room licence is included.
Scope of Delivery
- Construction deck with power supply
- Component set in case
- Course software media (room licence)
- English manual with graded exercises
Q: What power supplies does the kit include?
A: The kit has ±15 V DC and 0–30 V variable supplies. Both are short-circuit proof and connect via 4 mm sockets.
Q: Are all components pre-mounted?
A: No. Components are supplied on 4 mm male-ended carriers. You plug them into the 4 mm female sockets on the gridded construction deck.
Q: How many op-amp ICs are included?
A: The kit includes 4 x LM741 op-amp ICs.
Q: Is software included?
A: Yes. Course software media with room licence and an English manual with graded exercises are included.
Q: What transistor types are included?
A: The kit includes BJTs (BC547, BD237, TIP41, TIP42), FETs (2N3819, BS170), MOSFETs (IRF250, IRF510, IRF9540), plus diacs, thyristors, and triacs.
