Wheel Alignment Training Stand | SC-WAS 3010
The Wheel Alignment Training Stand SC-WAS 3010 is an open stand for suspension geometry and wheel alignment training. It offers camber, SAI, caster, and toe adjustment, a multi-link rear suspension, and measurement from all sides without a lifting platform.

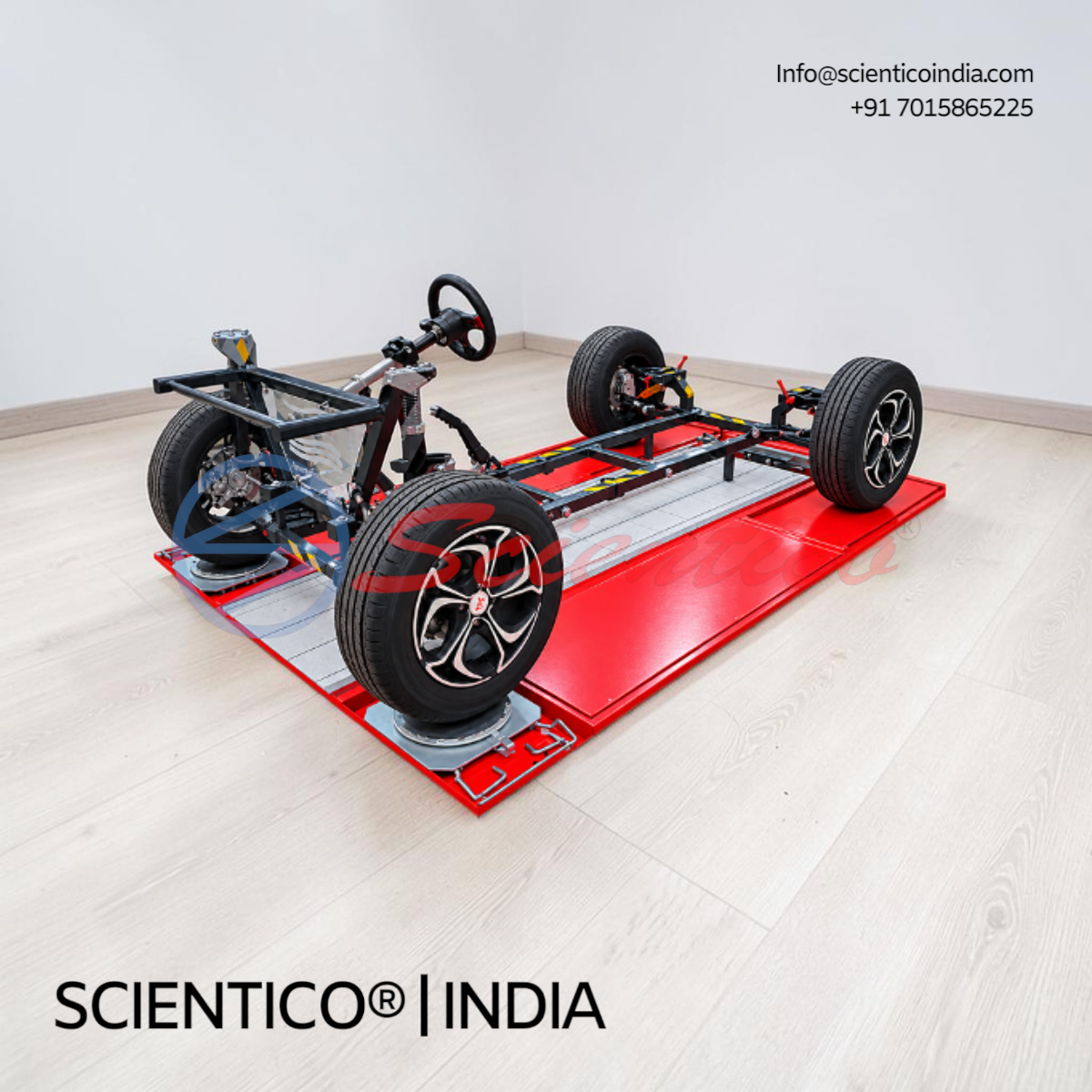

The Wheel Alignment Training Stand SC-WAS 3010 is an open training stand for demonstrating suspension geometry and practising wheel alignment. This wheel alignment training stand supports 3D aligners, CCD aligners, and mechanical methods, with measurement possible from all sides.
Product Overview
The SC-WAS 3010 wheel alignment training stand has an open construction that allows measurement from all sides without a lifting platform. Front suspension camber, SAI, and caster adjust through shock absorber position, eccentric bolts, and wheel position on the lower arm. Toe-in and toe-out adjust by tie rod. The rear multi-link suspension has three adjustment points for toe, camber, and wheelbase. Adjustment ranges cover camber ±3°, caster 0° to +8°, SAI 8° to 16°, and toe ±5 mm per wheel. Resolution is 0.05° and 0.5 mm. Measurable parameters include wheelbase, SAI, ride height, shear angle, turning radius, track width, and setback. The stand measures approximately 120 x 340 x 180 cm extended and weighs about 200 kg.
Wheel Alignment Training Stand SC-WAS 3010 — Technical Specifications
| Parameter | Value |
|---|---|
| Tender Item ID | 11010 |
| Model No. | SC-WAS 3010 |
| Item Code / CIC | TTS / EEE |
| Brand / Origin | Scientico / India |
| Construction | Open training stand, no lifting platform required |
| Front Suspension | Camber, SAI, caster, toe, wheelbase adjustable |
| Rear Suspension | Multi-link, 3 adjustment points |
| Camber Adjustment | ±3° |
| Caster Adjustment | 0° to +8° |
| SAI Adjustment | 8° to 16° |
| Toe Adjustment | ±5 mm per wheel |
| Resolution | 0.05° / 0.5 mm |
| Dimensions (Extended) | Approx. 120 x 340 x 180 cm |
| Dimensions (Folded) | Approx. 110 x 165 x 170 cm |
| Net Weight | Approx. 200 kg |
| Compliance | CE |
Technical Data
Front Suspension:
- Camber, SAI, and caster adjustment via shock absorber position, eccentric bolts, and wheel position on lower arm
- Toe-in and toe-out by tie rod
- Caster and wheelbase by moving subframe lengthwise
- Camber and SAI by moving subframe sideways
- Steering wheel locking bolt
Rear Suspension:
- Multi-link design
- Toe adjustment at lower arm
- Camber by eccentric bolts on upper arm
- Wheelbase by front rod
Measurable Parameters:
- Wheelbase distances and diagonals
- SAI and wheelbase length
- Ride height and shear angle
- Turning radius and axle displacement
- Track width, front and rear setback, centre line
Key Features
- Open Construction: Measurement from all sides without a lifting platform
- Multi-Method Training: 3D aligners, CCD aligners, and mechanical methods
- Full Front Adjustment: Camber, SAI, caster, toe, and wheelbase
- Three-Point Rear Adjustment: Toe, camber, and wheelbase
- Fine Resolution: 0.05° and 0.5 mm
Experiments
- Demonstration of suspension geometry
- Camber, SAI, and caster adjustment
- Toe-in and toe-out adjustment
- Wheelbase and track width measurement
- Setback and centre line checks
- Ride height and shear angle measurement
- Turning radius and axle displacement measurement
- Alignment with 3D aligners, CCD aligners, and mechanical methods (rulers, ropes, lasers, mirrors)
Construction and Design
The SC-WAS 3010 uses an open frame that extends to approximately 120 x 340 x 180 cm and folds to approximately 110 x 165 x 170 cm on its wheels. Front and rear adjustment points allow geometry changes at the shock absorbers, eccentric bolts, tie rods, and subframe.
Scope of Delivery
- 1 Wheel alignment training stand SC-WAS 3010
- 2 Wheels with tyres
- Turntables for front wheels
- Slip plates for rear wheels
- 1 English manual
Q: Does the SC-WAS 3010 need a lifting platform?
A: No. The open construction allows measurement from all sides without one.
Q: What adjustment ranges does the SC-WAS 3010 provide?
A: Camber ±3°, caster 0° to +8°, SAI 8° to 16°, and toe ±5 mm per wheel, with 0.05° and 0.5 mm resolution.
Q: Which alignment methods can be practised?
A: 3D aligners, CCD aligners, and mechanical methods using rulers, ropes, lasers, and mirrors.
Q: What are the dimensions of the SC-WAS 3010?
A: Extended, it measures approximately 120 x 340 x 180 cm. Folded on its wheels, approximately 110 x 165 x 170 cm. Net weight is about 200 kg.
