Sectioned Automatic Gearbox | SC-AGS 3011

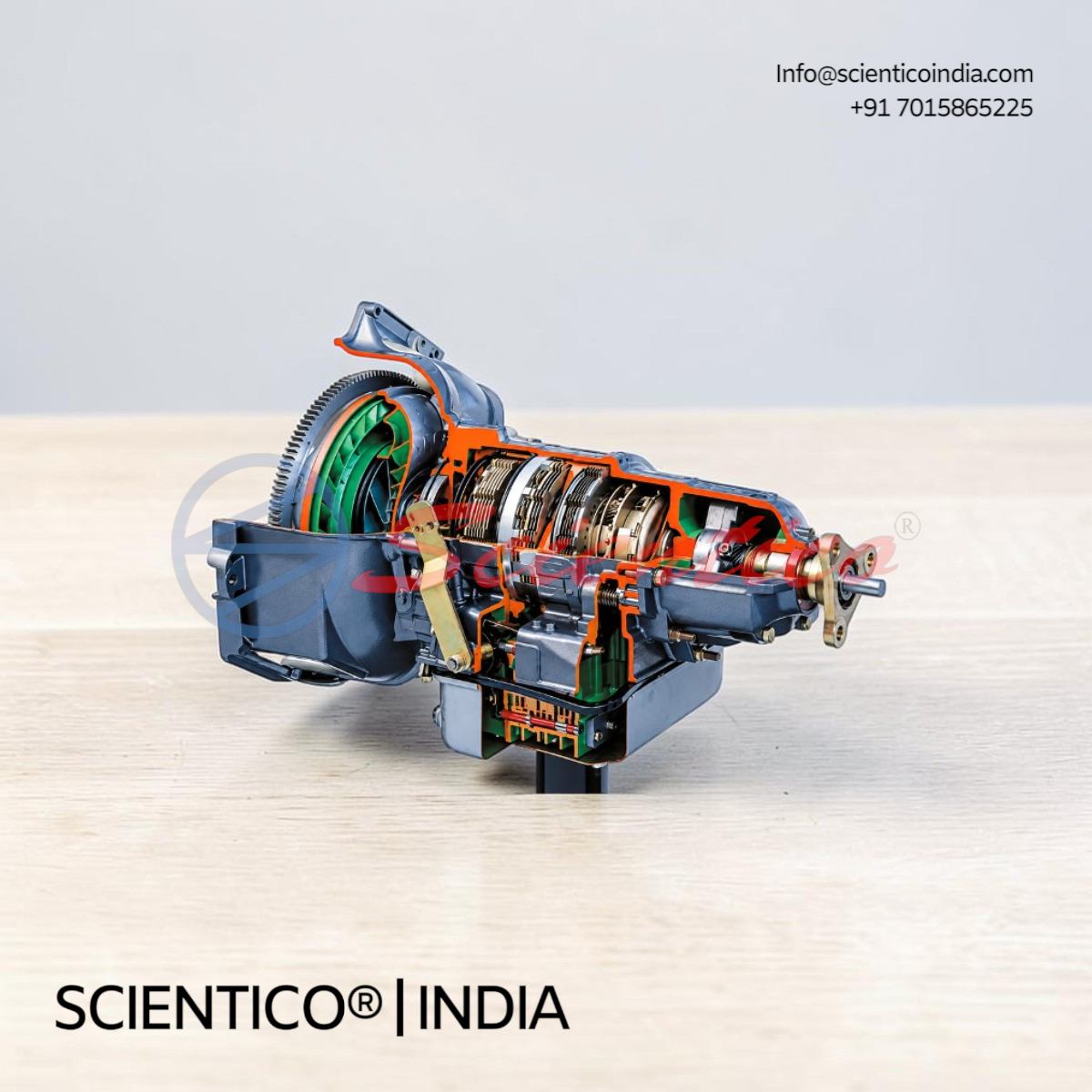

The Sectioned Automatic Gearbox SC-AGS 3011 is a cut-away automatic gearbox for classroom instruction. All main assemblies are opened, including the torque converter, clutches, and three planetary sets, on a mobile stand with guarded moving parts.
The Sectioned Automatic Gearbox SC-AGS 3011 is a cut-away automatic gearbox for classroom demonstration and instruction. This sectioned automatic gearbox is mounted on a mobile stand, with all main assemblies opened so the class can follow the converter, clutches, and planetary sets.
Product Overview
The SC-AGS 3011 sectioned automatic gearbox opens the housing, torque converter, converter lock-up clutch, oil pump, all clutches, all three planetary gear sets, and the hydraulic unit. Demonstrable functions include the converter, lock-up clutch, freewheels, oil pump, parking lock, clutches and planetary sets, and solenoid valves with the hydraulic unit. Cut surfaces are machined, deburred, painted in contrasting colours, and corrosion protected. The gearbox sits on a mobile stand with lockable castors and measures approximately 1,200 x 600 x 1,000 mm (W x D x H).
Sectioned Automatic Gearbox SC-AGS 3011 — Technical Specifications
| Parameter | Value |
|---|---|
| Tender Item ID | 11011 |
| Model No. | SC-AGS 3011 |
| Item Code / CIC | TTS / EEE |
| Brand / Origin | Scientico / India |
| Presentation | Sectioned (cut-away), mobile stand |
| Sectioned Components | Housing, torque converter, lock-up clutch, oil pump, all clutches, 3 planetary gear sets, hydraulic unit |
| Overall Dimensions (W x D x H) | Approx. 1,200 x 600 x 1,000 mm |
| Castors | Lockable |
| Safety | All rotating and pinch points guarded |
| Compliance | CE |
Technical Data
Sectioned Components:
- Housing
- Torque converter and converter lock-up clutch
- Oil pump
- All clutches
- Three planetary gear sets
- Hydraulic unit
Demonstrable Functions:
- Torque converter operation
- Lock-up clutch
- Freewheels
- Oil pump
- Parking lock
- Clutches and planetary sets
- Solenoid valves and hydraulic unit
Finish and Safety:
- Cut surfaces machined, deburred, painted in contrasting colours, corrosion protected
- All rotating and pinch points guarded
Key Features
- Full Cut-Away: All main assemblies opened for classroom viewing
- Torque Converter Study: Converter and lock-up clutch demonstration
- Planetary Set Study: All three planetary gear sets visible
- Hydraulic Control: Oil pump, solenoid valves, and hydraulic unit demonstration
- Mobile Presentation: Stand with lockable castors
- Guarded Design: Rotating and pinch points guarded
Experiments
- Torque converter operation
- Lock-up clutch engagement
- Freewheel function
- Oil pump operation
- Parking lock function
- Clutch and planetary gear set operation
- Solenoid valve and hydraulic unit function
Construction and Design
The SC-AGS 3011 is a sectioned automatic gearbox with its main assemblies opened for demonstration. Cut surfaces are contrast-painted to separate components visually. The unit sits on a mobile stand with lockable castors for positioning in the classroom.
Scope of Delivery
- 1 Sectioned automatic gearbox SC-AGS 3011 on mobile stand
- 1 English manual with sectional drawing, component identification, and description of each function
Q: Which components are sectioned on the SC-AGS 3011?
A: The housing, torque converter, lock-up clutch, oil pump, all clutches, all three planetary gear sets, and the hydraulic unit are sectioned.
Q: What functions can be demonstrated?
A: Converter, lock-up clutch, freewheels, oil pump, parking lock, clutches and planetary sets, and solenoid valves with the hydraulic unit.
Q: Is the SC-AGS 3011 safe for classroom use?
A: All rotating and pinch points are guarded, and the unit is CE compliant.
Q: What are the dimensions of the SC-AGS 3011?
A: Approximately 1,200 x 600 x 1,000 mm (W x D x H).
