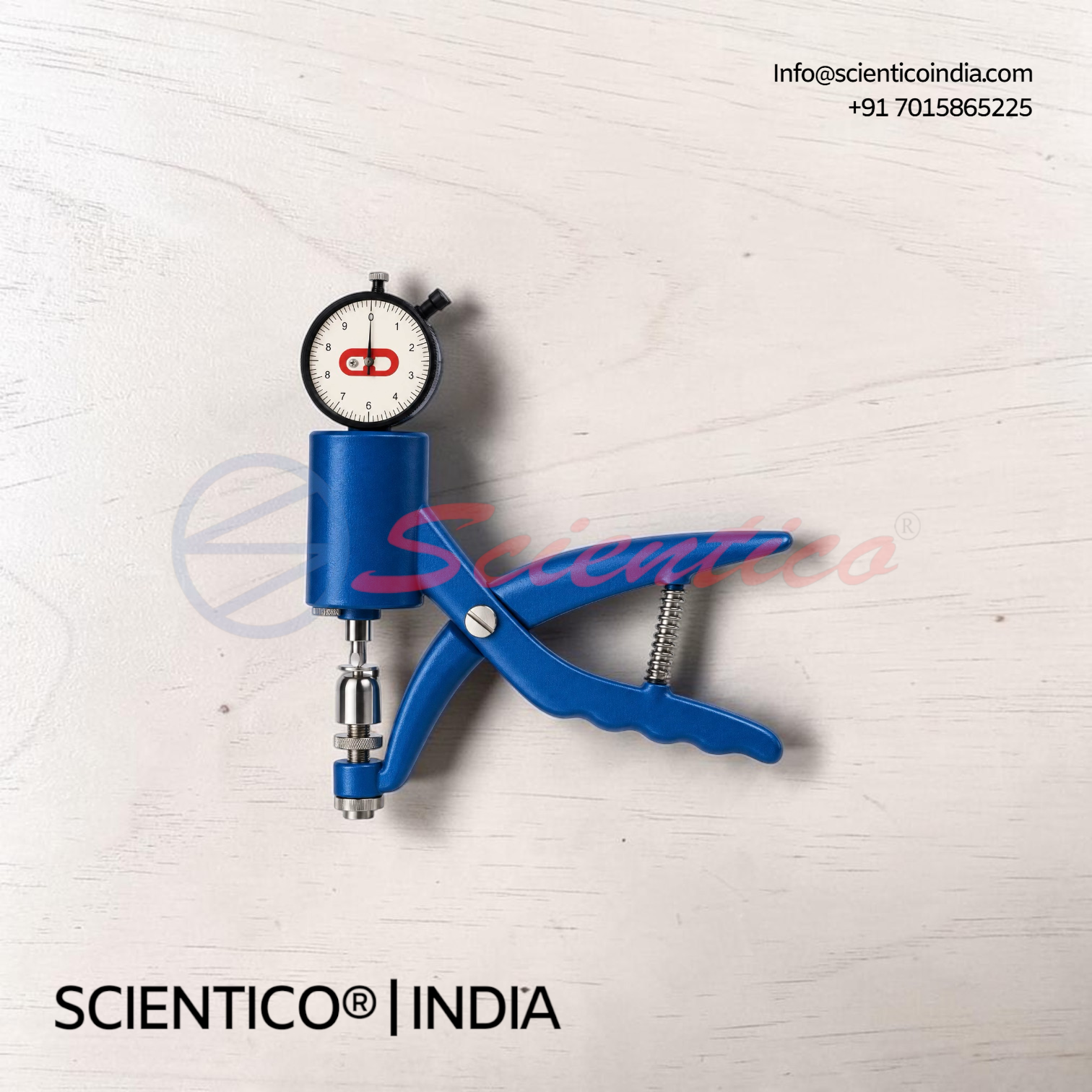

Pfizer Type Tablet Hardness Tester | PMSC 03
The Pfizer Type Tablet Hardness Tester PMSC 03 is a plier-type tablet crushing strength tester with a dial gauge. It has a 20 kg safe testing force, ±0.2 kg accuracy, 0.2 kg least count, and accepts tablets up to 25 mm in diameter.
The Pfizer Type Tablet Hardness Tester PMSC 03 is a plier-type instrument for measuring tablet crushing strength. It features a dial gauge with 0.2 kg least count and a 20 kg safe testing force.
Product Overview
The Pfizer Type Tablet Hardness Tester PMSC 03 measures tablet hardness through crushing strength. The plier-type mechanism applies force to the tablet. The dial gauge displays the measured force. The safe testing force is 20 kg. Accuracy is ±0.2 kg. The least count is 0.2 kg. The tester handles tablets up to 25 mm diameter.
Pfizer Type Tablet Hardness Tester PMSC 03: Technical Specifications
| Parameter | Value |
|---|---|
| Operation | Plier type with dial gauge |
| Safe Testing Force | 20 kg |
| Accuracy | ±0.2 kg |
| Least Count | 0.2 kg |
| Maximum Tablet Diameter | 25 mm |
Technical Data
Force Measurement:
- Safe testing force: 20 kg
- Accuracy: ±0.2 kg
- Least count: 0.2 kg
Tablet Capacity:
- Maximum tablet diameter: 25 mm
Mechanism:
- Plier type
- Dial gauge indicator
ey Features
- Plier Operation: Mechanical plier-type tablet hardness testing
- Dial Gauge: Force readout with 0.2 kg least count
- Safe Force Limit: 20 kg safe testing force
- Measurement Accuracy: ±0.2 kg
- Tablet Range: Accepts tablets up to 25 mm diameter
Experiments
- Tablet crushing strength measurement
- Tablet hardness testing up to 25 mm diameter
Construction and Design
The Pfizer Type Tablet Hardness Tester PMSC 03 uses a plier-type mechanism. A dial gauge shows the applied force. The tester accepts tablets up to 25 mm in diameter.
Scope of Delivery
- 1 Pfizer type tablet hardness tester with dial gauge
Q: What is the testing force range of the Pfizer Type Tablet Hardness Tester PMSC 03?
A: The safe testing force is 20 kg, with accuracy of ±0.2 kg and least count of 0.2 kg.
Q: What tablet size can the Pfizer Type Tablet Hardness Tester PMSC 03 test?
A: It accepts tablets up to 25 mm in diameter.
Q: How is force measured on the Pfizer Type Tablet Hardness Tester PMSC 03?
A: A dial gauge displays the force applied by the plier-type mechanism.
