Saturation Pressure ThermoFlux – 7069
Saturation Pressure ThermoFlux – 7069 is a bench-top laboratory trainer that demonstrates the relationship between saturation pressure and boiling point temperature of water, combining a Marcet Boiler with a throttling calorimeter and a condensate return pipe loop.
Pure water is heated by two variable-power cartridge heaters. A sight glass allows observation of boiling patterns and water level. Saturated steam circulates through a pipe loop (0 to 8 bar gauge) fitted with a K-type thermocouple and an electronic pressure sensor before condensing and returning to the boiler.
The throttling calorimeter, connected via a vapour offtake with isolating valve, enables determination of the dryness fraction of wet steam at different operating pressures. A second K-type thermocouple records post-expansion temperature. Three independent safety provisions are included: a mechanical relief valve at 10 bar, two digital pressure switches at 8 and 8.5 bar, and a standalone Bourdon gauge.
Sensor readings display on a common digital meter with USB output for optional PC data acquisition via LabVIEW-based software. Supplied by SCIENTICO India with hoses, measuring beaker, stopwatch, and instruction manual.
The Saturation Pressure ThermoFlux – 7069 is a bench-top laboratory apparatus designed to demonstrate the relationship between saturation pressure and boiling point temperature of water across a range of absolute pressures. Equivalent to a Marcet Boiler, the unit adds a throttling calorimeter and a pipe loop for condensate return, providing a comprehensive introduction to two-phase thermodynamics.
Students can generate saturation curves, compare results against published steam tables, and determine the dryness fraction of wet steam using the integrated throttling calorimeter. All sensors route to a USB port for optional PC data acquisition.
Product Overview
The Saturation Pressure ThermoFlux – 7069 heats pure water to its boiling point using a pair of cartridge heaters with variable power control. A sight glass on the front of the boiler allows direct observation of boiling patterns and continuous monitoring of water level.
Saturated steam leaving the top of the boiler travels around a pipe loop before condensing and returning to the base of the boiler for reheating. The operating range covers 0 to 8 bar gauge. The top limb of the pipe loop carries a K-type thermocouple, a temperature sensor, and an electronic saturation pressure sensor. A filling point at the bottom allows the loop to be filled with pure water.
A vapour offtake with an isolating valve diverts steam through a throttling calorimeter. As steam expands to atmospheric pressure, a second K-type thermocouple measures the post-expansion temperature, enabling calculation of the dryness fraction. A pressure relief valve is set to operate if pressure exceeds the working limit; a Bourdon gauge remains operational when power is disconnected.
All power supplies, signal conditioning, and circuitry are contained in an electrical console with current protection devices and an RCD for operator safety. Sensor readings are displayed on a common digital meter. All signals are routed to a USB port for optional connection to a PC using an optional parallel interface and educational software package.
Saturation Pressure ThermoFlux – 7069: Technical Specifications
| Parameter | Value |
|---|---|
| Operating Pressure Range | 0 to 8 bar (gauge) |
| Digital Pressure Safety Switches | 8 bar and 8.5 bar (2 digital switches) |
| Mechanical Pressure Safety (Relief Valve) | 10 bar |
| Heating Element | Pair of cartridge heaters with variable power control |
| Temperature Sensors | K-type thermocouples (2 total: loop top limb + post-throttle) |
| Pressure Sensor | Electronic saturation pressure sensor (top limb of pipe loop) |
| Pressure Gauge | Bourdon gauge (remains operational when power is disconnected) |
| Sight Glass | Front-mounted, for observation of boiling patterns and water level |
| Filling Point | Bottom of loop, for filling with pure water |
| Vapour Offtake | With isolating valve, connects to throttling calorimeter |
| Throttling Calorimeter | Included, for dryness fraction determination |
| Pipe Loop | Condensate return from steam back to base of boiler |
| Data Output | USB port for optional PC connection |
| Display | Common digital meter for all sensor readings |
| Electrical Safety | RCD and current protection devices in electrical console |
| Software | Optional DAQ software (National Instruments LabVIEW environment) |
| Software Compatibility | Any Windows environment |
Technical Data
| Parameter | Value |
|---|---|
| Operating Pressure | 0 to 8 bar (gauge) |
| Digital Safety Switch 1 | 8 bar |
| Digital Safety Switch 2 | 8.5 bar |
| Mechanical Pressure Relief | 10 bar |
Key Features
- Apparatus Type: bench-top saturation pressure and Marcet Boiler equivalent
- Throttling Calorimeter: included for dryness fraction determination of wet steam
- Operating Pressure Range: 0 to 8 bar gauge
- Mechanical Safety Relief Valve: set at 10 bar
- Digital Pressure Safety: 8 bar and 8.5 bar (2 independent digital switches)
- Heating Element: pair of cartridge heaters with variable power control
- Temperature Sensors: 2 x K-type thermocouples: top limb of loop and post-throttle position
- Saturation Pressure Sensor: electronic sensor on top limb of pipe loop
- Bourdon Gauge: remains operational when electrical power is disconnected
- Sight Glass: front-mounted for boiling pattern observation and water level monitoring
- Pipe Loop: returns condensate from saturated steam to base of boiler for reheating
- Filling Point: at base of loop for filling with pure water
- Vapour Offtake: with isolating valve for steam diversion to calorimeter
- Data Output: USB port, all sensor signals routed for optional PC connection
- Display: common digital meter for all sensor readings
- Electrical Console: RCD and current protection devices for operator safety
- Software: optional DAQ software in National Instruments LabVIEW environment, Windows compatible
Experiments
Saturation Loop
- Observation of the patterns of boiling at the surface of the water
- Measurement of the temperature of saturated steam over the range of saturation pressure 0 to 8 bar and comparison of the saturation curves obtained with those published in steam tables
- The concept of a saturation line
- The describing equation and linearisation
- Gauge and absolute pressures
- Temperature scales
- The characteristic behaviour of a two-phase fluid
- The effect of rate of response on the accuracy of measurement
Throttling Calorimeter
- Determination of the condition of wet steam (quality of the steam) produced by the Saturation Pressure Apparatus at different operating pressures
- Use of the steady flow energy equation
- Use of steam tables
- The difference in enthalpy between phases: enthalpy of vaporisation
Thermodynamics
- Understanding saturation curves and the characteristics of a two-phase fluid
- Understanding the origin and use of steam tables
- Using a throttling calorimeter to determine the quality of wet steam
Construction and Design

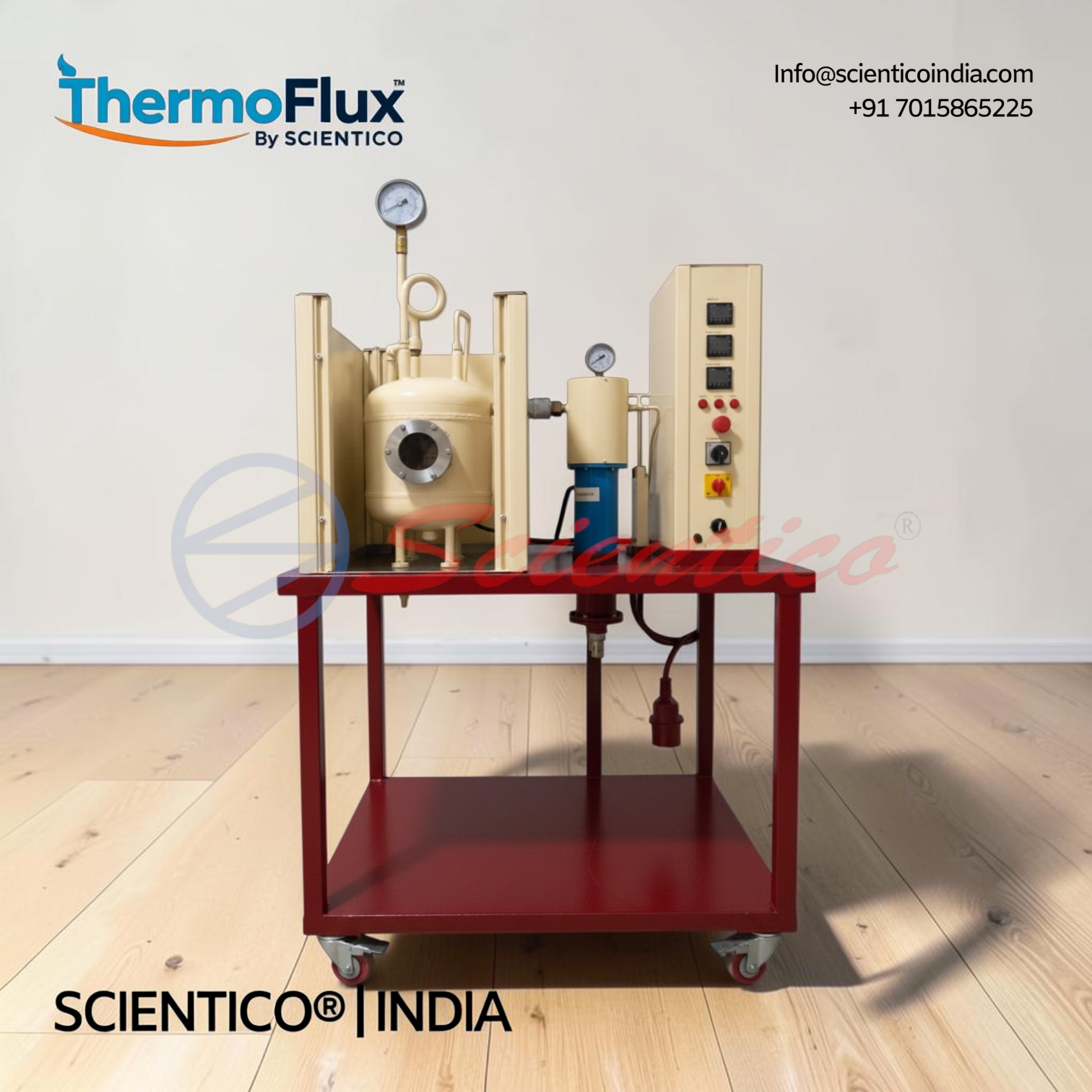

The Saturation Pressure ThermoFlux – 7069 is a self-contained bench-top unit built around a boiler heated by two cartridge heaters with variable power control.
The boiler incorporates a front-mounted sight glass for direct observation of internal boiling patterns and water level. Saturated steam exits from the top of the boiler and circulates through a closed pipe loop before condensing and returning as condensate to the base of the boiler. The top limb of the loop carries a K-type thermocouple, a temperature sensor, and an electronic saturation pressure sensor.
A vapour offtake on the loop, fitted with an isolating valve, diverts steam to the throttling calorimeter. Steam expands to atmospheric pressure through the calorimeter; a second K-type thermocouple records the post-expansion temperature. A filling point at the base of the loop allows the system to be charged with pure water.
Safety is provided by a pressure relief valve set to 10 bar and by two digital pressure switches at 8 bar and 8.5 bar. A Bourdon gauge provides pressure indication independently of the electrical supply. All electrical components are housed in a dedicated console fitted with an RCD and current protection devices. Sensor outputs feed a common digital meter and are simultaneously routed to a USB port for optional data acquisition.

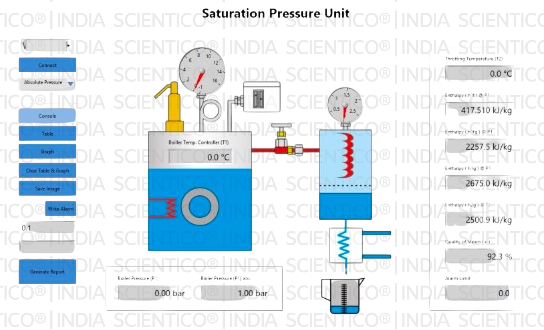

Software (Optional): ThermoFlux – 7069
DAQ software is specially designed in the National Instruments LabVIEW environment to measure and calculate results from the apparatus. The software is optional. When software is used, a set of electronic sensors is included. The software is compatible with any Windows environment.
Scope of Delivery
- 1 experimental unit
- 1 set of hoses
- 1 measuring beaker
- 1 stop watch
- 1 instruction manual
Optional Accessories
- Parallel interface and educational software package (ThermoFlux – 7069 DAQ software, LabVIEW environment, Windows compatible)
Q: What saturation pressure range does the ThermoFlux – 7069 operate over?
A: The unit operates from 0 to 8 bar gauge. A mechanical pressure relief valve is set at 10 bar, and two digital pressure safety switches are set at 8 bar and 8.5 bar.
Q: How is the dryness fraction of wet steam determined using this apparatus?
A: Steam is diverted from the pipe loop through a vapour offtake with an isolating valve into a throttling calorimeter. As steam expands to atmospheric pressure, a K-type thermocouple measures the post-expansion temperature. This data, combined with steam table values, allows calculation of the dryness fraction.
Q: Can saturation curves from this apparatus be compared with steam tables?
A: Yes. Students measure the temperature of saturated steam across the full saturation pressure range of 0 to 8 bar and plot the results. These curves can be directly compared with published steam tables.
Q: Is data logging to a PC possible with the ThermoFlux – 7069?
A: All sensor signals are routed to a USB port. An optional parallel interface and educational DAQ software package, developed in the National Instruments LabVIEW environment, enables PC-based data acquisition. The software runs on any Windows environment.
Q: What safety features are built into the apparatus?
A: The unit has three independent safety provisions: a mechanical pressure relief valve set at 10 bar, two digital pressure safety switches at 8 bar and 8.5 bar, and a Bourdon gauge that remains operational when electrical power is disconnected. The electrical console includes an RCD and current protection devices.
