Temperature Control Trainer | NexuMation 68
The Temperature Control Trainer NexuMation 68 is an educational board with a 5 Liter approx. vessel and sensors and actuators for temperature and flow. This temperature control trainer has a 400W heater element, a 10 l/min water circulation pump, K-Type Thermocouple, PT100, Bi-metallic and Direct Reading thermal sensors, and ON/OFF and PID control circuits. A heat exchanger with fan provides PID-controlled cooling. Fixed supply is +15V -15V. Optional digital PID controller with data acquisition and PLC unit are available.
The Temperature Control Trainer NexuMation 68 contains an educational board with a vessel and a set of sensors and actuators for temperature and flow. This temperature control trainer includes a control module with interface circuits and ON/OFF, proportional, integral and derivative (PID) control circuits.
Product Overview
The temperature control trainer contains an educational board with a vessel. A set of sensors and actuators for temperature and flow is fitted on the board.
A control module contains the interface circuits for the sensors and the actuators. It also contains the ON/OFF and proportional integral and derivative control circuits (PID).
Sensors, control circuits, drivers, and protection circuits are installed. The user can control pressure of liquid manually or through a software PID control algorithm.
PID parameters are controllable and graph plotting is available.
Temperature Control Trainer NexuMation 68: Technical Specifications
| Parameter | Value |
|---|---|
| Fixed Supply DC | +15V -15V |
| Vessel | 5 Liter approx. |
| Heater Element | 400W |
| Water Circulation Pump | 10 l/min |
| Piping | Plastic |
| Thermal Sensors | K-Type Thermocouple, PT100, Bi-metallic, Direct Reading |
| Valves | Drain Valve, Manual Type |
| Level Sensor | Float Switch with LED indicator |
| Operation Mode | Internal & External |
| Flow Sensor | Rota Meter, Direct Reading Type |
| Cooling Temperature Controller | Auto Control with PID |
| Cooling Apparatus | Heat Exchanger with Fan |
Technical Data
| Parameter | Value |
|---|---|
| Temperature Sensor Interface | T/V converter and DC Amplifier with Offset and Gain Control |
| ON/OFF Control | Comparator with Hysteresis Control |
| Analog Source | 0 ~ +10V, 0 ~ ±10V |
| PID Controller | Proportional Integral & Differential Control with Feedback |
| Pump Driver | DC to PWM Driver with DC Level Offset Control |
| Heater Driver | DC to PWM Driver with DC Level Offset Control |
| Programmable Logic Controller Unit: Digital Inputs | 14 X 24V DC (Source/Sink) |
| Programmable Logic Controller Unit: Digital Outputs | 10 X 24V DC (Source) |
| Programmable Logic Controller Unit: Analog Inputs | 2 X Voltage Type |
| Programmable Logic Controller Unit: Analog Outputs | 2 X Voltage Type |
| Programmable Logic Controller Unit: Program Memory | 125KB |
| Programmable Logic Controller Unit: Programming Language | Ladder, STL & FBD |
Key Features
- Application: temperature control trainer for temperature and flow experiments
- Sensors: installed on-board
- Control Circuits: installed
- Drivers: installed
- Protection Circuits: installed
- Vessel: 5 Liter approx.
- Heater Element: 400W
- Pump: 10 l/min
- Thermal Sensors: K-Type Thermocouple, PT100, Bi-metallic, Direct Reading
- Control Modes: ON/OFF and PID
- Cooling: heat exchanger with fan, auto control with PID
- PID Parameters: controllable, graph plotting available
Experiments
- Study of the Temperature Sensor
- Study of the Characteristics of the Pump and Heater
- Study of the Characteristics of Cooling Temperature Controller
- Study of the characteristics of the static process and of the time constants
- ON-OFF, P, PI, PD and PID Closed Loop Control of the Temperature
Construction and Design

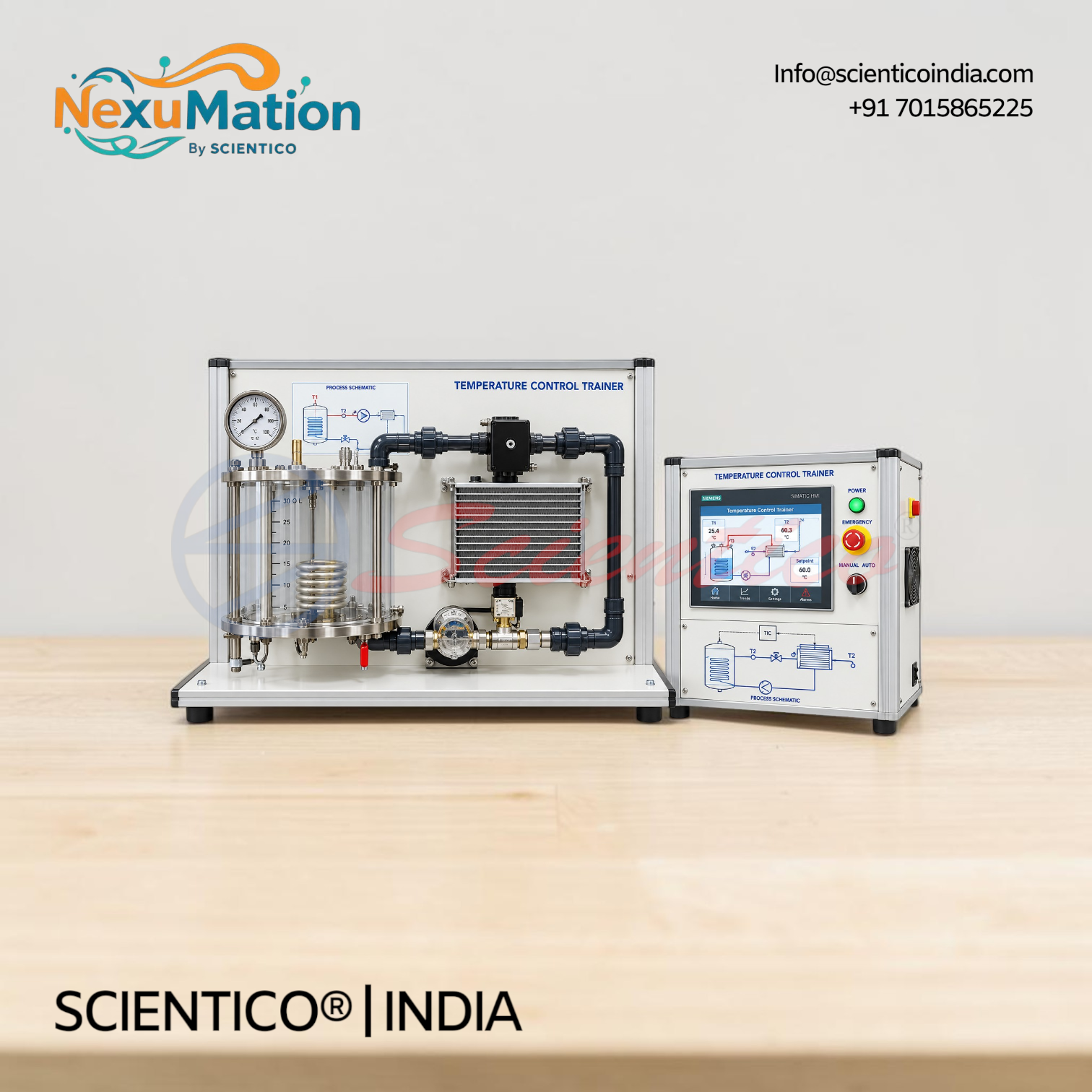

The Temperature Control Trainer NexuMation 68 has an educational board with a vessel. The vessel is approx. 5 Liter. Plastic piping connects the circuit.
A water circulation pump delivers 10 l/min. A 400W heater element provides heating. Thermal sensors include K-Type Thermocouple, PT100, Bi-metallic, and Direct Reading types. A float switch with LED indicator senses level. A rota meter, direct reading type, measures flow.
The temperature control trainer has a temperature sensor interface with a T/V converter and DC amplifier. It has offset and gain control. The pump driver and heater driver are both DC to PWM drivers with DC level offset control.
A heat exchanger with fan provides cooling, with auto control by PID. Operation mode is internal and external. A fixed DC supply of +15V and -15V powers the trainer.
Software

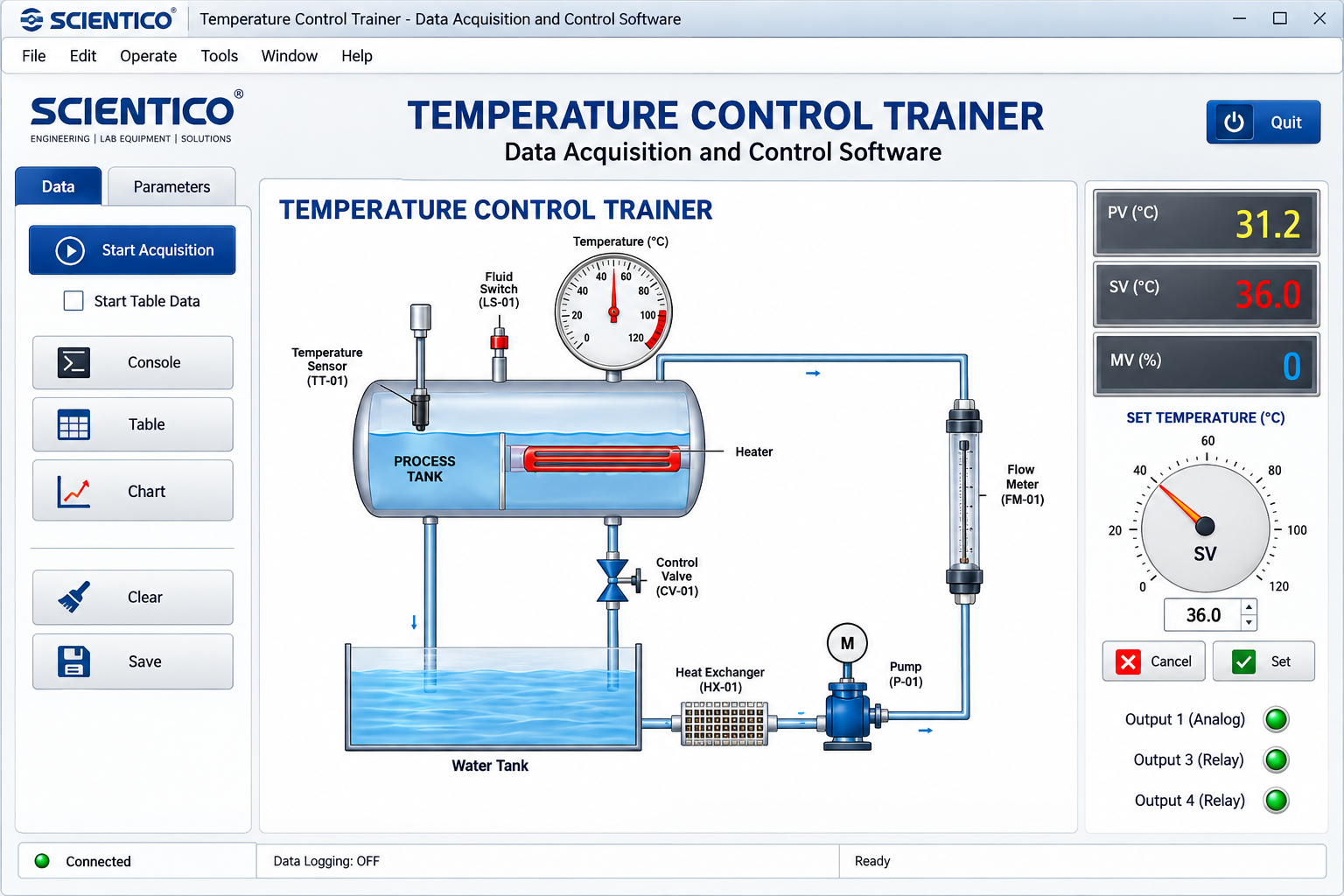

- Digital PID Controller with Data Acquisition Unit / Interface Software (Optional)
- PID parameters controllable, graph plotting available
Scope of Delivery
- Educational board with vessel
- Control module
- Power Cords
- 2mm Patch Cords
- Experimental Manual
Optional Accessories
- Digital PID Controller with Data Acquisition Unit / Interface Software
- Programmable Logic Controller Unit
Q1. What does the temperature control trainer contain?
It contains an educational board with a vessel, sensors and actuators for temperature and flow, and a control module with ON/OFF and PID control circuits.
Q2. How can pressure be controlled?
Manually, or through a software PID control algorithm.
Q3. Which closed loop experiments are included?
ON-OFF, P, PI, PD and PID closed loop control of the temperature.
Q4. What thermal sensors and heater are used?
Thermal sensors are K-Type Thermocouple, PT100, Bi-metallic, and Direct Reading types. The heater element is rated 400W.
Q5. How is cooling achieved?
By a heat exchanger with fan, with auto control by PID.
