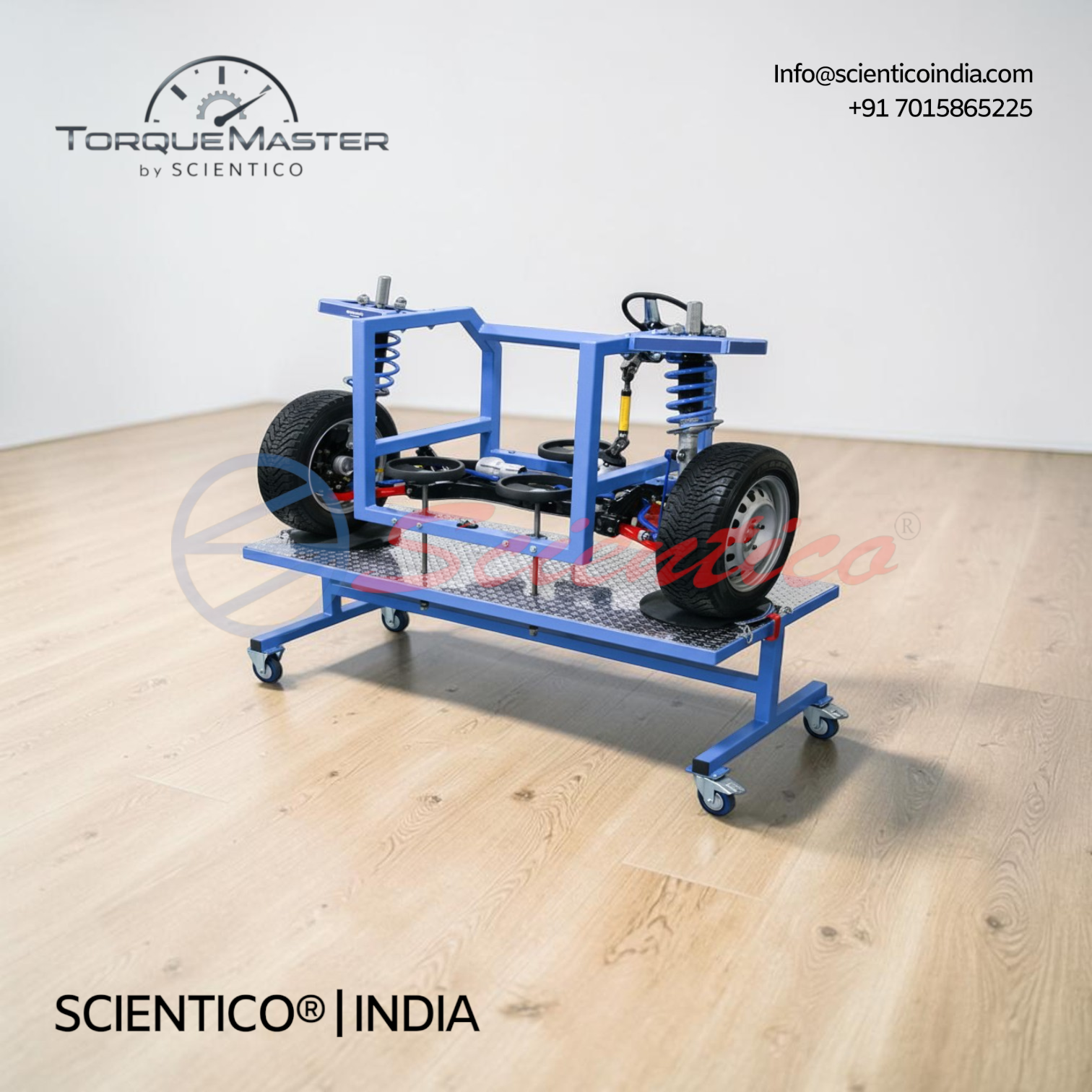

Working Of Suspension & Steering Trainer Torquemaster-26 teaches alignment geometry and MacPherson strut suspension with rack and pinion steering operation. This Working Of Suspension & Steering Trainer features two movable turntables, a magnetic alignment gauge, and three manual frame adjustments for creating abnormal vehicle conditions. It includes sway bar with quick disconnect, adjustable tie-rods for toe specification, front disc brakes, and a custom plastic coil spring for safe classroom demonstration without electricity or external power.
The Working Of Suspension & Steering Trainer Torquemaster-26 is designed to assist instructors in teaching basic alignment geometry and the function of a MacPherson strut suspension system with rack and pinion steering. This Working Of Suspension & Steering Trainer enables students to visualize all component operation and practice adjusting alignment angles.
Product Overview
The Torquemaster-26 is extremely versatile, allowing students to easily visualize all component operation as well as practice adjusting the various alignment angles. The trainer is equipped with two movable turntables and a magnetic alignment measuring gauge to assist students in observing actual measurement and changes in alignment angles. This Working Of Suspension & Steering Trainer also allows students to visualize and learn common braking system components. The unit does not require electricity, air, or hydraulics, and can be used in a classroom without needing to have a vehicle on a rack. Students can see the full range of motion of all suspension components at any angle. The trainer includes a sway and stabilizer bar that can easily be disconnected for routine service. The frame has three manual adjustment features that allow students to create abnormal vehicle conditions such as uneven front or rear loading and worn springs.
Working Of Suspension & Steering Trainer Torquemaster-26 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | Torquemaster-26 |
| Suspension System | MacPherson strut suspension |
| Steering System | Rack and pinion steering |
| Brake System | Front disc brakes |
| Drive Configuration | Front wheel drive vehicle |
| Measurement Tools | Two movable turntables and magnetic alignment measuring gauge |
| Adjustment Features | Three manual adjustment features for abnormal vehicle conditions |
| Spring Type | Custom plastic coil spring, non-weight supporting |
| Sway Bar | Quick disconnect feature for easy adjustment |
| Steering Control | Steering wheel identical to actual vehicle configuration |
| Tie-Rod Adjustment | Equipped with typical adjustment methods for toe specification |
| Power Requirements | None (no electricity, air, or hydraulics required) |
| Length x Width x Height (approx.) | 1400 x 1200 x 1400 mm |
| Weight (approx.) | 165 kg |
Technical Data
Suspension System
| Component | Detail |
|---|---|
| Suspension Type | MacPherson strut suspension |
| Spring | Custom plastic coil spring, non-weight supporting |
| Strut Design | Full range of motion visible at any angle |
| Sway Bar | Quick disconnect feature for service and adjustment |
Steering System
| Component | Detail |
|---|---|
| Steering Type | Rack and pinion steering |
| Steering Wheel | Identical to actual vehicle configuration |
| Tie-Rod Ends | Equipped with typical adjustment methods |
| Tie-Rod Adjustment | For toe specification changes and measurement |
Measurement and Adjustment
| Component | Detail |
|---|---|
| Turntables | Two movable turntables for wheel positioning |
| Alignment Gauge | Magnetic alignment measuring gauge |
| Adjustable Parameters | Caster, camber, and toe |
| Frame Adjustments | Three manual adjustment features |
| Abnormal Conditions | Can create uneven loading and worn spring simulation |
Braking System
| Component | Detail |
|---|---|
| Brake Type | Front disc brakes |
| Configuration | Typical front wheel drive vehicle brake setup |
Key Features
- No Power Requirements: Does not require electricity, air, or hydraulics
- Classroom Use: Can be used in classroom without vehicle on rack
- Component Visibility: Full range of motion of all suspension components visible at any angle
- Alignment Adjustment: Students can perform changes, measure, and observe results for caster, camber, and toe
- Sway Bar Design: Quick disconnect feature for easy service and adjustment
- Spring Safety: Custom plastic coil spring eliminates MacPherson spring pressure danger
- Manual Adjustments: Three frame adjustment features for abnormal vehicle condition simulation
- Measurement Tools: Two movable turntables and magnetic alignment measuring gauge included
- Design Type: Working Of Suspension & Steering Trainer for comprehensive alignment and component training
Experiments
- Study of MacPherson strut suspension operation and geometry
- Observation of suspension component motion at different angles
- Caster angle measurement and adjustment
- Camber angle measurement and adjustment
- Toe angle measurement and adjustment
- Study of rack and pinion steering linkage operation
- Tie-rod adjustment procedures and toe specification changes
- Sway bar and stabilizer bar function and disconnection procedures
- Front disc brake component identification and operation
- Simulation of abnormal vehicle conditions through frame adjustments
- Measurement of alignment angle changes using the magnetic gauge
Construction and Design
The Working Of Suspension & Steering Trainer Torquemaster-26 is a standalone trainer consisting of a typical front wheel drive vehicle configuration featuring a MacPherson strut suspension, rack and pinion steering, and front disc brakes. The MacPherson strut system uses a custom plastic coil spring that does not support any of the weight of the suspension system, eliminating the danger of spring pressures. All components necessary for correct operation, service of alignment angle adjustments, and component identification are included. The sway bar has a quick disconnect feature allowing students to disconnect it for easy and precise alignment adjustment procedures. The rack and pinion steering linkage is connected to a steering wheel identical to actual vehicle configuration, with tie-rod ends equipped with typical adjustment methods for toe specification changes. Two movable turntables and a magnetic alignment measuring gauge assist in observing actual measurement and changes in alignment angles. The trainer frame has three manual adjustment features allowing creation of abnormal vehicle conditions such as uneven front or rear loading and worn springs. The unit requires no electricity, air, or hydraulics.
Scope of Delivery
- MacPherson strut suspension trainer with two front wheels
- Rack and pinion steering system with steering wheel
- Front disc brake components
- Two movable turntables
- Magnetic alignment measuring gauge
- Sway bar with quick disconnect feature
- Frame with three manual adjustment features
- Tie-rod adjustment mechanisms
Q1: What does the Working Of Suspension & Steering Trainer Torquemaster-26 teach?
A: It teaches basic alignment geometry and the function of a MacPherson strut suspension system with rack and pinion steering, along with component identification and adjustment procedures.
Q2: Can this trainer be used in a classroom?
A: Yes, the trainer does not require electricity, air, or hydraulics and does not need a vehicle on a rack, making it suitable for classroom use.
Q3: What alignment angles can students adjust and measure?
A: Students can measure and adjust caster, camber, and toe angles using the magnetic alignment measuring gauge.
Q4: How is the MacPherson spring pressure danger eliminated?
A: The stock coil spring is replaced with a custom plastic coil spring that does not support any of the weight of the suspension system.
Q5: What are the dimensions and weight of the trainer?
A: The approximate dimensions are 1400 x 1200 x 1400 mm, with an approximate weight of 165 kg.
