Working Model Of Torsion Differential | Torquemaster-21

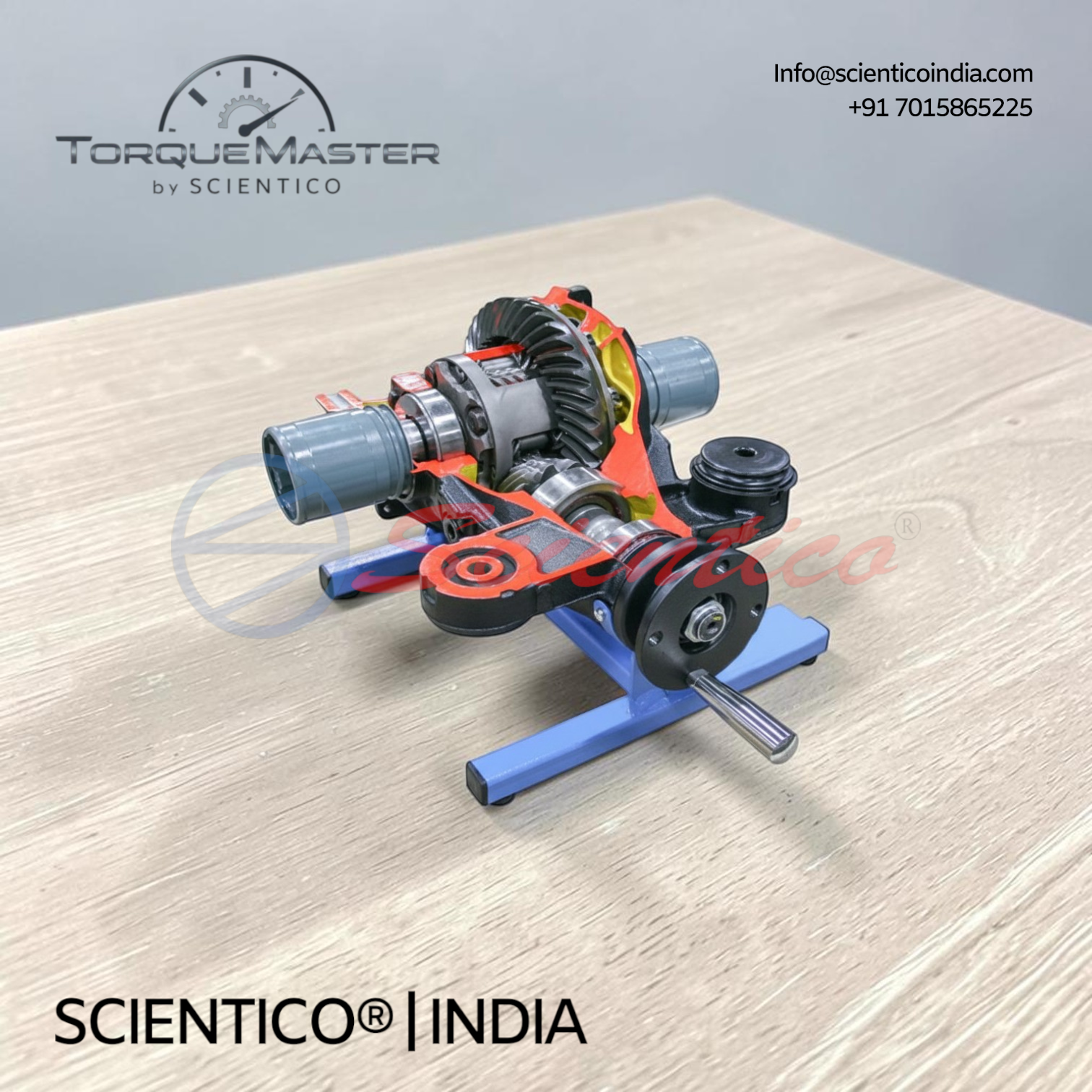

Working Model Of Torsion Differential Torquemaster-21 is an accurate cutaway section of a torsion bevel gear pair differential assembly demonstrating the worm screw principle operation. This Working Model Of Torsion Differential shows the complex mechanisms fitted to top of the range 4WD vehicles. Built with chromium plated and galvanized parts, it is professionally painted in colour-coded sections and mounted on a sturdy powder coated metal stand. Manual operation allows comprehensive classroom demonstration of differential systems.
bevel gear pair differential assembly, showing the complex operation system which works according to the worm screw principle. This Working Model Of Torsion Differential is fitted to top of the range 4WD vehicles and is designed for classroom demonstration.
Product Overview
The Torquemaster-21 is carefully sectioned for training purposes and professionally painted with different colours to better differentiate the various parts and cross-sections. Many parts have been chromium plated and galvanized for a longer life. This Working Model Of Torsion Differential can be used as a visual aid for students of mechanical subjects to demonstrate and explain the structure and components. The automotive training stand also serves as educational equipment for differential system repair and service procedures. The working model demonstrates the torsion differential mechanism through manual operation.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Working Model Of Torsion Differential Torquemaster-21 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | Torquemaster-21 |
| System | Fully functional, Drive Shaft differential system installed in a mobile solid frame |
| Differential Type | Torsion bevel gear pair differential assembly |
| Operating Principle | Worm screw principle |
| Operation | Manually operated mechanism |
| Equipment Layout | On base with wheel |
| Finish | Fine finish |
| Stand | Sturdy powder coated metal stand |
| Length x Width x Height (approx.) | 400 x 400 x 400 mm |
| Weight (approx.) | 25 kg |
Technical Data
| Component | Detail |
|---|---|
| Differential Assembly | Torsion bevel gear pair differential |
| Operating System | Worm screw principle |
| Vehicle Application | Top of the range 4WD vehicles |
| Operation Method | Manual mechanism |
| Frame | Mobile solid frame |
| Finish | Chromium plated and galvanized parts for longer life |
Key Features
- Design: Differential working model ideal for classroom demonstrations
- Cross-Sectioning: Various parts cross-sectioned to show internal operation
- Operation: Manual
- Layout: On base with wheel
- Finish: Fine finish
- Handling: Simple operations
- Accuracy: Functional accuracy
- Design Type: Working Model Of Torsion Differential with bevel gear pair assembly for 4WD differential training
Experiments
- Study of torsion bevel gear pair differential assembly operation
- Study of worm screw principle application in differential systems
- Study of torsion differential function in 4WD vehicles
- Observation of bevel gear interaction and power distribution
- Study of differential engagement and lock mechanisms
- Manual operation and demonstration of torsion differential action
Construction and Design
The Working Model Of Torsion Differential Torquemaster-21 is built as an accurate section of a torsion bevel gear pair differential assembly. It demonstrates the complex operation system that works according to the worm screw principle. The model is installed in a mobile solid frame mounted on a sturdy powder coated metal stand. The cutaway model is carefully sectioned for training purposes and professionally painted with different colours to differentiate the various parts and cross-sections. Many parts are chromium plated and galvanized for durability. The mechanism is manually operated to show the working principles of the torsion differential fitted to top of the range 4WD vehicles.
Scope of Delivery
- Torsion differential cutaway model with bevel gear pair assembly
- Mobile solid frame with base and wheel
- Sturdy powder coated metal stand
Q1: What does the Working Model Of Torsion Differential Torquemaster-21 demonstrate?
A: It demonstrates the structure and operation of a torsion bevel gear pair differential assembly that works according to the worm screw principle, used in top of the range 4WD vehicles.
Q2: How is the model operated?
A: The mechanism is manually operated to show the working principles of the torsion differential.
Q3: What operating principle does the torsion differential use?
A: It works according to the worm screw principle for differential operation in 4WD applications.
Q4: What is the finish quality of the model?
A: The model has a fine finish with chromium plated and galvanized parts for longer life, professionally painted in different colours to differentiate components.
Q5: What are the dimensions and weight of the model?
A: The approximate dimensions are 400 x 400 x 400 mm, with an approximate weight of 25 kg.
