Young’s Modulus Apparatus | FortiTestX-43
The Young’s Modulus Apparatus FortiTestX-43 is a wall-mounted laboratory unit for investigating elastic elongation of metal wire specimens under direct tensile loading. This Young’s modulus apparatus supports experiments with steel, aluminium, brass, and copper wires (1000 mm length, 1 to 2 mm diameter), measuring elongation via a vernier gauge with a 100 mm range and 0.02 mm graduation. A traverse distributes load evenly from the weight set to the wire bottom ends, enabling systematic study of elongation as a function of load, diameter, and material. The unit supports direct determination and verification of the modulus of elasticity for all four wire materials.
The Young’s Modulus Apparatus FortiTestX-43 is a wall-mounted experimental unit for investigating the elastic elongation of metal wires under tensile loading. This Young’s modulus apparatus enables determination and verification of the modulus of elasticity for steel, aluminium, brass, and copper wire specimens, with elongation measured by a vernier gauge at 0.02 mm graduation. It covers the relationship between wire elongation, applied load, wire diameter, and material properties within a single compact wall-mounted setup.
Product Overview

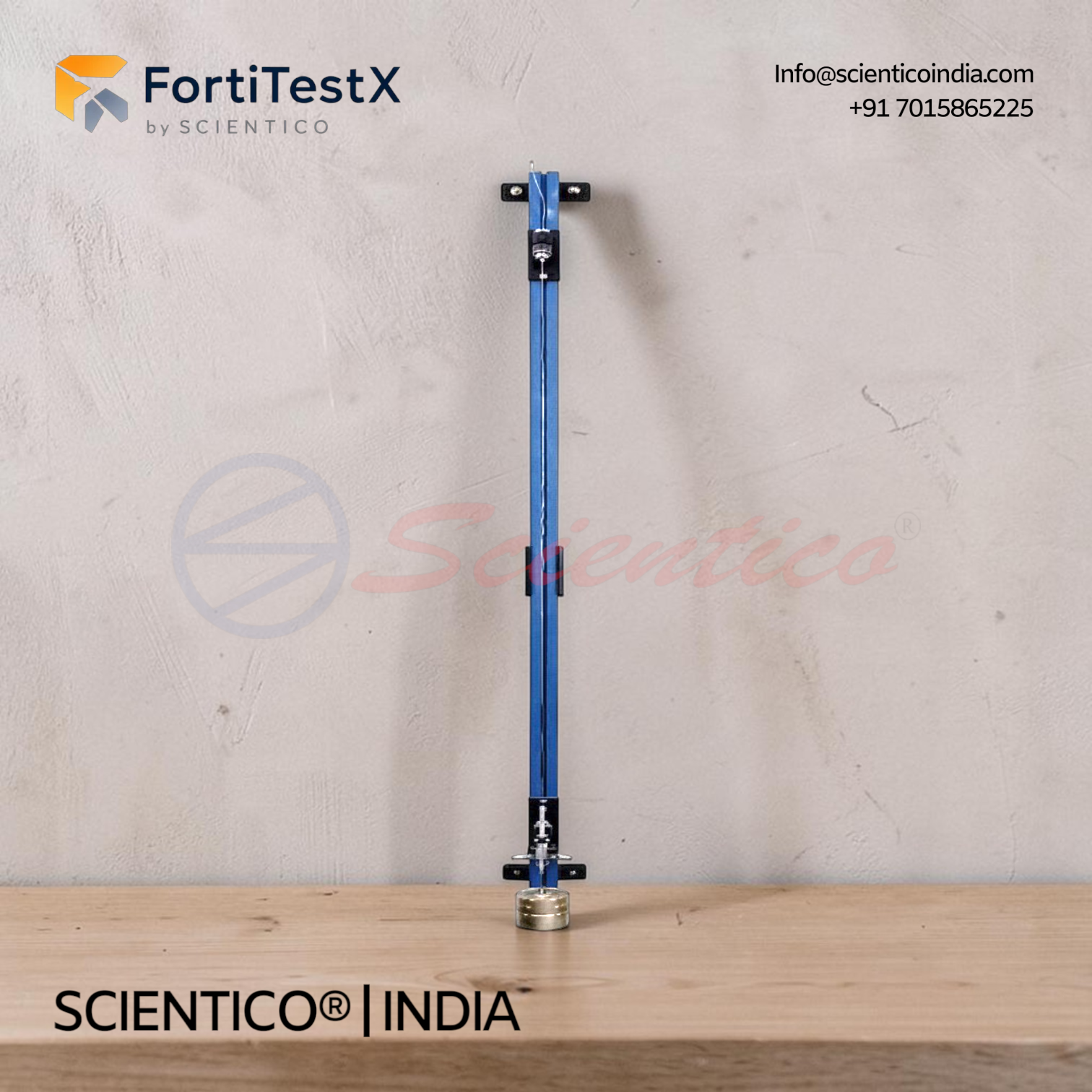

The Young’s Modulus Apparatus FortiTestX-43 is fixed to a wall-mounted carrier from which wire specimens are suspended. The bottom ends of the wires are secured using two sliders. A traverse connects the wires at their lower ends and distributes applied load evenly across the specimens. Weights are placed on the traverse to load the wires in direct tension. Wire elongation resulting from the applied tensile force is measured using a moment lever fitted with a vernier gauge, providing a displacement range of 100 mm at 0.02 mm graduation. Wire specimens are available in four materials: steel, aluminium, brass, and copper. Each wire is 1000 mm in length with a diameter ranging from 1 to 2 mm. Experiments investigate elastic elongation as a function of applied load, wire diameter, and material, and enable direct determination and verification of the modulus of elasticity for each material. This Young’s modulus apparatus is suited to undergraduate engineering and materials science laboratory programmes requiring hands-on measurement of fundamental elastic material properties.
Young’s Modulus Apparatus FortiTestX-43 — Technical Specifications
| Parameter | Detail |
|---|---|
| Model Reference | FortiTestX-43 |
| Category | Strength of Materials and Structures |
| Mounting Type | Wall-mounted carrier |
| Wire Length | 1000 mm |
| Wire Diameter | 1 to 2 mm |
| Wire Materials | Steel, Aluminium, Brass, Copper |
| Load Application | Direct load via traverse and weight set |
| Displacement Range | 100 mm |
| Graduation | 0.02 mm |
| Measuring Device | Vernier gauge on moment lever |
| Wire Attachment | Two sliders at bottom ends |
Technical Data
Wire Specimens
| Parameter | Value |
|---|---|
| Wire Length | 1000 mm |
| Wire Diameter | 1 to 2 mm |
| Materials | Steel, Copper, Brass, Aluminium |
Displacement Measuring Device
| Parameter | Value |
|---|---|
| Type | Vernier gauge |
| Displacement Range | 100 mm |
| Graduation | 0.02 mm |
Weight Set
| Weight | Quantity |
|---|---|
| 1 N hanger weight | 1 |
| 1 kg weight | 1 |
| 2 kg weights | 4 |
Key Features
- Wall Mounting: carrier fixed to wall, wire specimens suspended vertically for direct tensile loading
- Wire Specimens: steel, aluminium, brass, and copper, each 1000 mm length, 1 to 2 mm diameter
- Load Application: direct load via traverse connecting bottom wire ends, loaded by weight set
- Elongation Measurement: vernier gauge on moment lever, 100 mm displacement range, 0.02 mm graduation
- Wire Attachment: two sliders secure the bottom ends of the wire specimens to the traverse
- Weight Set Included: 1x 1 N hanger, 1x 1 kg, 4x 2 kg
- Young’s Modulus Coverage: this Young’s modulus apparatus supports determination and verification of modulus of elasticity for four materials
- Experiment Variables: elongation measured as a function of load, wire diameter, and material
- Load Type: direct tensile load applied evenly across wires via traverse
Experiments
- Elastic elongation of metal wires subject to tensile force as a function of the load
- Elastic elongation as a function of the diameter of the wire
- Elastic elongation as a function of material: copper, aluminium, brass, and steel
- Determination and checking of the modulus of elasticity
Construction and Design
The Young’s Modulus Apparatus FortiTestX-43 is mounted on a wall-fixed carrier from which wire specimens in steel, aluminium, brass, and copper are suspended vertically. Each wire is 1000 mm long with a diameter between 1 and 2 mm. The bottom ends of the wires are attached using two sliders that connect to a traverse. The traverse distributes the applied load evenly across the wire specimens and supports the weight set for direct tensile loading. A moment lever fitted with a vernier gauge measures elongation of the wires under load, with a displacement range of 100 mm and graduation of 0.02 mm. This Young’s modulus apparatus allows the effect of load magnitude, wire diameter, and material on elastic elongation to be systematically investigated, and enables direct calculation and verification of the modulus of elasticity from the measured data.
Scope of Delivery
Scope of delivery not specified in source data. Please confirm with SCIENTICO before publishing.
Q1: What wire materials are included with the Young’s Modulus Apparatus FortiTestX-43?
Four wire materials are provided: steel, aluminium, brass, and copper, each 1000 mm in length with a diameter between 1 and 2 mm.
Q2: How is wire elongation measured on this Young’s modulus apparatus?
Elongation is measured using a vernier gauge mounted on a moment lever. The measuring range is 100 mm with a graduation of 0.02 mm.
Q3: How are loads applied to the wire specimens?
Weights are placed on a traverse that connects the bottom ends of the wire specimens, applying a direct and evenly distributed tensile load.
Q4: What variables can be investigated with the FortiTestX-43?
Elastic elongation can be investigated as a function of applied load, wire diameter, and wire material. The modulus of elasticity can also be determined and verified experimentally for each material.
Q5: What weight values are included with the apparatus?
The unit includes 1x 1 N hanger weight, 1x 1 kg weight, and 4x 2 kg weights.
