Multi Process Trainer | Prozessi PX 24
The Multi Process Trainer Prozessi PX 24 teaches five advanced process control strategies through hands-on experiments. This Multi Process Trainer integrates a water circulation loop, three orifice meters, dual differential pressure transmitters, level transmitter and pneumatic control valve with NI USB-6001 data acquisition. Twelve structured experiments cover manual, ON/OFF, proportional, integral, derivative and PID control, plus controller tuning, system stability analysis and advanced control methods. Compact vertical design 600W x 500D x 1600H mm with LabVIEW software.
The Multi Process Trainer Prozessi PX 24 is designed to teach advanced control methods used in complex industrial processes. This Multi Process Trainer allows configuration and study of flow, level, cascade, feedforward and ratio control experiments with water circulation, transmitters, orifice meters and pneumatic control valves.
Product Overview
The Multi Process Trainer Prozessi PX 24 provides a comprehensive platform for studying five advanced process control strategies on a single system. The trainer consists of an SS304 stainless steel water supply tank and a submersible pump providing continuous closed loop circulation through a transparent acrylic process tank (0-100% graduated scale). An electronic level transmitter (0-250 mm range, 4-20 mA output) monitors tank level. Three orifice meters with two differential pressure transmitters (capacitance type, 0-200 mm range, 4-20 mA square root output) measure flow at multiple points. Three rotameters (10-100 LPH each) provide visual flow indication. A 1/4″ pneumatic control valve (3-15 psig input, air to close, linear characteristic) regulates process flow. An I/P converter transforms 4-20 mA signals into 3-15 psig pneumatic commands. Process signals connect to an NI USB-6001 data acquisition device (14-bit, 20 KS/S, 4 analog inputs, 2 analog outputs) via USB communication to a computer. An air regulator (0-2.5 kg/cm2) and two pressure gauges monitor pneumatic pressure. A 24 VDC power supply energizes transmitters and converters. The Multi Process Trainer measures 600W x 500D x 1600H mm and includes LabVIEW-based software with trend plots, data logging and export functions. It requires clean, oil and moisture-free compressed air at 2 Bar, 50 LPH consumption.
Multi Process Trainer Prozessi PX 24 — Technical Specifications
| Specification | Value |
|---|---|
| Product Code | Prozessi PX 24 |
| DAQ Device | NI USB-6001, 14 bit, 20KS/S Multifunction I/O and NI-DAQMX |
| Analog Input | 4 channels |
| Analog Output | 2 channels |
| Communication | USB port |
| Level Transmitter | Electronic, Two wire, Range 0-250 mm, Output 4-20 mA |
| Differential Pressure Transmitters | Capacitance, Two wire, Range 0-200 mm, Output 4-20 mA sq.root (2 units) |
| I/P Converter | Input 4-20 mA, Output 3-15 psig |
| Control Valve | Pneumatic, Size 1/4″, Input 3-15 psig, Air to close, Linear |
| Rotameters | 10-100 LPH (3 units) |
| Orifice Meters | 3 units with differential pressure measurement |
| Pump | Fractional horse power, Submersible type |
| Process Tank | Transparent acrylic, 0-100% graduated scale |
| Supply Tank | SS304 stainless steel |
| Power Supply | Model S-15-24, Output 24 VDC, 0.7 A |
| Air Filter Regulator | Range 0-2.5 kg/cm2 |
| Pressure Gauges | 0-2.5 kg/cm2 (1 unit), 0-7 kg/cm2 (1 unit) |
| Overall Dimensions | 600W x 500D x 1600H mm |
Technical Data
Transmitter and Sensor Components
| Component | Specification |
|---|---|
| Level Transmitter | Electronic, Two wire, 0-250 mm range, 4-20 mA output |
| DP Transmitter Unit 1 | Capacitance, Two wire, 0-200 mm range, 4-20 mA square root output |
| DP Transmitter Unit 2 | Capacitance, Two wire, 0-200 mm range, 4-20 mA square root output |
| Rotameter 1 | 10-100 LPH, Direct reading |
| Rotameter 2 | 10-100 LPH, Direct reading |
| Rotameter 3 | 10-100 LPH, Direct reading |
| Orifice Meter 1 | Standard restriction, differential pressure measurement point |
| Orifice Meter 2 | Standard restriction, differential pressure measurement point |
| Orifice Meter 3 | Standard restriction, differential pressure measurement point |
Control and Actuation Components
| Component | Specification |
|---|---|
| I/P Converter | Input 4-20 mA, Output 3-15 psig pneumatic |
| Control Valve | Pneumatic, 1/4″ size, 3-15 psig input, Air to close, Linear characteristic |
| Air Regulator | Range 0-2.5 kg/cm2 |
| Pressure Gauge 1 | Range 0-2.5 kg/cm2 |
| Pressure Gauge 2 | Range 0-7 kg/cm2 |
Data Acquisition and Software
| Component | Specification |
|---|---|
| DAQ Device | NI USB-6001, 14-bit resolution, 20 KS/S sampling rate |
| Analog Inputs | 4 channels, accepts 4-20 mA and 0-10V signals |
| Analog Outputs | 2 channels for control signal generation |
| Communication Interface | USB port to computer |
| Software Platform | LabVIEW-based development environment |
Utilities and System Requirements
| Requirement | Specification |
|---|---|
| Electric Supply | 230 ± 10 VAC, 50 Hz, 1 phase |
| Computer | IBM compatible with standard configuration |
| Water Supply | Distilled water, 20 liters per experiment series |
| Air Supply | Clean, oil and moisture-free, 2 Bar pressure, 50 LPH consumption |
Key Features
- Multi Process Trainer: five control strategies in one system
- Flow, level, cascade, feedforward and ratio control capability
- ON/OFF and full PID operational modes
- Closed loop water circulation with non-corrosive wetted parts
- Three orifice meters and two differential pressure transmitters for multi-point flow measurement
- Three rotameters for visual flow indication across system
- Electronic level transmitter and pneumatic control valve
- NI USB-6001 data acquisition with 4 analog inputs and 2 analog outputs
- LabVIEW-based software with trend plots and data logging
- Dual pressure gauges for supply and process pressure monitoring
- Compact vertical structure, 600W x 500D x 1600H mm
Experiments
- Study of open loop response (Manual control)
- Study of on/off controller
- Study of proportional controller
- Study of proportional integral controller
- Study of proportional derivative controller
- Study of proportional integral derivative (PID) controller
- Tuning of controller (Open loop method)
- Tuning of controller (Closed loop method)
- Study of stability of the system (Bode plot)
- Study of cascade control system
- Study of feedforward control system
- Study of ratio control system
Construction and Design

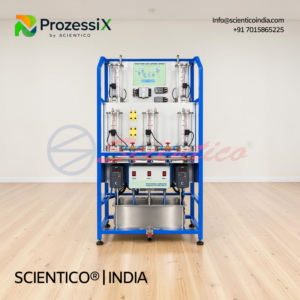

The Multi Process Trainer Prozessi PX 24 is mounted on a vertical standalone structure measuring 600W x 500D x 1600H mm. An SS304 stainless steel supply tank at the top provides water for the closed loop system. A fractional horse power submersible pump circulates water through transparent acrylic process tank fitted with 0-100% graduated scale. An electronic level transmitter (0-250 mm range, 4-20 mA output) monitors tank level continuously. Three orifice meter stations are installed in series with flow paths, each paired with a differential pressure transmitter (capacitance type, 0-200 mm range, square root output). Three rotameters (10-100 LPH each) provide simultaneous visual flow indication at different system points. A 1/4″ pneumatic control valve (3-15 psig input, air to close, linear characteristic) regulates flow through one of the process paths. An I/P converter transforms 4-20 mA electrical signals into 3-15 psig pneumatic signals for valve actuation. All analog signals from the level and differential pressure transmitters connect to an NI USB-6001 data acquisition module providing 4 analog inputs and 2 analog outputs. The DAQ device interfaces with a computer through USB communication. An air regulator (0-2.5 kg/cm2) and two pressure gauges (0-2.5 kg/cm2 and 0-7 kg/cm2) monitor pneumatic system pressure. A 24 VDC power supply (0.7 A) energizes the transmitters and I/P converter. The Multi Process Trainer requires clean, oil and moisture-free compressed air at 2 Bar pressure with 50 LPH consumption.
Software
Specially developed LabVIEW-based software is provided with the Multi Process Trainer for control system education. Features include:
- Easy selection and configuration of different control strategies
- Flexible user interface for experiment setup
- Real-time data access and monitoring
- Trend plot generation for response visualization
- Data logging for experimental records
- Printing capabilities for documentation
- Data export in standard formats for analysis
- Support for manual, ON/OFF, P, PI, PD and PID control modes
- Cascade, feedforward and ratio control configuration options
Scope of Delivery
- Multi Process Trainer Prozessi PX 24 complete assembly with vertical structure
- SS304 supply tank with submersible pump
- Transparent acrylic process tank with graduated scale
- Level transmitter and 2 differential pressure transmitters
- Three orifice meters with piping connections
- Three rotameters, 10-100 LPH each
- 1/4″ pneumatic control valve and I/P converter
- NI USB-6001 DAQ device
- Air filter regulator and pressure gauges
- 24 VDC power supply
- LabVIEW-based software with documentation
- USB cable and interconnecting cables
- User manual and experimental procedures
- Power cord
- Piping and fittings for system assembly
Optional Accessories
- Mini compressor for independent air supply
- Additional rotameter units
- Data acquisition software license upgrades
- Extended USB cable for remote installation
Q1: What five control strategies can be studied on the Multi Process Trainer Prozessi PX 24?
A: The Multi Process Trainer supports flow control, level control, cascade control, feedforward control and ratio control, allowing students to study multiple advanced process control methods.
Q2: How does the Multi Process Trainer connect to a computer?
A: Process signals from transmitters connect to the NI USB-6001 data acquisition device, which interfaces with a computer through a USB port for real-time monitoring and control.
Q3: What types of control modes does the Multi Process Trainer support?
A: The Multi Process Trainer supports ON/OFF control and full PID (proportional, integral, derivative) control modes, plus intermediate P, PI and PD configurations.
Q4: How many flow measurement points are included in the Multi Process Trainer?
A: The Multi Process Trainer includes three orifice meter stations with two differential pressure transmitters providing dual measurement capability, plus three rotameters for direct visual flow indication.
Q5: What air supply is required for the Multi Process Trainer Prozessi PX 24?
A: The system requires clean, oil and moisture-free compressed air at 2 Bar pressure with 50 LPH consumption. An optional mini compressor can be supplied for independent operation.
