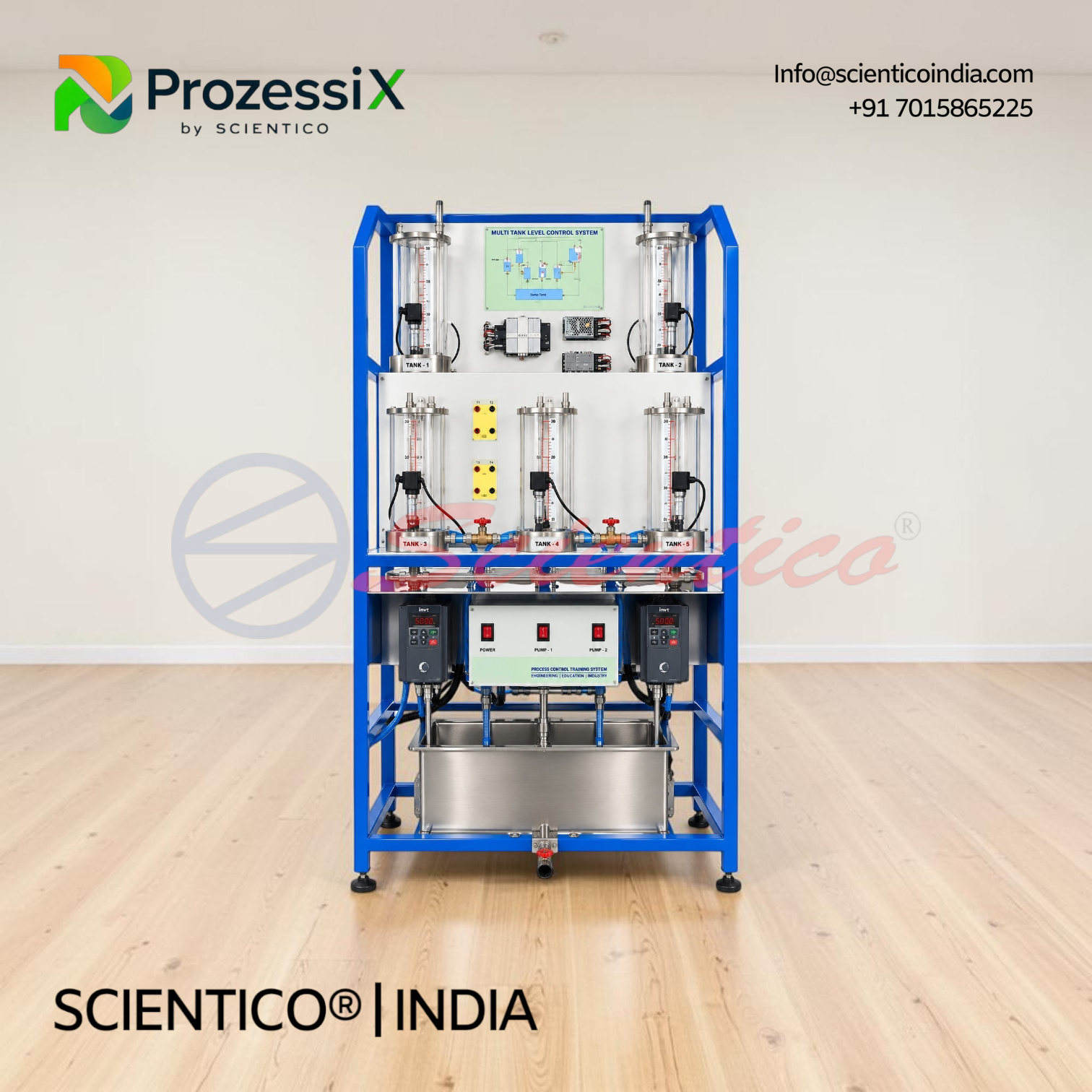

Multi Variable Control Trainer

Model Prozessi PX 25

The Multi Variable Control Trainer Prozessi PX 25 teaches multivariable control principles through a quadruple tank system with five transparent tanks. This Multi Variable Control Trainer integrates two variable speed pumps with VFD control, five level transmitters and flow dampers. Fifteen structured experiments cover single-loop level control, ON/OFF and PID control, cascade and blend control, interacting and non-interacting systems, and advanced MIMO control problems. Fully computerized with NI-DAQMX data acquisition and USB integration. Compact standalone structure with non-corrosive wetted parts.

The Multi Variable Control Trainer Prozessi PX 25 is designed for teaching basic and advanced process control principles in complex systems. This Multi Variable Control Trainer is a quadruple tank system featuring five transparent process tanks, two variable speed pumps and electronic level transmitters for comprehensive multivariable control study.

Product Overview

The Multi Variable Control Trainer Prozessi PX 25 provides a complete platform for studying level control and multivariable system dynamics on a single integrated system. Also known as a Quadruple Tank System, the trainer consists of a supply water tank, two variable speed positive displacement pumps for closed loop water circulation, and five transparent process tanks each fitted with level transmitters and flow dampers. Electronic level transmitters monitor all tank levels and transmit 4-20 mA signals to a Multifunction I/O and NI-DAQMX data acquisition module connected to a computer via USB communication. Variable frequency drives control the two pumps, allowing direct manipulation of system inputs through software. All components are mounted on a standalone support structure. The Multi Variable Control Trainer is computerized, compact and self-contained with non-corrosive wetted parts throughout. It enables study of single-variable level control, second-order system dynamics (both interacting and non-interacting tanks), cascade control configurations, three-tank blend control and three-tank MIMO (multiple-input multiple-output) control, plus the full quadruple tank control problem.

Multi Variable Control Trainer Prozessi PX 25 — Technical Specifications

Specification Value
Product Multi Variable Control Trainer, Quadruple Tank System
Model Prozessi PX 25
Process Tanks Five transparent tanks with level transmitters
Level Transmitters Electronic, 4-20 mA output (one per tank)
Water Supply Tank SS304 stainless steel
Pumps Two variable speed positive displacement pumps
Pump Control Variable frequency drives
Flow Dampers Installed on each process tank
Data Acquisition NI-DAQMX Multifunction I/O with USB communication
Wetted Materials Non-corrosive throughout
Structure Standalone support frame

Technical Data

Tank and Level Measurement Components

Component Specification
Process Tank 1 Transparent acrylic with level transmitter and flow damper
Process Tank 2 Transparent acrylic with level transmitter and flow damper
Process Tank 3 Transparent acrylic with level transmitter and flow damper
Process Tank 4 Transparent acrylic with level transmitter and flow damper
Process Tank 5 Transparent acrylic with level transmitter and flow damper
Level Transmitter Type Electronic, Two wire, 4-20 mA output
Flow Dampers Variable restriction orifices on each tank
Supply Tank SS304 stainless steel

Pumping and Control System

Component Specification
Pump 1 Variable speed positive displacement pump
Pump 2 Variable speed positive displacement pump
Pump Drive 1 Variable frequency drive (VFD) with USB control
Pump Drive 2 Variable frequency drive (VFD) with USB control
Flow Rate Control Software-commanded variable pump speed

Data Acquisition and Communication

Component Specification
DAQ Module NI-DAQMX Multifunction I/O
Communication Protocol USB port to computer
Level Transmitter Inputs 5 analog channels (4-20 mA)
Pump Control Outputs 2 analog command channels to VFDs
Real-time Operation Direct computer control via USB

Key Features

  • Multi Variable Control Trainer: quadruple tank system for advanced control study
  • Five transparent process tanks for visual observation of level dynamics
  • Two variable speed positive displacement pumps with VFD control
  • Electronic level transmitters on all five tanks
  • Flow dampers on each tank for configurable system dynamics
  • Computer-based control via NI-DAQMX and variable frequency drives
  • Closed loop water circulation system
  • Compact, self-contained standalone structure
  • Non-corrosive wetted parts for long service life
  • USB communication for direct computer integration

Experiments

  • Study of level control with open loop response
  • Study of on/off controller for level regulation
  • Study of proportional controller
  • Study of proportional integral controller
  • Study of proportional derivative controller
  • Study of proportional integral derivative (PID) controller
  • Controller tuning by open loop method
  • Controller tuning by closed loop method
  • Stability analysis of closed loop systems
  • Study of second order interacting tank systems
  • Study of second order non-interacting tank systems
  • Study of cascade control configurations
  • Study of three tank blend control
  • Study of three tank MIMO (multiple-input multiple-output) control
  • Study of quadruple tank control problem

Construction and Design

The Multi Variable Control Trainer Prozessi PX 25 is built on a standalone support structure housing five transparent acrylic process tanks arranged for multiple control topology configurations. Each tank is equipped with an electronic level transmitter (4-20 mA output) and a flow damper for controlling inter-tank flow rates. A supply tank constructed from SS304 stainless steel feeds water to two variable speed positive displacement pumps. Each pump is driven by its own variable frequency drive (VFD), allowing independent software control of pump speeds through USB communication. Water flows from the pumps to the process tanks following the configured topology. Flow dampers on each tank provide tunable resistance to flow, creating variable system dynamics between tanks. The Multi Variable Control Trainer supports multiple tank connection configurations, enabling study of interacting systems, non-interacting systems, cascade arrangements and MIMO control problems. All level transmitter signals feed to an NI-DAQMX data acquisition module connected to a computer via USB port. The variable frequency drives receive analog command signals from the computer, enabling real-time closed loop control. The entire system is self-contained on the standalone frame with non-corrosive materials in all wetted components.

Software and Control

The Multi Variable Control Trainer is fully computerized, with direct software control of pumps via variable frequency drives and real-time monitoring of all five tank levels through the NI-DAQMX data acquisition system. Students can implement open loop, ON/OFF, P, PI, PD and full PID controllers in software, with automatic or manual controller tuning capabilities. The system supports stability analysis through frequency response measurements and can be reconfigured for multiple tank control topologies through simple software commands.

Scope of Delivery

  • Multi Variable Control Trainer Prozessi PX 25 complete assembly
  • Standalone support structure with piping
  • Supply tank, SS304 stainless steel
  • Five transparent acrylic process tanks with graduated scales
  • Five electronic level transmitters, 4-20 mA output
  • Flow dampers for each process tank
  • Two variable speed positive displacement pumps
  • Two variable frequency drives for pump control
  • NI-DAQMX Multifunction I/O data acquisition module
  • USB cable and interconnecting cables
  • Power cords and electrical connections
  • Control software with documentation
  • User manual and experimental procedures

Optional Accessories

  • Additional flow dampers for fine tuning
  • Data logging and analysis software
  • Extended USB cable for remote installation
  • Calibration kit for level transmitters

Q1: What is a quadruple tank system in the Multi Variable Control Trainer?
A: A quadruple tank system (5 total tanks) is a benchmark problem in multivariable control used to study systems where changing one pump affects multiple tank levels, requiring coordinated control of two pumps to regulate four process tank levels simultaneously.

Q2: How many independent inputs and outputs does the Multi Variable Control Trainer have?
A: The Multi Variable Control Trainer has two pump inputs (variable frequency drives) and five tank level outputs (level transmitters), allowing study of 2×5 MIMO control problems.

Q3: What is the purpose of flow dampers in the Multi Variable Control Trainer?
A: Flow dampers provide tunable resistance between tanks, allowing students to configure different system topologies (interacting vs. non-interacting) and adjust the dynamics for different control experiments.

Q4: How is the Multi Variable Control Trainer controlled?
A: The system is fully computerized. Students write or load control algorithms in software, which commands the variable frequency drives. Level feedback from all five transmitters is monitored in real-time through USB communication.

Q5: What control problems can be studied on the Multi Variable Control Trainer Prozessi PX 25?
A: Students can study single-tank level control, cascade control, blend control of three tanks, 2×2 and 2×5 MIMO control problems, and the full quadruple tank benchmark problem used in advanced control courses.

Need Assistance? We're Here to Help!

Connect with our team for product specifications, pricing, and customized solutions for your institution or project.

Trade enquiries

Distributors, dealers, resellers and bulk buyers

We manufacture Multi Variable Control Trainer | Prozessi PX 25 at our own works in Ambala, India. Manufacturer-direct, three ways to work with us.

01

Become a distributor, dealer or agent in your territory

Already selling to colleges or hospitals in your market? Add a manufacturer-direct line. Terms reviewed on application.

or message on WhatsApp
02

Wholesale and bulk quotation

Holding a live enquiry? Send the model, quantity, destination and required Incoterm. We will confirm the supplied scope and available export documents.

or message on WhatsApp
03

OEM authorisation letter for a tender

Bidding a tender that requests a manufacturer authorisation form (MAF)? Send the tender reference, deadline and listed equipment so we can confirm what can be issued.

or message on WhatsApp

Full distributor guide OEM and export enquiries

Instrumentation Lab EquipmentModel Prozessi PX 25
🏭
Manufacturer DirectProduct-specific enquiry, not a generic catalogue
🌍
Destination MatchedConfiguration and delivery scope reviewed together
📄
Decision-Ready ReplyApplicable documentation confirmed before ordering
Product-specific enquiry

Get a quotation your team can evaluate

A bare price can hide configuration, accessories, voltage, documentation and delivery assumptions. Send the product and destination now so the quoted scope can be reviewed before a purchase decision.

Avoid the mismatchDo not approve a generic price that leaves supplied scope unclear.
Your product is attachedNo need to retype the model or copy the page URL.
Move toward an approvable quoteAdd the destination; quantity and tender details can follow.

No account is required. Organisation, quantity and tender details are optional. Include the country code so the team can reach you internationally.

1993
Manufacturing Since
Direct
Manufacturer Supply
Quote-based
International Orders
Model
Prozessi PX 25

Overview

The Multi Variable Control Trainer Prozessi PX 25 is designed for teaching basic and advanced process control principles in complex systems. This Multi Variable Control Trainer is a quadruple tank system featuring five transparent process tanks, two variable speed pumps and electronic level transmitters for comprehensive multivariable control study.

Product Overview

The Multi Variable Control Trainer Prozessi PX 25 provides a complete platform for studying level control and multivariable system dynamics on a single integrated system. Also known as a Quadruple Tank System, the trainer consists of a supply water tank, two variable speed positive displacement pumps for closed loop water circulation, and five transparent process tanks each fitted with level transmitters and flow dampers. Electronic level transmitters monitor all tank levels and transmit 4-20 mA signals to a Multifunction I/O and NI-DAQMX data acquisition module connected to a computer via USB communication. Variable frequency drives control the two pumps, allowing direct manipulation of system inputs through software. All components are mounted on a standalone support structure. The Multi Variable Control Trainer is computerized, compact and self-contained with non-corrosive wetted parts throughout. It enables study of single-variable level control, second-order system dynamics (both interacting and non-interacting tanks), cascade control configurations, three-tank blend control and three-tank MIMO (multiple-input multiple-output) control, plus the full quadruple tank control problem.

Key Features

Key Features

  • Multi Variable Control Trainer: quadruple tank system for advanced control study
  • Five transparent process tanks for visual observation of level dynamics
  • Two variable speed positive displacement pumps with VFD control
  • Electronic level transmitters on all five tanks
  • Flow dampers on each tank for configurable system dynamics
  • Computer-based control via NI-DAQMX and variable frequency drives
  • Closed loop water circulation system
  • Compact, self-contained standalone structure
  • Non-corrosive wetted parts for long service life
  • USB communication for direct computer integration

Experiments

  • Study of level control with open loop response
  • Study of on/off controller for level regulation
  • Study of proportional controller
  • Study of proportional integral controller
  • Study of proportional derivative controller
  • Study of proportional integral derivative (PID) controller
  • Controller tuning by open loop method
  • Controller tuning by closed loop method
  • Stability analysis of closed loop systems
  • Study of second order interacting tank systems
  • Study of second order non-interacting tank systems
  • Study of cascade control configurations
  • Study of three tank blend control
  • Study of three tank MIMO (multiple-input multiple-output) control
  • Study of quadruple tank control problem

Construction and Design

The Multi Variable Control Trainer Prozessi PX 25 is built on a standalone support structure housing five transparent acrylic process tanks arranged for multiple control topology configurations. Each tank is equipped with an electronic level transmitter (4-20 mA output) and a flow damper for controlling inter-tank flow rates. A supply tank constructed from SS304 stainless steel feeds water to two variable speed positive displacement pumps. Each pump is driven by its own variable frequency drive (VFD), allowing independent software control of pump speeds through USB communication. Water flows from the pumps to the process tanks following the configured topology. Flow dampers on each tank provide tunable resistance to flow, creating variable system dynamics between tanks. The Multi Variable Control Trainer supports multiple tank connection configurations, enabling study of interacting systems, non-interacting systems, cascade arrangements and MIMO control problems. All level transmitter signals feed to an NI-DAQMX data acquisition module connected to a computer via USB port. The variable frequency drives receive analog command signals from the computer, enabling real-time closed loop control. The entire system is self-contained on the standalone frame with non-corrosive materials in all wetted components.

Software and Control

The Multi Variable Control Trainer is fully computerized, with direct software control of pumps via variable frequency drives and real-time monitoring of all five tank levels through the NI-DAQMX data acquisition system. Students can implement open loop, ON/OFF, P, PI, PD and full PID controllers in software, with automatic or manual controller tuning capabilities. The system supports stability analysis through frequency response measurements and can be reconfigured for multiple tank control topologies through simple software commands.

Scope of Delivery

  • Multi Variable Control Trainer Prozessi PX 25 complete assembly
  • Standalone support structure with piping
  • Supply tank, SS304 stainless steel
  • Five transparent acrylic process tanks with graduated scales
  • Five electronic level transmitters, 4-20 mA output
  • Flow dampers for each process tank
  • Two variable speed positive displacement pumps
  • Two variable frequency drives for pump control
  • NI-DAQMX Multifunction I/O data acquisition module
  • USB cable and interconnecting cables
  • Power cords and electrical connections
  • Control software with documentation
  • User manual and experimental procedures

Optional Accessories

  • Additional flow dampers for fine tuning
  • Data logging and analysis software
  • Extended USB cable for remote installation
  • Calibration kit for level transmitters

Specifications

Multi Variable Control Trainer Prozessi PX 25 — Technical Specifications

Specification Value
Product Multi Variable Control Trainer, Quadruple Tank System
Model Prozessi PX 25
Process Tanks Five transparent tanks with level transmitters
Level Transmitters Electronic, 4-20 mA output (one per tank)
Water Supply Tank SS304 stainless steel
Pumps Two variable speed positive displacement pumps
Pump Control Variable frequency drives
Flow Dampers Installed on each process tank
Data Acquisition NI-DAQMX Multifunction I/O with USB communication
Wetted Materials Non-corrosive throughout
Structure Standalone support frame

Technical Data

Tank and Level Measurement Components

Component Specification
Process Tank 1 Transparent acrylic with level transmitter and flow damper
Process Tank 2 Transparent acrylic with level transmitter and flow damper
Process Tank 3 Transparent acrylic with level transmitter and flow damper
Process Tank 4 Transparent acrylic with level transmitter and flow damper
Process Tank 5 Transparent acrylic with level transmitter and flow damper
Level Transmitter Type Electronic, Two wire, 4-20 mA output
Flow Dampers Variable restriction orifices on each tank
Supply Tank SS304 stainless steel

Pumping and Control System

Component Specification
Pump 1 Variable speed positive displacement pump
Pump 2 Variable speed positive displacement pump
Pump Drive 1 Variable frequency drive (VFD) with USB control
Pump Drive 2 Variable frequency drive (VFD) with USB control
Flow Rate Control Software-commanded variable pump speed

Data Acquisition and Communication

Component Specification
DAQ Module NI-DAQMX Multifunction I/O
Communication Protocol USB port to computer
Level Transmitter Inputs 5 analog channels (4-20 mA)
Pump Control Outputs 2 analog command channels to VFDs
Real-time Operation Direct computer control via USB

Buying Multi Variable Control Trainer: Distributor & Tender Guidance

Multi Variable Control Trainer is the product name procurement teams should use when searching, preparing a BOQ or comparing suppliers. A model reference identifies the proposed configuration; it should not replace the product name or the buyer’s required experiment. This equipment is considered for engineering laboratory teaching, demonstration and practical skill development for the applicable discipline.

What to include in the RFQ

State the product name, quantity, destination, curriculum or tender reference, and required experiment, operating range, measurement method, included accessories, utilities, documentation, quantity and delivery destination. This lets the technical team respond against the intended use rather than guess from a model code.

How distributors should quote it

Keep Multi Variable Control Trainer as the BOQ line item. Add the proposed model, included accessories, documentation, packing and delivery basis as separate fields so the end buyer can verify the offer.

How to compare suppliers

Compare the offered experiment coverage, measurable parameters and supplied scope line by line before selecting an equivalent model. Record exclusions and alternatives in writing before commercial comparison.

Why Buy From Scientico

🏭

In-House Manufacturer

Designed & built in our Ambala facility since 1993 — not a reseller. Full control over quality & customisation.

✅

Configuration Review

Specifications, documentation and options are confirmed against the selected model.

🌏

International Enquiries

Share your destination and procurement requirements for an export quotation.

📦

Quote-Based Supply

Send the model, quantity and delivery location for a tailored proposal.

🛠

Support Scope

Support and warranty terms are documented in the applicable quotation.

🎓

Built for Teaching

Designed around curriculum experiments with clear, repeatable, hands-on results.

Frequently Asked Questions

Q1: What is a quadruple tank system in the Multi Variable Control Trainer? A: A quadruple tank system (5 total tanks) is a benchmark problem in multivariable control used to study systems where changing one pump affects multiple tank levels, requiring coordinated control of two pumps to regulate four process tank levels simultaneously.

Q2: How many independent inputs and outputs does the Multi Variable Control Trainer have? A: The Multi Variable Control Trainer has two pump inputs (variable frequency drives) and five tank level outputs (level transmitters), allowing study of 2x5 MIMO control problems.

Q3: What is the purpose of flow dampers in the Multi Variable Control Trainer? A: Flow dampers provide tunable resistance between tanks, allowing students to configure different system topologies (interacting vs. non-interacting) and adjust the dynamics for different control experiments.

Q4: How is the Multi Variable Control Trainer controlled? A: The system is fully computerized. Students write or load control algorithms in software, which commands the variable frequency drives. Level feedback from all five transmitters is monitored in real-time through USB communication.

Q5: What control problems can be studied on the Multi Variable Control Trainer Prozessi PX 25? A: Students can study single-tank level control, cascade control, blend control of three tanks, 2x2 and 2x5 MIMO control problems, and the full quadruple tank benchmark problem used in advanced control courses.

Related Guides & Resources

In-depth guides from Scientico on Instrumentation lab setup, experiments and procurement.

Multi Variable Control Trainer | Prozessi PX 25

Related Laboratory Equipment

Explore related apparatus in this equipment range. Request a model-specific international quotation.

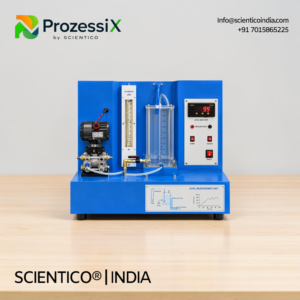

Multi Process TrainerMulti Process Trainer | Prozessi PX 24Non-Linear-Level-ControlNon Linear Level Control | Prozessi PX 31magnetic levitation control trainerMagnetic Levitation Control Trainer | NexuMation 08pH value control trainerpH Value Control Trainer | NexuMation 59ight control training system.pngLight Control Training System (Modular Type) | NexuMation 58Pressure Control TrainerPressure Control Trainer | NexuMation 70Level MeasurementLevel Measurement | Prozessi PX 30Pressure Control Trainer by Scientico IndiaPressure Control Trainer | Prozessi PX 17
📄 Download Datasheet

Get the product datasheet

Share your details to open the complete datasheet, then print or save it as a PDF.

Multi Variable Control Trainer | Prozessi PX 25
